Lavastoviglie
Manuale di Istruzioni
16.
Lavastoviglie
Manuale di Istruzioni
MKDW FI6E8316 EHT C

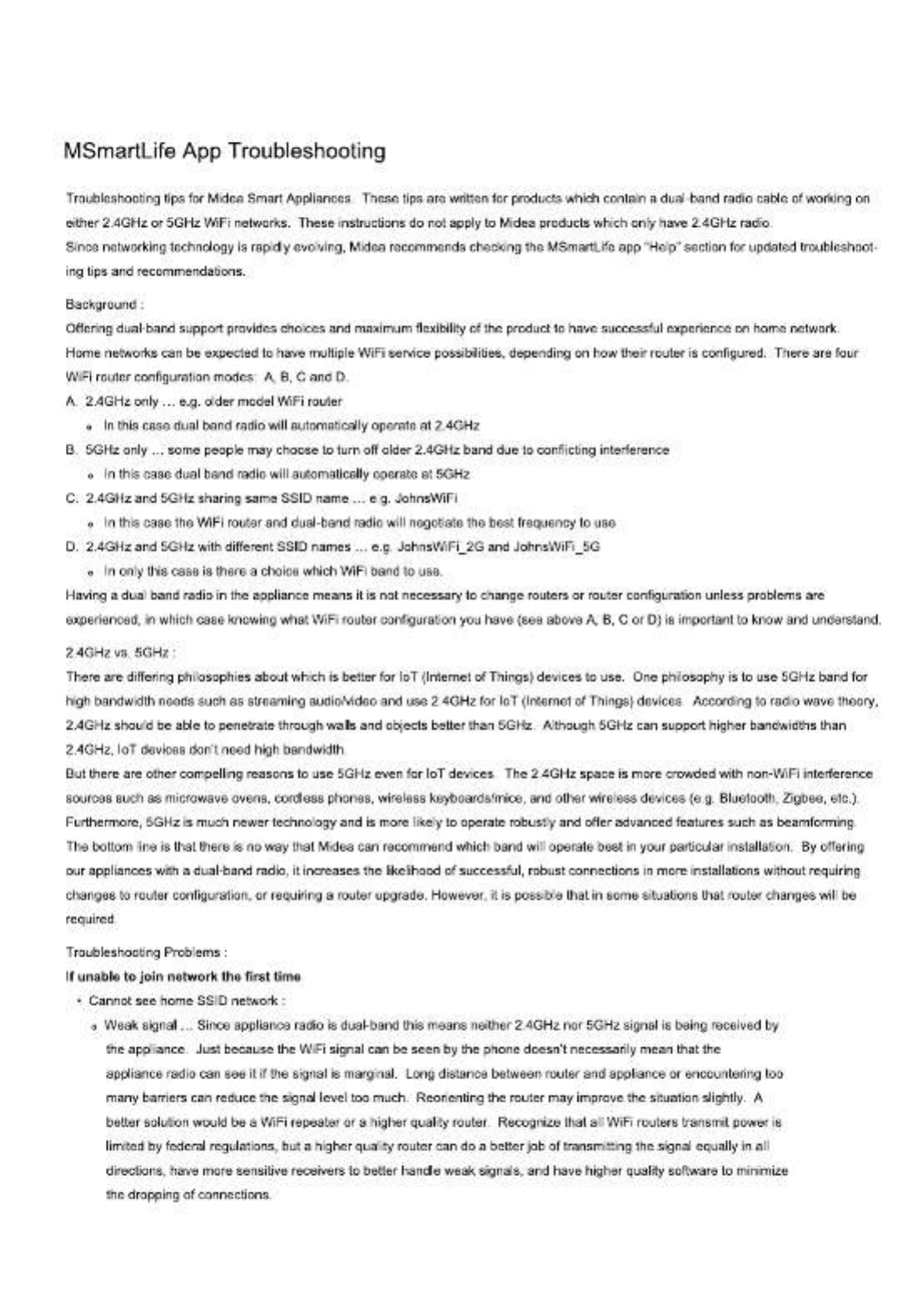

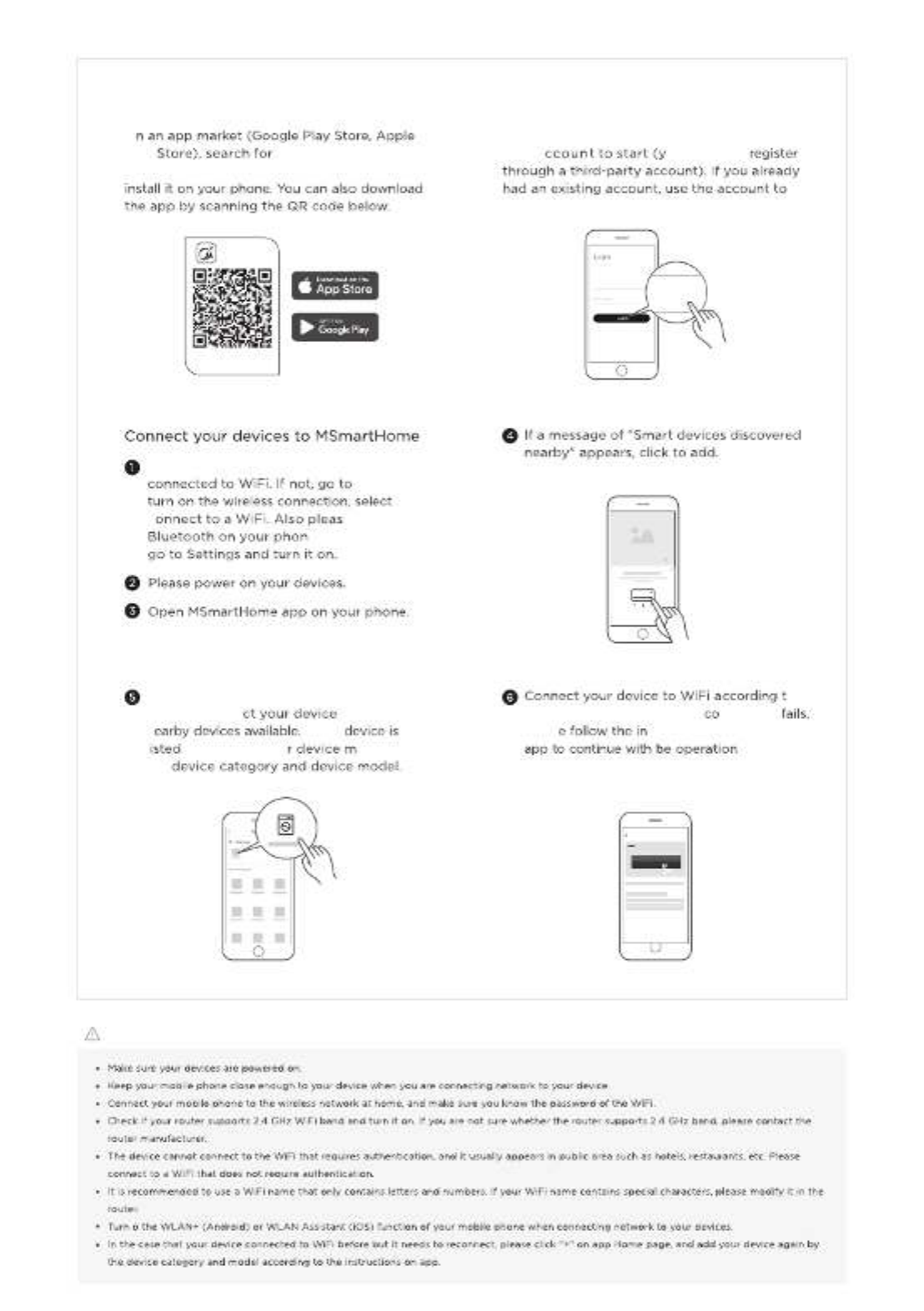

Risoluzione dei problemi dell'App MSmartlife
Suggerimenti per la risoluzione dei problemi per Apparecchi Intelligenti Midea. Questi suggerimenti sono dedicati per i prodotti che
contengono un cavo radio dual-band che funziona con rete WiFi a 2,4 GHz o a 5 GHz. Queste istruzioni non si applicano ai prodotti
Midea che dispongono solo di radio a 2,4 GHz.
Poiché la tecnologia di rete è in rapida evoluzione, Midea vi consiglia di consultare la sezione "Aiuto" nell'app MSmartLife per ottenere
suggerimenti e raccomandazioni aggiornati sulla risoluzione dei problemi.
Sfondo:
L'offerta di supporto dual-band offre scelte e massima flessibilità del prodotto per avere un'esperienza positiva sulla rete domestica.
Le reti domestiche possono avere più servizi WiFi, a seconda di come è configurato il loro router. Esistono quattro modalità di
configurazione del router WiFi: A, B, C e D.
A. Solo 2,4 GHz ... ad es. router WiFi di modello precedente
In questo caso la radio dual band entra in funzione automaticamente a 2,4 GHz
B. Solo 5GHz... ci sono gli utenti che disattivano la vecchia banda a 2,4 GHz a causa di interferenze
In questo caso la radio dual band entra in funzione automaticamente a 5GHz
C. 2,4 GHz e 5 GHz che condividono lo stesso nome SSID ... ad es. JohnsWiFi
In questo caso, il router WiFi e la radio dual band negozieranno la migliore frequenza da utilizzare
D. 2,4 GHz e 5 GHz con nomi SSID diversi … ad es. JohnsWiFi_2G e JohnsWiFi_5G
Solo in questo caso è possibile scegliere quale banda WiFi utilizzare.
Avere una radio dual band nel dispositivo significa che non è necessario cambiare router o configurazione del router a meno che non si
verifichino problemi. In caso di problema, è importante sapere di quale configurazione il router WiFi dispone (vedi sopra A, B, C o D).
2.4GHz vs. 5GHz:
Ci sono diverse opinioni su quale sia la banda più migliore per i dispositivi loT (Internet of Things). Un’opinione sostiene di utilizzare la
banda a 5 GHz se necessita di banda con larghezza elevata, come nel caso di streaming audio/video; mentre occorre adottare 2,4 GHz
per i dispositivi loT (Internet of Things). Secondo la teoria delle onde radio, 2,4 GHz sono in grado di penetrare attraverso pareti e oggetti
in maniera più efficiente rispetto a 5 GHz. Sebbene 5 GHz possa supportare larghezze di banda superiori rispetto a quelle di 2,4 GHz, i
dispositivi loT non necessitano di una larghezza di banda elevata.
Tuttavia, esistono altri motivi che convincono di utilizzare 5GHz per i dispositivi loT. Lo spazio a 2,4 G Hz è più affollato con fonti di
interferenza non di WiFi, come forni a microonde, telefoni senza fili, tastiera/mouse wireless e altri dispositivi wireless (ad esempio
Bluetooth, Zigbee, ecc.).
Mentre 5GHz è una tecnologia molto più recente ed è più probabile che funzioni in modo robusto e offra funzionalità avanzate come il
beamforming.
Il punto è che Midea non fornisce suggerimenti su quale banda sia la migliore per la vostra installazione in questione. Tuttavia, offriamo
gli apparecchi con radio dual-band, che può aumentare le probabilità che la connessione avvenga con successo e sia robusta in più
installazioni, senza necessità di modifiche alla configurazione del router o aggiornamento del router. Ma in alcune situazioni è possibile
che siano necessarie determinate modifiche al router.
Risoluzione dei problemi:
Se è impossibile accedere alla rete la prima volta
Impossibile visualizzare la rete SSID domestica:
Segnale debole ... Poiché la radio dell'apparecchio è dual-band, ciò significa che né il segnale a 2,4 GHz né quello a 5 GHz
vengono ricevuti dall'apparecchio. Solo perché il segnale WiFi è visibile dal telefono non significa necessariamente che la radio
dell'apparecchio possa riceverlo se il segnale è molto debole. Una lunga distanza o un numero elevato di barriere tra router e
apparecchio può ridurre significativamente il livello del segnale. Riorientare il router può migliorare leggermente la situazione. Una
soluzione migliore sarebbe quella di usare un ripetitore WiFi o un router di qualità superiore. Si nota che la potenza trasmessa
da tutti i router WiFi è vincolata dalle normative locali, e un router di qualità superiore può trasmettere il segnale in proporzione
uguale in tutte le direzioni. Con i ricevitori con alta sensibilità, è possibile gestire meglio i segnali deboli, e tramite un software di
qualità superiore, è possibile ridurre al minimo l’interruzione delle connessioni.
Rete SSID visualizzata ma non è possibile connettere ad essa:
Reti che richiedono l'autenticazione ... spesso si tratta di reti pubbliche presenti in ristoranti o hotel. I prodotti non possono
accettare l'accordo legale richiesto per connettere alla rete. Si prega di selezionare una rete che non richiede l’autenticazione.
Crittografia insufficiente ... per motivi di sicurezza informatica, Midea sconsiglia di connettere i prodotti a reti non crittografate o
non sufficientemente crittografate (ad es. crittografia WEP).
Lunghezza password ... per motivi di sicurezza informatica, Midea consiglia che le reti abbiano delle password complesse, ma la
lunghezza massima della password è di 32 caratteri.
Password errata ... Se si tenta di accedere ad una rete diversa da quella attualmente in uso dal telefono, è sempre possibile che
la password di rete conservata nel telefono non sia più corretta. In questo caso, è necessario fornire nuove credenziali.
Nome SSID legale ... l'App MSmartLife di Midea accetta qualsiasi nome SSID, ma l'App potrebbe emettere un avviso quando si
tenta di accedere alla rete con determinati caratteri non alfanumerici o in lingua straniera.
Le funzioni WLAN+ (Android) o Assistente WLAN (IOS) sono attive, disattivarle e riconnettersi a Internet.
Se riesce a connettersi alla rete, ma la connessione è instabile
Per le modalità di configurazione WiFi A, B e C, seguire le istruzioni fornite dal produttore del router per apportare le modifiche alla
configurazione del router indicate:
In caso di configurazione del router A (vedi sopra), Midea consiglia di abilitare la banda a 5 GHz (se disabilitato nel router) e di
scegliere un nome SSID distinto per la banda a 5 GHz (ad esempio SSIDname_5G). Quindi seguire le istruzioni di connessione per
accedere alla rete a 5 GHz. Se il router è un router più vecchio a 2,4 GHz, Midea consiglia di aggiornarlo ed usare un router dual-
band più recente.
In caso di configurazione del router B (vedi sopra), Midea consiglia di abilitare la banda a 2,4 GHz (tutti i router che offrono 5 GHz
supportano anche 2,4 GHz) e scegliere un nome SSID distinto per la band a 2,4 GHz (ad esempio SSIDname_2G). Quindi seguire le
istruzioni di connessione per accedere alla rete a 2,4 GHz.
In caso di configurazione del router C (vedi sopra), Midea consiglia di assegnare nomi SSID distinti per le bande 2,4GHz e 5GHz.
Quindi seguire le istruzioni di connessione ad una delle reti, e successivamente seguire le istruzioni per la risoluzione dei problemi
per la modalità WiFi D.
Per questi passaggi non sono necessarie modifiche alla configurazione del router:
In caso di configurazione del router D (vedi sopra), si consiglia di eseguire l’operazione con l’altra banda prima di apportare modifiche
alla configurazione del router o aggiornare il router. In altre parole, se la connessione è instabile utilizzando 2,4GHz, provare 5GHz.
Oppure, se la connessione è instabile utilizzando 5 GHz, prova invece 2,4 GHz. Seguire le istruzioni di seguito "Come impostare la
rete a 2,4GHz o 5GHz".
Le funzioni WLAN+ (Android) o Assistente WLAN (IOS) sono attive, disattivarle e riconnettersi a Internet.
Con la presente, Foshan Shunde Midea Washing Appliances Mfg. Co., Ltd. dichiara che questa lavastoviglie è conforme ai requisiti e ad
altre disposizioni pertinenti della direttiva RE 2014/53/UE. Una copia della Dichiarazione di Conformità è allegata.
Frequenza di esercizio del prodotto:
RF Frequenza di trasmissione Massima potenza di trasmissione
BLE 2402-2480MHz <10dBm
WiFi 2,4G 2412-2472MHz <20dBm
5G WiFi (se hanno) 5180-5240MHz
5260-5320MHz <20dBm
Nota: il prodotto è adatto per essere utilizzato nell'ambiente con temperatura di 4 ~ 40 °C
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
¤
MKDW FI6E8316 EHT C
MASTER KITCHEN
Midea Italia srl a Socio Unico Viale Luigi Bodio, 29
20158 Milano
24 months
www.masterkitchen.it
):
MASTER KITCHEN
MKDW FI6E8316 EHT C
Midea Italia srl
Made in P.R.C.
PART : General Instructions
Please read this manual carefully before using the dishwasher
Keep this manual for future reference.
NOTE:
Reviewing the section on Troubleshooting Tips will help you solve some
common problems by yourself.
If you cannot solve the problem by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modifications without giving prior notice.
SAFETY INFORMATION
3

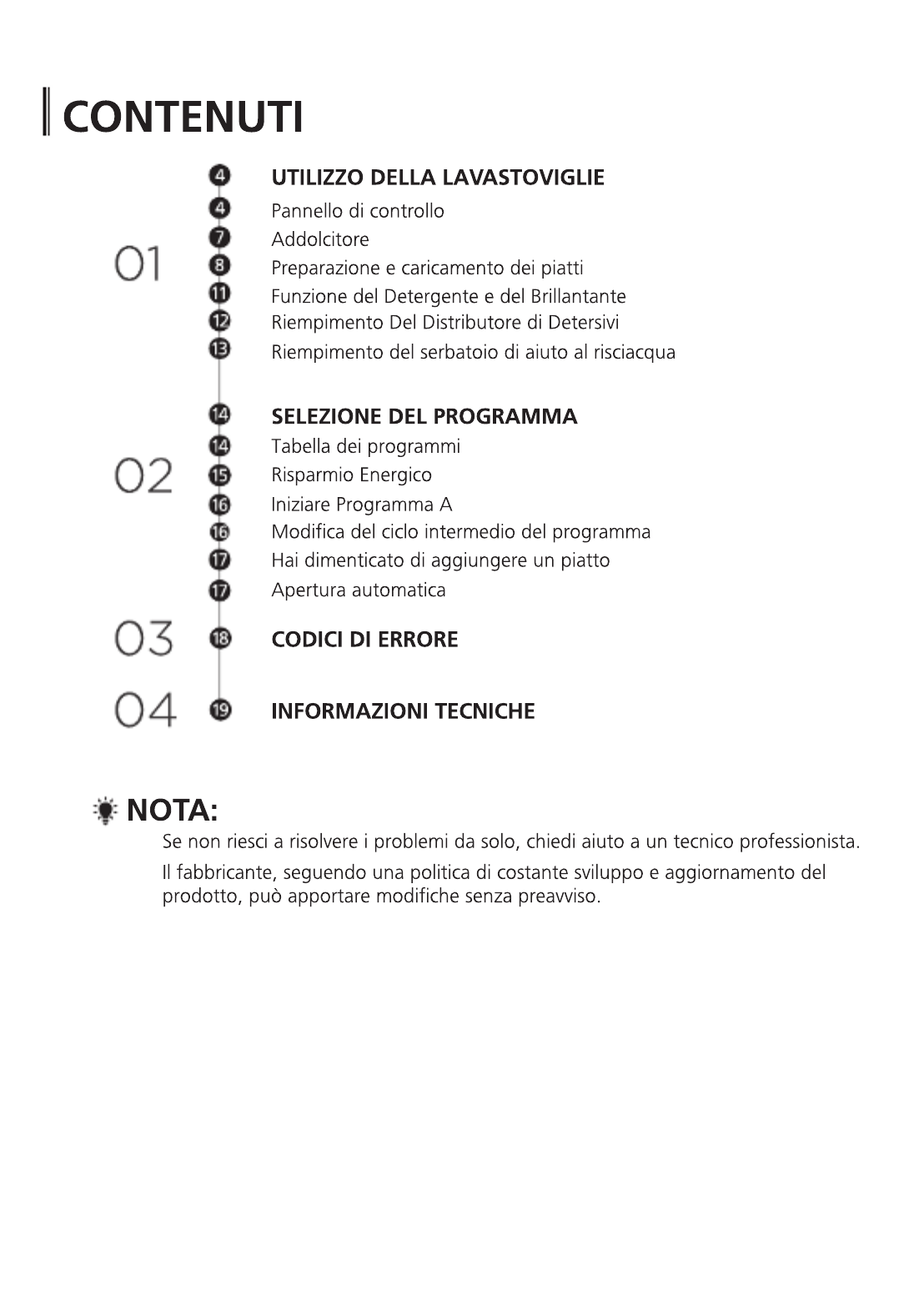

CONTENTS

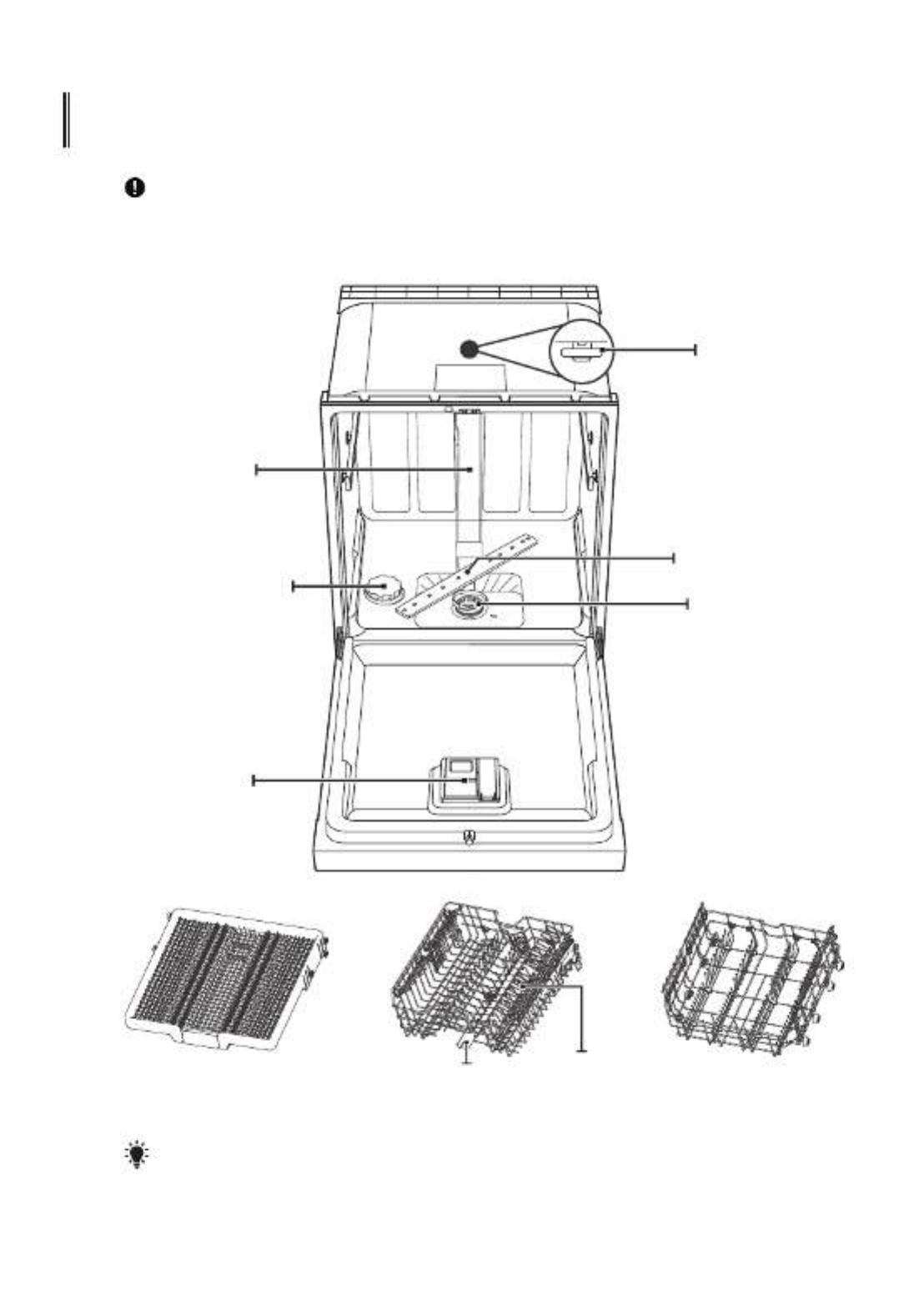

PRODUCT OVERVIEW
8

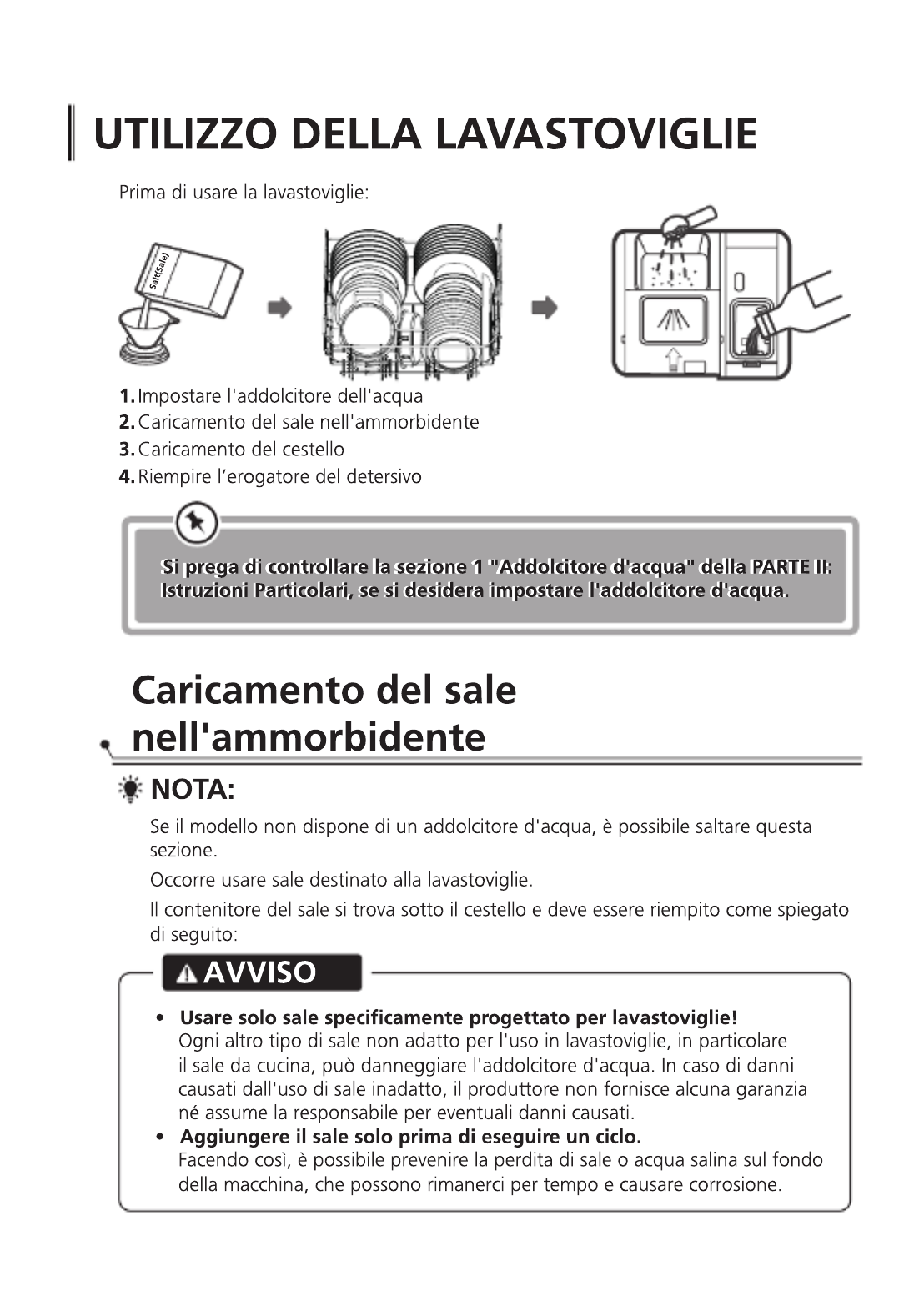

USING YOUR DISHWASHER

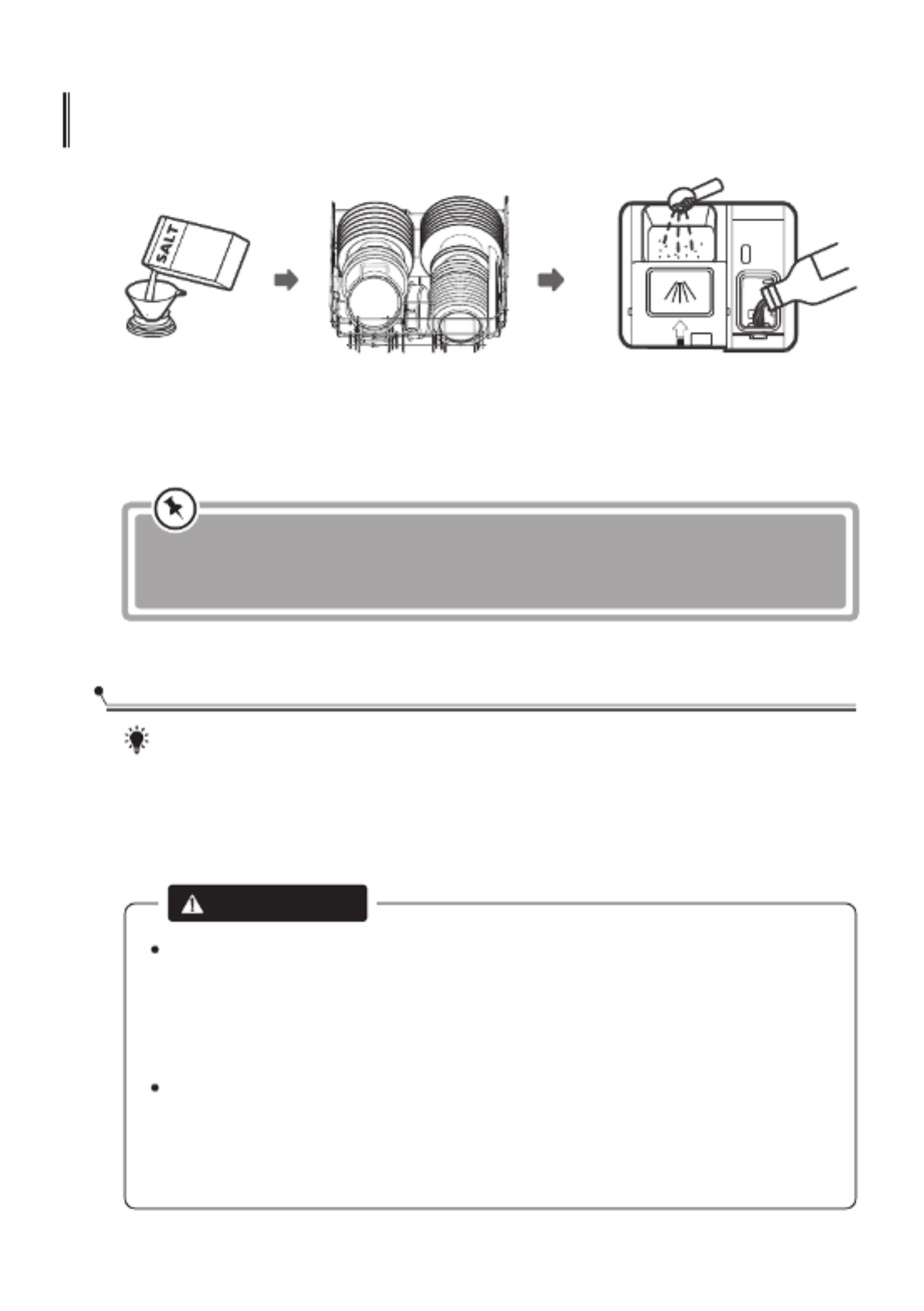

Loading The Salt Into The Softener
Basket Loading Tips
9
9
11
MAINTENANCE AND CLEANING
External Care
Internal Care
Caring For The Dishwasher
13
13
13
16

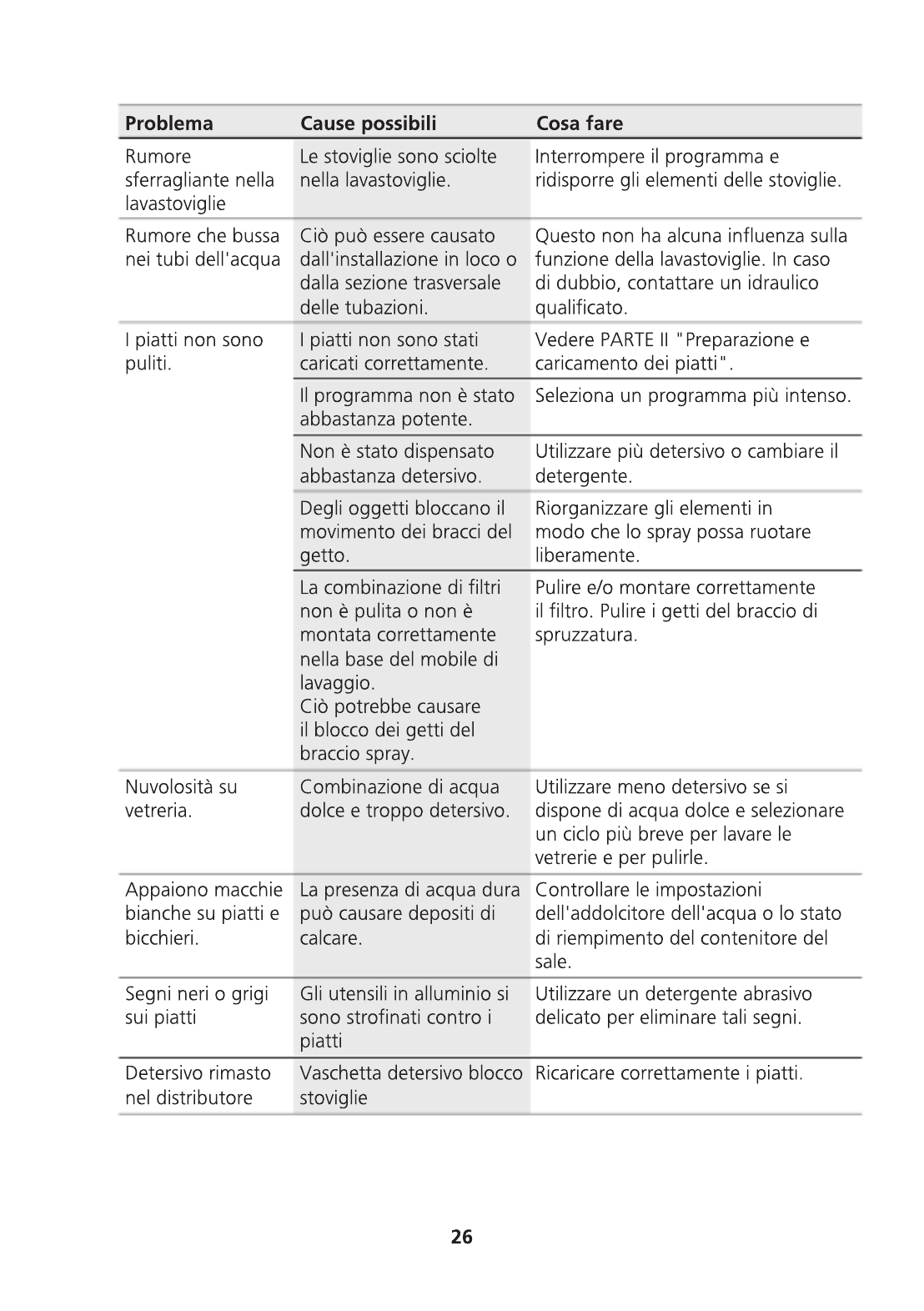

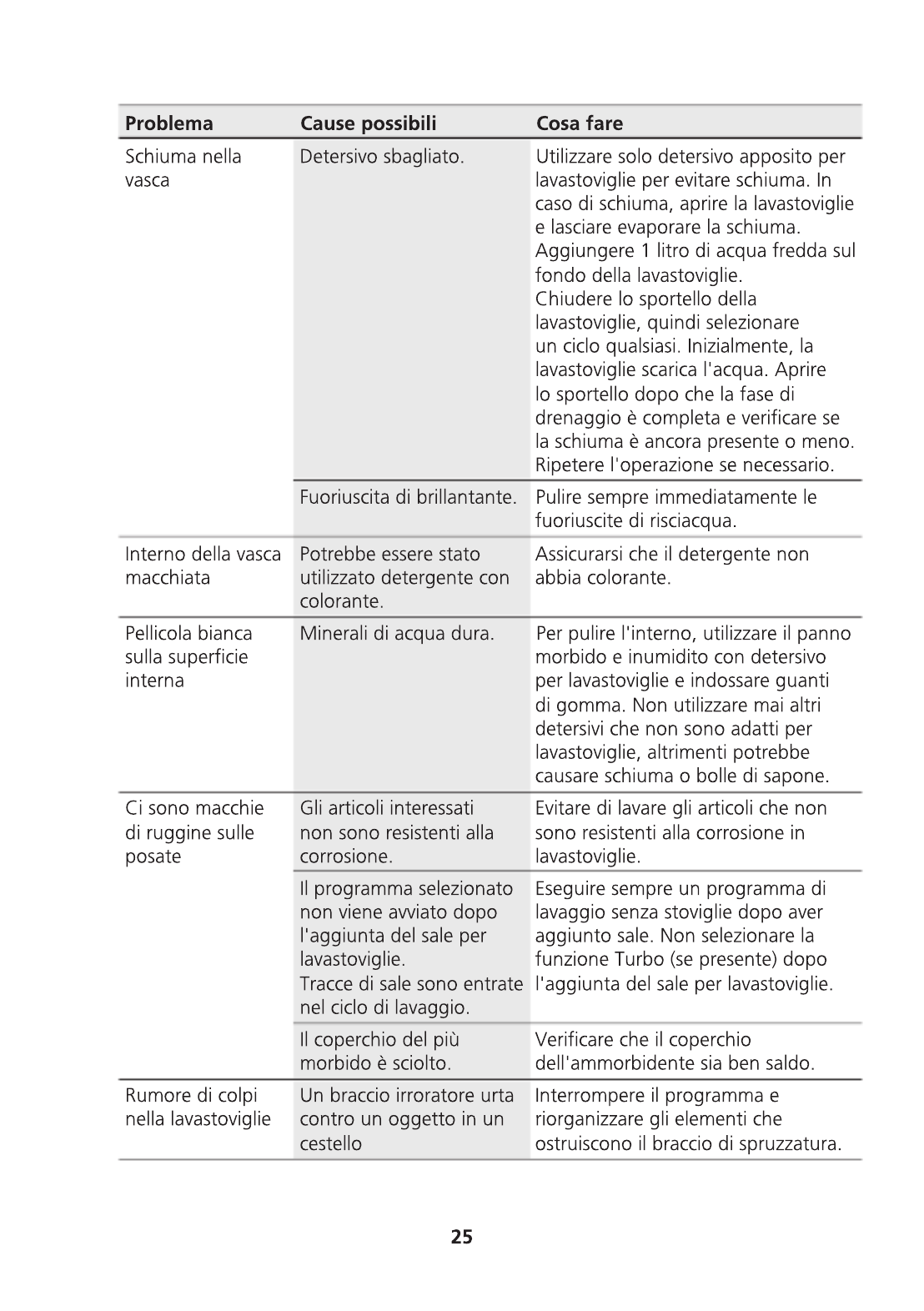

TROUBLESHOOTING TIPS
24

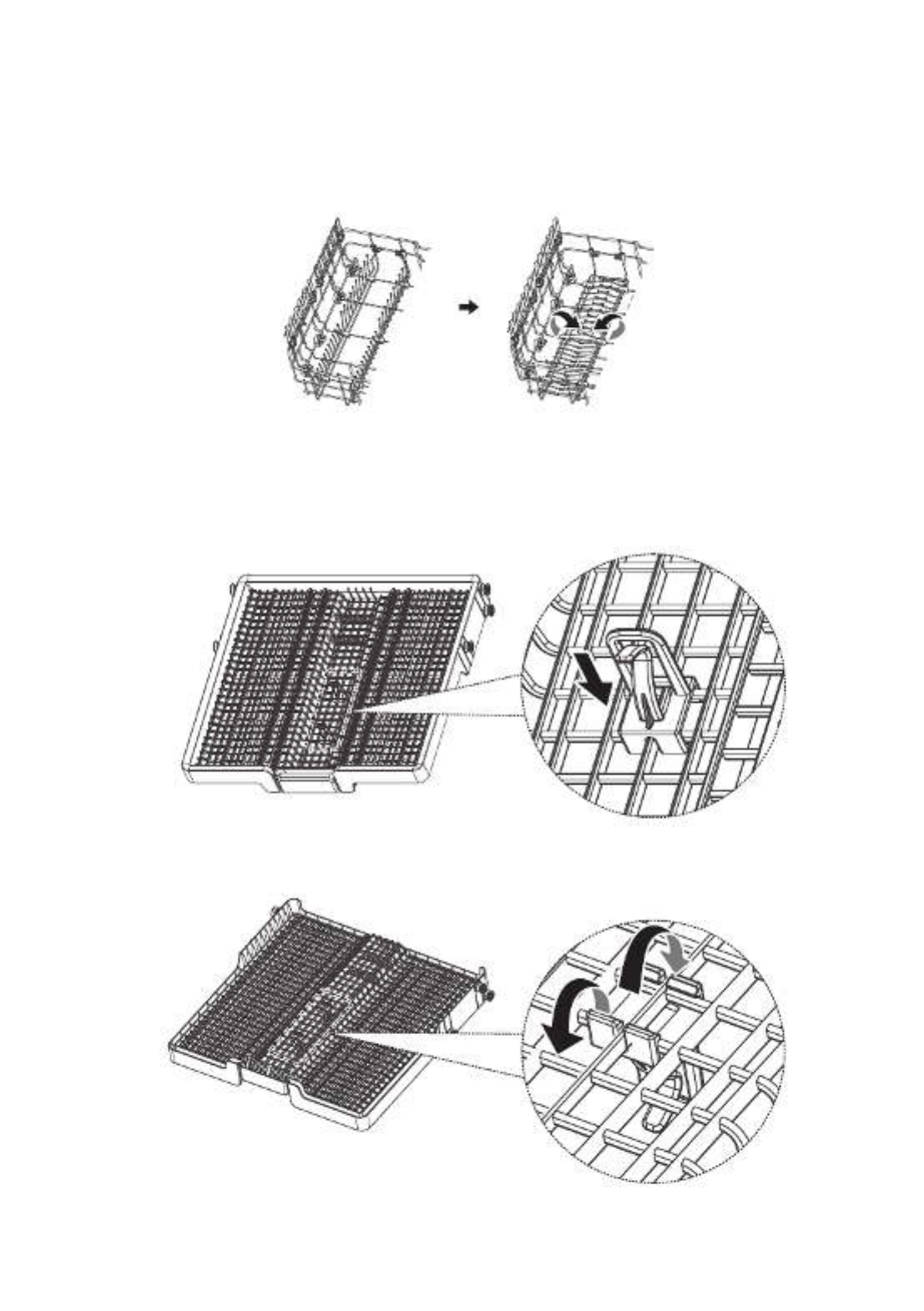

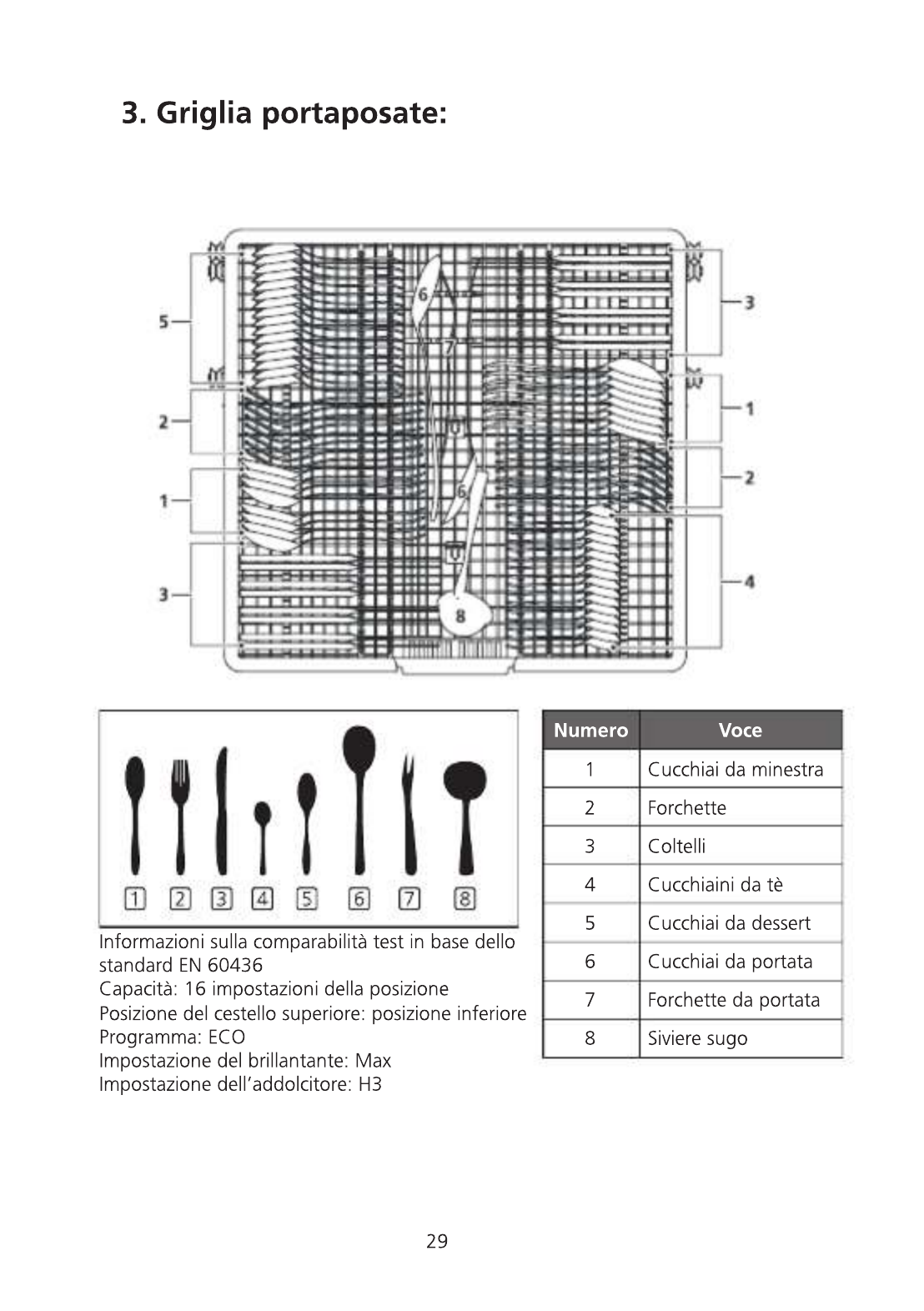

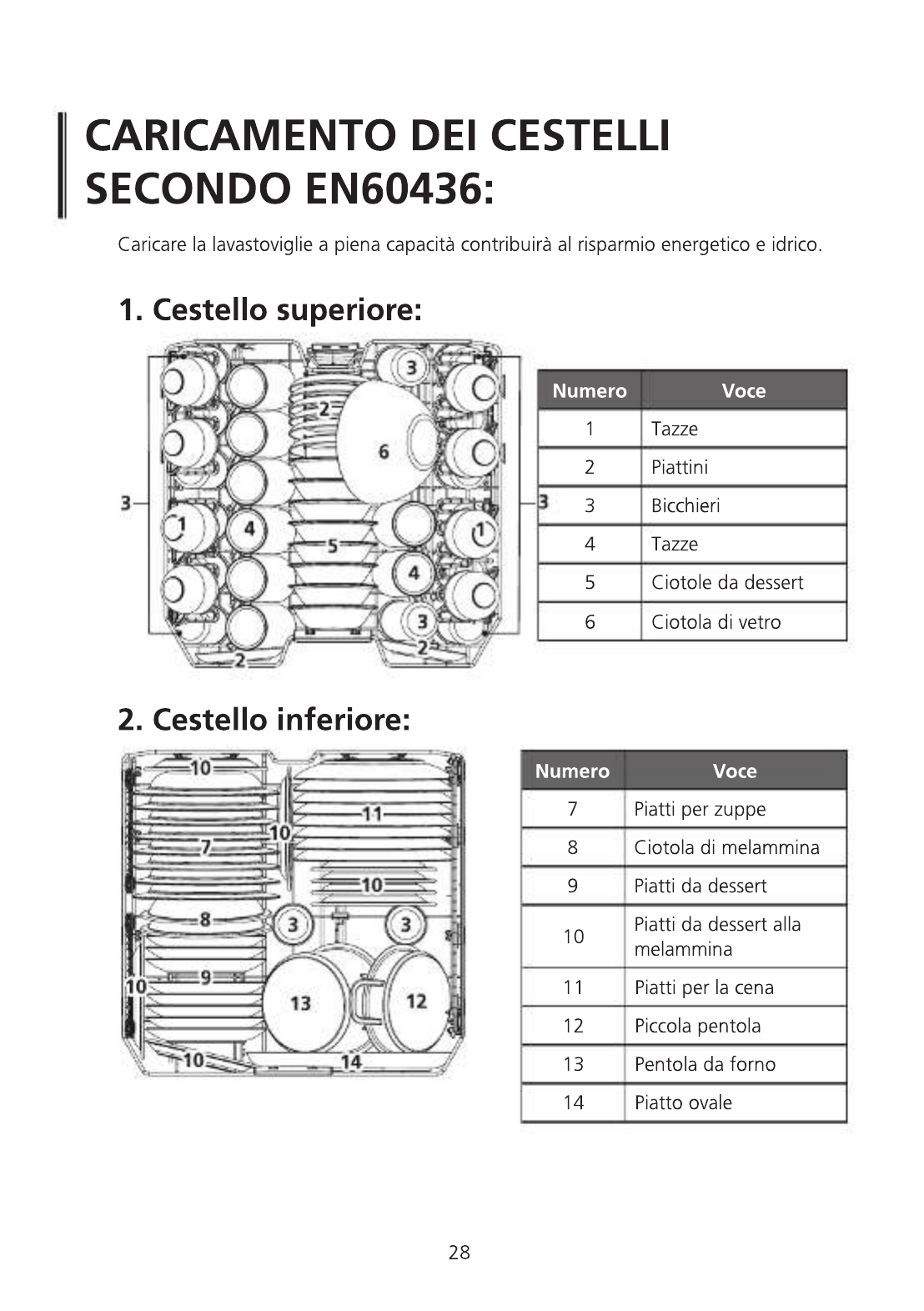

LOADING THE BASKETS
28

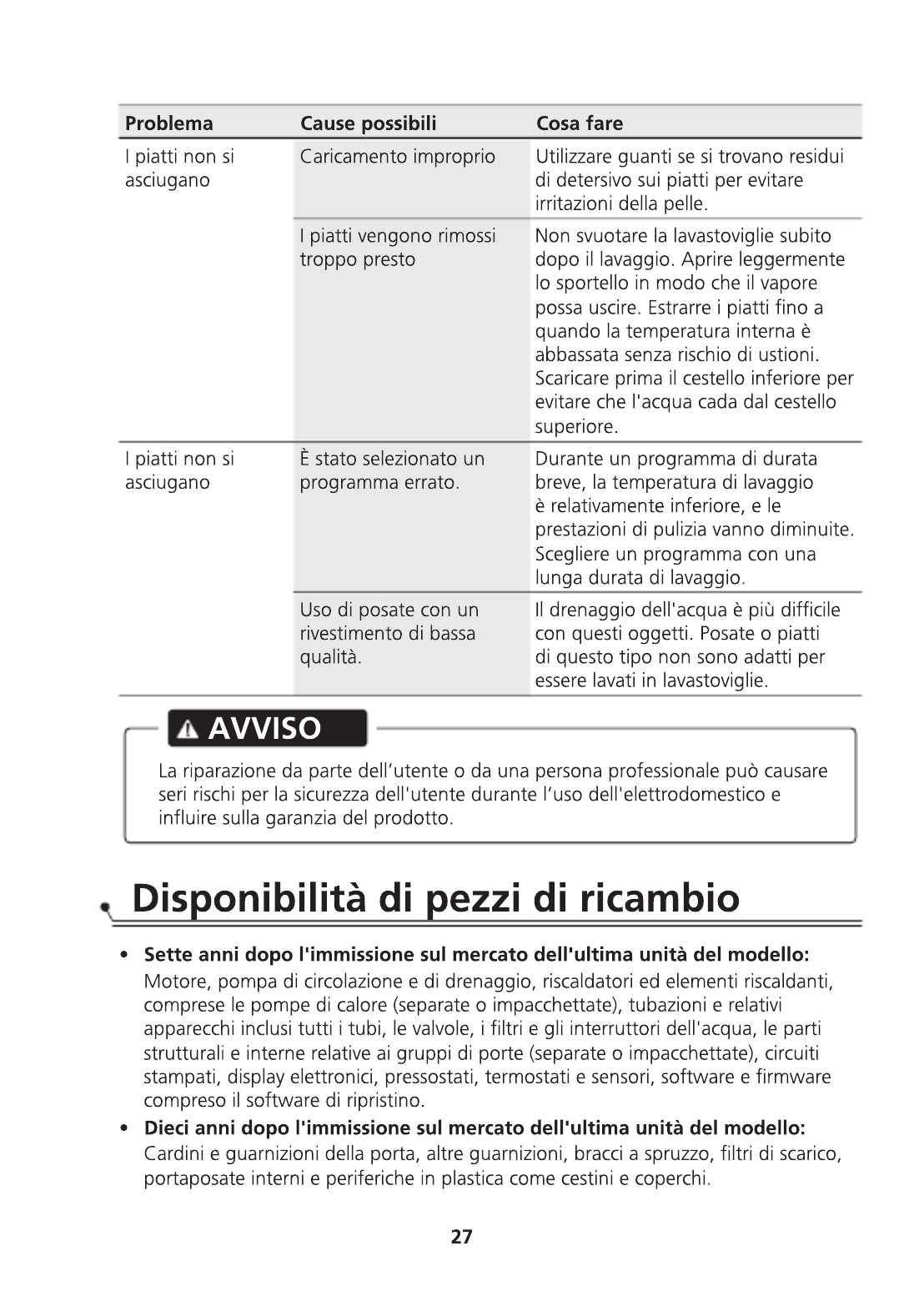

27 Availability Of Spare Parts

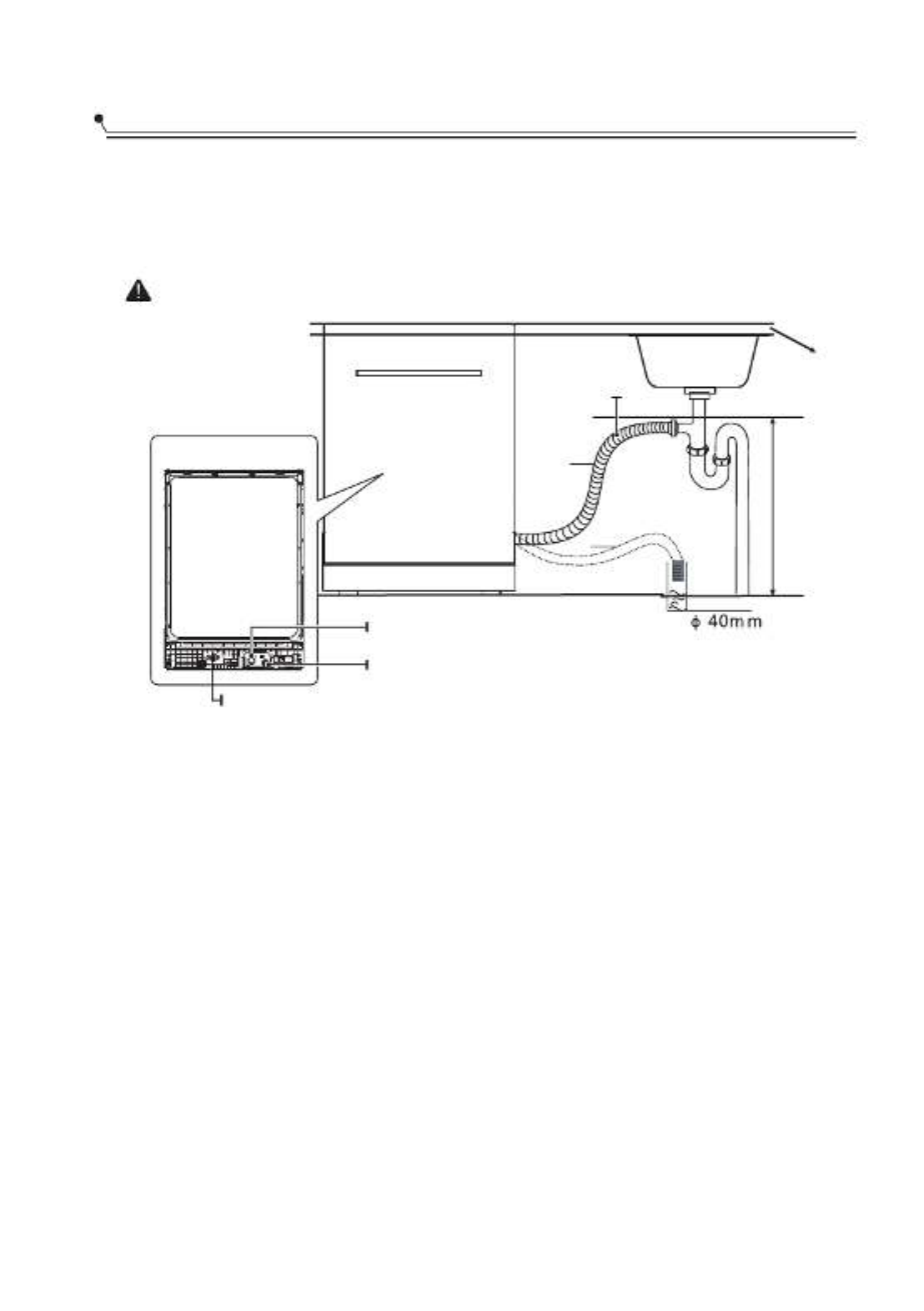

INSTALLATION INSTRUCTION
About Power Connection

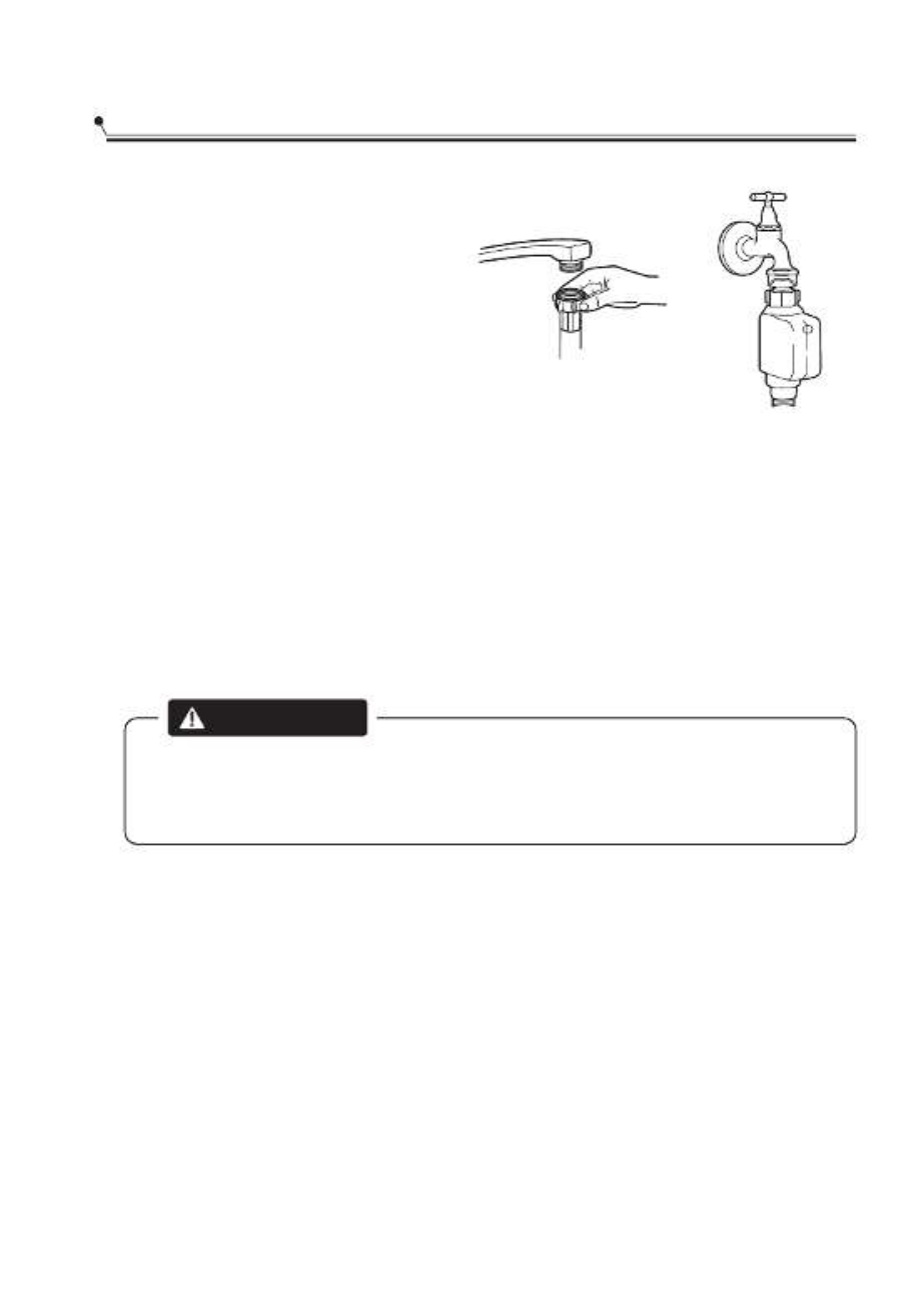

Water Supply And Drain

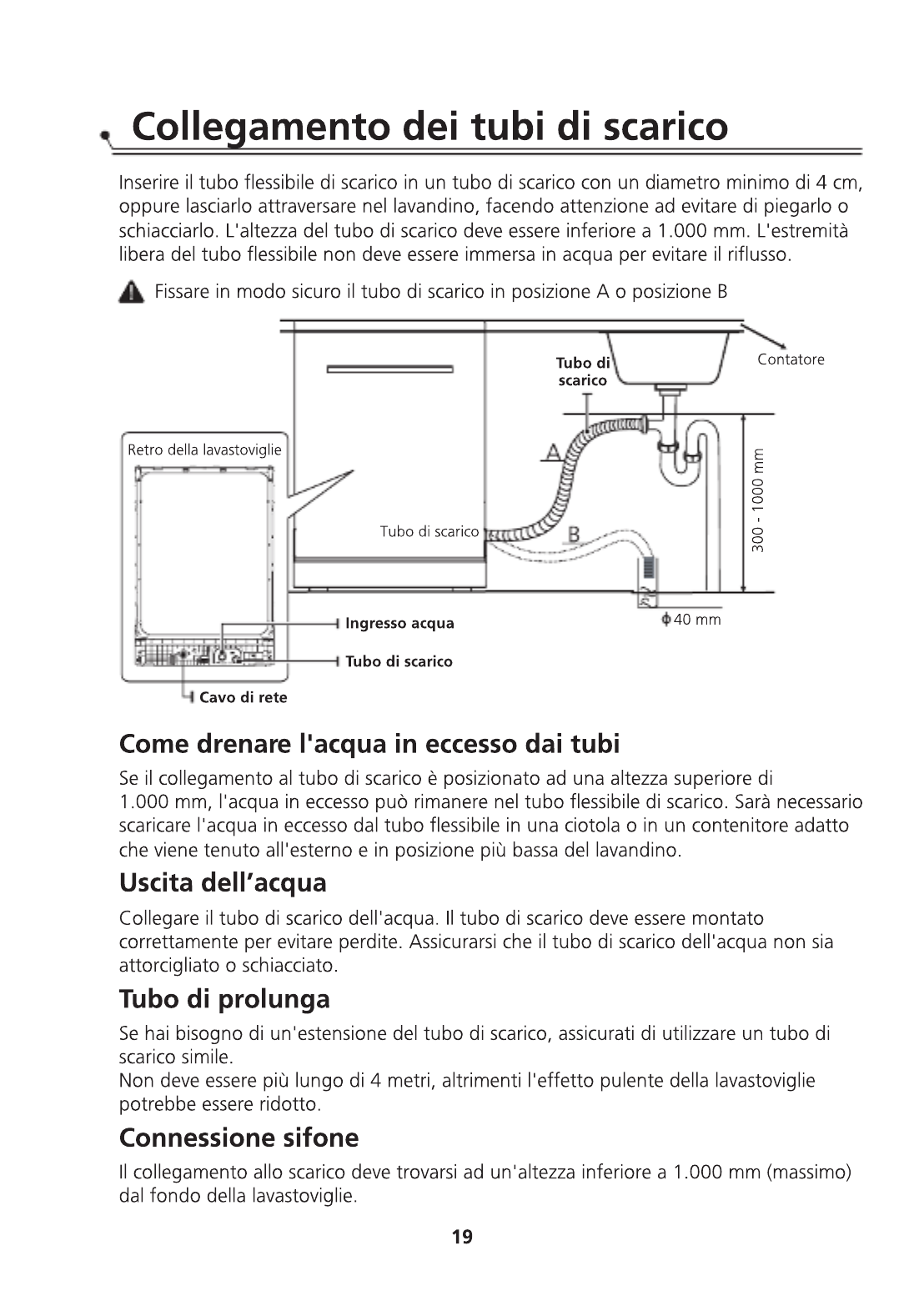

Connection Of Drain Hoses

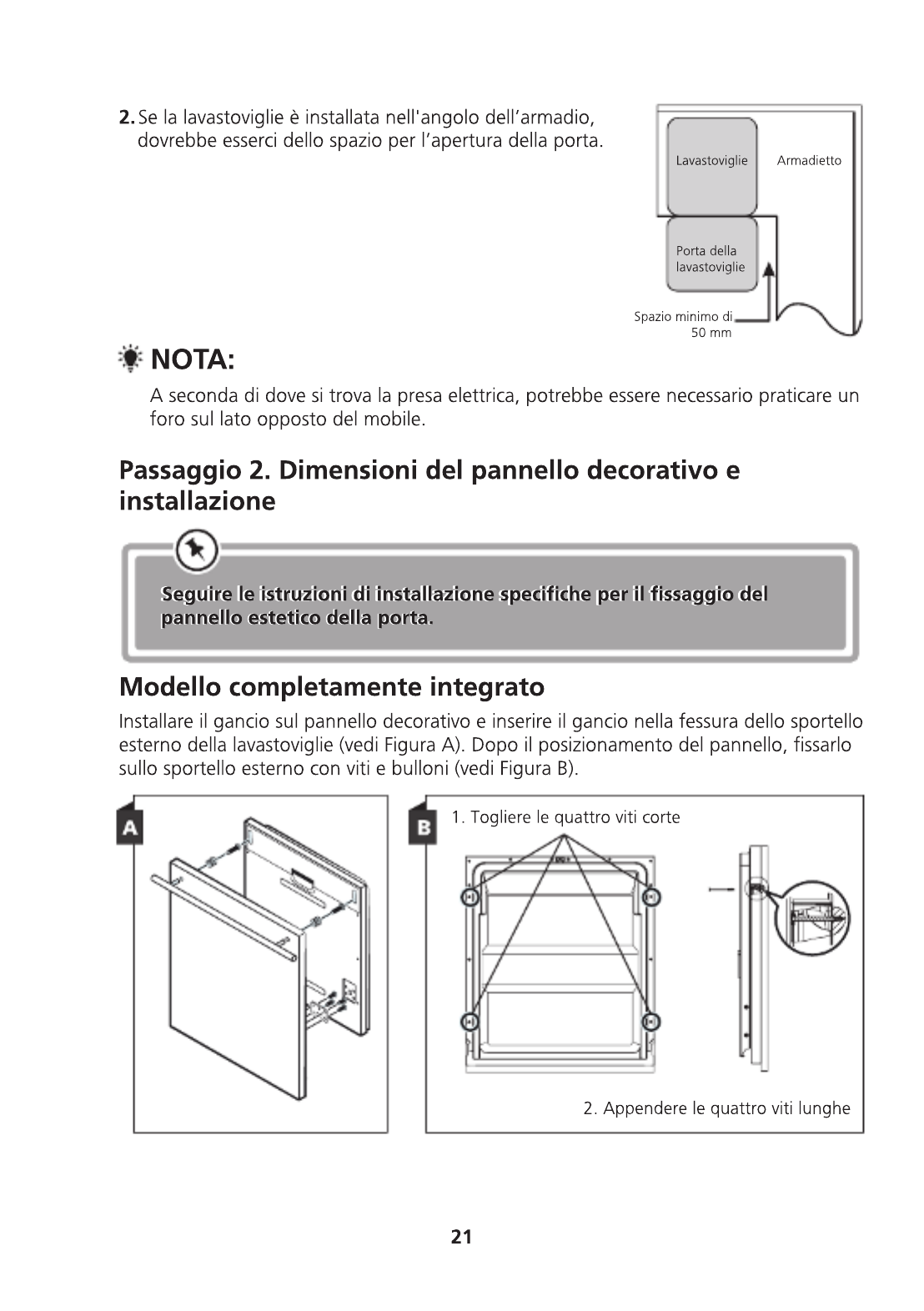

Positioning The Appliance

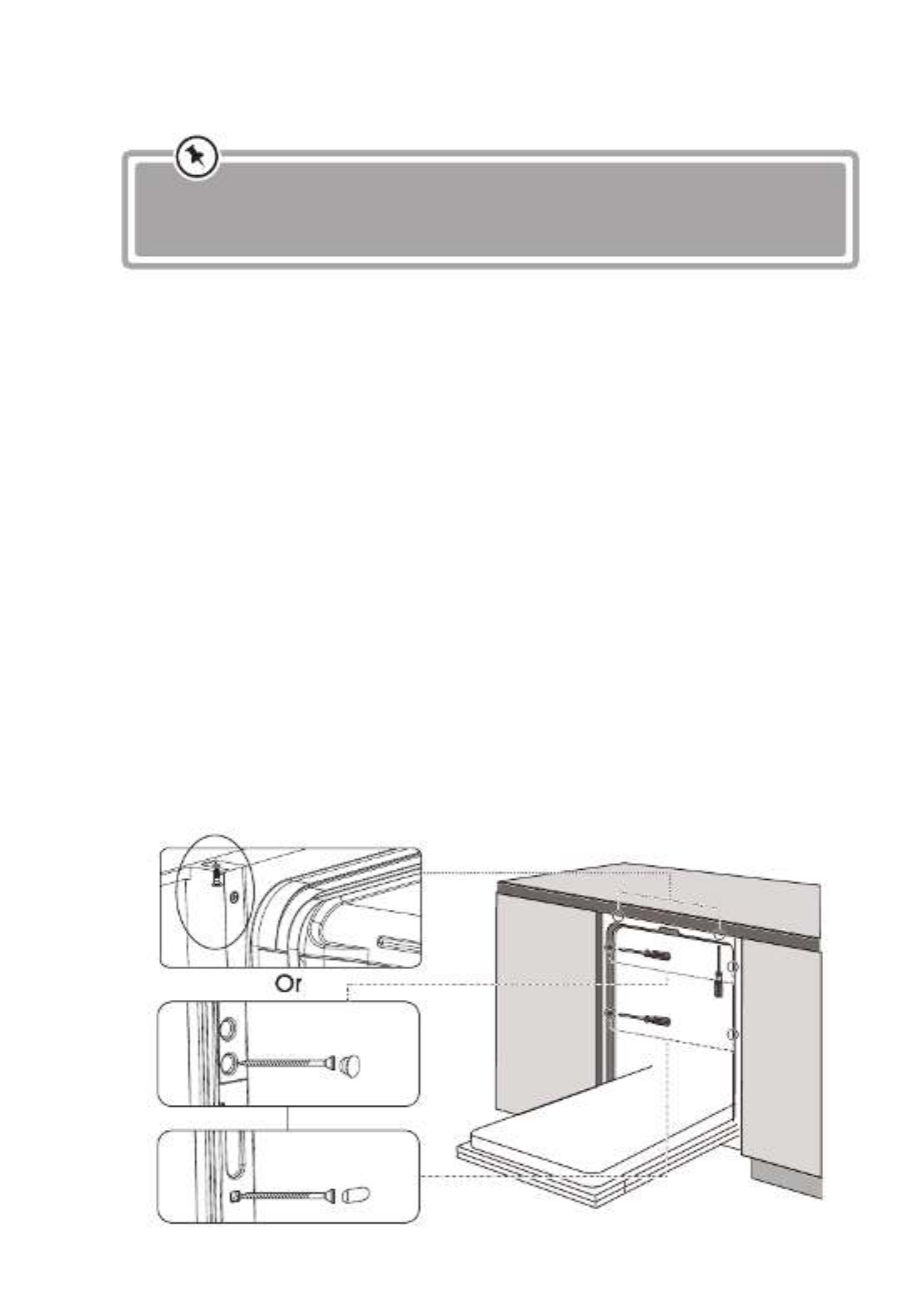

Built-In Installation(for the integrated model)
17
17
18
19
20
20

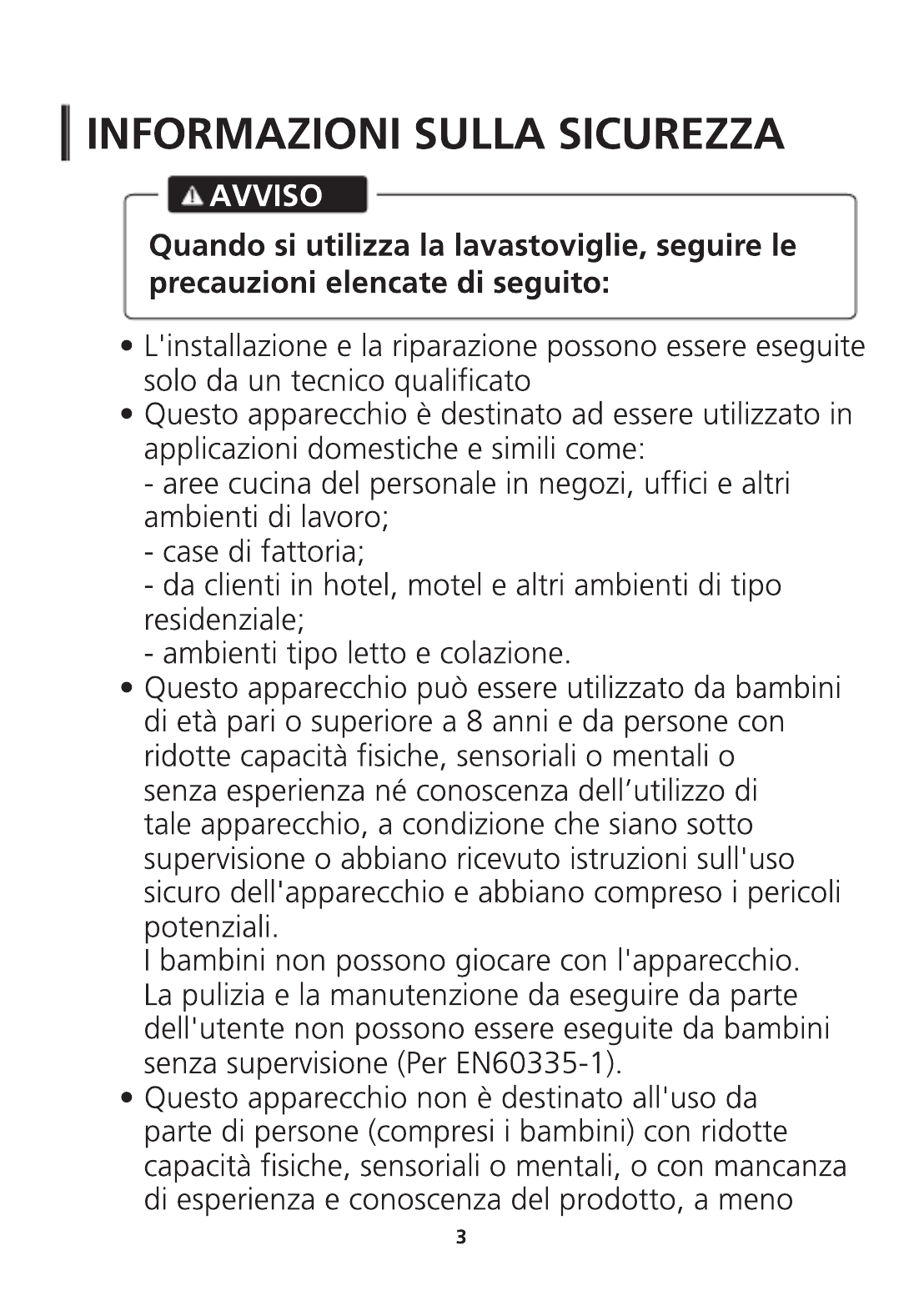

SAFETY INFORMATION
WARNING
When using your dishwasher, follow the
precautions listed below:
Installation and repair can only be carried out by a
qualified technician
This appliance is intended to be used in household
and similar applications such as:
-
working environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be done by children
without supervision. (For EN60335-1)
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
staff kitchen areas in shops, offices and other
This appliance can be used by children aged from 8
years and above and persons with reduced physical
(For IEC60335-1)

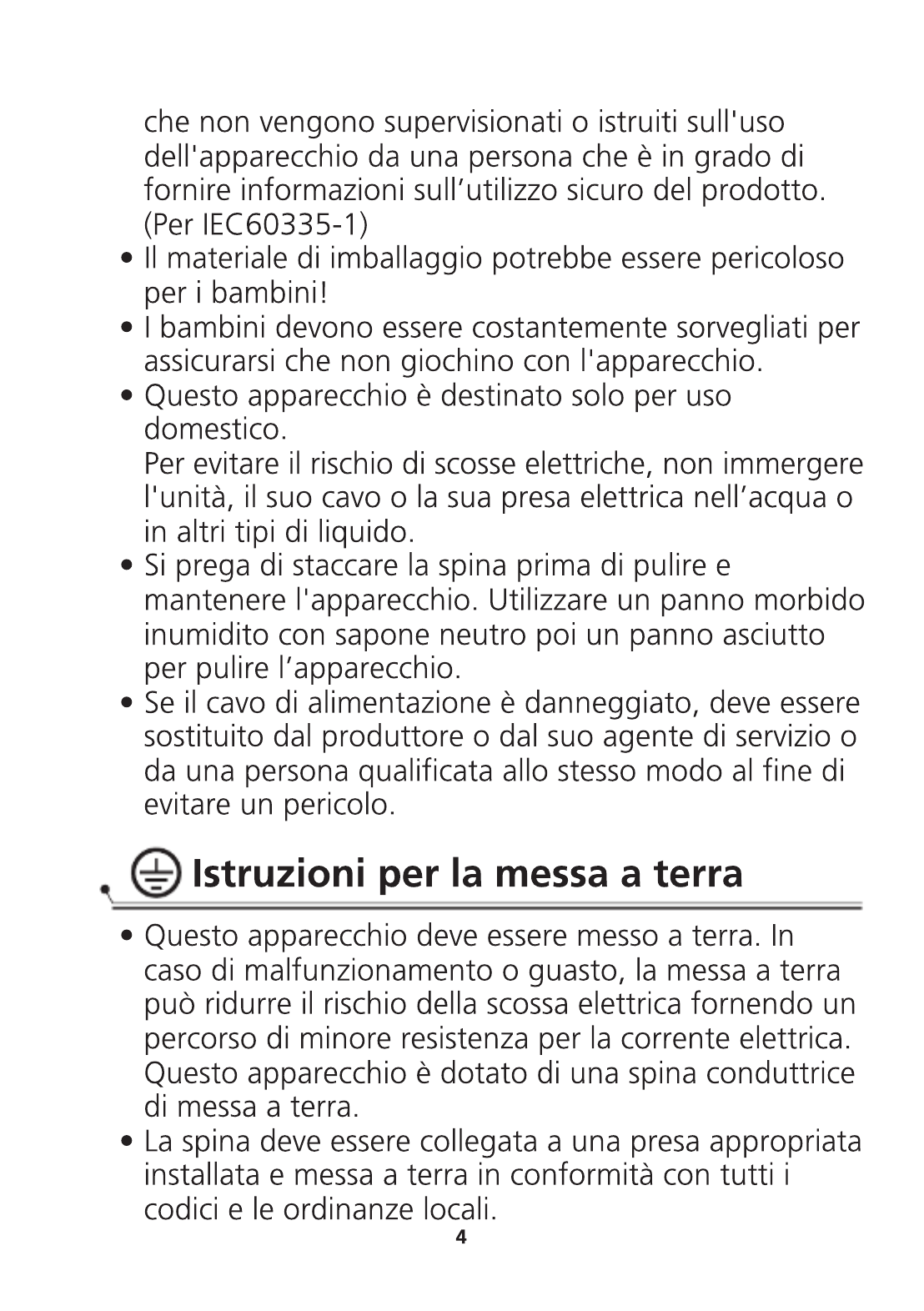

3
Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintenance the
appliance .
Children should be supervised to ensure that they do
not play with the appliance.
Use a soft cloth moisten with mild soap,
and then use a dry cloth to wipe it again.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
Earthing Instructions
4

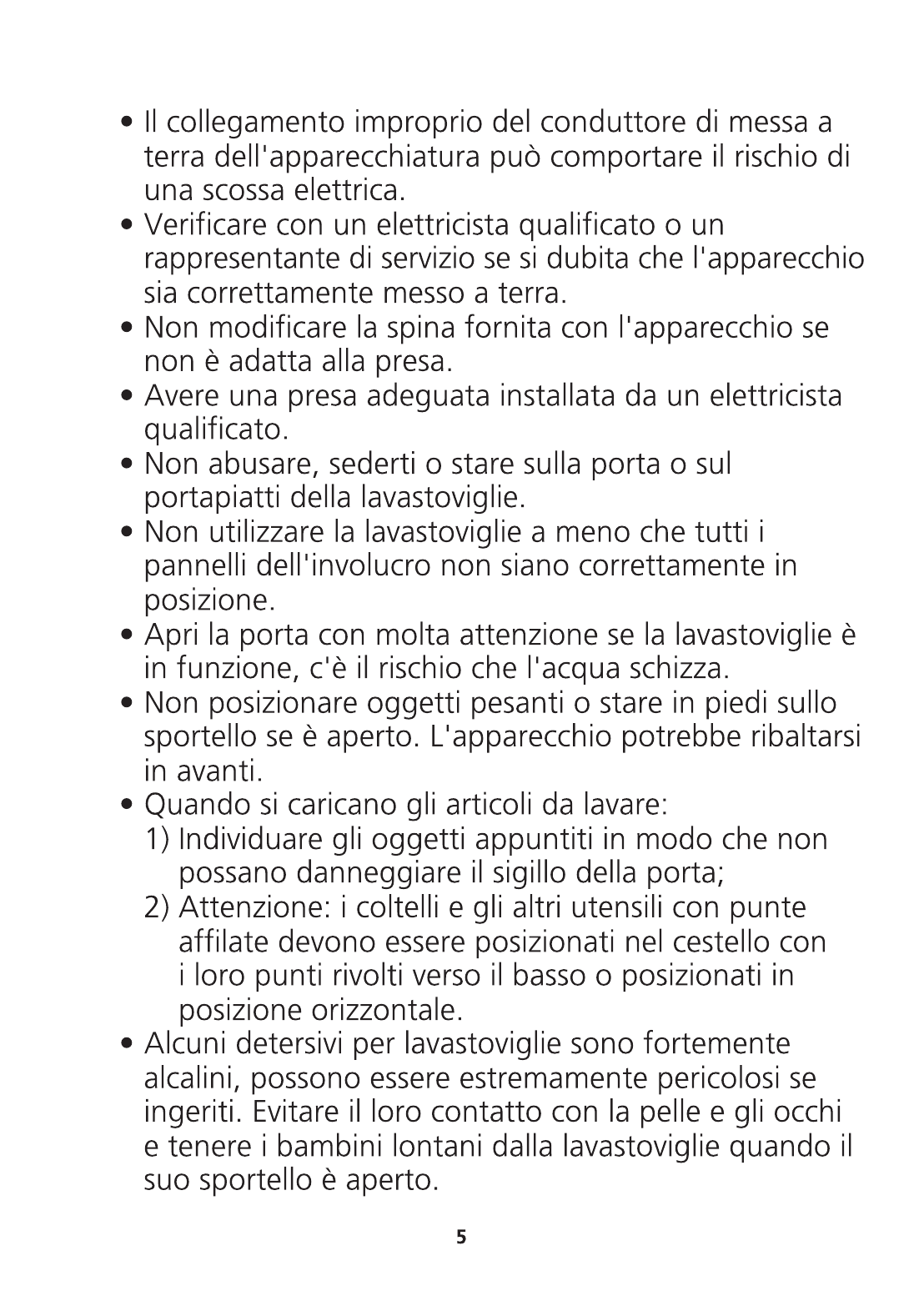

This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the
risk of an electric shock by providing a path of least
resistance of electric current. This appliance is
equipped with an earthing conductor plug.
The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded.
Do not modify the plug provided with the appliance
if it does not fit the outlet.
Have a proper outlet installed by a qualified
electrician.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not operate your dishwasher unless all enclosure
panels are properly in place.
Open the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects on or stand on the
door when it is open. The appliance could tip
forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points facing down or placed in a horizontal
position.
Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door
is open.
Check that there are no detergent residues after
completion of the wash cycle.
Do not wash plastic items unless they are marked
“dishwasher safe” or the equivalent.

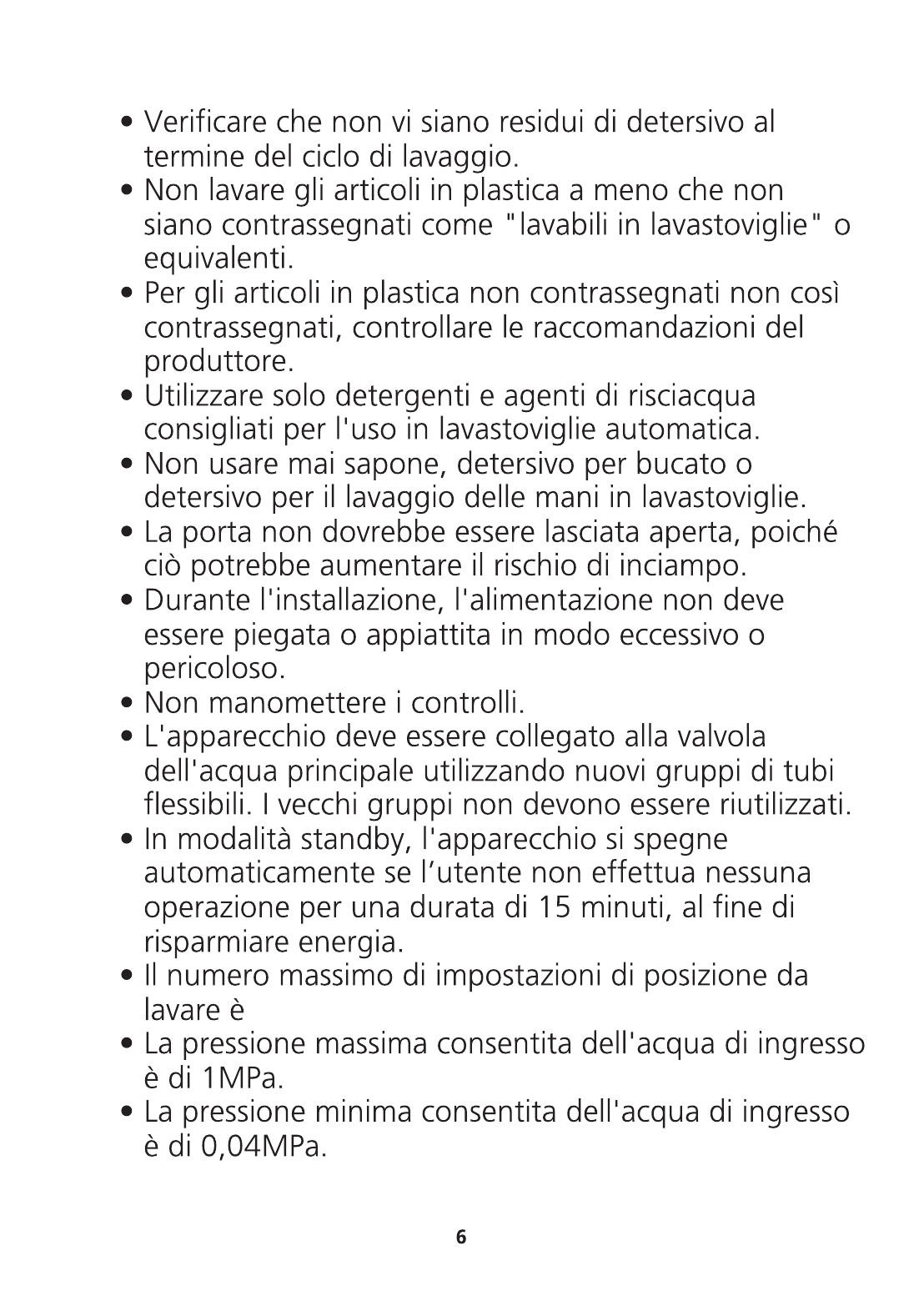

5
6
For unmarked plastic items not so marked, check the
manufacturer's recommendations.
Use only detergent and rinse agents recommended for
use in an automatic dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
The door should not be left open, since this could
increase the risk of tripping.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance needs to be connected to the main
water valve using new hose sets. Old sets should not be
reused.
To save energy, in stand by mode, the appliance will
switch of automatically after 15 minutes without any
user interaction.
The maximum number of place settings to be washed
is 16.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is
0.04MPa.
Disposal
For disposing of package and the
appliance please go to a recycling center.
Therefore cut off the power supply cable
and make the door closing device
unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences
for the environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product.
For more detailed information about recycling of this
product, please contact your local city office and
your household waste disposal service.
DISPOSAL: Do not dispose this product as
unsorted municipal waste. Collection of such
waste separately for special treatment is
necessary.
7
Cutlery rack

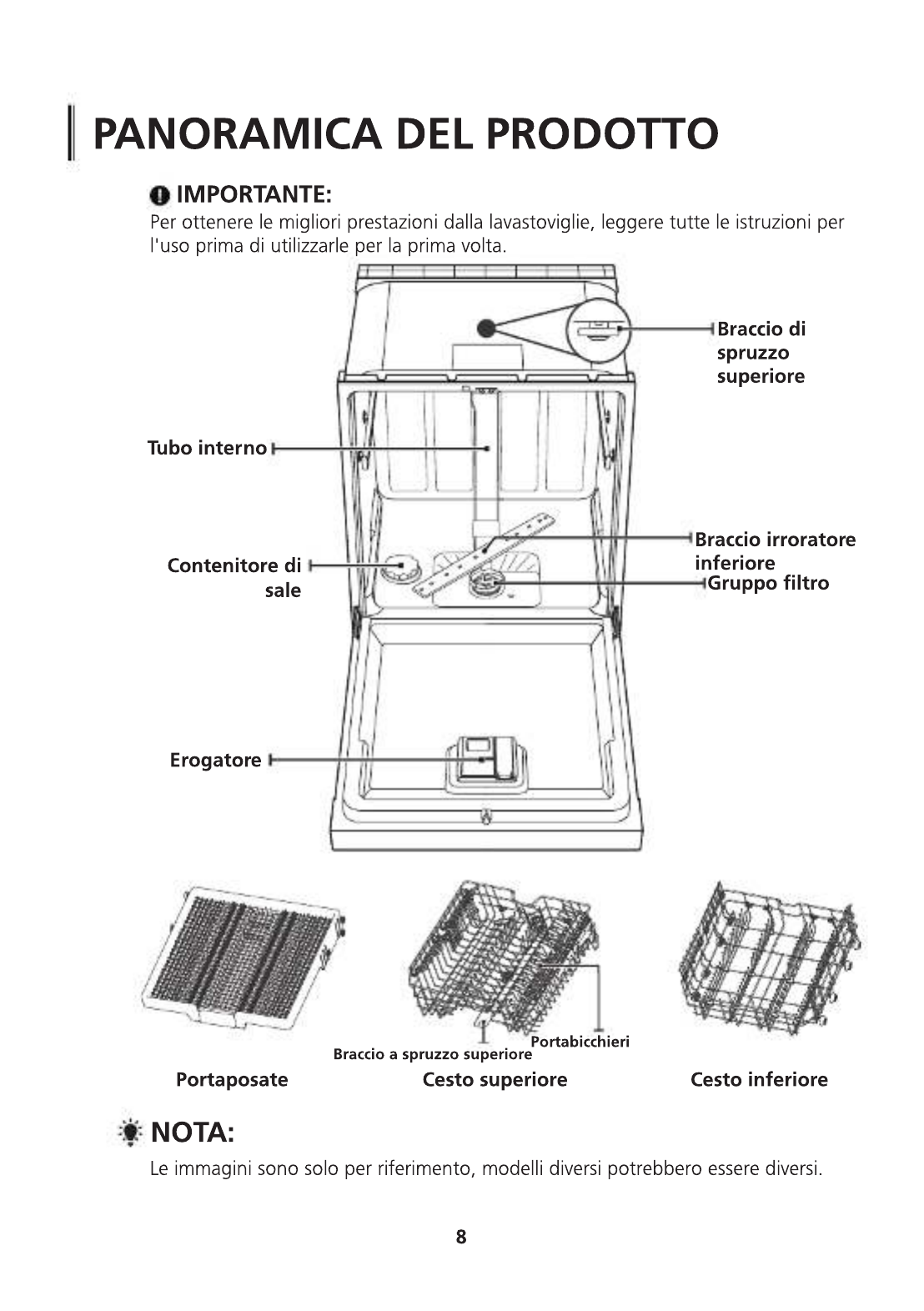

PRODUCT OVERVIEW
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
IMPORTANT:
8
Pictures are only for reference, different models may be different.
NOTE:
Lower basketUpper basket
Upper spray arm Cup rack
Filter assembly
Lower spray arm
Dispenser
Salt container
Inner pipe
Top spray arm
Loading The Salt Into The Softener
Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use,
especially table salt, will damage the water softener. In case of damages
caused by the use of unsuitable salt the manufacturer does not give any
warranty nor is liable for any damages caused.
Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which may have been
spilled, remaining on the bottom of the machine for any period of time,
which may cause corrosion.
WARNING
It must use salt intended for dishwasher.
The salt container is located beneath the lower basket and should be filled as
explained in the following:
Please check the section 1 “Water Softener” of PART
Please check the section 1 “Water Softener” of PART
Please check the section 1 “Water Softener” of PART
Please check the section 1 “Water Softener” of PART Specific Instructions,
Specific Instructions,
Specific Instructions,
Specific Instructions,
Ⅱ:
Ⅱ:
Ⅱ:
Ⅱ:
If you need to set the water softener
If you need to set the water softener
If you need to set the water softener
If you need to set the water softener .
.
.
.
Please check the section 1 “Water Softener” of PART Specific Instructions, Ⅱ:
If you need to set the water softener .
9
If your model does not have any water softener, you may skip this section.
NOTE:
USING YOUR DISHWASHER
Before using your dishwasher :
1. Set the water softener
2. Loading the salt Into the softener
3. Loading the basket

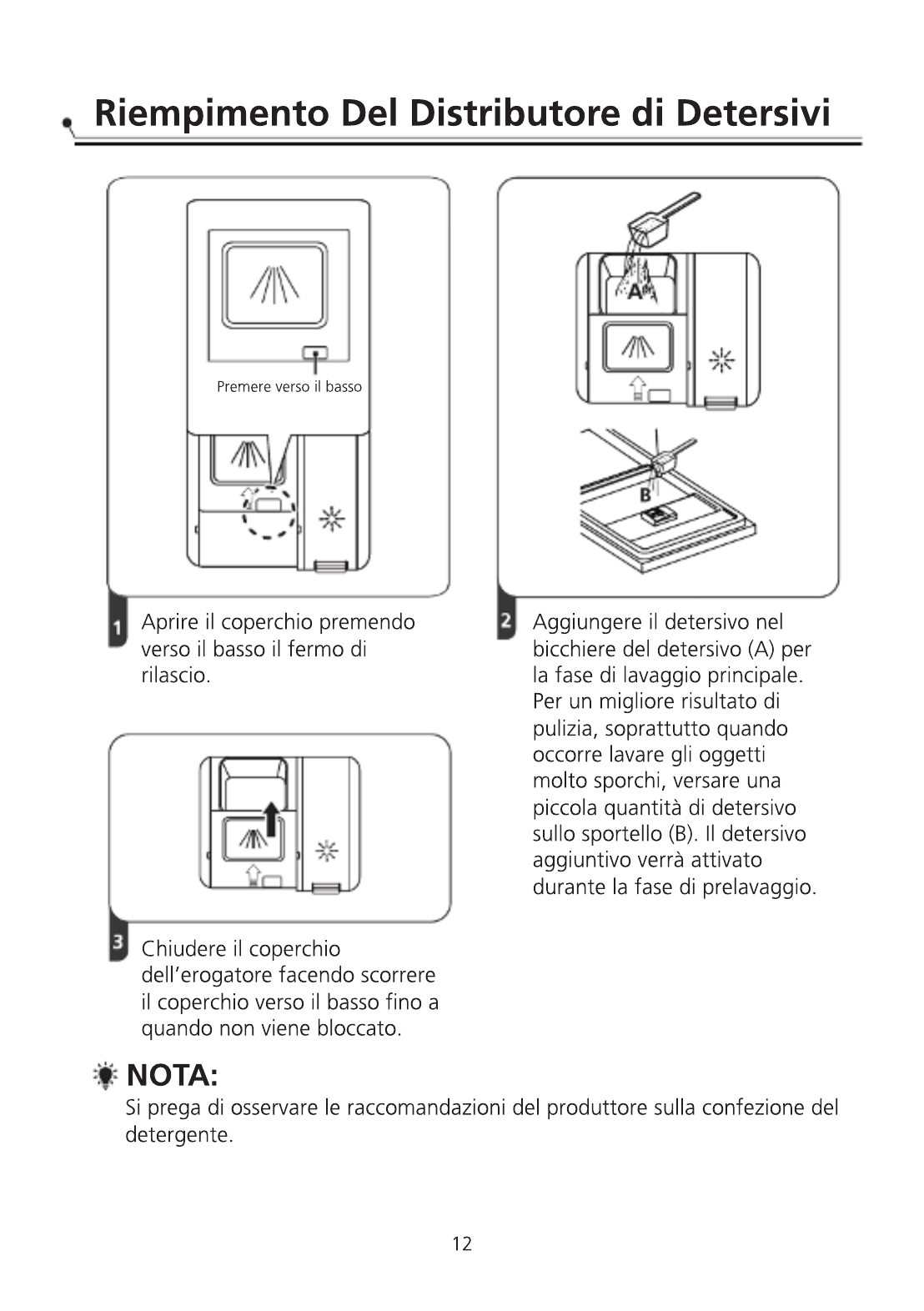

4. Fill the detergent dispenser
10

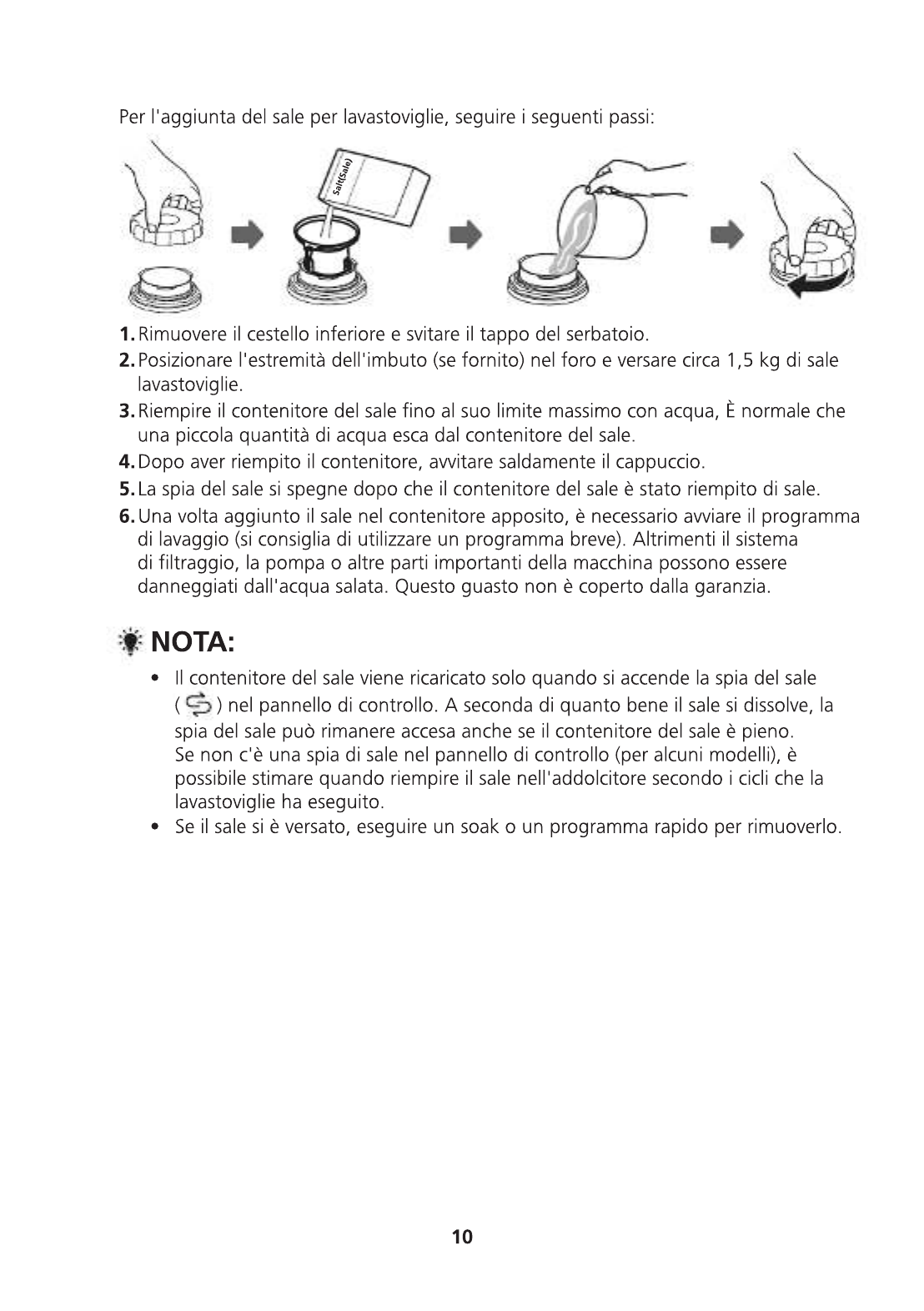

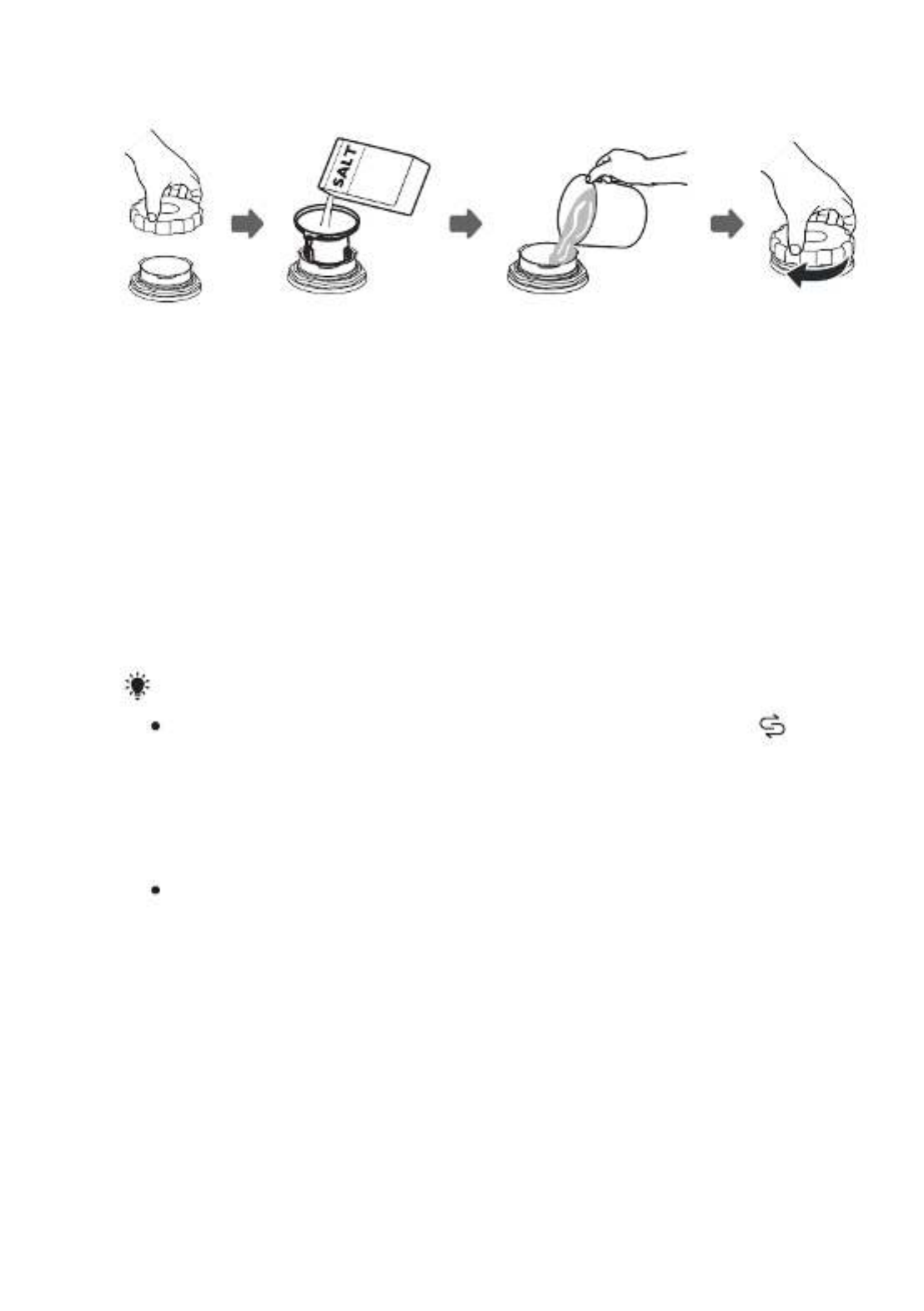

1. Remove the lower basket and unscrew the reservoir cap.
2. Place the end of the funnel (if supplied) into the hole and pour in about kg of
dishwasher salt.
3. Fill the salt container to its maximum limit with water, It is normal for a small
amount of water to come out of the salt container.
4. After filling the container, screw back the cap tightly.
5. The salt warning light will turn off after the salt container has been filled with salt.
6. Immediately after filling the salt into the salt container, a washing program should
be started (We suggest to use a short program). Otherwise the filter system, pump
or other important parts of the machine may be damaged by salty water. This is
out of warranty.
0.6
NOTE:
The salt container must only be refilled when the salt warning light ( ) in the
control panel comes on. Depending on how well the salt dissolves, the salt
warning light may still be on even though the salt container is filled.
If there is no salt warning light in the control panel (for some models), you can
estimate when to fill the salt into the softener by the cycles that the dishwasher
has run.
If salt has spilled, run a soak or quick program to remove it.
Please follow the steps below for adding dishwasher salt:
Basket Loading Tips
11

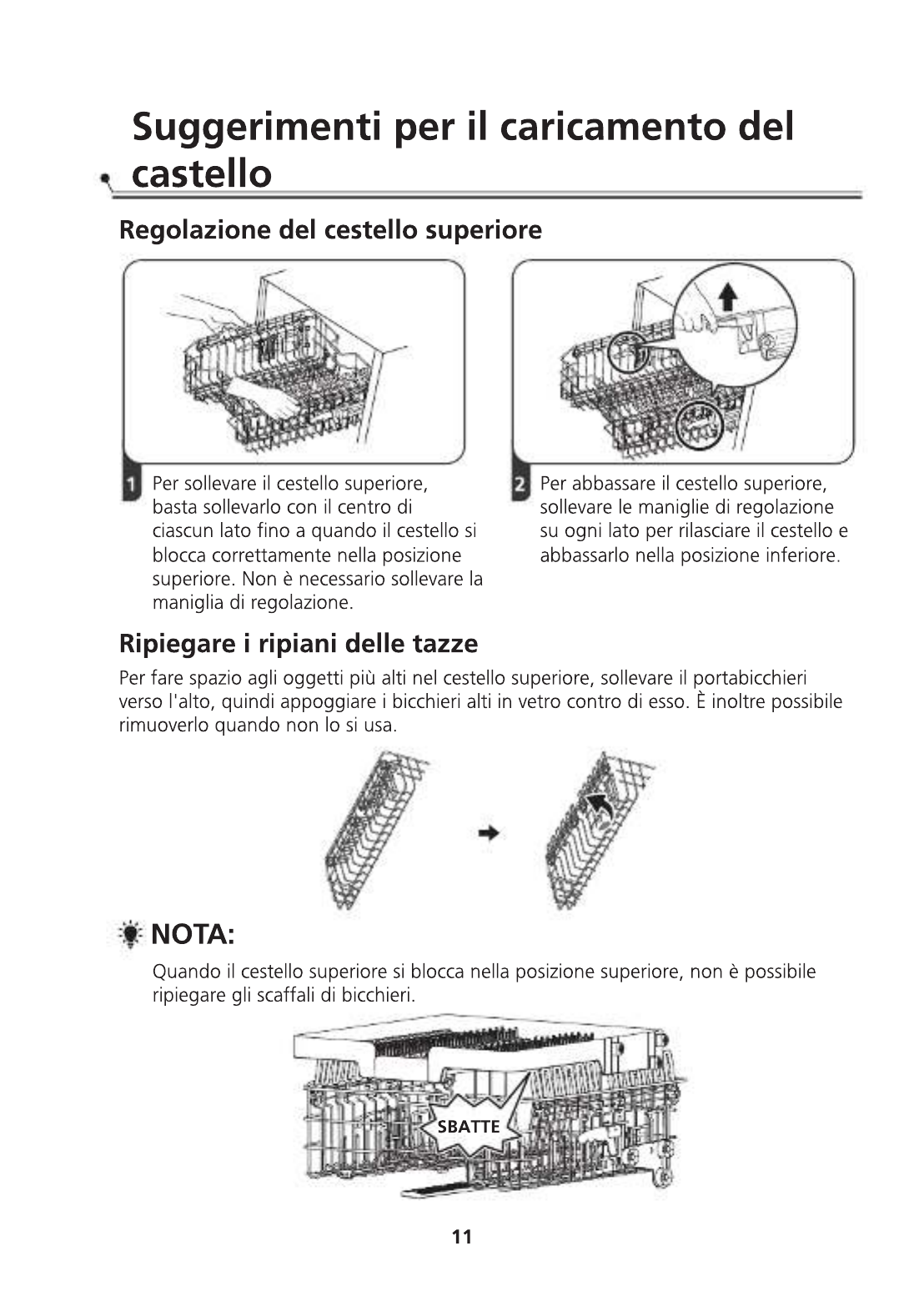

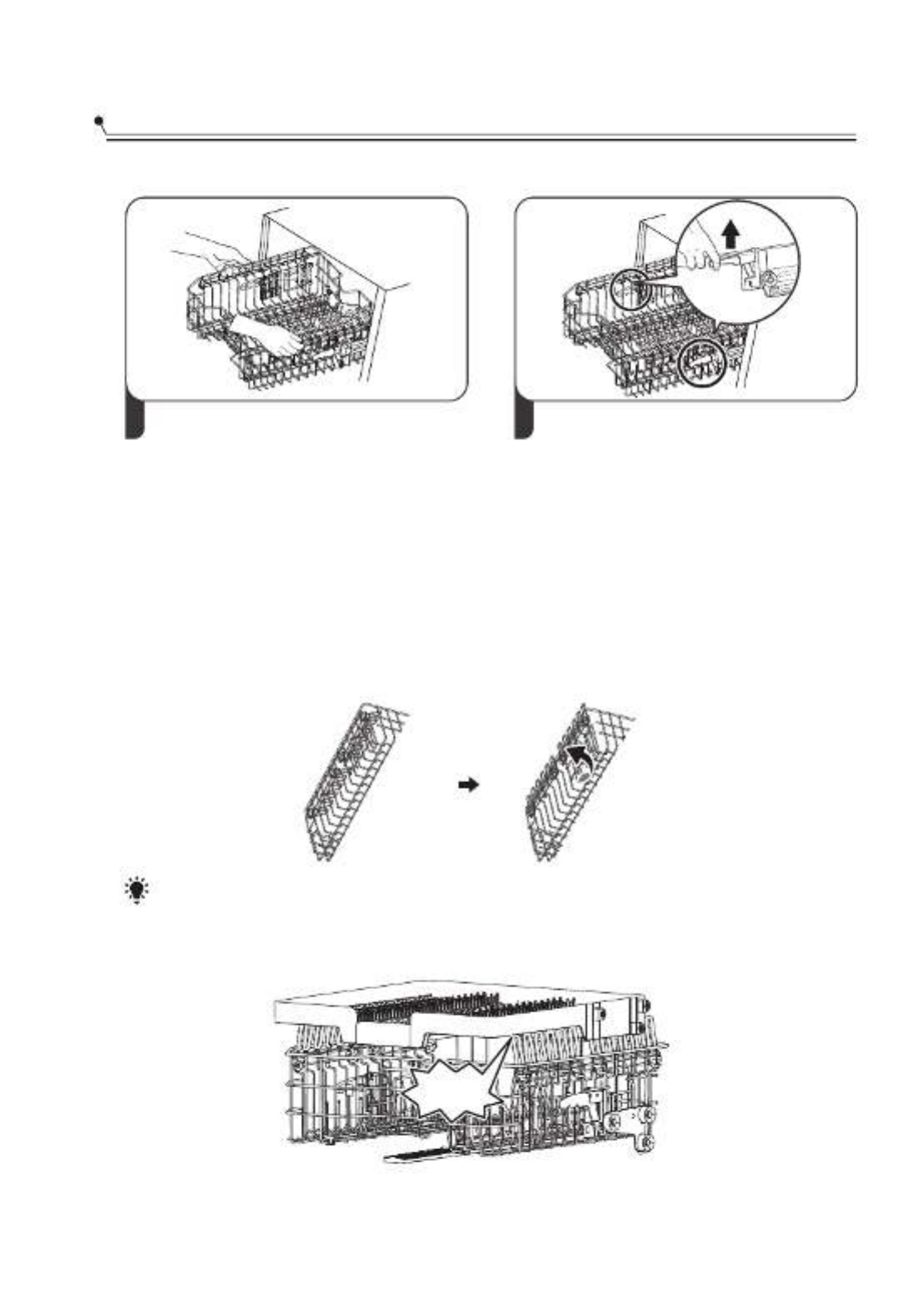

Adjusting the upper basket
Folding back the cup shelves
To make room for taller items in the upper basket, raise the cup rack upwards.
You can then lean the tall glasses against it. You can also remove it when it is not
required for use.
1To raise the
the upper basket at the center of
each side until the basket locks into
place in the upper position. It is not
necessary to lift the adjuster handle.
upper basket just lift
,2To lower the lift the
adjust handles on each side to
release the basket and lower it to
the lower position.
upper basket,
When the upper basket locks in the upper position, It can't fold back the cup shelves.
NOTE:
CRASH
12
The pacifier bracket
The mounting of the bracket is fixed by clamping it in the corresponding position as

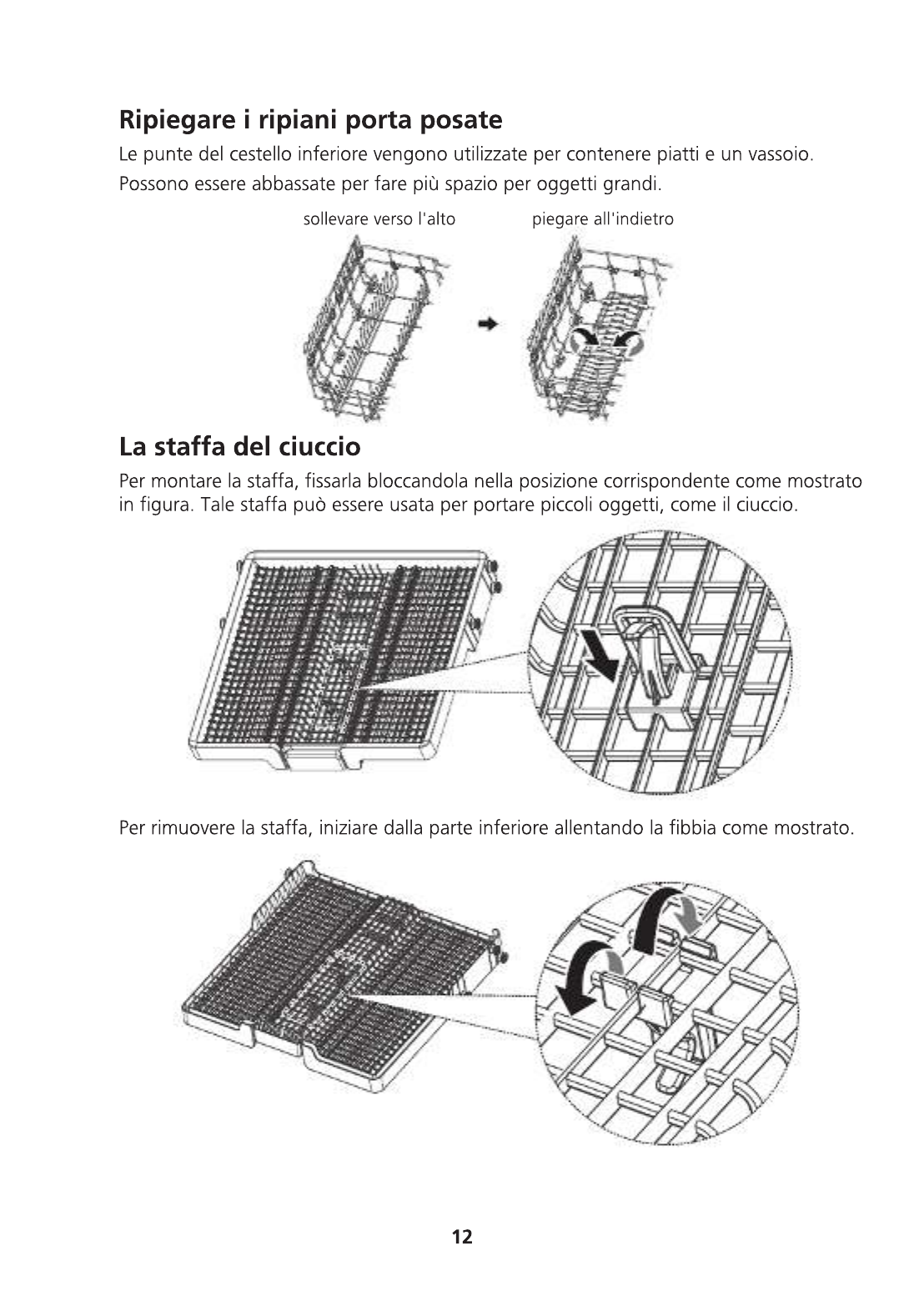

shown in the figure. It can be used to fix small things like pacifier.
To remove the bracket, start at the bottom and loosen the buckle as shown.
Folding back the rack shelves
The spikes of the lower basket are used for holding plates and a platter.
They can be lowered to make more room for large items.
raise upwards fold backwards
13
MAINTENANCE AND CLEANING
External Care
The door and the door seal
Clean the door seals regularly with a soft damp cloth to remove food deposits.
When the dishwasher is being loaded, food and drink residues may drip onto the
sides of the dishwasher door. These surfaces are outside the wash cabinet and are not
accessed by water from the spray arms. Any deposits should be wiped off before the
door is closed.
The control panel
If cleaning is required, the control panel should be wiped with a soft damp cloth only.
To avoid penetration of water into the door lock and electrical components,
do not use a spray cleaner of any kind.
Never use abrasive cleaners or scouring pads on the outer surfaces because
they may scratch the finish. Some paper towels may also scratch or leave
marks on the surface.
WARNING
Internal Care
Filtering system
NOTE:
Pictures are only for reference, different models of the filtering system and spray
arms may be different.
The filtering system in the base of the wash cabinet retains coarse debris from the
washing cycle, including foreign objects such as tooth picks or shards. The collected
coarse debris may cause the filters to clog. Check the condition of the filters regularly,
carefully remove foreign objects and clean the parts of the filtering system if necessary
with water. Follow the steps below to clean the filter.

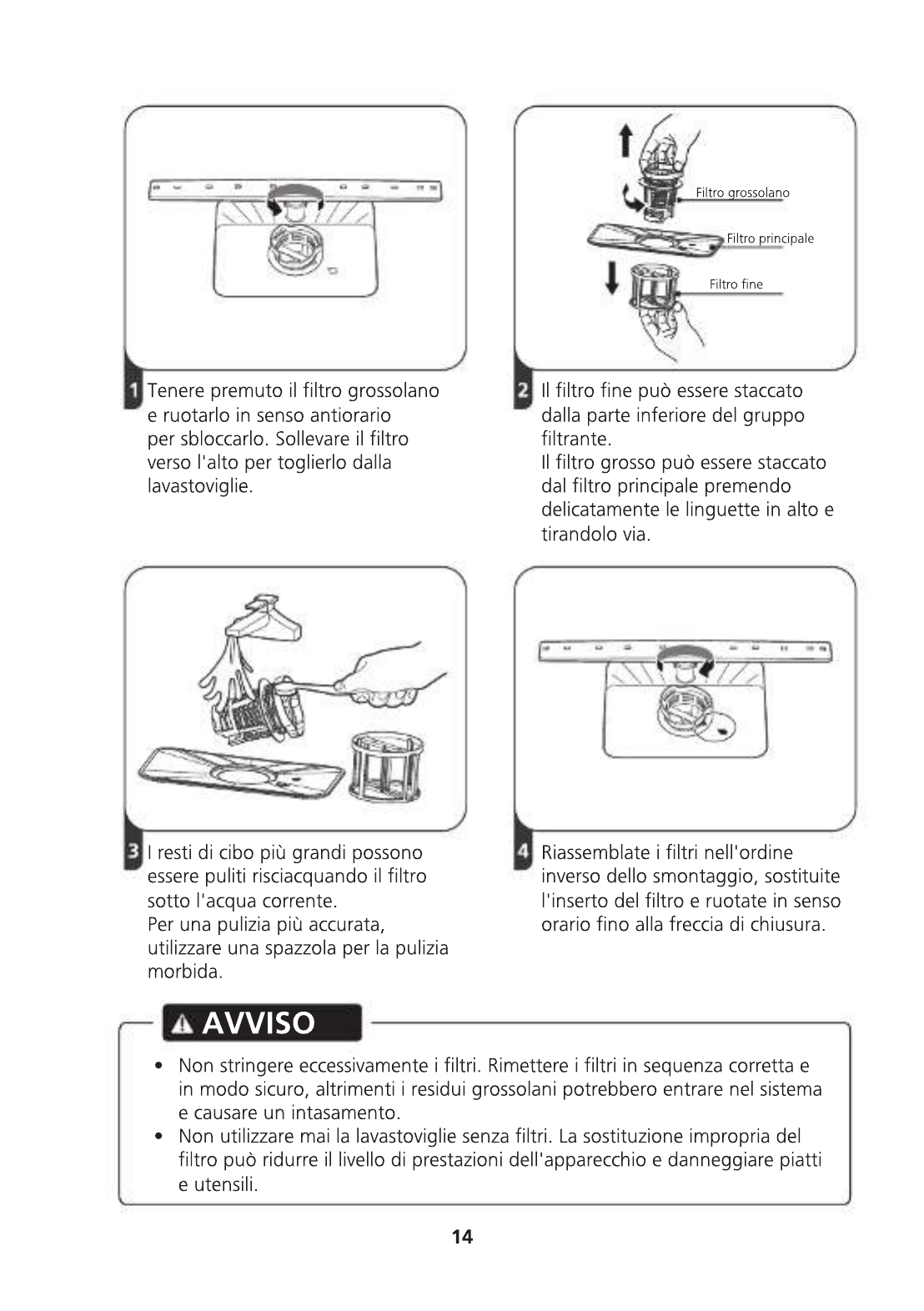

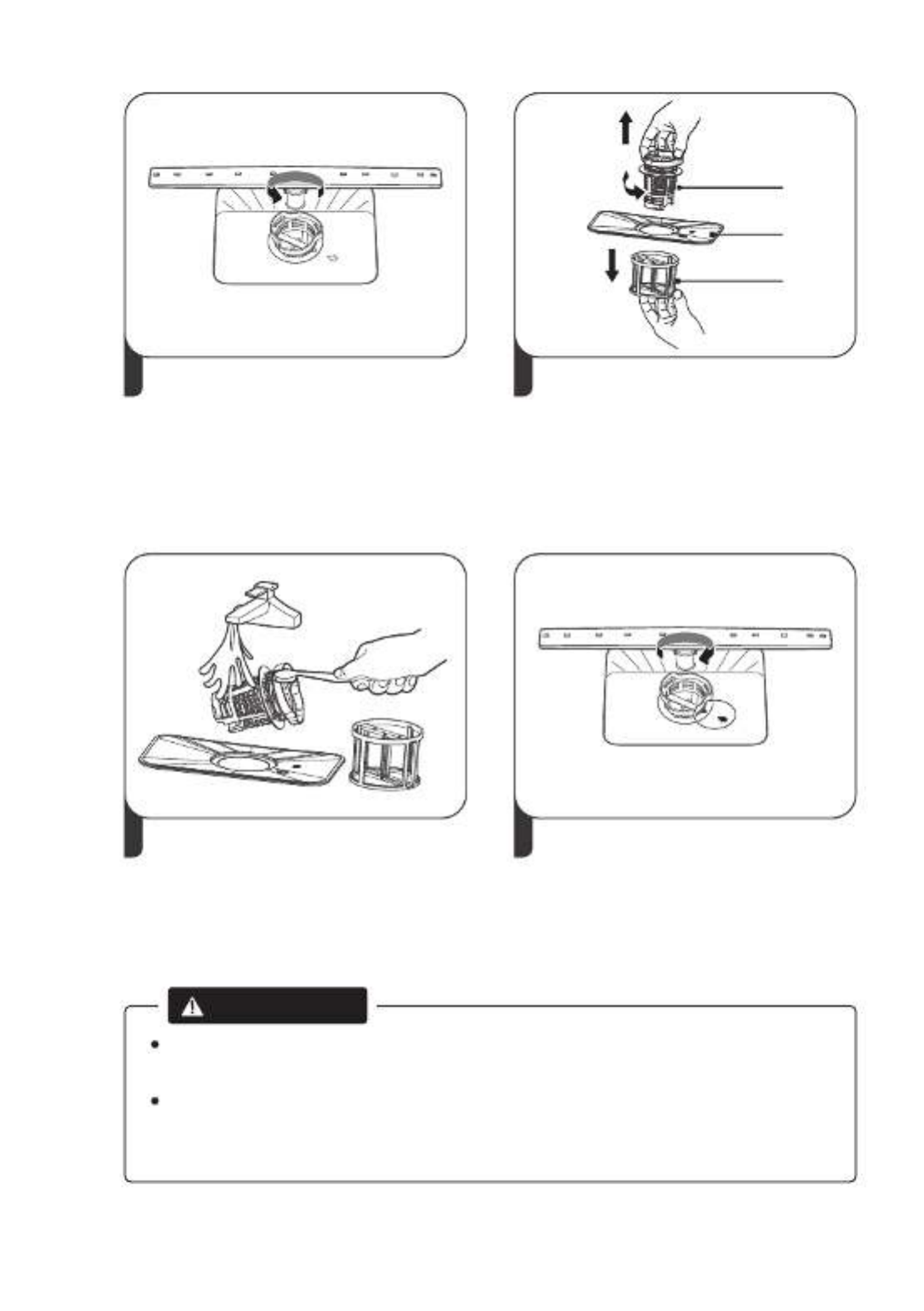

1 2
Hold the coarse filter and rotate it
anticlockwise to unlock the filter.
Lift the filter upwards and out of
the dishwasher.
The fine filter can be pulled off the
bottom of the filter assembly.
The coarse filter can be detached
from the main filter by gently
squeezing the tabs at the top and
pulling it away.
3 4
Larger food remnants can be
cleaned by rinsing the filter under
running water.
For a more thorough clean, use a
soft cleaning brush.
Reassemble the filters in the reverse
order of the disassembly, replace the
filter insert, and rotate clockwise to
the close arrow.
Do not over tighten the filters. Put the filters back in sequence securely,
otherwise coarse debris could get into the system and cause a blockage.
Never use the dishwasher without filters in place. Improper replacement of
the filter may reduce the performance level of the appliance and damage
dishes and utensils.
WARNING
14
Main filter
Main filter
Main filter
Main filter
Main filter
Coarse filter
Coarse filter
Coarse filter
Coarse filter
Coarse filter
Fine filter
15

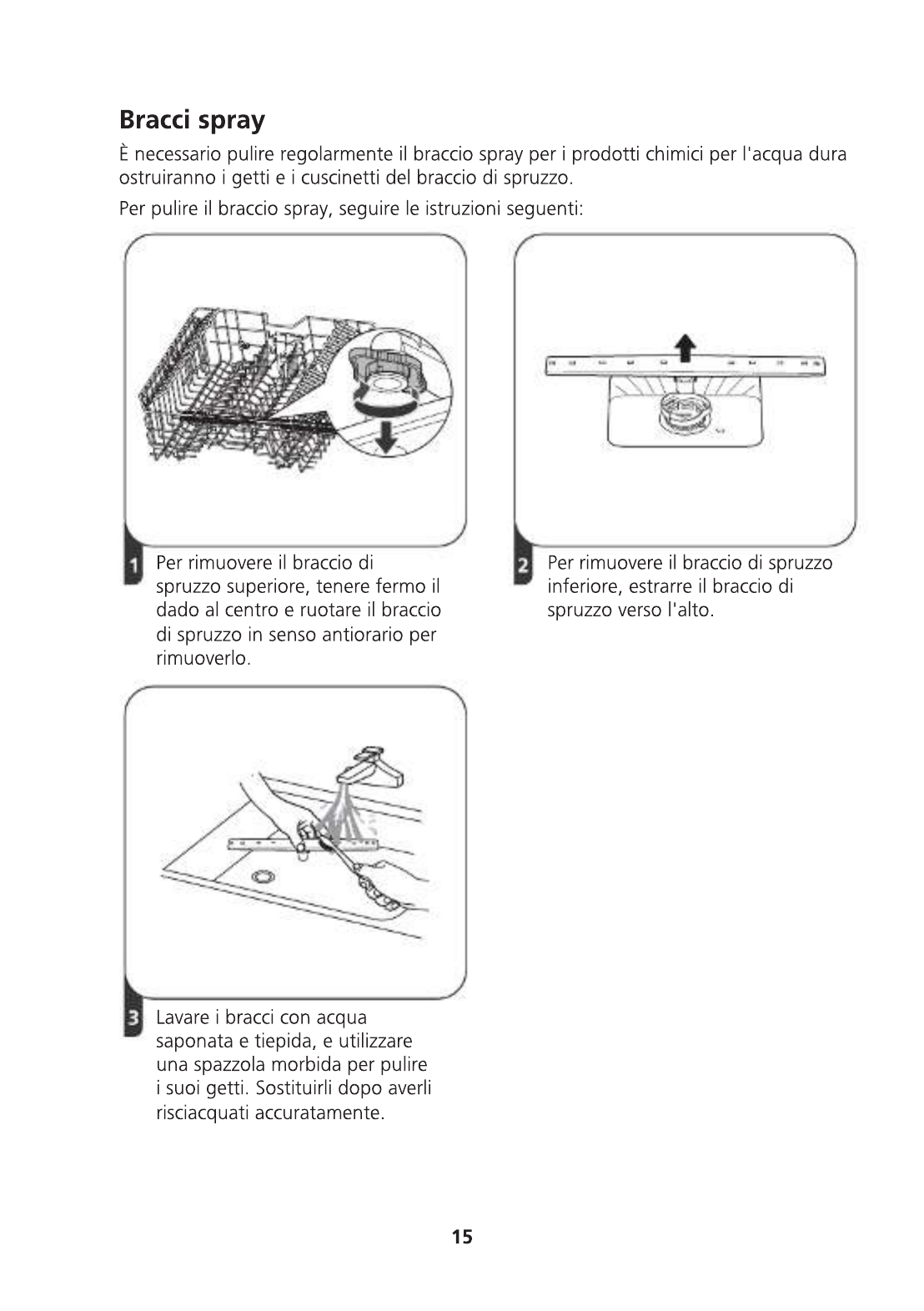

Spray arms
Wash the arms in soapy and warm
water and use a soft brush to clean
the jets. Replace them after rinsing
them thoroughly.

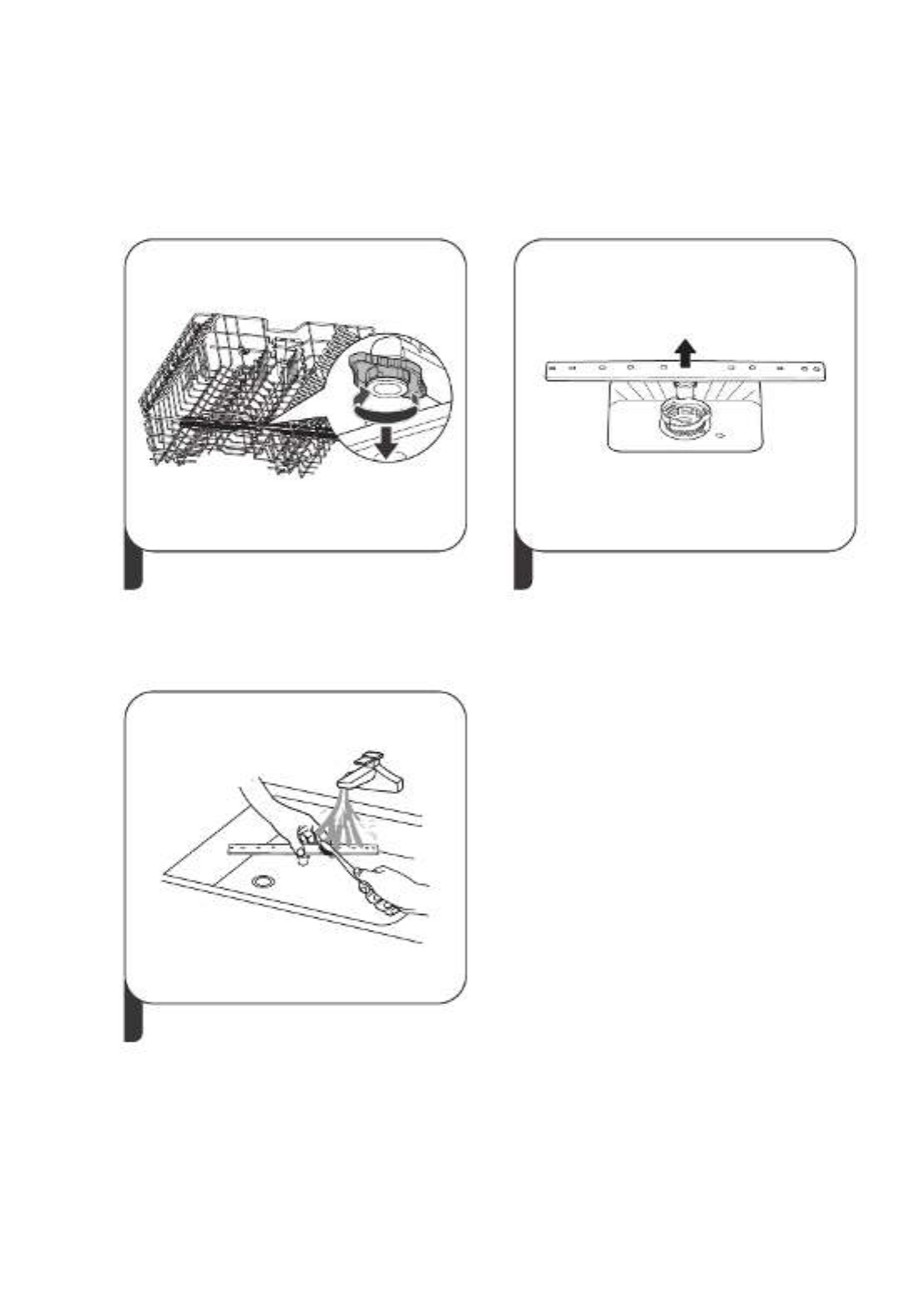

It is necessary to clean the spray arms regularly for hard water chemicals will clog the
spray arm jets and bearings.
To clean the spray arms, follow the instructions below:
2
3
To remove the lower spray arm, pull
out the spray arm upward.
1To remove the upper spray arm,
hold the nut in the center still and
rotate the spray arm counterclockwise
to remove it.
16

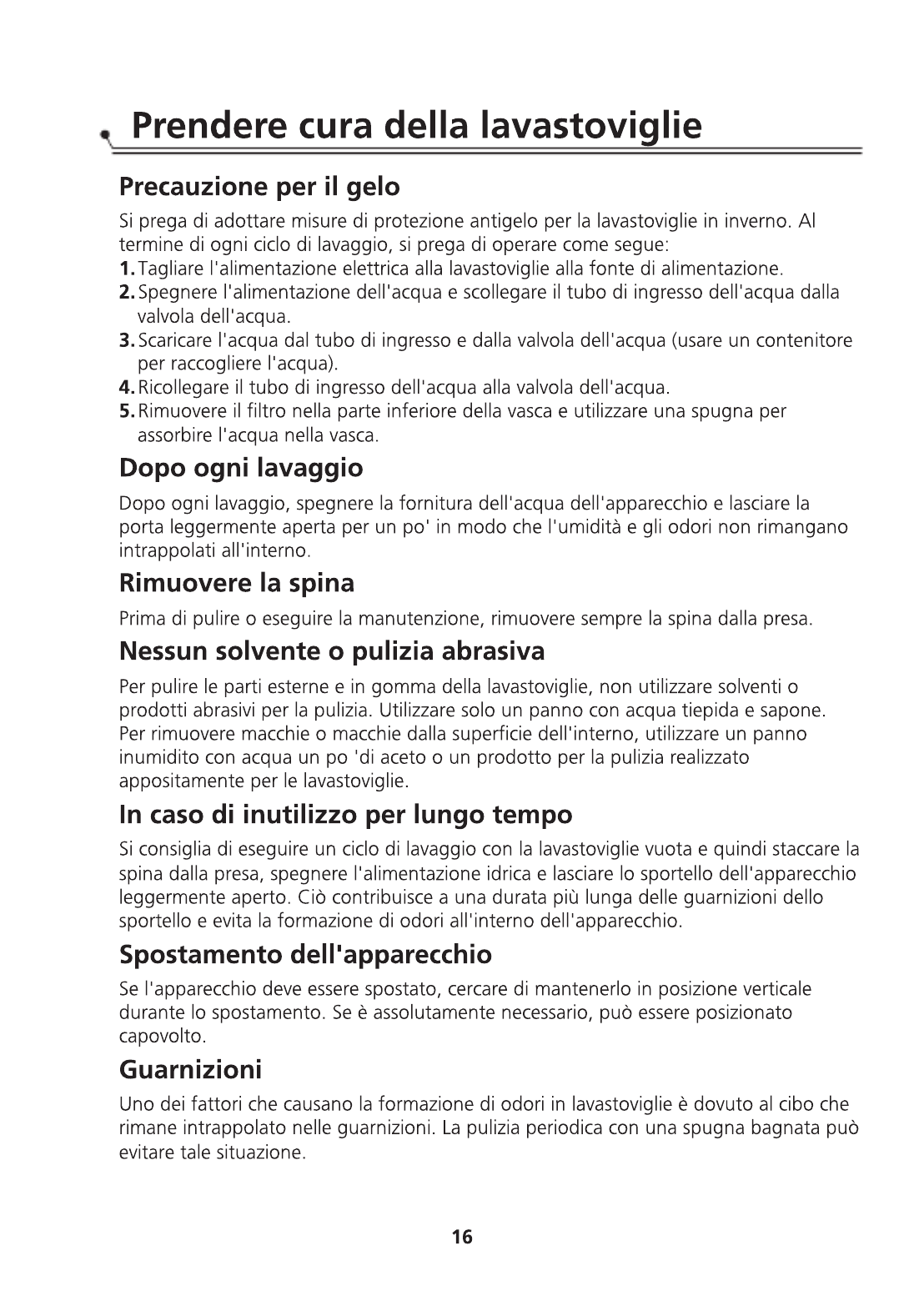

Caring For The Dishwasher
Frost precaution
Please take frost protection measures on the dishwasher in winter. Every time after
washing cycles, please operate as follows:
1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in
the sump.
After every wash
After every wash, turn off the water supply to the appliance and leave the door slightly
open for a while so that moisture and odors are not trapped inside.
Remove the plug
Before cleaning or performing maintenance, always remove the plug from the socket.
No solvents or abrasive cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or
abrasive cleaning products. Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with
water an a little vinegar, or a cleaning product made specifically for dishwashers.
When not in use for a long time
It is recommend that you run a wash cycle with the dishwasher empty and then remove
the plug from the socket, turn off the water supply and leave the door of the
appliance slightly open. This will help the door seals to last longer and prevent odors
from forming within the appliance.
Moving the appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely
necessary, it can be positioned on its back.
Seals
One of the factors that cause odours to form in the dishwasher is food that remains
trapped in the seals. Periodic cleaning with a damp sponge will prevent this from
occurring.
17
INSTALLATION INSTRUCTION
Ensure the voltage and frequency of the power being corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed properly. If
the electrical socket to which the appliance must be connected is not appropriate for
the plug, replace the socket, rather than using a adaptors or the like as they could
cause overheating and burns.
Electrical requirements
Electrical connection
Ensure that proper earthing exists before use
About Power Connection
WARNING
For personal safety:
Do not use an extension cord or an adapter
plug with this appliance.
Do not, under any circumstances, cut or remove
the earthing connection from the power cord.
The installation of the pipes and electrical equipments should be done by professionals.
Attention
WARNING
Electrical Shock Hazard
Disconnect electrical power before
installing dishwasher.
Failure to do so could result in death or
electrical shock.
Please look at the rating label to know the rating voltage and connect the dishwasher
to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse
or circuit breaker recommended and provide separate circuit serving only this appliance.

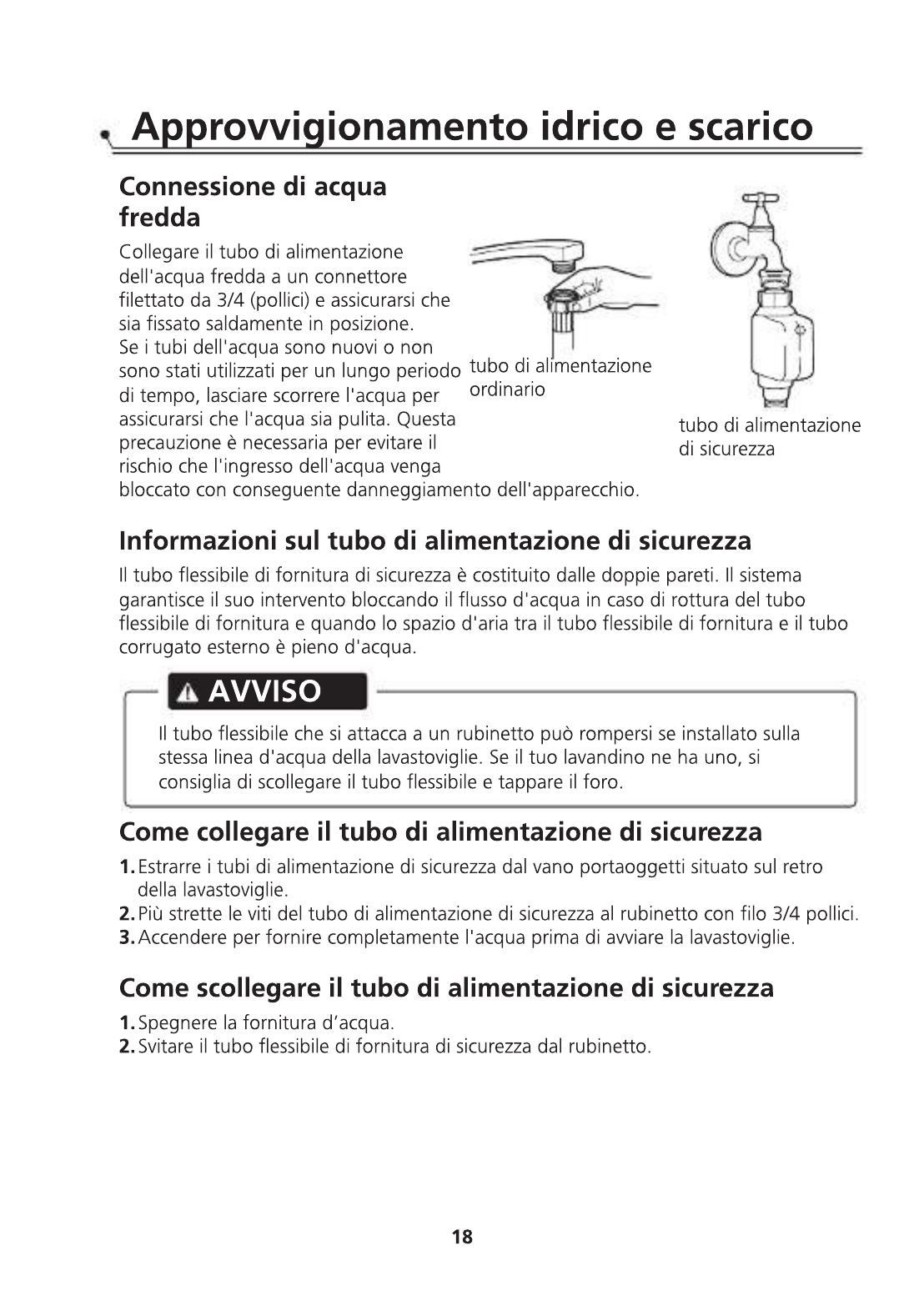

Water Supply And Drain
Cold water connection
Connect the cold water supply hose to
a threaded 3/4(inch) connector and
make sure that it is fastened tightly in
place.
If the water pipes are new or have not
been used for an extended period of
time, let the water run to make sure
that the water is clear. This precaution
is needed to avoid the risk of the
water inlet to be blocked and damage
the appliance.
safety supply hose
ordinary supply hose
About the safety supply hose
The safety supply hose consists of the double walls. The system guarantees its
intervention by blocking the flow of water in case of the supply hose breaking and
when the air space between the supply hose itself and the outer corrugated hose is
full of water.
How to onnect the safety supply hosec
1. Pull the safety supply hoses out from storage compartment located at
rear of dishwasher.
2. Tighten the screws of the safety supply hose to the faucet with thread 3/4inch.
3. Turn the water fully on before starting the dishwasher.
WARNING
A hose that attaches to a tap can burst if it is installed on the same water
line as the dishwasher. If your sink has one, it is recommended that the
hose be disconnected and the hole plugged.
How to disconnect the safety supply hose
1. Turn off the water.
2. Unscrew the safety supply hose from the faucet.
18
Connection Of Drain Hoses
Please securely fix the drain hose in either position A or position B
Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run
into the sink, making sure to avoid bending or crimping it. The height of drain pipe
must be less than 1000 mm. The free end of the hose must not be immersed in water
to avoid the back flow of it.
Extension hose
Water outlet
How to drain excess water from hoses
Syphon connection
If the connection to the drain pipe is positioned higher than 1000 mm, excess water
may remain in the drain hose. It will be necessary to drain excess water from the hose
into a bowl or suitable container that is held outside and lower than the sink.
Connect the water drain hose. The drain hose must be correctly fitted to avoid water
leaks. Ensure that the water drain hose is not kinked or squashed.
The waste connection must be at a height less than 1000 mm (maximum) from the
bottom of the dishwasher.
If you need a drain hose extension, make sure to use a similar drain hose.
It must not be longer than 4 meters, otherwise the cleaning effect of the dishwasher
could be reduced.
19
B
A
300 - 1000mm
Counter
Drain hose
Back of dishwasher
Water Inlet
Drain Pipe
Mains Cable
Drain Pipe

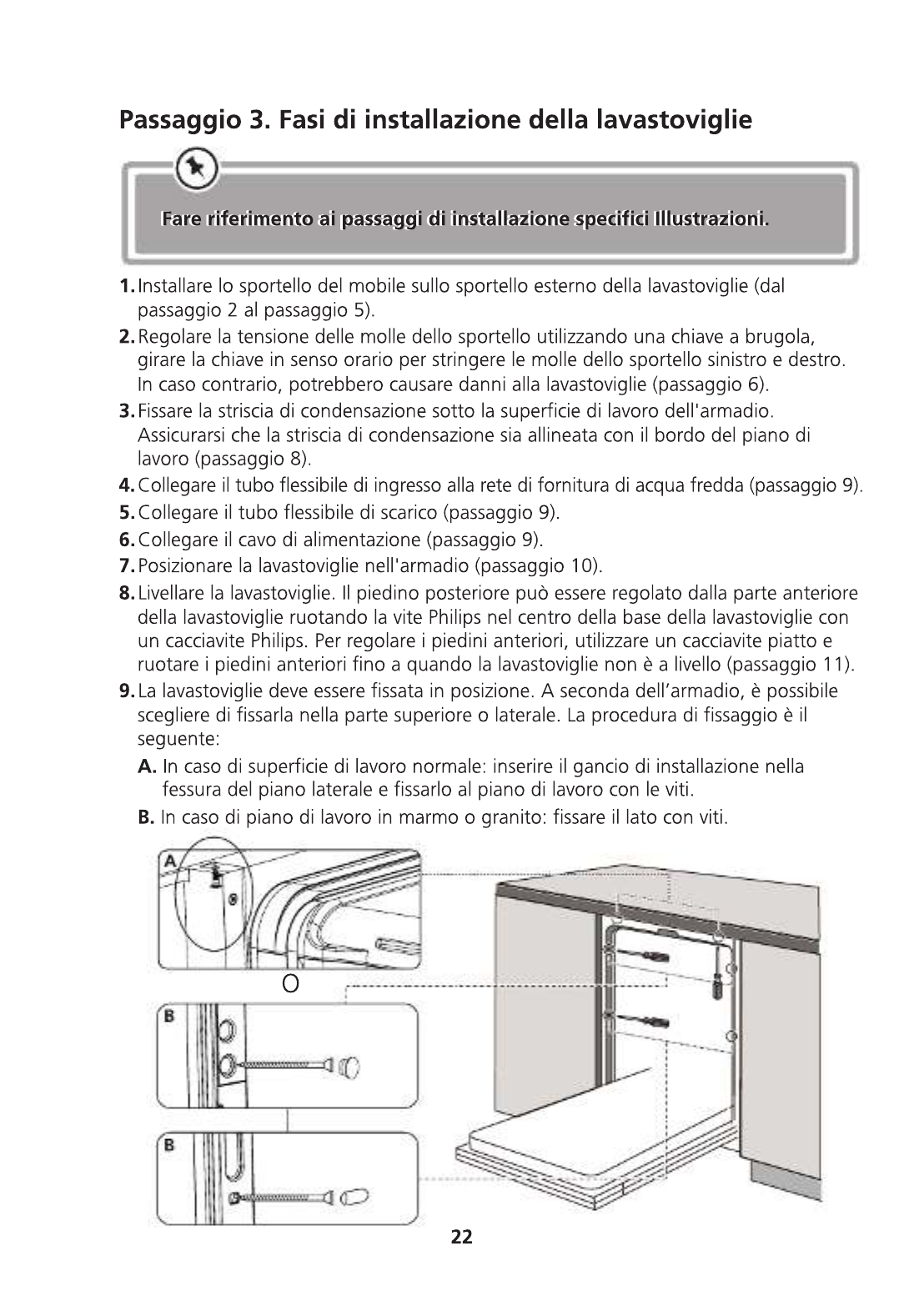

Step 3. Dishwasher installation steps
22
A
B
B

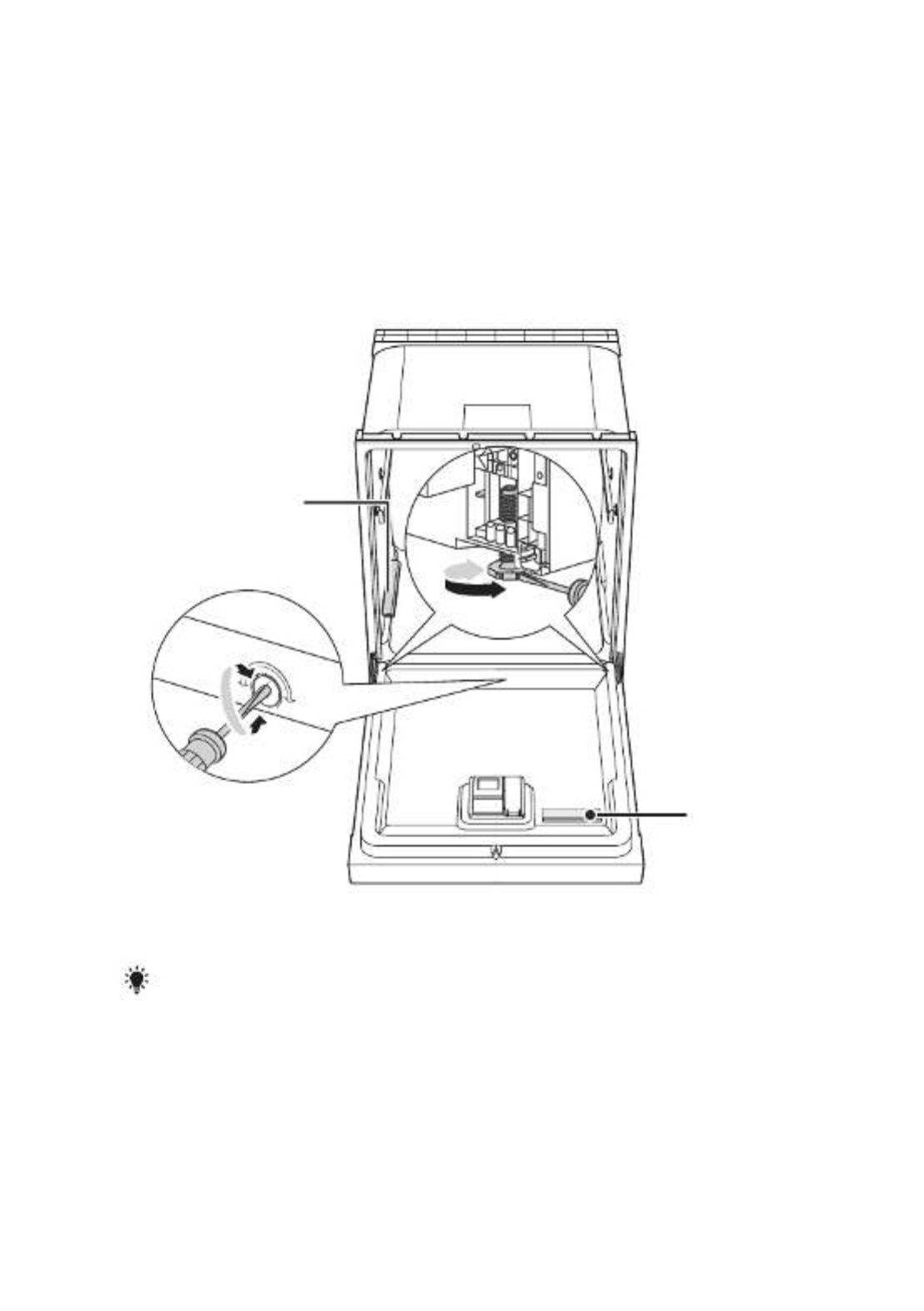

1. Install the furniture door to the outer door of the dishwasher. (Step 2 to Step 5)
2. Adjust the tension of the door springs by using an Allen key turning in a clockwise
motion to tighten the left and right door springs. Failure to do this could cause
damage to your dishwasher. (Step 6)
3. Affix the condensation strip under the work surface of cabinet. Please ensure the
condensation strip is flush with edge of work surface. (Step 8)
4. Connect the inlet hose to the cold water supply. (Step 9)
5. Connect the drain hose. (Step 9)
6. Connect the power cord. (Step 9)
7. Place the dishwasher into . (Step 10)the cabinet
8. Level the dishwasher. The rear foot can be adjusted from the front of the
dishwasher by turning the Philips screw in the middle of the base of dishwasher
use a Philips screw driver. To adjust the front feet, use a flat screw driver and turn
the front feet until the dishwasher is level. (Step 11)
9. The dishwasher must be secured in place. Depending on the cabinet, you can
choose top or side fixation. The fixed operation is as follows:
A. Normal work surface: Put the installation hook into the slot of the side plane
and secure it to the work surface with the screws.
B. Marble or granite work top: Fix the side with screws.
Please refer to the specific installation steps in the installation
Please refer to the specific installation steps in the installation
Please refer to the specific installation steps in the installation
Please refer to the specific installation steps in the installation
drawings.
drawings.
drawings.
drawings.
Please refer to the specific installation steps in the installation
drawings.

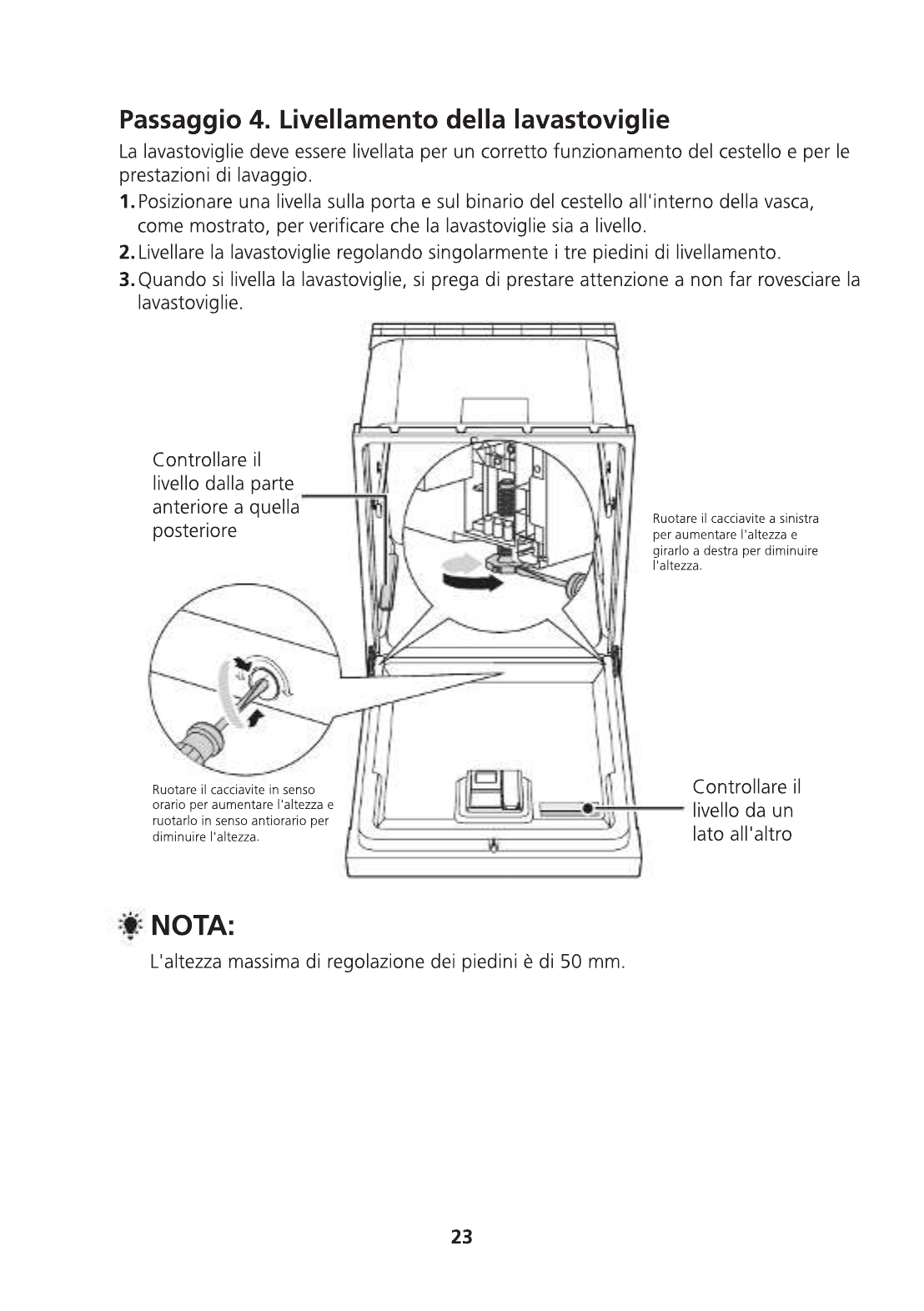

Step 4. Levelling the dishwasher
Dishwasher must be level for proper dish rack operation and wash performance.
Place a spirit level on door and rack track inside the tub as shown to check that the
dishwasher is level.
Level the dishwasher by adjusting the three levelling feet individually.
When level the dishwasher, please pay attention not to let the dishwasher tip over.
1.
2.
3.
The maximum adjustment height of the feet is 50 mm.
NOTE:
23
Check level
front to back
Check level
side to side
Turn the screw driver clockwise
to raise the height, and turn it
anticlockwise to lower the height.
Turn the screwdriver to the left to
raise the height and turn it to the
right to lower the height.
24

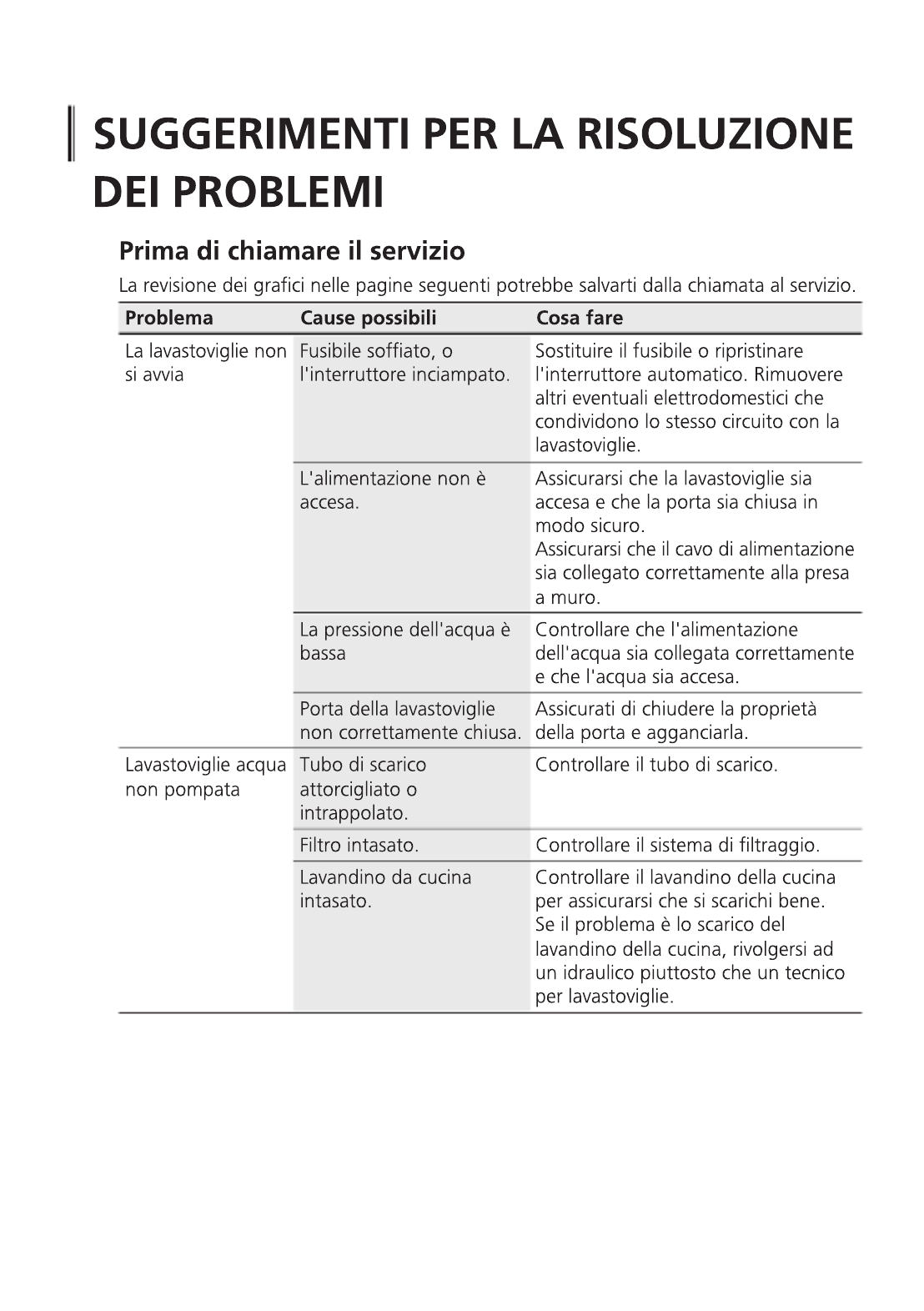

TROUBLESHOOTING TIPS
Before Calling For Service
Reviewing the charts on the following pages may save you from calling for service.
Problem Possible Causes What To Do
Dishwasher doesn't
start
Fuse blown, or the
circuit break tripped.
Replace fuse or reset circuit breaker.
Remove any other appliances sharing
the same circuit with the dishwasher.
Power supply is not
turned on.
Make sure the dishwasher is turned
on and the door is closed securely.
Make sure the power cord is
properly plugged into the wall socket.
Check that the water supply is
connected properly and the water
is turned on.
Door of dishwasher
not properly closed.
Make sure to close the door
properly and latch it.
Water not pumped
form dishwasher
Twisted or trapped
drain hose.
Filter clogged.
Kitchen sink clogged.
Check the drain hose.
Check the filter system.
Check the kitchen sink to make sure
it is draining well. If the problem is
the kitchen sink that is not draining ,
you may need a plumber rather than
a serviceman for dishwashers.
Foam in the tub Wrong detergent.
Water pressure is low
Use only the special dishwasher
detergent to avoid suds. If this occurs,
open the dishwasher and let suds
evaporate. Add 1 liter of cold water
to the bottom of the dishwasher.
Close the dishwasher door, then select
any cycle. Initially, the dishwasher will
drain out the water. Open the door
after draining stage is complete and
check if the suds have disappeared.
Repeat if necessary.
25
Spilled rinse aid. Always wipe up rinse aid spills
immediately.
Stained tub interior Detergent with
colourant may
have been used.
Make sure that the detergent has no
colourant.
White film on
inside surface
Hard water minerals. To clean the interior, use the damp
soft cloth with dishwasher detergent
and wear rubber gloves. Never use
any other cleaner than dishwasher
detergent otherwise, it may cause
foaming or suds.
There are rust
stains on cutlery
The affected items
are not corrosion
resistant.
A program
was not run after
dishwasher salt was
added. Traces of
salt have gotten
into the wash cycle.
Always run a wash program
without any crockery after adding
salt. Do not select the Turbo function
(if present), after adding dishwasher
salt.
The lid of the softer
is loose.
Check the softener lid is secure.
Problem Possible Causes What To Do
Avoid washing items that are not
corrosion resistant in the dishwasher.
Knocking noise in
the dishwasher
A spray arm is knocking
against an item in a
basket
Interrupt the program and
rearrange the items which are
obstructing the spray arm.
Rattling noise in
the dishwasher
Items of crockery
are loose in the
dishwasher.
Interrupt the program and
rearrange the items of crockery.
Knocking noise in
the water pipes
This may be caused
by on-site installation
or the cross-section
of the piping.
This has no influence on the
dishwasher function. If in doubt,
contact a qualified plumber.
The dishes
are not clean
The dishes were not
loaded correctly.
See PART “Preparing And Loading
Dishes”.
The program was
not powerful enough.
Select a more intensive program.
26
Not enough detergent
was dispensed.
Use more detergent, or change
your detergent.
Items are blocking
the movement of
the spray arms.
Rearrange the items so that the spray
can rotate freely.
The filter combination
is not clean or is not
correctly fitted in the
base of wash cabinet.
This may cause the spray
arm jets to get blocked.
Clean and/or fit the filter correctly.
Clean the spray arm jets.
Cloudiness on
glassware.
Combination of soft
water and too much
detergent.
Use less detergent if you have soft
water and select a shorter cycle to
wash the glassware and to get
them clean.
Problem Possible Causes What To Do
The dishes
are not clean.
White spots
appear on dishes
and glasses.
Check water softener settings or fill
status of salt container.
Black or grey
marks on dishes
Aluminium utensils
have rubbed against
dishes
Use a mild abrasive cleaner to
eliminate those marks.
Hard water area
can cause limescale
deposits.
Improper loading Use gloves if detergent residue can
be found on dishes to avoid skin
irritations.
Dishes are removed
too soon
Do not empty your dishwasher
immediately after washing. Open
the door slightly so that the steam
can come out. Take out the dishes
until the inside temperature is safe
to touch. Unload the lower basket
first to prevent the dropping water
from the upper basket.
Detergent left in
dispenser
Dishes block
detergent dispenser
Re-loading the dishes properly.
The dishes aren't
drying
Problem
Wrong program has
been selected.
With a short program, the
washing temperature is lower,
decreasing cleaning performance.
Choose a program with a long
washing time.
Use of cutlery with a
low-quality coating.
Water drainage is more difficult with
these items. Cutlery or dishes of this
type are not suitable for washing in
the dishwasher.
Possible Causes What To Do
27
The dishes aren't
drying
Seven years after placing the last unit of the model on the market:
Motor, circulation and drain pump, heaters and heating elements, including
heat pumps (separately or bundled), piping and related equipment including
all hoses, valves, filters and aqua stops, structural and interior parts related to
door assemblies (separately or bundled), printed circuit boards, electronic
displays, pressure switches, thermostats and sensors, software and firmware
including reset software.
Ten years after placing the last unit of the model on the market:
Door hinge and seals, other seals, spray arms, drain filters, interior racks and
plastic peripherals such as baskets and lids.
Availability Of Spare Parts
WARNING
Self-repair or non-professional repair may cause serious risks to the safety
of the user of the appliance and impact warranty.
Loading the dishwasher to its full capacity will contribute to energy and water savings.

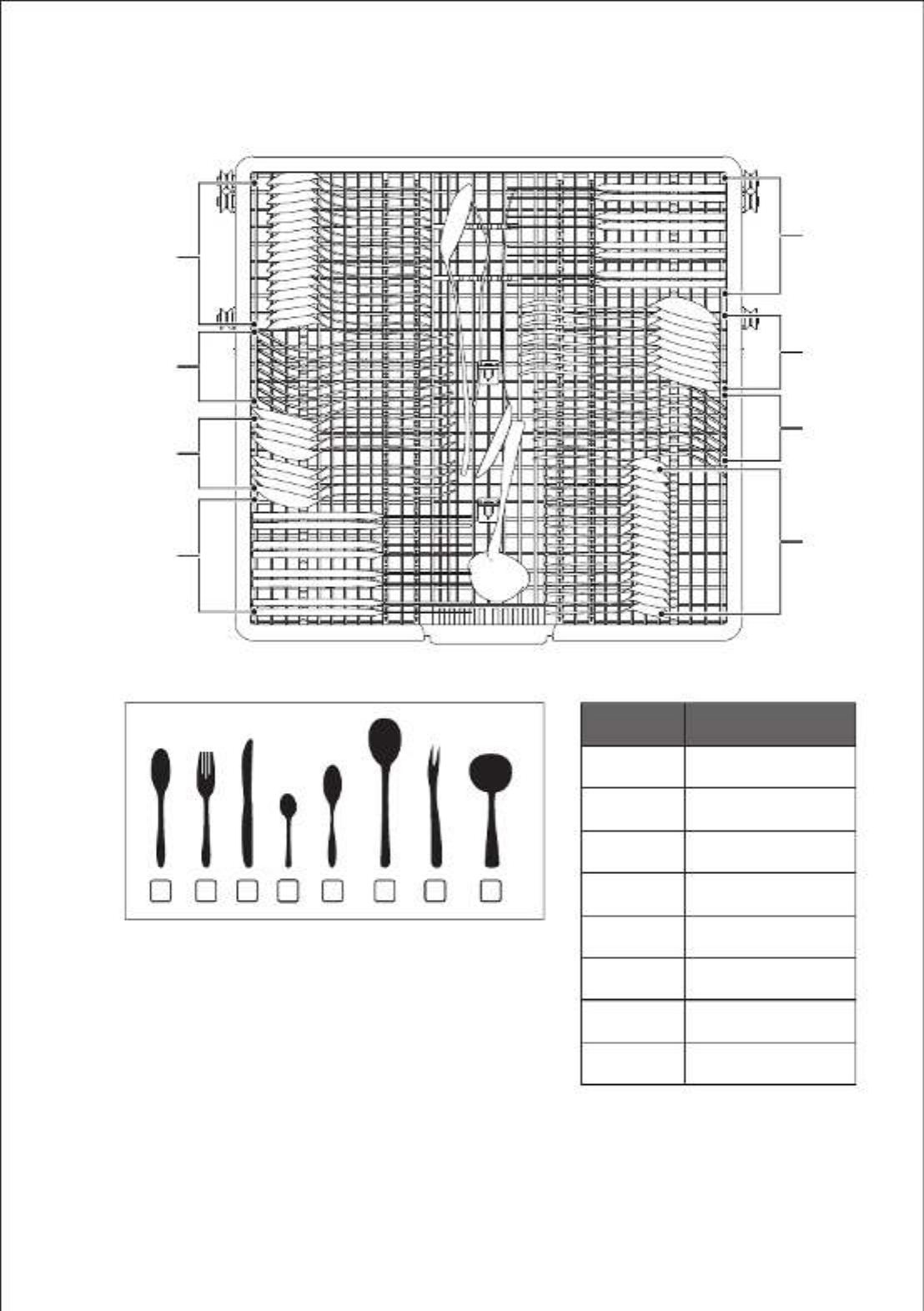

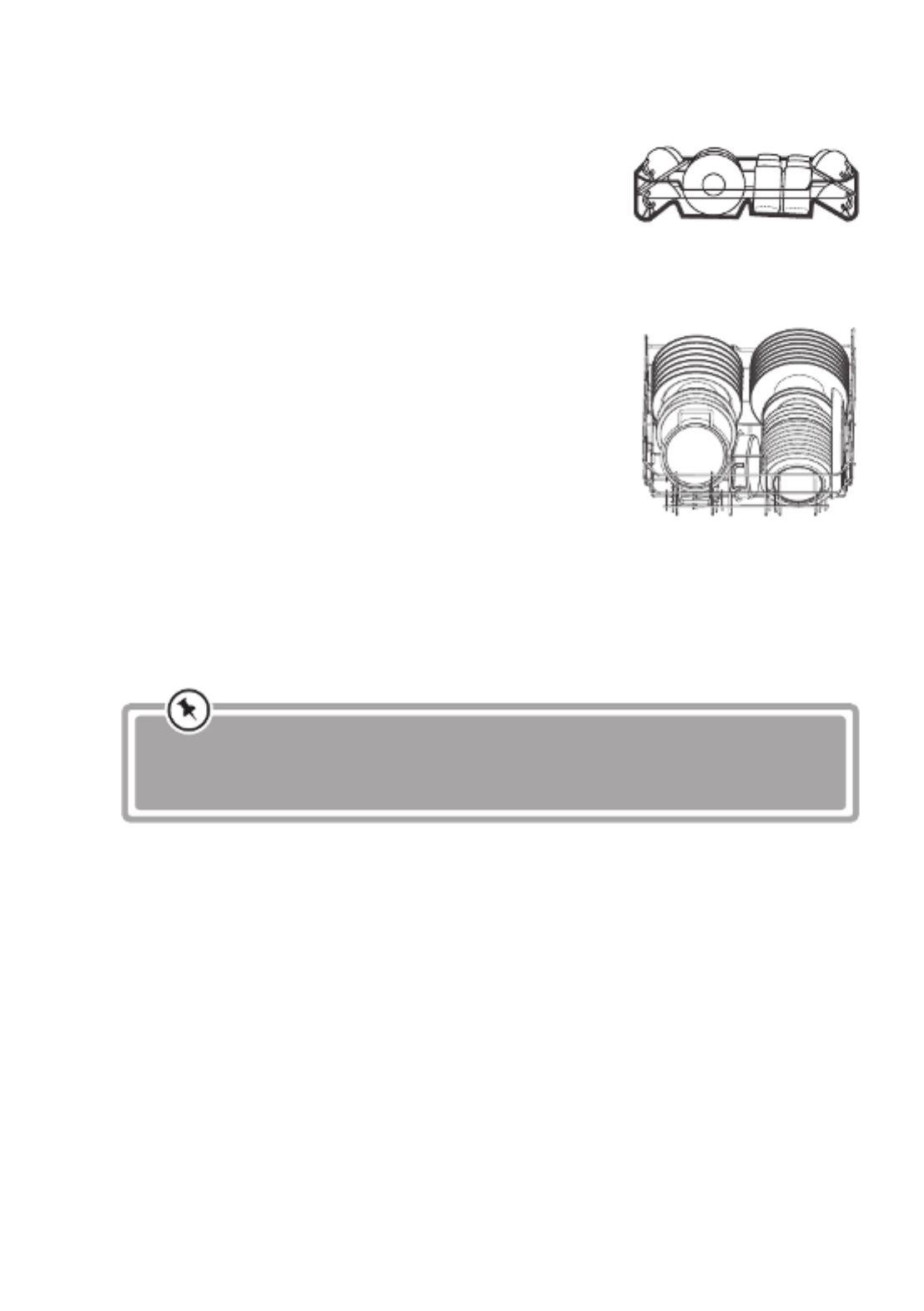

1.Upper basket:
2.Lower basket:
1
2
3
4
5
6
Cups
Mugs
lass bowl
Saucers
Glasses
Dessert bowls
G
ItemNumber
LOADING THE BASKETS
ACCORDING TO EN60436:
28
7
8
9
10
11
12
13
14
Soup plates
Melamine bowls
Dessert plates
Melamine dessert plates
Dinner plates
mall pot
Oval platter
S
Oven pot
Item
Number
4
4
4
4
4
4
4
4
4
4
1
1
1
1
1
1
1
1
1
1
6
6
6
6
6
2
2
2
2
2
5
5
5
5
5
3
3
3
3
3
2
2
2
2
22
2
2
2
2
33
3
3
3
3
3
10
10
10
10
10
7
7
7
7
710
10
10
10
10
11
11
11
11
11
12
12
12
12
12
13
13
13
13
13
3
3
3
3
33
3
3
3
3
8
8
8
8
8
9
9
9
9
9
14
14
14
14
14
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
29
3.Cutlery rack:
Information for comparability
tests in accordance with EN60436
Capacity: 16 place settings
Position of the upper basket: lower position
Program: ECO
Rinse aid setting: Max
Softener setting: H3
1 32 64 5 7 8
1
2
3
4
5
6
7
8
Soup spoons
Forks
Knives
Tea spoons
Dessert spoons
Serving spoons
Serving fork
Gravy ladle
ItemNumber
8
8
8
8
8
6
6
6
6
6
6
6
6
6
6
5
5
5
5
5
2
2
2
2
2
1
1
1
1
1
3
3
3
3
3
3
3
3
3
3
1
1
1
1
1
2
2
2
2
2
4
4
4
4
4
7
7
7
7
7
Note
o
the instructions on app. If the nnection
pleas structions provided by the
.
Please make sure your mobile phone is
Settings and
and
c e turn on the
e. If not,
Add de vice
8:88
XXX X XX XX X
Enter email
Enter password Login
...
If no message appears, select " +" on the
page and sele in the list of
n If your not
l , please add you anually by
the
Download the app
& activate product
MSmartHome
Register and log in
O pen the MSmartHom e app, and create a
new a ou can also
O
log in.
Download the MSmartHome app
App "MSmartHome" and
find the MS and martHome app. Dow nl oad
Hereby, Foshan Shunde Midea Washing Appliances Mfg. Co., Ltd., declares that this dishwasher is in compliance with
the essential requirements and other relevant provisions of RE Directive 2014/53/EU. A copy of the full DoC is attached.
Operating frequency of product :
RF
BLE
2.4G WiFi
5G WiFi(if have)
Maximum transmit power
Transmit frequency
2402-2480MHz
2412-2472MHz
5180-5240MHz
5260-5320MHz
<10dBm
<20dBm
<20dBm
Note: The product is suitable to operating in the environment of 4~40
5

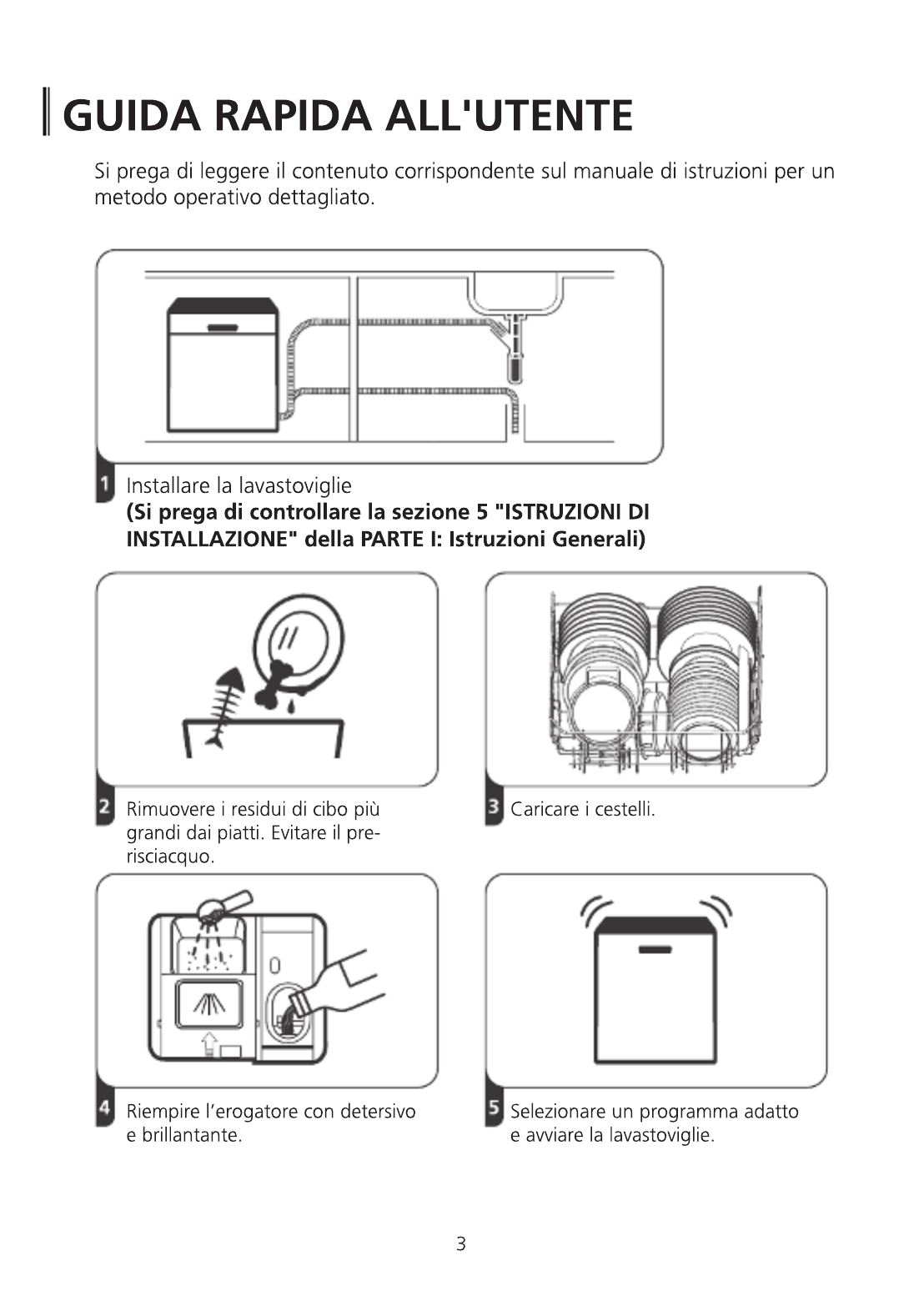

QUICK USER GUIDE
Please read the corresponding content in the instruction manual for detailed
operating method.
2 3
4
3

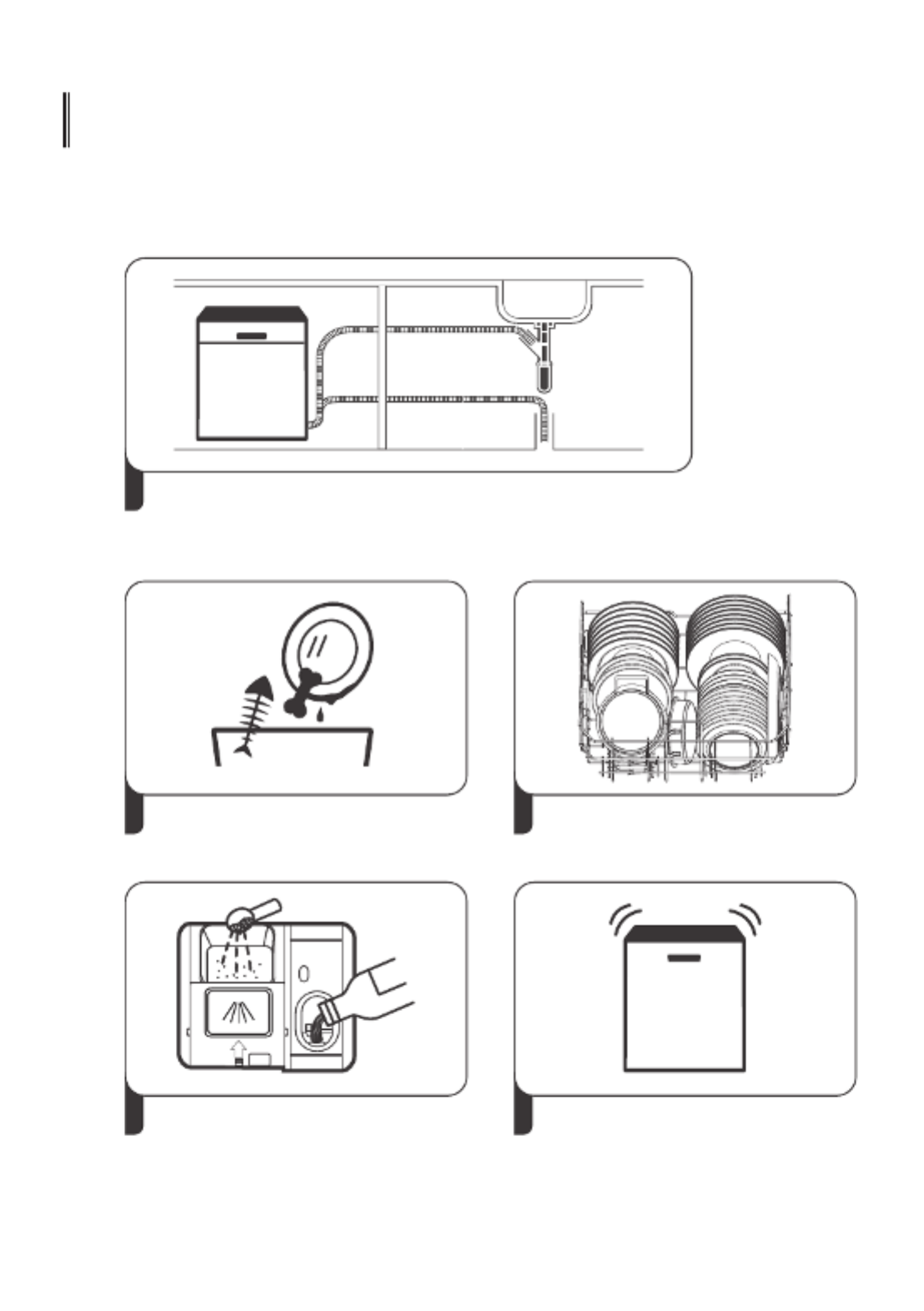

1Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION ”
of PART General Instructions)Ⅰ:
Remove larger residue from dishes.
Avoid pre-rinsing.
Load the baskets.
Fill the dispenser with detergent and
rinse aid.
Select a suitable program and
start the dishwasher.
USING YOUR DISHWASHER

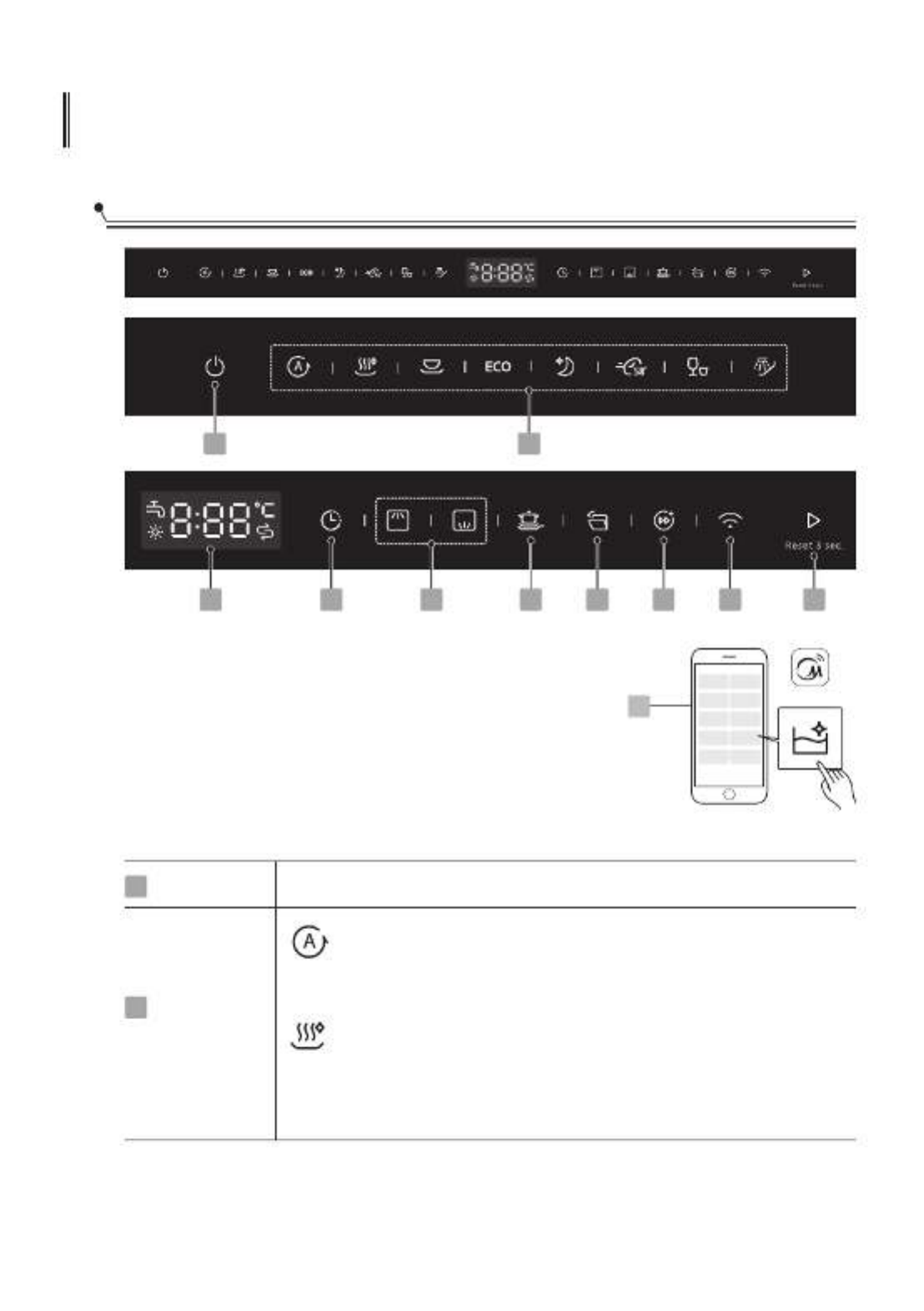

Control Panel
4
1 2
3 4 5 6 7 8 910
11
Power Press this button to turn on your dishwasher.

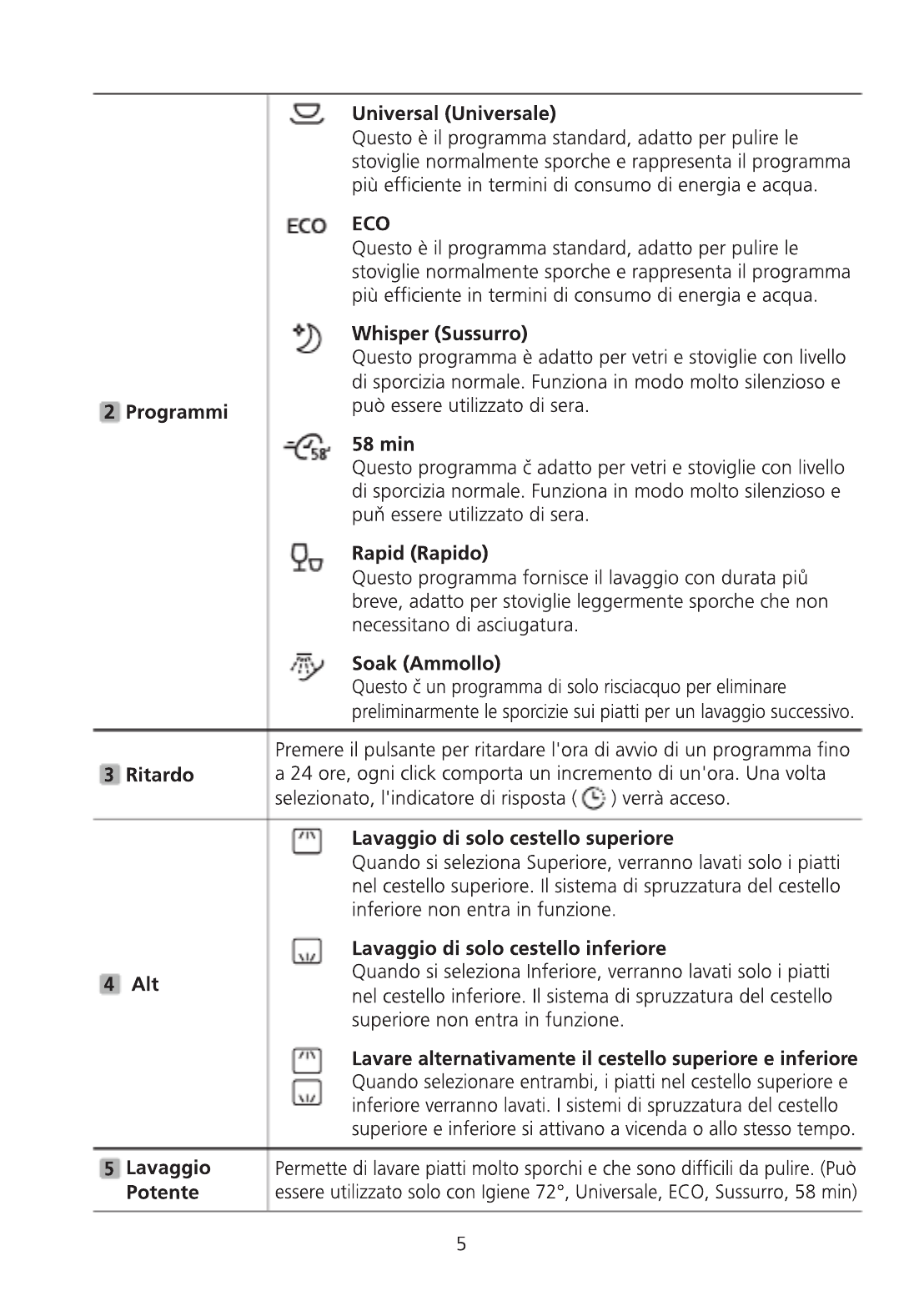

Hygiene 72
Hygiene 72
Hygiene 72
Hygiene 72Hygiene 72°
°
°
°°
This program is suitable for all types of crockery and soil
levels. It provides the highest wash temperature for the
sanatization of dishes.
1
Auto
Auto
Auto
AutoAuto
Programs2
This program is sensor controlled and will adapt to the
level of soil. It is suitable for all types of crockery.
5
Whisper
Whisper
Whisper
WhisperWhisper
This prgram is suitable for glasses and crockery with
normal soil. It operates more quietly and can be used in
the evening or at night.
Programs2
ECO
ECO
ECO
ECOECO
This is the standard program, it is suitable to clean normally
soiled tableware and it is the most efficient program in
terms of its combined energy and water consumption.
Rapid
Rapid
Rapid
RapidRapid
Soak
Soak
Soak
SoakSoak
This program provides the shortest wash for lightly soiled
tableware that does not need drying.
This is a rinse only program to loosen soil particles on the
dishes for a later wash.
Universal
Universal
Universal
UniversalUniversal
This is the standard program, it is suitable to clean normally
soiled tableware and it is the most efficient program in
terms of its combined energy and water consumption.
58 min
58 min
58 min
58 min58 min
This prgram is suitable for glasses and crockery with
normal soil. It operates more quietly and can be used in
the evening or at night.
Delay
3
Press the button to delay the start time of a prgram for up to 24
hours in one-hour increments. When selected the response
indicator ( ) will be lit.
Alt
4
Upper basket wash only
Upper basket wash only
Upper basket wash only
Upper basket wash onlyUpper basket wash only
When you select Upper, only the dishes in the upper rack
will be washed. The spray system of the lower basket will
not operate.
Lower basket wash only
Lower basket wash only
Lower basket wash only
Lower basket wash onlyLower basket wash only
When you select Lower, only the dishes in the lower rack
will be washed. The spray system of the upper basket will
not operate.
Upper or lower basket wash alternatively
Upper or lower basket wash alternatively
Upper or lower basket wash alternatively
Upper or lower basket wash alternativelyUpper or lower basket wash alternatively
When you select the both, the dishes in the upper and
lower rack will be washed. The spray system of the upper
or lower basket will be operated alternatively or both.
Screen
Salt
Salt
Salt
SaltSalt
When the “indicator is lit, it means the dishwasher is
low on dishwasher salt and needs to be refilled.
Rinse Aid
Rinse Aid
Rinse Aid
Rinse AidRinse Aid
When the” ”indicator is lit, it means the dishwasher is
low on rinse aid and requires a refill.
10
6
Power Wash
Power Wash
Power Wash
Power Wash
Power Wash

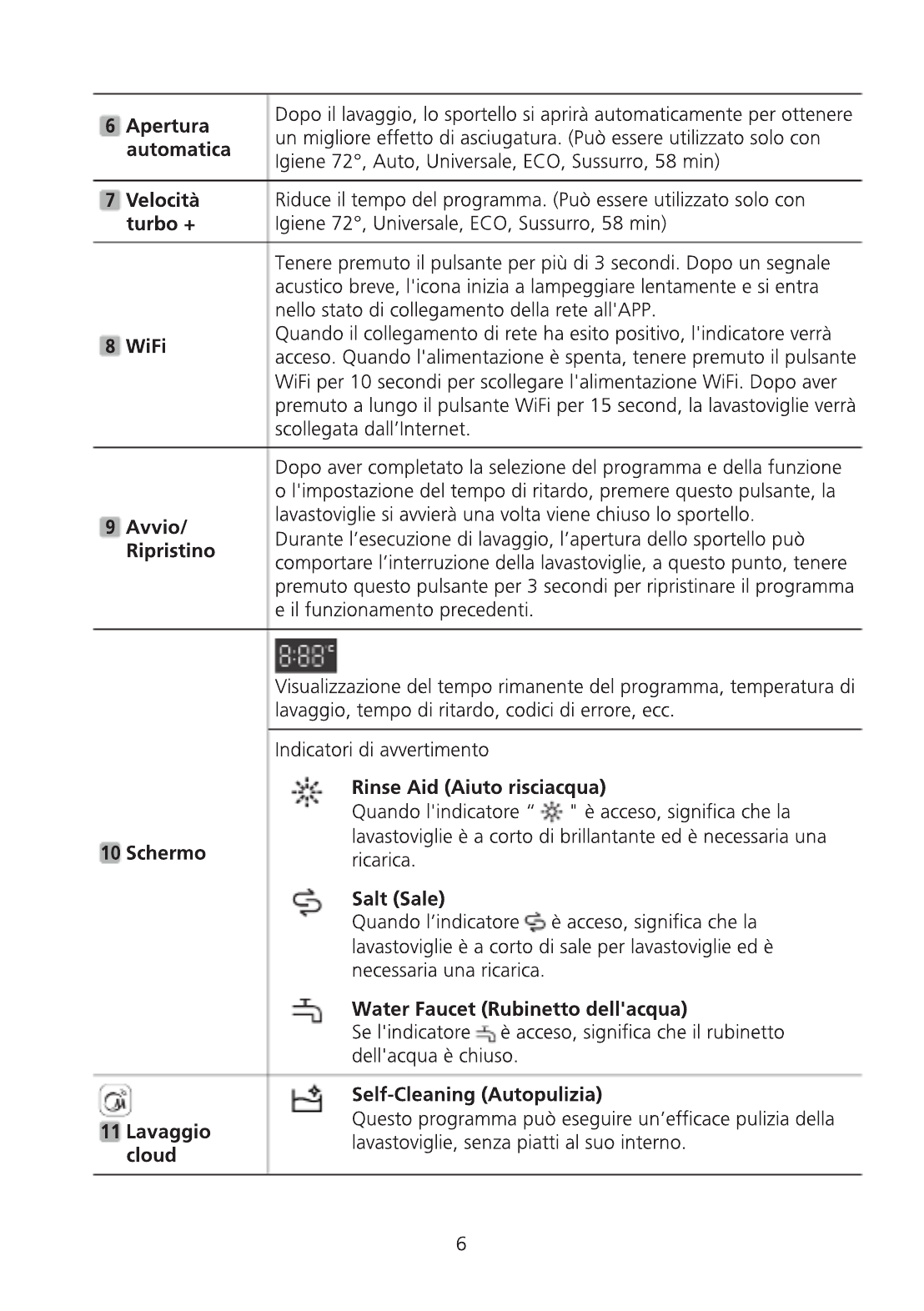

5To wash very dirty, hard to clean dishes. (It can only be
used with Hygiene 72°, Universal, ECO, Whisper, 58 min)
After washing, the door will open automatically to achieve
better drying effect. (It can only be used with Hygiene ,
, Universal, ECO, Whisper, 58 min)
72°
Auto
Water Faucet
Water Faucet
Water Faucet
Water FaucetWater Faucet
If the “ ” indicator is lit, it means the water faucet closed.
Auto open
6
Reduce the program time. (It can only be used with Hygiene ,
Universal, ECO, Whisper, 58 min)
72°
Turbo speed+7
Press the button for more than 3 seconds. After a shout
bleeping and the icon starts to blink slowly, it's in the network
linking status to APP.
When the network link is successful, the indicator will be lit.
When the power is off, press the wifi button for 10 seconds to
disconnect the wifi power. After long pressing the wifi button
for 15 seconds, the dishwasher will be disconnected from the
Internet.
Wi-Fi8
Start/Reset
9
After completing program and function selection or delay time
setting, press this button
When the washing program is running, after the program is
suspended by opening the door, press and hold this button for
3 seconds to reset the current program and function.
, the dishwasher will start after the door
is closed.
Warning Indicators
Warning Indicators
Warning Indicators
Warning IndicatorsWarning Indicators
Display of the remaining program time, wash temperature,
delay time, error codes, etc.
Self-Cleaning
Self-Cleaning
Self-Cleaning
Self-CleaningSelf-Cleaning
This program is for the effective cleaning of the dishwasher
itself, without dishes.
Cloud wash11
7

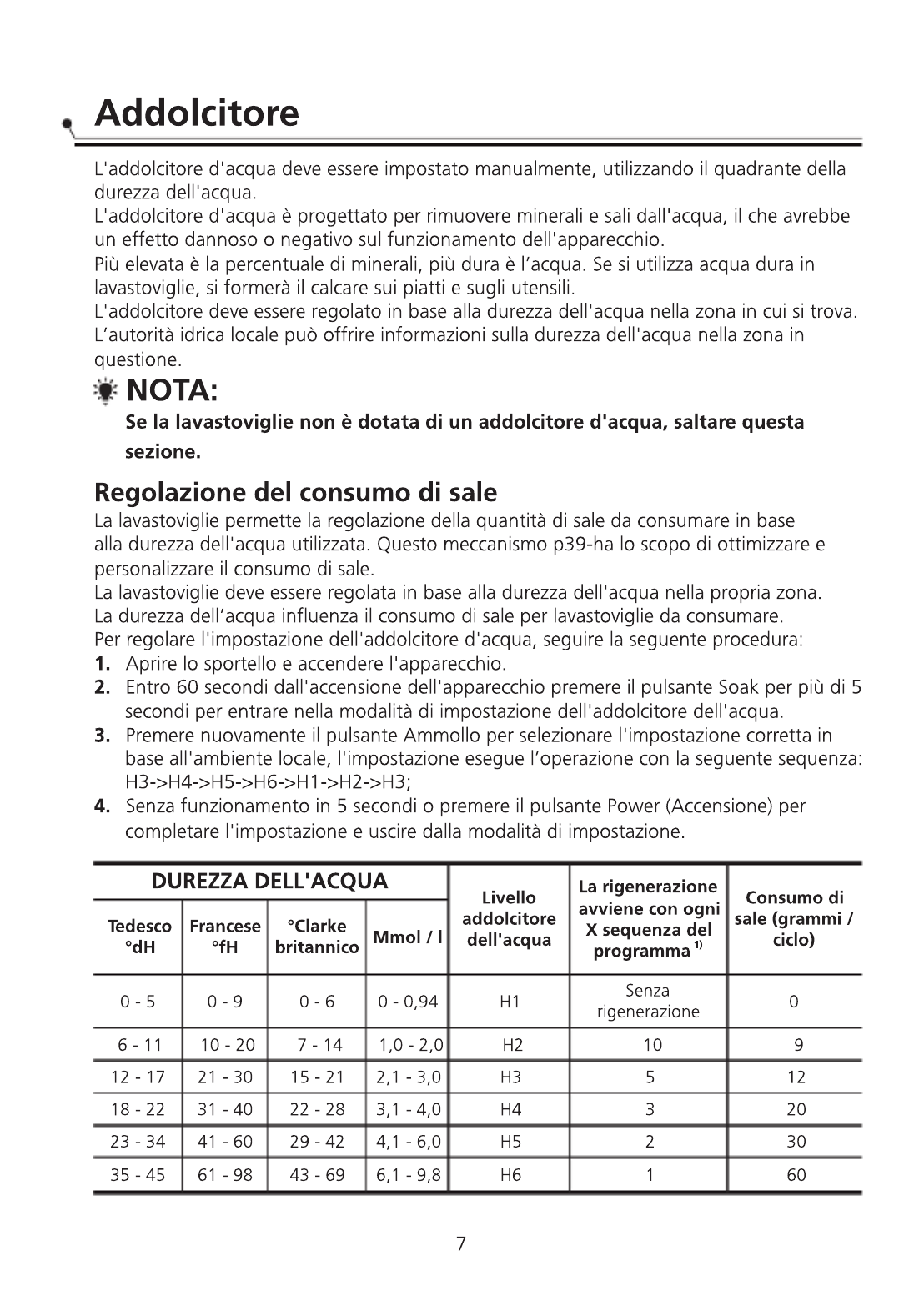

Water Softener
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which
would have a detrimental or adverse effect on the operation of the appliance.
The more minerals there are, the harder your water is. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
The softener should be adjusted according to the hardness of the water in your area.
Your local water authority can advise you on the hardness of the water in your area.
Adjusting salt consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed
based on the hardness of the water used. This is intended to optimise and customise
the level of salt consumption.
1. Open the door and switch on the appliance.
2. Within 60 seconds after the appliance was switched on press the Soak button
for more than 5 seconds to enter the water softener setting mode.
3. Press the Soak button again to select the proper setting according to your local
environment, the setting will change in the following sequence:
;
4. Without operation in 5 seconds or press the Power button to complete the setup
and exit the setup mode.
H3->H4->H5->H6->H1->H2->H3
To adjust the water softener setting follow the steps below:
0 - 5
6 - 11
12 - 17
18 - 22
23 - 34
35 - 55
German
German
German
German
dH
dH
dH
dH
German
dH
0 - 9
10 - 20
21 - 30
31 - 40
41 - 60
61 - 98
0 - 6
7 - 14
15 - 21
22 - 28
29 - 42
43 - 69
0 - 0.94
1.0 - 2.0
2.1 - 3.0
3.1 - 4.0
4.1 - 6.0
6.1 - 9.8
French
French
French
French
fH
fH
fH
fH
French
fH mmol/l
mmol/l
mmol/l
mmol/lmmol/l
British
British
British
British
Clarke
Clarke
Clarke
Clarke
British
Clarke
WATER HARDNESS Salt consumption
(gram/cycle)
H1
H2
H3
H4
H5
H6
0
9
12
20
30
60
No regeneration
Water softner
level
Regeneration occurs
every X program
sequence
1)
10
5
3
2
1
The dishwasher must be adjusted to the water hardness in your area.
This will affect the consumption of dishwasher salt consumed.
NOTE:
If your dishwasher is not equipped with a water softener, you may skip
this section.

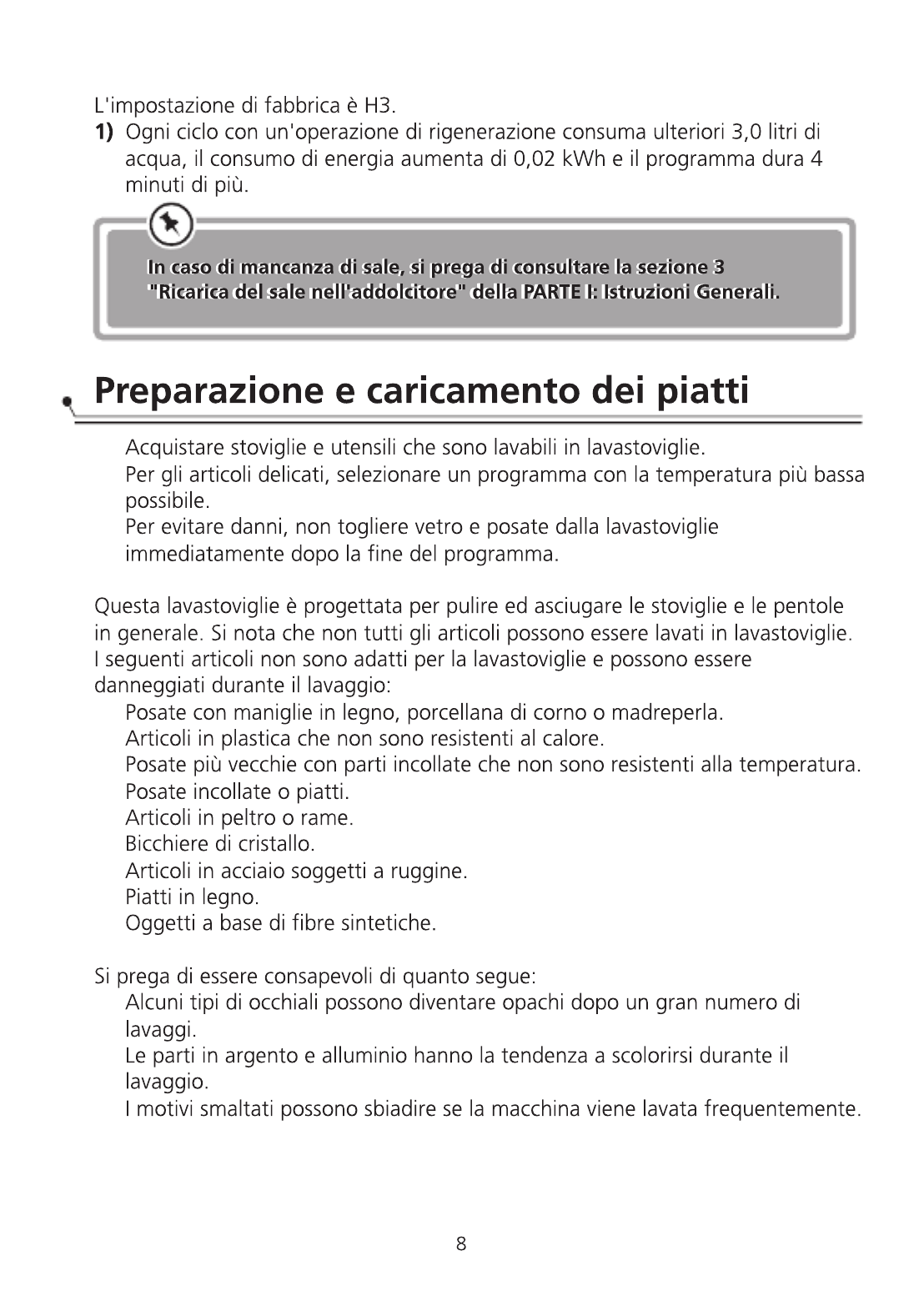

Preparing And Loading Dishes
Consider buying tableware and utensils which are dishwasher safe.
For delicate items select a program with the lowest possible temperature.
To prevent damage, do not take glasses and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, horn china or mother-of-pearl handles.
Plastic items that are not heat resistant.
Older cutlery with glued parts that are not temperature resistant.
Bonded cutlery items or dishes.
Pewter or cooper items.
Crystal glass.
Steel items subject to rusting.
Wooden platters.
Items made from synthetic fibres.
Some types of glasses can become dull after a large number of washes.
Silver and aluminum parts have a tendency to discolour during washing.
Glazed patterns may fade if machine washed frequently.
This dishwasher is designed to clean and dry common tableware and cookware.
However, not all items should be washed in the dishwasher.
The following items are not suitable and may be damaged during the wash:
Please be aware of the following:
8
Please check the section 3 “Loading The Salt Into The Softener”
Please check the section 3 “Loading The Salt Into The Softener”
Please check the section 3 “Loading The Salt Into The Softener”
Please check the section 3 “Loading The Salt Into The Softener”
of PART
of PART
of PART
of PART Genera
Genera
Genera
Genera
, If your dishwasher lacks salt.
, If your dishwasher lacks salt.
, If your dishwasher lacks salt.
, If your dishwasher lacks salt.
Ⅰ:
Ⅰ:
Ⅰ:
Ⅰ: l
l
l
lInstrus
Instrus
Instrus
Instrustions
tions
tions
tions
Please check the section 3 “Loading The Salt Into The Softener”
of PART Genera Ⅰ: l Instrustions, If your dishwasher lacks salt.
The factory setting is H3.
Every cycle with a regeneration operation consumes additional 3.0 litres of water,
the energy consumption increases by 0.02 kWh and the program extends by 4
minutes.
1)
Items such as cups, glasses, pots, pans, etc. must face downwards.
Curved items, or items with recesses, should be loaded aslant so that water can
run off easily.
All items should be placed securely so that they can not tip over.
All items must be placed in a way that the spray arms can rotate freely. Check the
rotation of spray arms before starting a program.
Dishes and items of cutlery must not lie inside one another, or cover each other.
Avoid nesting of cutlery items or that items cover each other so that the water can
reach all areas.
The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
Sharp or long bladed knives stored in an upright position are a potential hazard.
Long and sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket.
To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket first, followed by the upper basket.
Removing the dishes
WARNING
Items will be hot! To prevent damage, do not remove glasses or
delicate items from the dishwasher baskets until they are cooled
down.

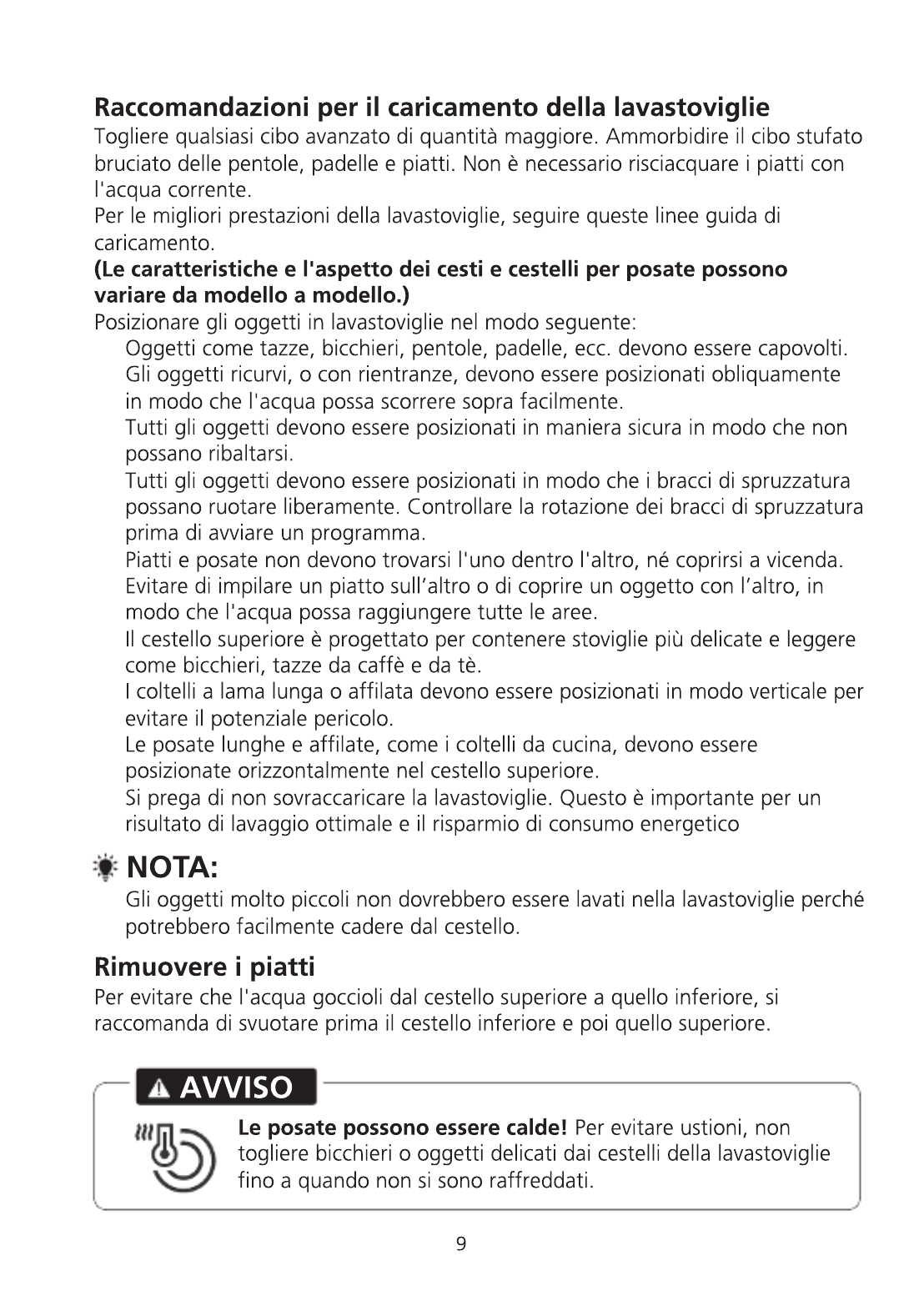

Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pots, pans and casserole dishes. It is not necessary to rinse the dishes under
running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from
model to model.)
Place objects in the dishwasher in the following way:
9
10
Loading the upper basket
The upper basket is designed to hold more delicate and
lighter dishware such as glasses, coffee and tea cups and
saucers, as well as plates, small bowls and shallow pans.
Position the dishes and cookware so that they will not
get moved by the spray of water.
Loading the lower basket
We suggest that you place large and difficult to clean
items into the lower basket: such as pots, pans, lids,
serving dishes and bowls, as shown in the figure . It is
preferable to place serving dishes and lids on the side of
the racks in order to avoid blocking the rotation of the
upper spray arm.
Loading the cutlery rack
For optimal cleaning and drying results, please refer to the standard
For optimal cleaning and drying results, please refer to the standard
For optimal cleaning and drying results, please refer to the standard
For optimal cleaning and drying results, please refer to the standard
loading options in the last section of PART
loading options in the last section of PART
loading options in the last section of PART
loading options in the last section of PART Ⅰ:
Ⅰ:
Ⅰ:
Ⅰ: Gener
Gener
Gener
General Instruc
al Instruc
al Instruc
al Instructions
tions
tions
tions
For optimal cleaning and drying results, please refer to the standard
loading options in the last section of PART Ⅰ: General Instructions
Cutlery should be placed in the cutlery rack separate from each other in the
appropriate positions. Avoid nesting of the cutlery to prevent insufficient cleaning
performance.
11
The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by allowing
water to run off the dishes. Your dishwasher is designed to use liquid rinse aids.
WARNING
Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher
cleaning agent, liquid detergent). This would damage the appliance.

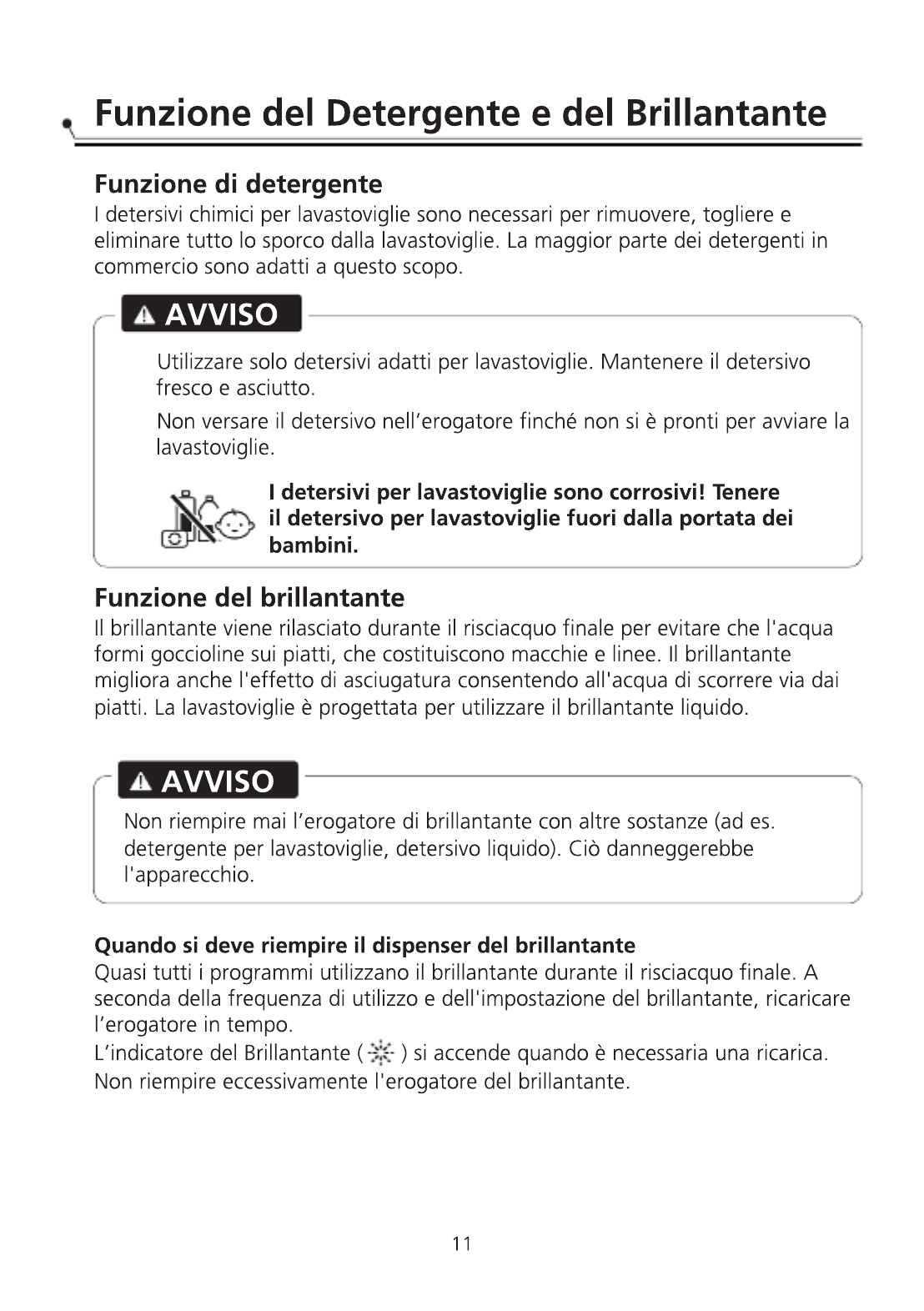

Function Of The Detergent And Rinse Aid
Function of detergent
The chemical ingredients of dishwasher detergents are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are
suitable for this purpose.
WARNING
Use only detergent specifically made for dishwashers use. Keep your detergent
fresh and dry.
Do not fill detergent into the dispenser until you are ready to start the
dishwasher.
Dishwasher detergents are corrosive! Keep dishwasher
detergent out of reach from children.

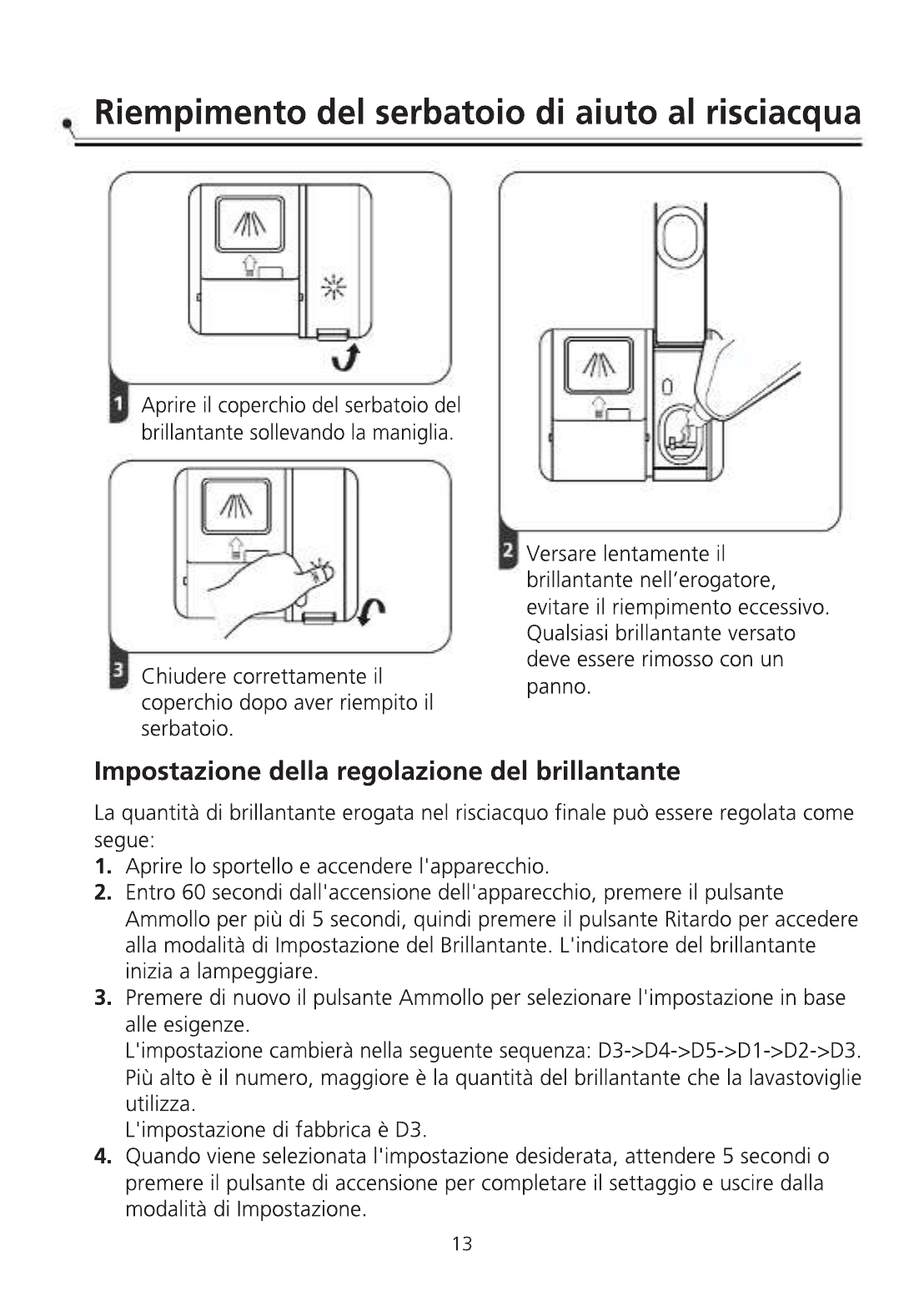

When to refill the rinse aid dispenser
Almost every program uses rinse aid in the final rinse. Depending on the frequency
of use and the rinse aid setting the dispenser needs to be refilled.
The Rinse Aid indicator ( ) will be lit when a refill is required.
Do not overfill the rinse aid dispenser.
Function of rinse aid
Prewash (45 )
Wash (55-65 )
Rinse
Rinse
Rinse (50 60 )- ℃
Drying
Prewash (45 )
Wash (72 )
Rinse
Rinse
Rinse (72 )
Drying
Prewash (45 )
Wash (60 )
Rinse
Rinse
Rinse (50 )
Drying
Wash (49 )
Rinse
Rinse (42 )
Drying
102-175 0.930-1.470 10.3-16.9
225 1.845 16.7
230 1.330 16.7
215 0.664 9.3
(*EN60436)
Hygiene 72°
°
°
°°
Whisper
Auto
5+19g
24g

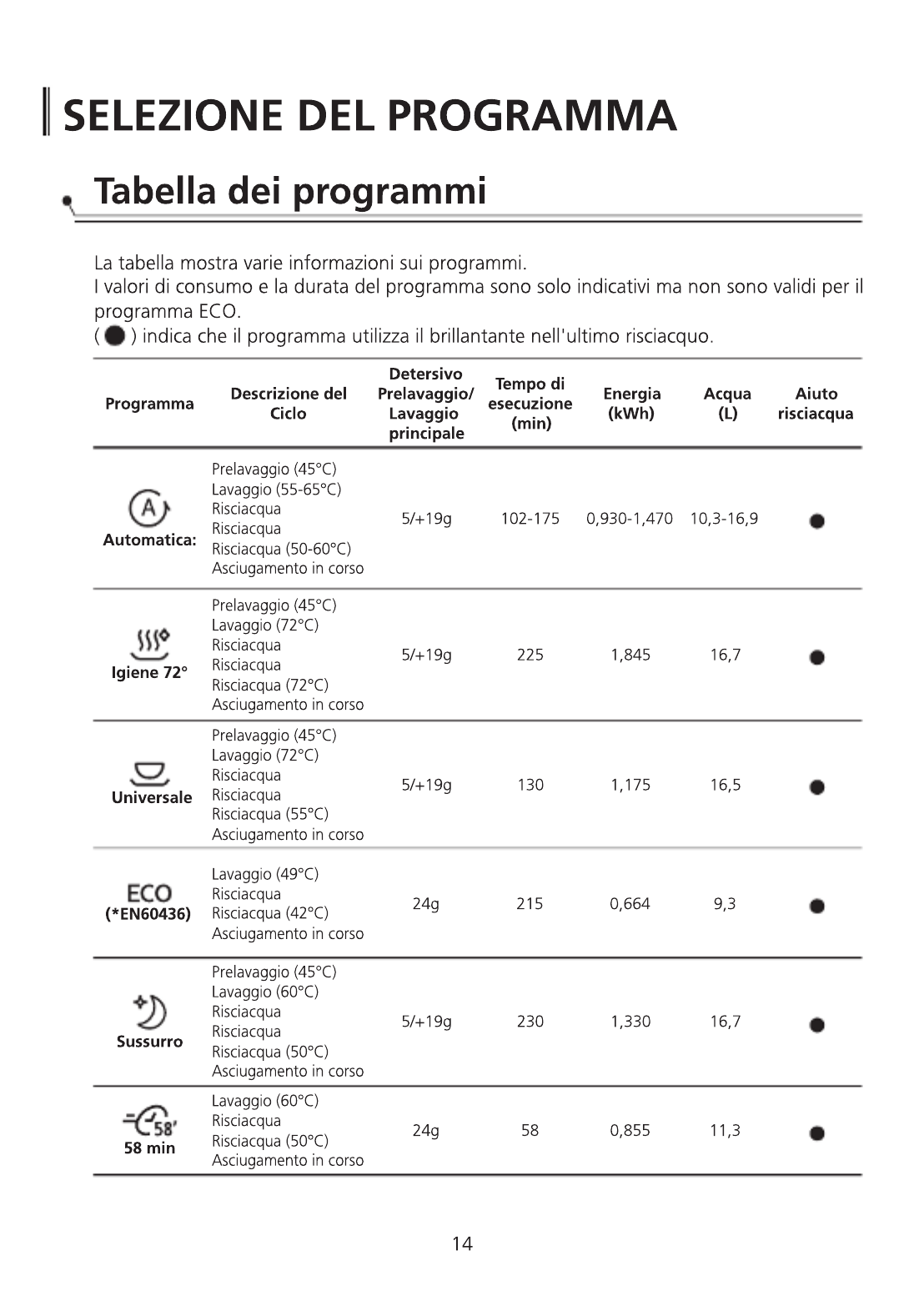

PROGRAM SELECTION
Program Table
The table shows various information about the programs.
Consumption values and program duration are only indicative except for ECO program.
( ) indicates that the program uses rinse aid in the last rinse.
14
Program Running
Time(min)
Energy
(kWh)
Water
(L)
Description
Of Cycle
Rinse
Aid
Detergent
Pre/Main Wash
Prewash (45 )
Wash (72 )
Rinse
Rinse
Rinse (55 )
Drying
130 1.175 16.5
Universal 5+19g
5+19g
5+19g
Wash (60 )
Rinse
Rinse (50 )
Drying
58 0.855 11.3
58 min
24g
Self-Cleaning
14 0.115 3.9
Prewash
35 0.690 11.3
Wash (55 )
Rinse
Rinse (45 )
18g
/
Wash (70 )
Rinse
Rinse (55 )
115 1.245 11.7
:The ECO program is suitable to clean normally soiled tableware, that
for this use, it is the most efficient program in terms of its combined
energy and water consumption, and it is used to assess compliance
with the EU eco design legislation.
NOTE:
(*EN60436)
Saving Energy
1. Pre-rinsing of tableware items leads to increased water and energy consumption
and is not recommended.
2. Washing tableware in a household dishwasher usually consumes less energy and
water in the use phase than hand dishwashing when the household dishwasher is
used according to the instructions.
24g
15
Program Running
Time(min)
Energy
(kWh)
Water
(L)
Description
Of Cycle
Rinse
Aid
Detergent
Pre/Main Wash

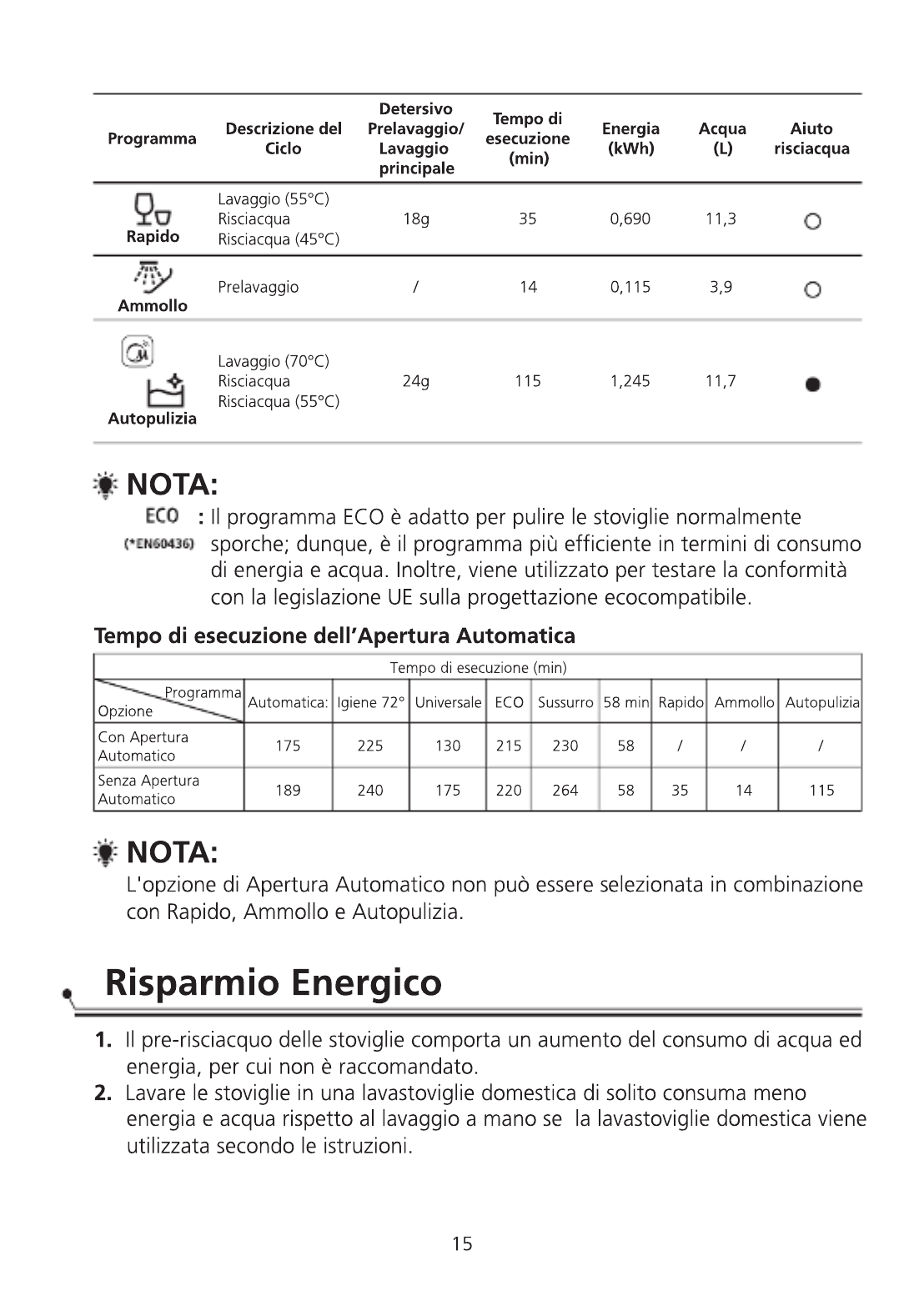

Rapid
Soak
The Auto open Option can not be selected in combination with Rapid, Soak and
Self-cleaning.
NOTE:
Running time of the Auto Open
Running time (min)
Hygiene 72°
°
°
°° Whisper
Auto Universal 58 minECO Self-
Cleaning
Rapid Soak
Without auto open
With auto open
Program
Option
175 225 130 215 230 58 / / /
189 240 175 220 264 58 35 14 115
16

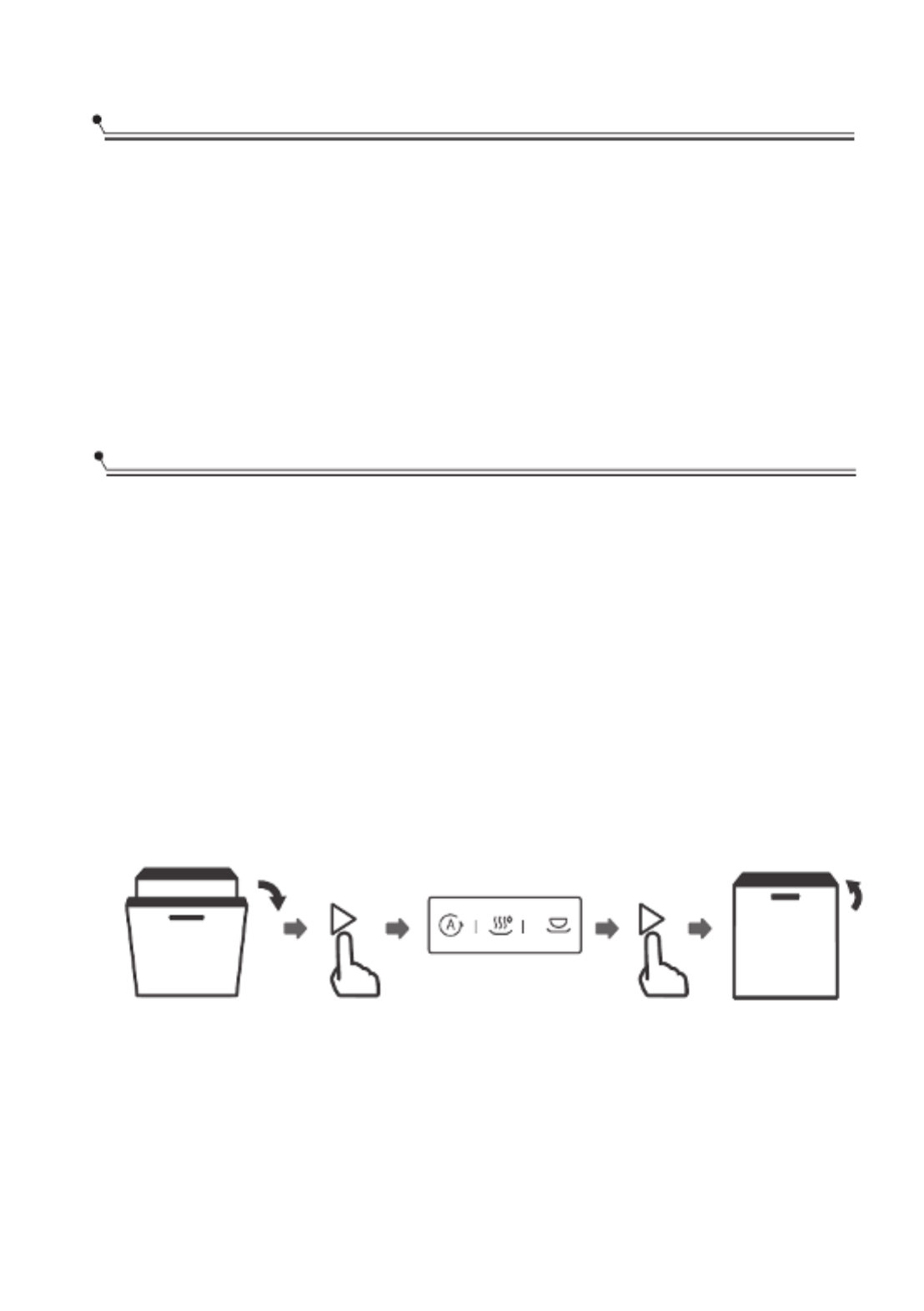

1. Open the door a little to pause the cycle, after the spray arms stopped working
you can open the door completely.
2. Press Start/Pause button for more than three seconds, the dishwasher will be in
program selection mode.
3. You can change the program to the desired cycle setting.
4. Press the Start/Pause button, and close the door, the dishwasher will
to run.
restart
3 sec

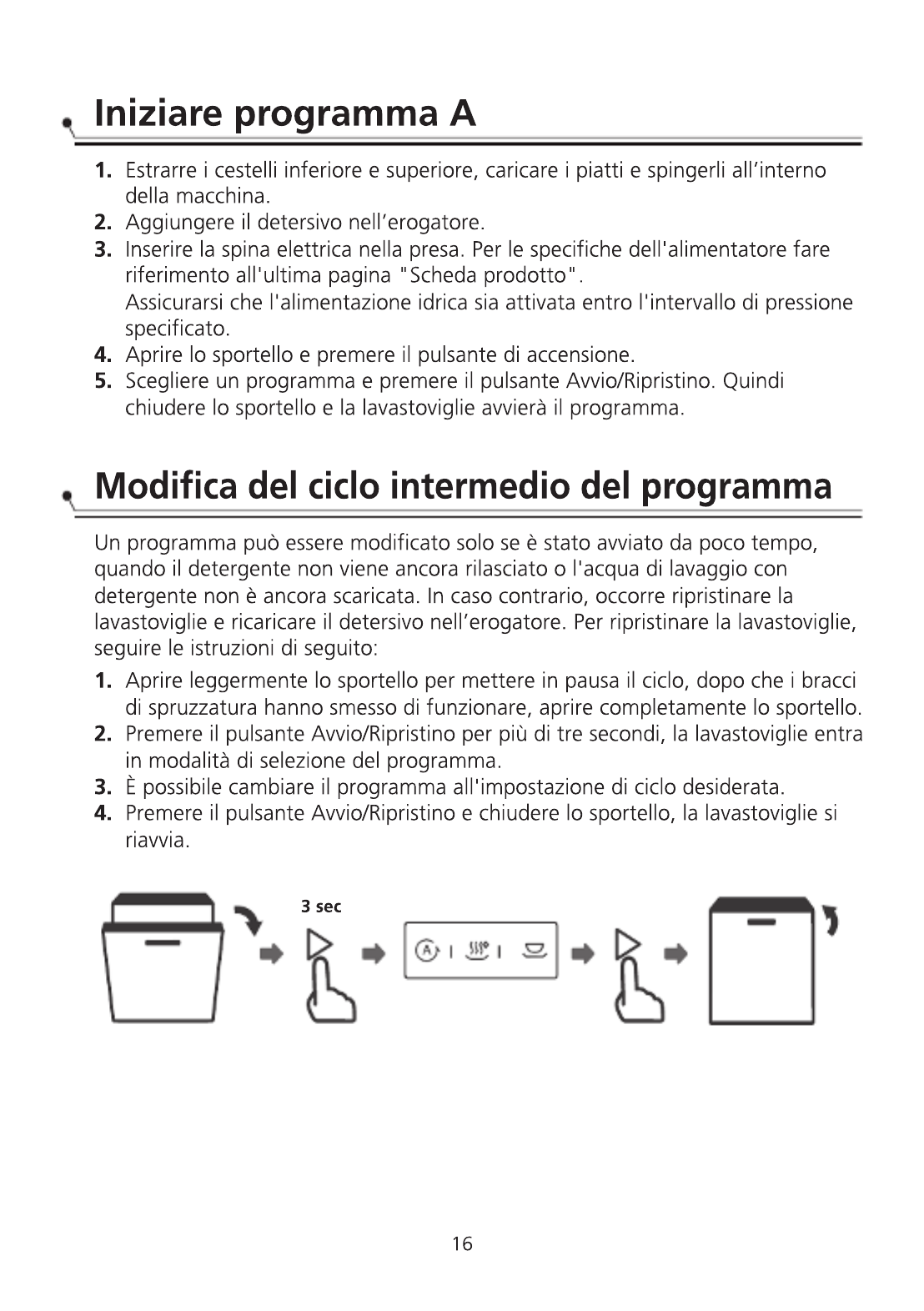

Changing The Program Mid-Cycle
A program can only be changed if it has been running for a short period of time,
otherwise the detergent may have already been released or the the wash water with
detergent has already been drained. If this is the case, the dishwasher needs to be
reset and the detergent dispenser must be refilled. To reset the dishwasher, follow
the instructions below:
Starting A Program
1. Pull out the lower and upper basket, load the dishes and push them back.
2. Add the detergent in the dispenser.
3. Insert the plug into the socket. For the power supply specification please refer to
last page ”Product information sheet”.
Make sure that the water supply is turned on within specified range of pressure.
4. Open the door, Press the Power button.
5. Choose a program and press . Then close the door,
the dishwasher will start the program.
the Start/Reset button

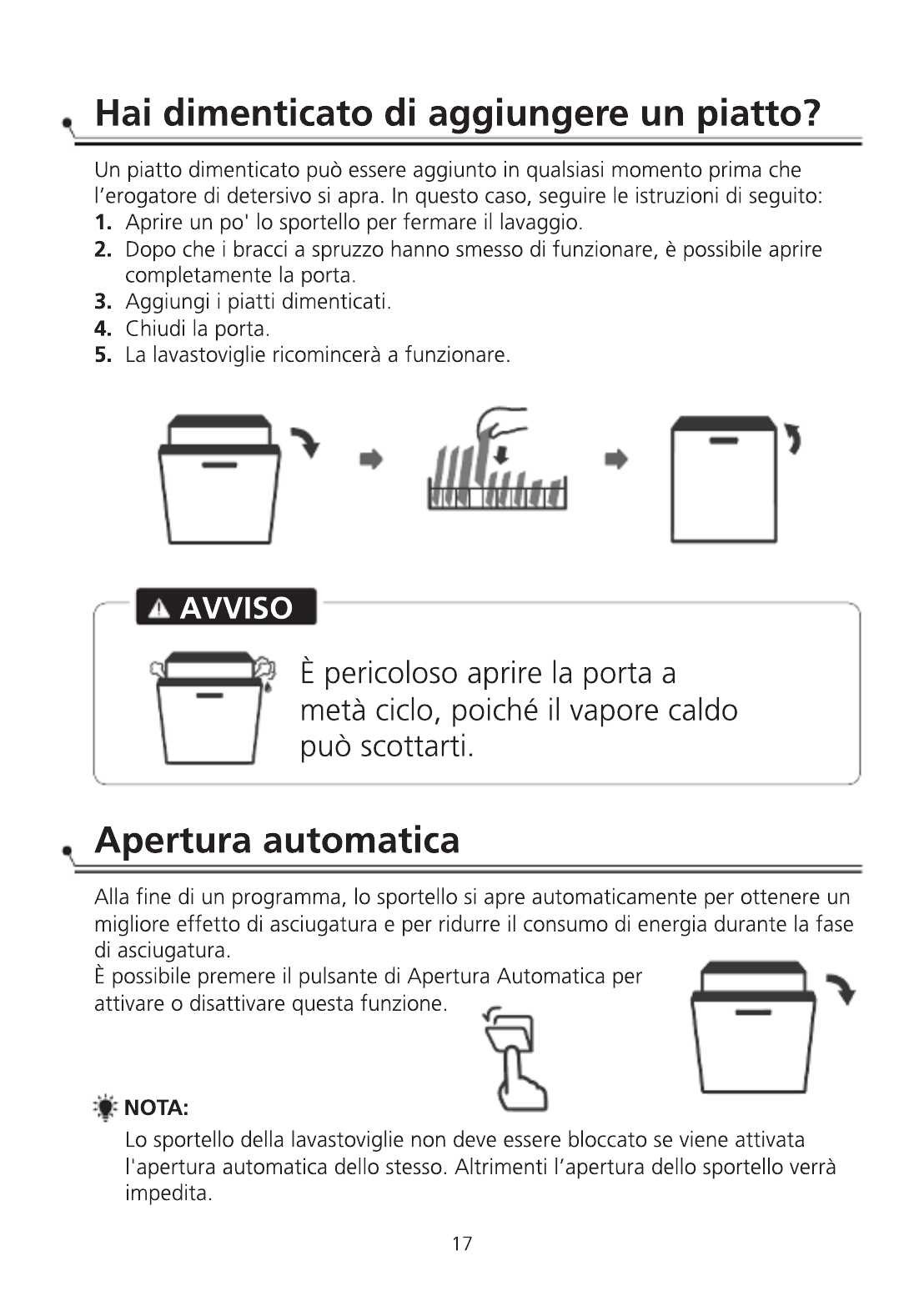

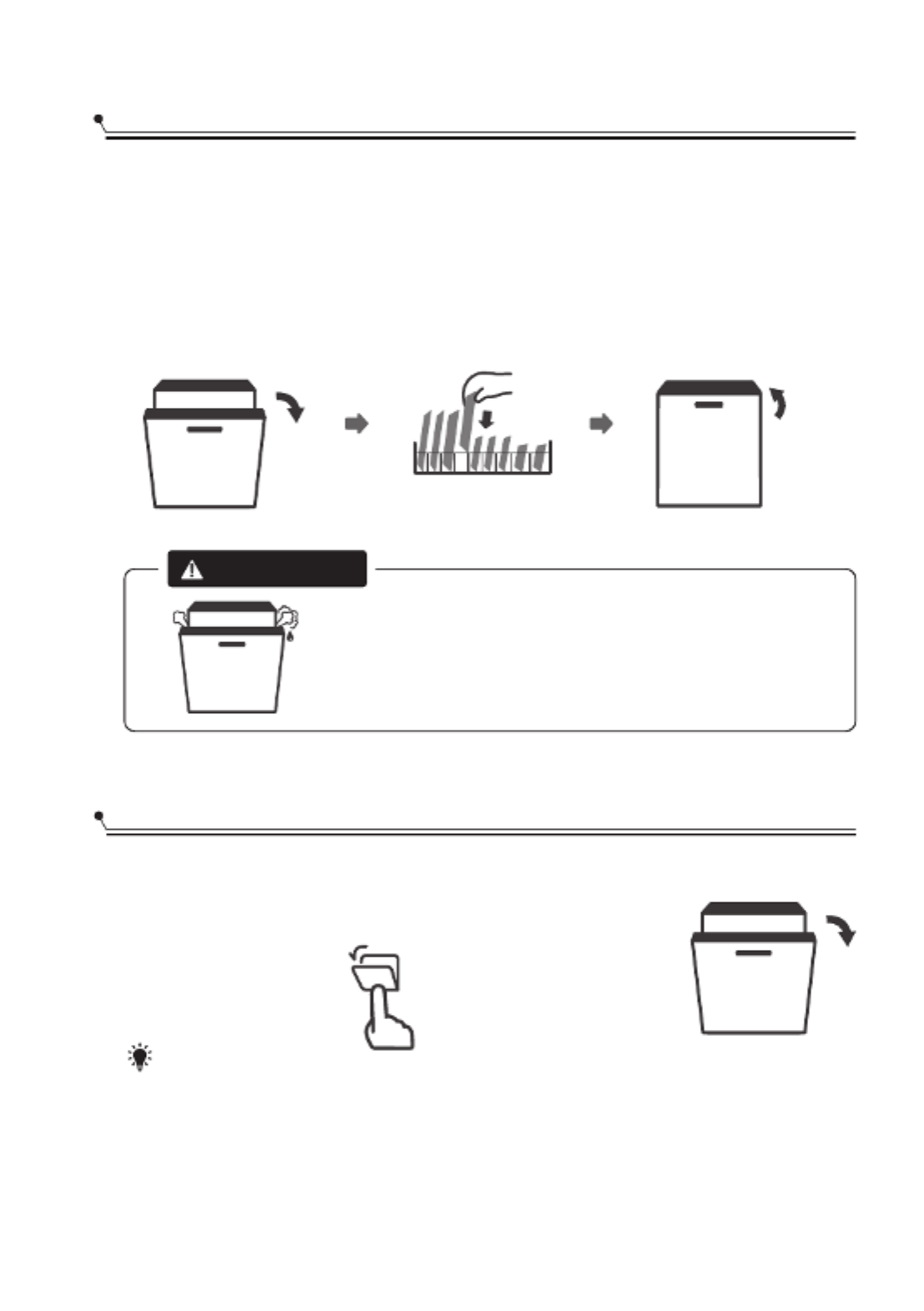

Forget To Add A Dish
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
1. Open the door a little to stop the washing.
2. After the spray arms stopped working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door.
5. The dishwasher will start running again.
WARNING
It is dangerous to open the door
mid-cycle, as hot steam may
scald you.
At the end of a program the door will open automatically to achieve better drying effect
and reduce energy use during the drying phase.
You can press the Auto Open button to activate or remove
the Auto Open option.
Auto Open
The dishwasher door must not be blocked when set to
open automatically. This can disrupt door lock functionality.
NOTE:
17
18
Defective PCB, drain pump or
motor failure.
Failure of the washing
control system

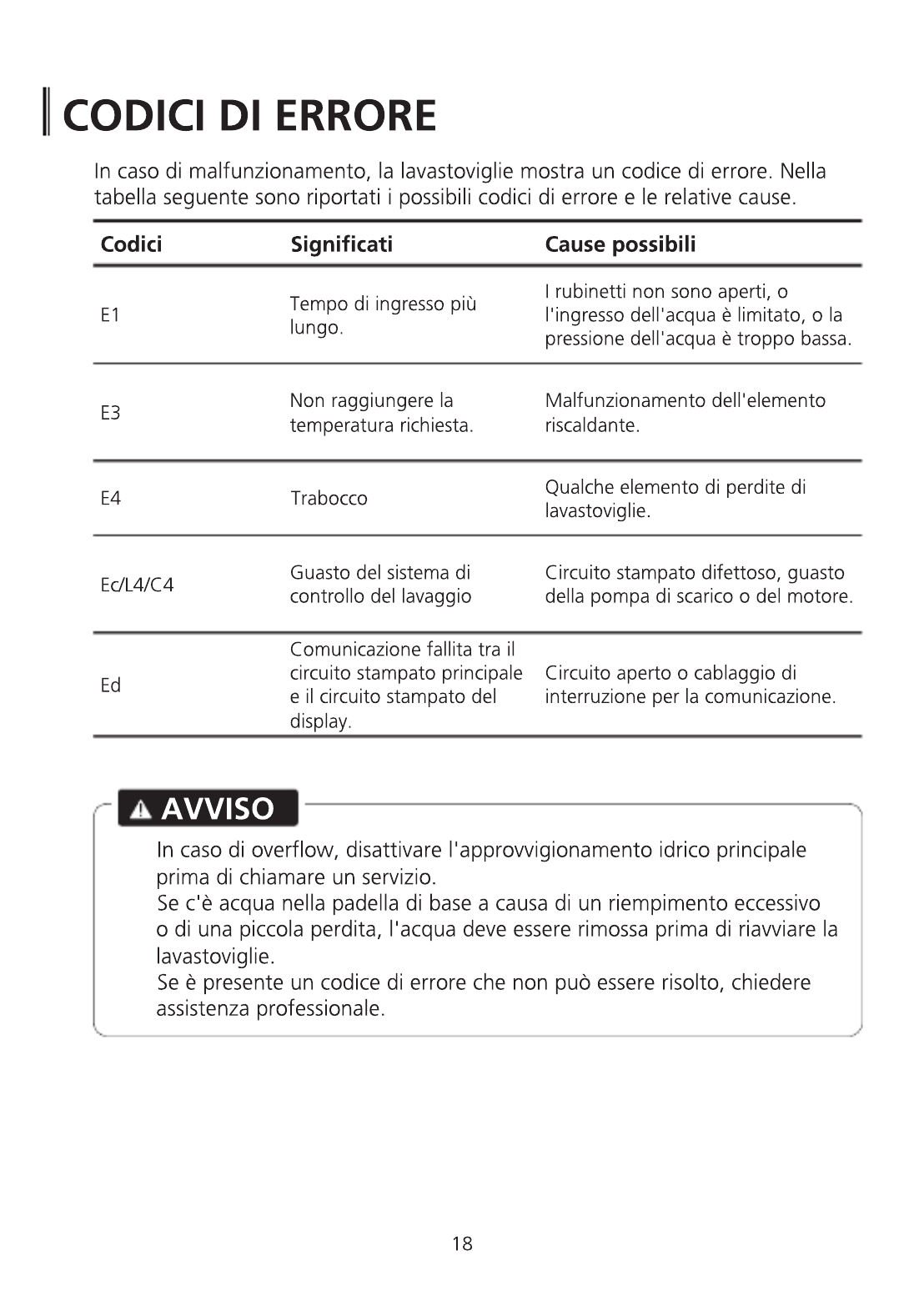

ERROR CODES
If there is a malfunction the dishwasher will display an error code. The following table
shows possible error codes and their causes.
Meaning
Longer inlet time
Overflow
Possible Causes
Some element of dishwasher leaks.
Faucet is not opened, or water intake is
restricted, or water pressure is too low.
Codes
E1
E4
Not reaching required
temperature Malfunction of heating element.
E3
Failure of communication
between main circuit board
with display circuit board
Ed Open circuit or break wiring for
the communication.
WARNING
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water
should be removed before restarting the dishwasher.
assistance.
If there is an error code that cannot be solved, please request professional
Ec/L4/C4

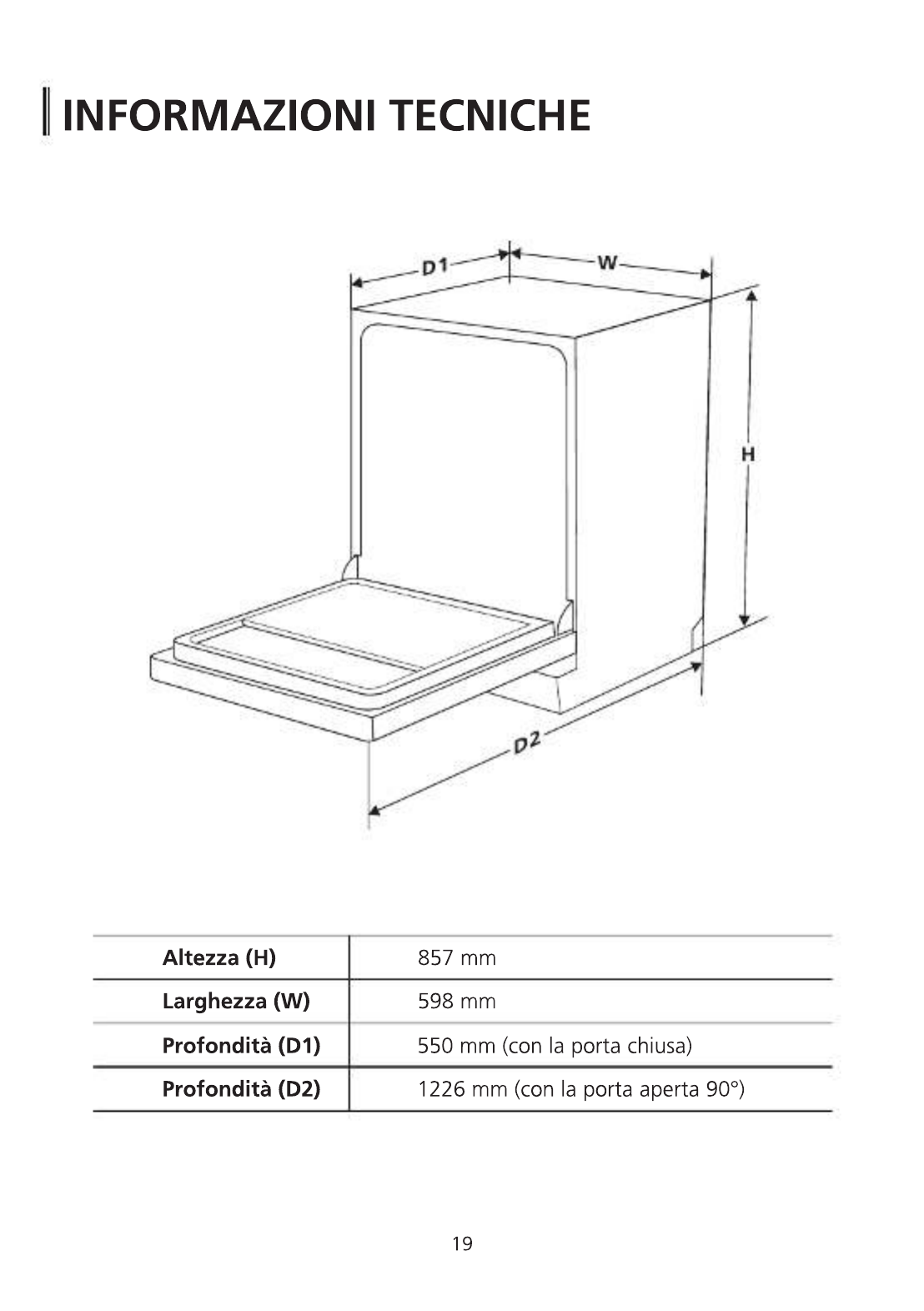

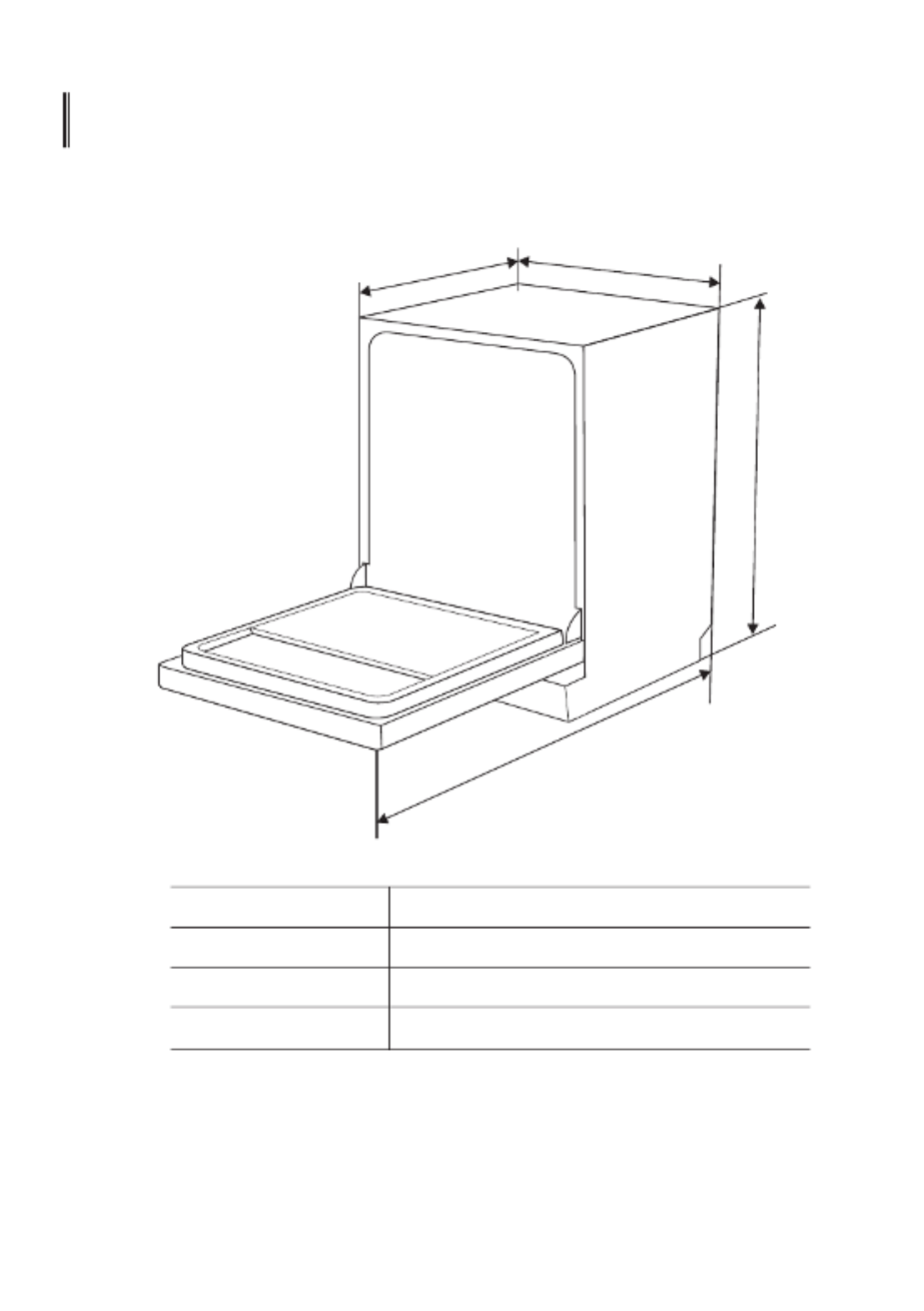

TECHNICAL INFORMATION
Height (H)
Width (W)
Depth (D1)
Depth (D2)
857 mm
598 mm
550 mm (with the door closed)
1226 mm (with the door opened 90 )°
W
W
W
W
W
D
D
D
D1
1
1
1
D1
H
H
H
H
H
19
D
D
D
D2
2
2
2
D2


Produkt Specifikationer

Mærke: Master Kitchen
Kategori: Opvaskemaskine
Model: MKDW FI6E8316 EHT C

Har du brug for hjælp?

Hvis du har brug for hjælp til Master Kitchen MKDW FI6E8316 EHT C stil et spørgsmål nedenfor, og andre brugere vil svare dig




Opvaskemaskine Master Kitchen Manualer

Opvaskemaskine Manualer

Nyeste Opvaskemaskine Manualer

KKT Kolbe

KKT Kolbe DW601ED Manual

29 August 2025
KKT Kolbe

KKT Kolbe DW616ED Manual

29 August 2025
KKT Kolbe

KKT Kolbe DW615VI Manual

29 August 2025
KKT Kolbe

KKT Kolbe DW615ED Manual

29 August 2025
KKT Kolbe

KKT Kolbe DW401S Manual

29 August 2025
KKT Kolbe

KKT Kolbe DW4505FS Manual

29 August 2025
Candy

Candy CIP 3E7L0W Manual

29 August 2025
Siemens

Siemens SN43HW01VS Manual

29 August 2025
KKT Kolbe

KKT Kolbe DW601W Manual

29 August 2025
KKT Kolbe

KKT Kolbe DW4504VI Manual

29 August 2025
