This product meets the requirements of OSHA 1910.212(a)(5), the standard which regulates electric
fan blade safety, and is certified under UL File E355088.
Please note the serial number of your fan, and write it on the back of this User’s Manual for future reference. Your serial
number is located on upper rear section of mount bar.
CONSUMER: READ AND SAVE THESE INSTRUCTIONS
Model Numbers:
MAC-36-BDF, MAC-42-BDF, MAC-48-BDF
IMPORTANT: Read and understand all of the instructions in this manual before assembling, start-
ing, or servicing the fan. Improper use of this fan can cause serious injury. Keep this manual for
future reference.
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and
vapors. Never use the fan in spaces which contain products such as gasoline, solvents, paint thin-
ners, dust particles, volatile or airborne combustibles, or any unknown chemicals.
Safety Information
THIS IS A FAN - NOT A TOY! TO REDUCE THE RISK OF
PERSONAL INJURY AND ELECTRIC SHOCK, FAN SHOULD
NOT BE PLAYED WITH OR PLACED WHERE SMALL CHILDREN
CAN REACH IT.
DO NOT MOVE THE FAN WHILE OPERATING! MOVING FAN
DURING OPERATION CAN CAUSE BLADE DAMAGE.
Risk of fire, electric shock, or personal injury when performing
service or maintenance. Unplug or disconnect the fan from the
power supply before servicing.
CAUTION: automatically operated device - to reduce the risk of
injury disconnect from power source before servicing.
To guard against electric shock while operating, do not allow fan to come
in contact with other grounded objects such as pipes, radiators, etc.
WARNING
WARNING
WARNING
WARNING
WARNING
To reduce the risk of fire or electric shock, do not use
this fan with any solid-state speed control device.
To reduce the risk of electric shock and injury to per-
sons, do not use in a window.
WARNING
WARNING
Sauk Rapids, MN 56379 USA • Toll Free (800) 641-6996
Fax: 320-251-2922 • Web: www.masterindustrialproducts.com • Email: info@pinnacleclimate.com
© 2021 Pinnacle Climate Technologies, Inc. MAFH-4
11
User’s Manual &
Operating Instructions
HIGH CAPACITY
BARREL FAN
WARNING: This product can expose you to chemicals, including lead, which is known to
the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov.
4009412
FACTORY ID: 505
NEVER LEAVE A FAN UNATTENDED WHILE OPERATING
OR WHILE CONNECTED TO A POWER SOURCE
© 2021, Pinnacle Climate Technologies, Inc. High Capacity Barrel Fan User’s Manual

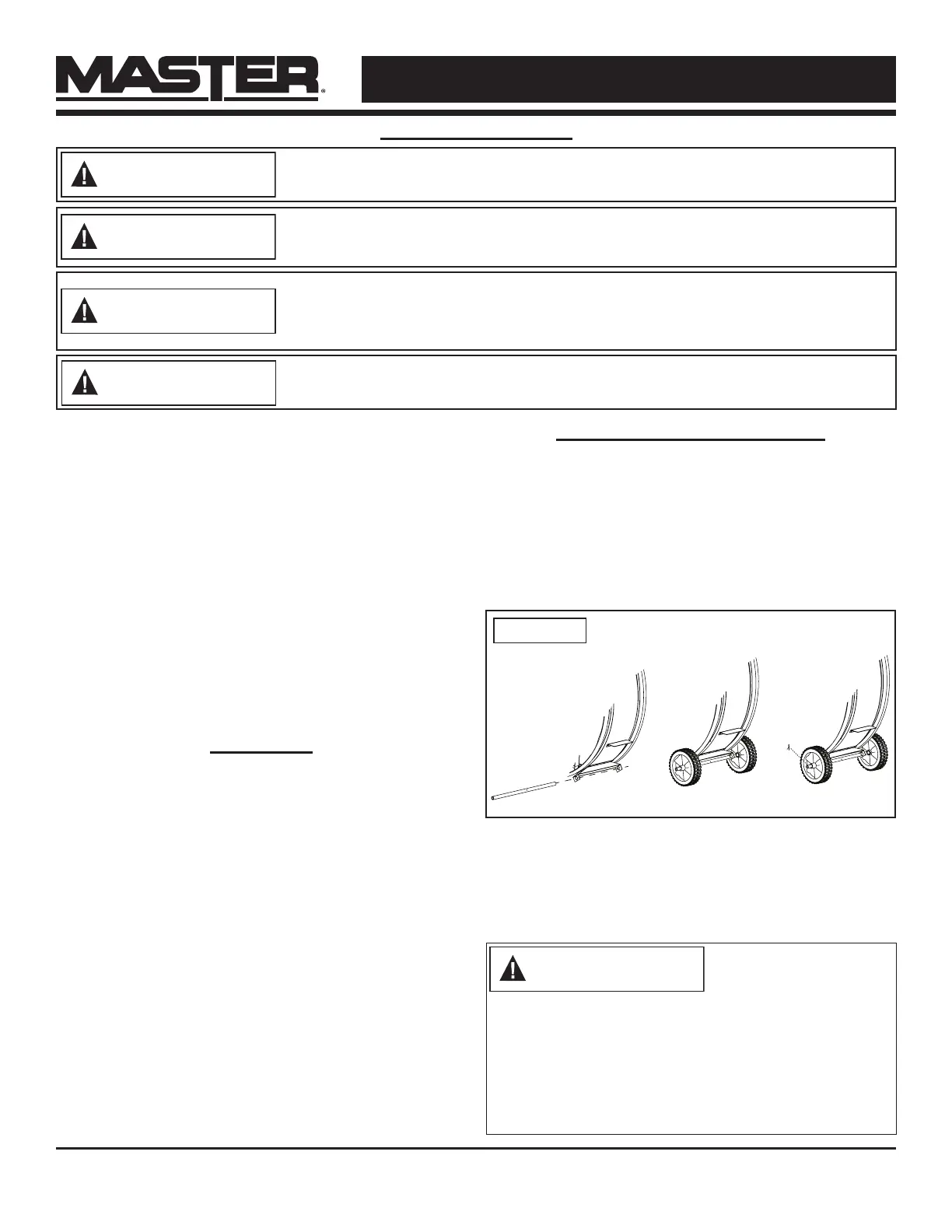

Installation and Assembly
Attaching The Wheels (Figure 1)
1. Slide wheel axle through wheel support
frame.
2. Slide one (1) wheel onto either side of axle.
3. Secure each wheel with one (1) cotter pin.
4. Locate fan in a safe, desired position on level
ground, and connect to approved power
source.
12 3
Installation work and electrical wiring must be done by qualified per-
son (s) in accordance with all applicable codes and regulations.
When Servicing or replacing a component requires the removal or
disconnection of a safety device, the safety device is to be rein-
stalled or remounted as previously installed before operating this
fan.
Use this fan only in the manner intended by the manufacturer. If you
have any questions, contact Customer Service at 800-641-6996.
- Before operating always check fan for loose or dam-
aged parts. Inspect power cord for damage. Never
use fan without safety guards attached.
-Operate only on 120 volt 60 Hz (cycle) current with a
minimum 15 amp circuit.
- When used with an extension cord, use a UL listed,
14 AWG cord equipped with a receptacle to accept
the three-prong grounded plug on the fan’s power
cord and a 3-prong grounded plug for the power
source. If extension cord is longer than 50 feet,
consult with cord manufacturer for proper cord AWG
rating. Always keep power cord and extension cords
away from heat, oil, and sharp edges. Inspect cords
periodically and replace if damaged.
To reduce the risk of electric shock, do not expose to water or rain.
This unit is designed for indoor use only.
WARNING
Safety Information
WARNING
WARNING
WARNING
Operation
NOTE: This fan is equipped with a 2-speed con-
trol switch.
TO START FAN:
1. Be sure the Power Switch is in the (OFF)
position.
2. Connect to an approved power source.
3. Make sure area is clear from all obstructions.
4. Push the Power Switch to the LOW position
and allow to operate for 10 seconds.
5. Once 10 seconds have passed, you may now
push the Power Switch to the HIGH position.
TO TURN OFF FAN:
1. To turn off the fan, simply return the Power
Switch to the middle (OFF) position.
NOTE: For longer parts life, after 10 hours of
continuous operation, turn fan off for 15 minutes
to allow motor and fan belt to cool.
Do not operate any
fan with a damaged
cord or plug. Discard
fan or return to an authorized service facility
for examination and/or repair. Do not run
cord under carpeting. Do not cover cord with
throw rugs , runner, or similar coverings. Do
not route cord under furniture or appliances.
Arrange cord away from traffic areas and
where it will not be tripped over.
WARNING
2
Figure 1
1. 2. 3.
