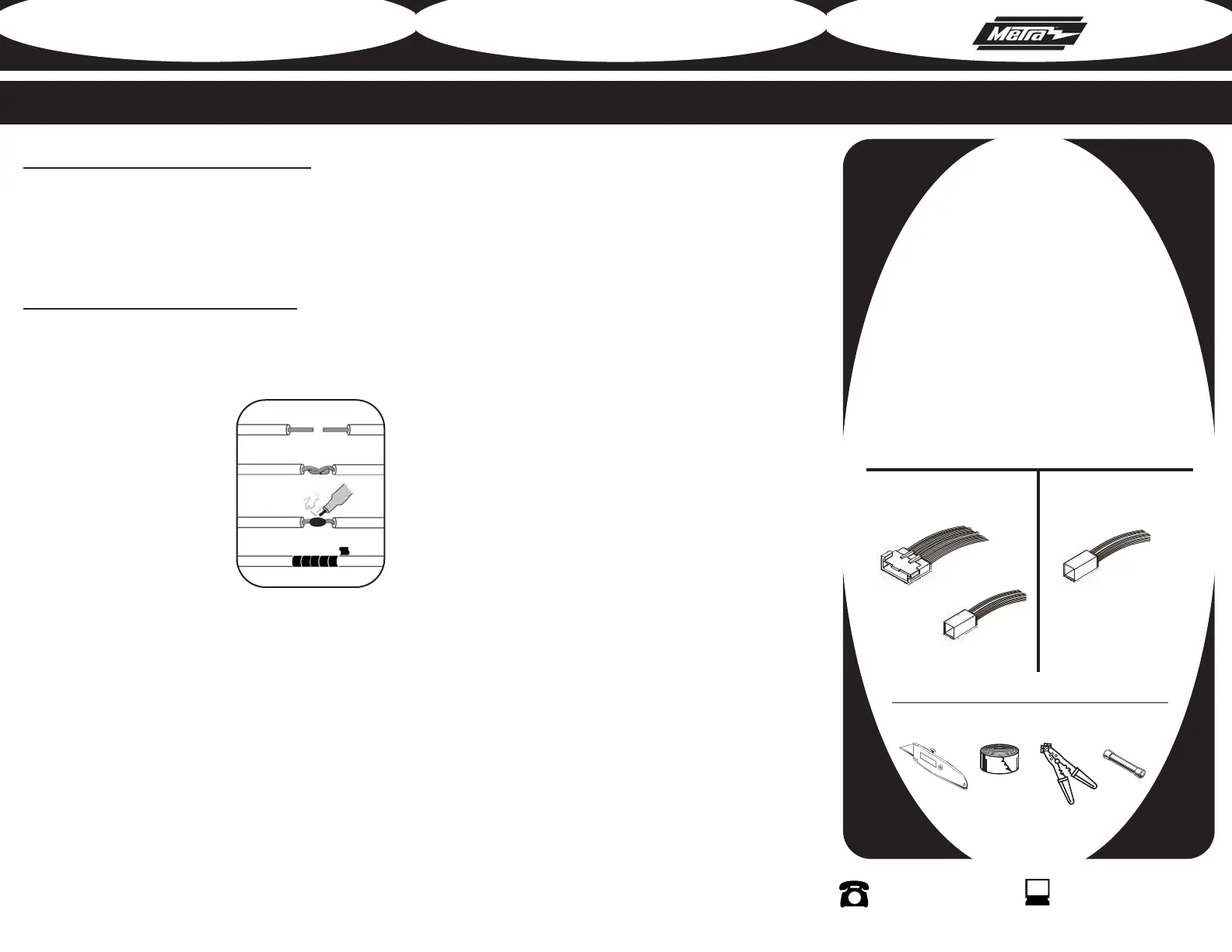

INSTALLATION

INSTRUCTIONS

70-5511

70-5512*

REV. 04/13/06 INST70-5511

KIT COMPONENTS

• Cutting Tool • Tape • Crimping Tool • Connectors

TOOLS REQUIRED FOR INST

ALLATION

STRIP

SPLICE

SOLDER

TAPE

FINAL WIRING CONNECTIONS

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground. . . . . . . . . . . . . . . . . . Black*

Power Antenna. . . . . . . . . . . . Blue

Amp Turn-On . . . . . . . . . . . . . Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray / Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE: When Black wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s

specifications.

Make wiring connections using the EIA color code chart shown below and the

instructions included with the head unit. Metra recommends making connections

as shown below; Strip, Splice, Solder, Tape. Isolate and individually tape off ends

of any unused wires to prevent electrical short circuit.

Ford Premium Sound System Harness

To Integrate Aftermarket Radio

with Factory Amplifiers and Speakers

Power

Harness

Amplifier

Integration

Plug

*Requires 70-1704

power harness

Amplifier

Integration

Plug

70-5511 70-5512 *

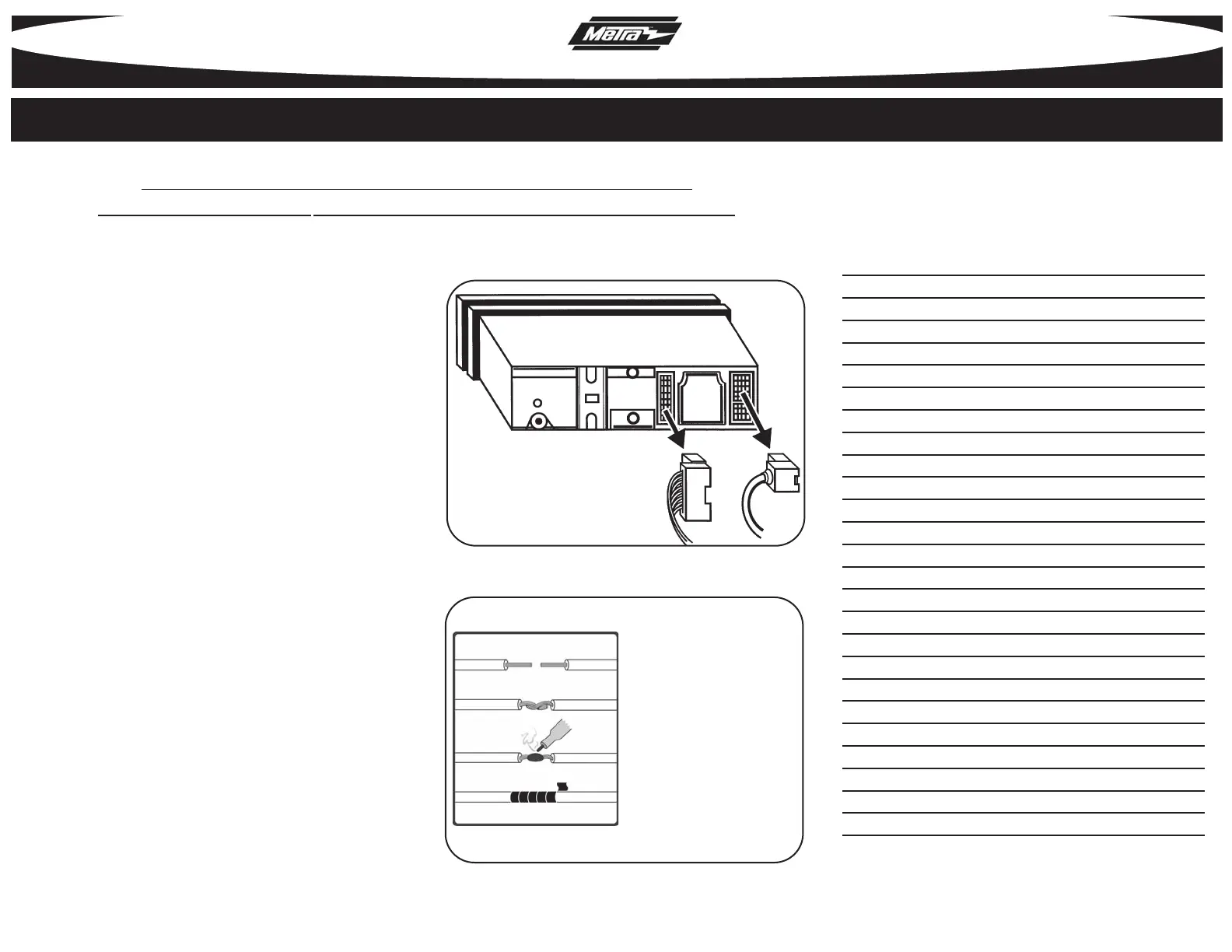

Disconnect the negative battery terminal

to prevent an accidental short circuit.

Unplug the power and output connectors

from the factory radio.

(Figure A)

Plug the power and amplifier integration

harnesses into the factory power and

output connectors.

Splice the wire from the aftermarket

radio to the power and amplifier integra-

tion harnesses using the color code on

page 4 and the instructions included with

the aftermarket radio.

(Figure B)

TO INSTALL AN AFTERMARKET RADIO WHILE

KEEPING THE FACTORY AMPLIFIER AND SPEAKERS

(A) Strip wire ends back 1/2"

(B) Twist ends together

(D) Tape

Re-connect the negative battery terminal

and test the unit for proper operation.

NOTES
