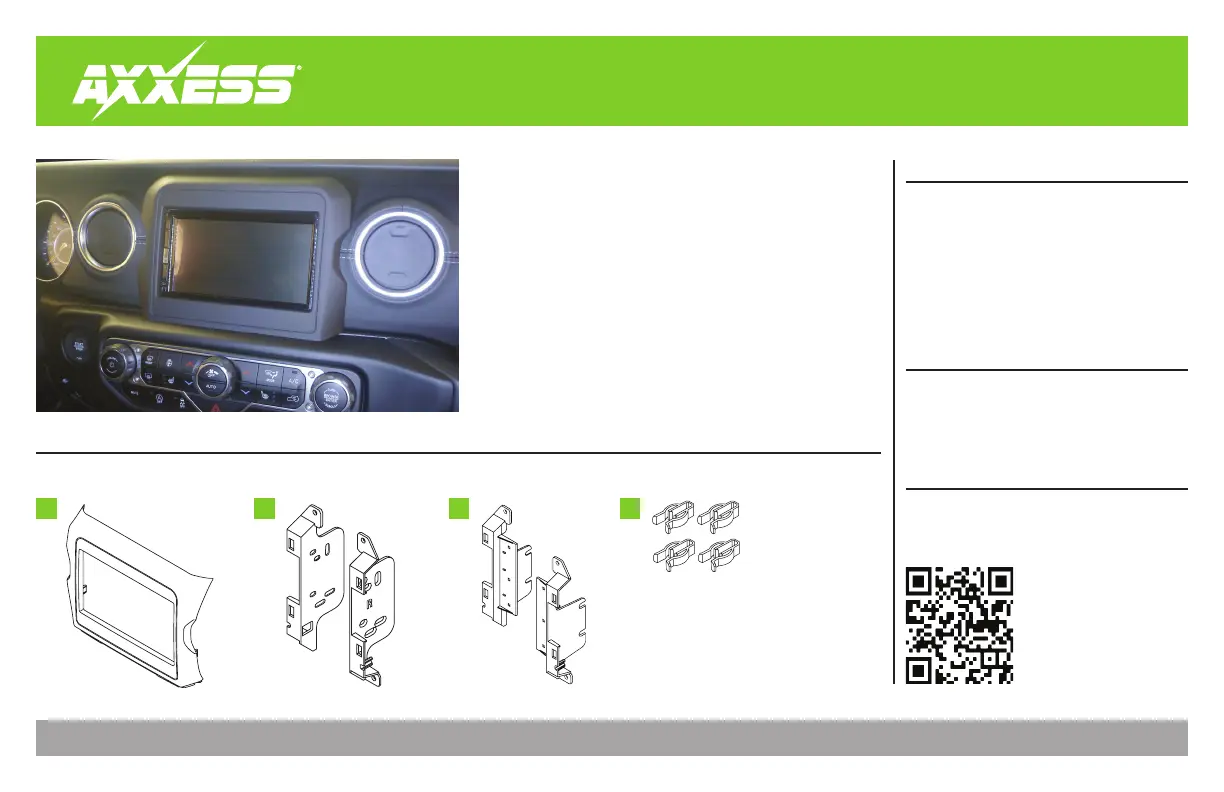

Side 1/16

AXPIO -JL1

INSTALLATION INSTRUCTIONS

Product Info

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Panel removal tool • Phillips screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

- Radio provision ...................................................2

- Pioneer Modular DDIN radio provision ..............3

Axxess Interface Installation .................................4

Jeep Wrangler (JL) 2018-Up /

Gladiator 2020-Up (Camera Not Applicable)

Note: This kit will function in both Single-Zone and Dual-Zone vehicles.

Single-Zone vehicles will only get status feedback of the HVAC functions

while Dual-Zone vehicles can also be controlled through the radio screen

All HVAC functions will be retained. Compass is only retained on vehicles

equipped with the UConnect 3 (5” touchscreen). The External Speaker is

only required in vehicles with safety group features

Attention! Designed for Pioneer’s DMH-W4600NEX/WC4660NEX.

Pioneer 9” DMH-WC6600NEX will require minor custom mounting

along with the Metra 109-UN02 (sold separately)

KIT COMPONENTS

• A) Radio bezel • B) Shallow mount brackets • C) Modular radio brackets • D) Panel clips (4)

A B C D

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included with kit

Antenna Adapter: 40-EU10 • 40-GPS-PIO (included)

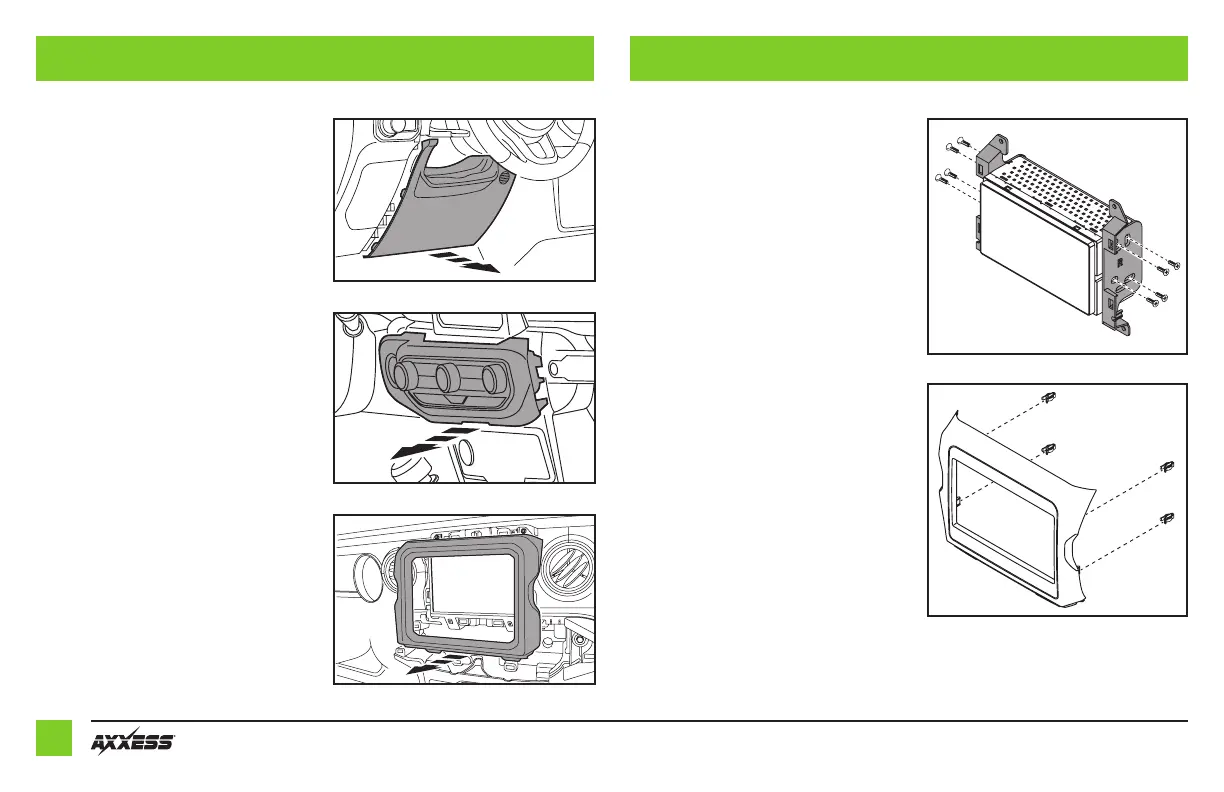

DASH DISASSEMBLY KIT ASSEMBLY

1. Unclip and remove the panel below the

steering column. (Figure A)

2. Unclip the climate control panel and set

aside. (Figure B)

3. Remove (2) Phillips screws securing

the radio trim panel, then unclip and

remove the panel. (Figure C)

4. Remove (4) Phillips screws securing the

radio, then unplug and remove.

(Figure A)

(Figure B)

(Figure C)

(Figure A)

(Figure B)

Radio provision

1. Secure the shallow radio brackets to

the radio using screws supplied with the

radio. (Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using

the proper mating adapter from Metra

and/or Axxess. Test the radio for proper

operation.

3. Place the radio into the dash, then

secure using the factory screws.

4. Attach (4) panel clips provided onto the

radio bezel, then attach the bezel over

the radio. (Figure B)

5. Reassemble the dash in reverse

order of disassembly to complete the

installation.
