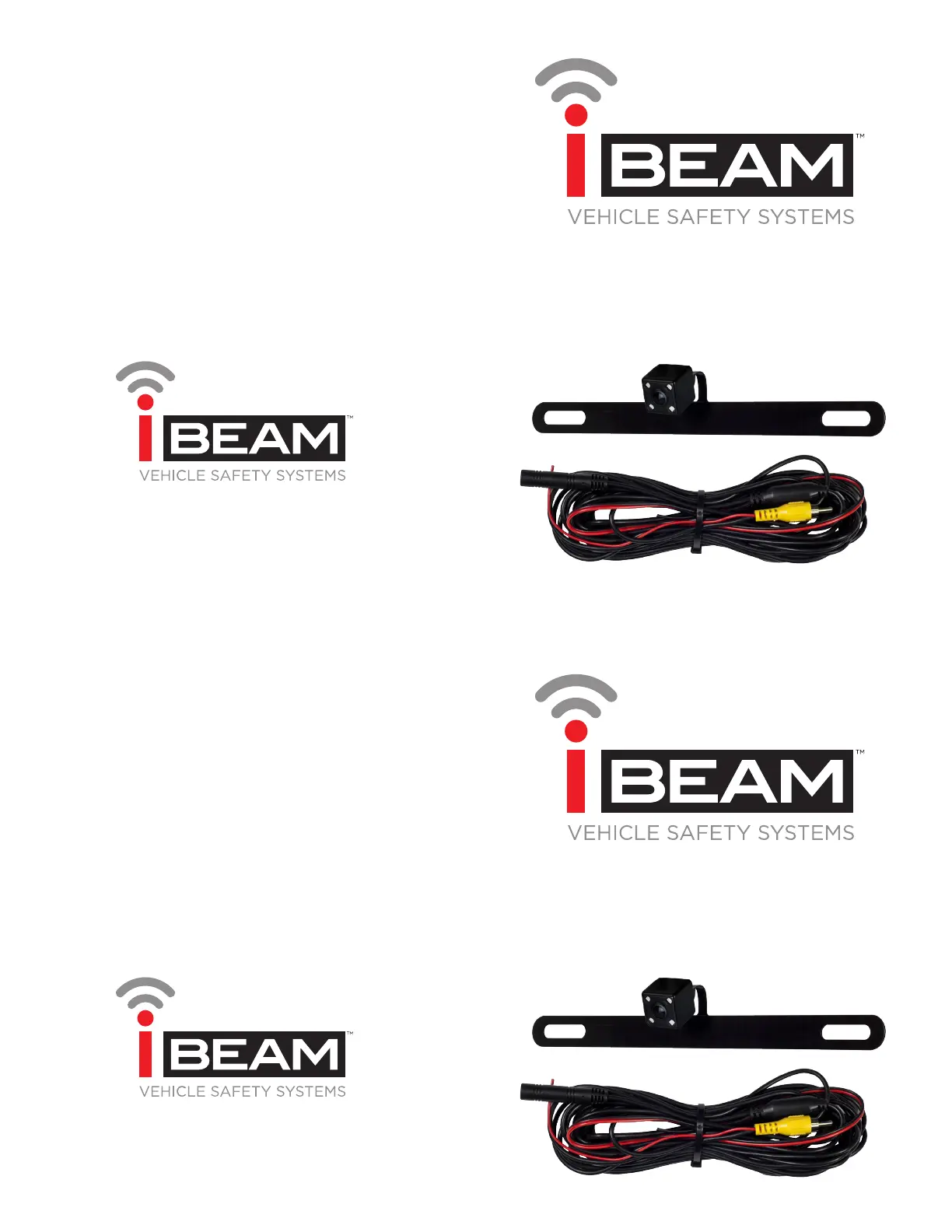

TE-BPCIR

Product Manual

TE-BPCIR

Product Manual

800.221.0932

iBeamUSA.com

460 Walker Street, Holly Hill, FL 32117

800.221.0932

iBeamUSA.com

460 Walker Street, Holly Hill, FL 32117

1) This is a behind license plate camera. Begin by removing the license plate bolts

and the license plate, then install camera. Replace license plate and bolts.

2) Connect the RED wire to the +12 volt reverse wire of the vehicle.

3) Connect the BLACK wire to ground (a metal, non-painted surface).

4) Run video cable though vehicle, up to video display. (Avoid placing video

cable where it can get pinched or damaged).

5) Attach the YELLOW video rca to the reverse camera input of the radio or

video display; connect the RED wire coming from the YELLOW video rca to

the reverse trigger wire on the radio or video display.

NOTE: The camera comes with the parking assist lines. If you want to remove the

parking lines follow the steps below:

1) Disconnect power to the camera

2) Cut the WHITE loop to remove the parking assist lines, isolate and tape the wires

3) Reconnect power to the camera

If the parking assist lines are wanted just follow the steps above and reconnect

the wires.

1) This is a behind license plate camera. Begin by removing the license plate bolts

and the license plate, then install camera. Replace license plate and bolts.

2) Connect the RED wire to the +12 volt reverse wire of the vehicle.

3) Connect the BLACK wire to ground (a metal, non-painted surface).

4) Run video cable though vehicle, up to video display. (Avoid placing video

cable where it can get pinched or damaged).

5) Attach the YELLOW video rca to the reverse camera input of the radio or

video display; connect the RED wire coming from the YELLOW video rca to

the reverse trigger wire on the radio or video display.

NOTE: The camera comes with the parking assist lines. If you want to remove the

parking lines follow the steps below:

1) Disconnect power to the camera

2) Cut the WHITE loop to remove the parking assist lines, isolate and tape the wires

3) Reconnect power to the camera

If the parking assist lines are wanted just follow the steps above and reconnect

the wires.

II. Connection

I. Speciﬁcations

Parking line loop (White)

RED (+)

BLACK (Ground)

Video (in)

Red (Reverse Switch)

Reverse Wire on Radio (Trigger)

Reverse Lights

Parking line loop (White)

RED (+)

BLACK (Ground)

Video (in)

Red (Reverse Switch)

Reverse Wire on Radio (Trigger)

Reverse Lights

SENSOR

Effective Pixel

Horizontal Sync Frequency

Vertical Sync Frequency

Scanning System

Sync System

AGC

BLC

Resolution

S/N Ratio

Current Consumption

Power Supply

Operating Temperature

Storage Tempurature

Viewing Angle

Water-Proof

Minimum Illumination

SENSOR

Effective Pixel

Horizontal Sync Frequency

Vertical Sync Frequency

Scanning System

Sync System

AGC

BLC

Resolution

S/N Ratio

Current Consumption

Power Supply

Operating Temperature

Storage Tempurature

Viewing Angle

Water-Proof

Minimum Illumination

CMOS II

656 X 492

15625KHZ

PAL50HZ / NTSC 60HZ

2 : 1 Interlace

Internal

Auto

420 TV Lines

More Than 48dB

No More 150mA

DC12V ± 10%

-22°

176° F

-40°

176° F

170°

IP67

0.5Lux/F1.2(0Lux with LED)

CMOS II

656 X 492

15625KHZ

PAL50HZ / NTSC 60HZ

2 : 1 Interlace

Internal

Auto

420 TV Lines

More Than 48dB

No More 150mA

DC12V ± 10%

-22°

176° F

-40°

176° F

170°

IP67

0.5Lux/F1.2(0Lux with LED)
