TE-FTGC/TE-FCTGC (CMOS)

FORD F150 (2004-2014)

Note: Excludes 2004 Heritage model

Replacement Tailgate Handle

with Camera

Removal and Installation

Instructions

Tools Needed: T30 torx bit, ratchet, 10mm socket.

NOTE: Some trucks will have 6 or 8 torx screws on bed liner

cover (if equipped).

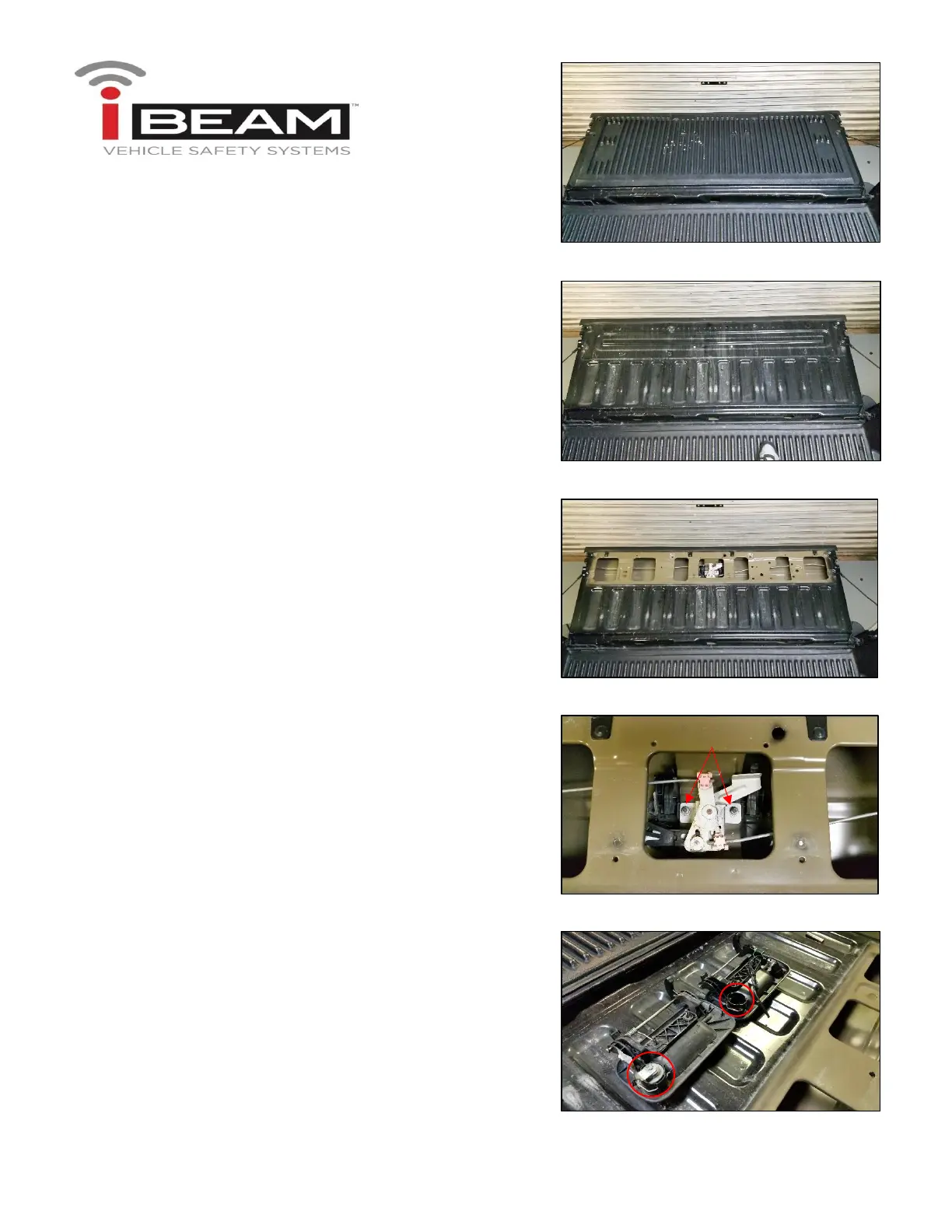

1. Start by lowering the tailgate and remove

the (6 or 8) T30 torx screws from the bed

liner. (Fig. A)

NOTE: if your truck doesn’t have a liner

please advance to the next step.

2. Remove the tailgate liner, you will see (2)

torx screws on the tailgate access panel.

These must be removed to gain access to the

tailgate handle. (Fig. B)

3. After the removal of the (2) T30 torx screws,

remove the tailgate access panel and place

aside. (Fig. C)

4. Now that you have access to the handle, you

will see (2) 10mm nuts securing the handle

in place. Remove these nuts. (Fig. D)

5. Gently remove handle by lifting the handle

from the outside and slowly working it out.

6. Now that the handle is out of the tailgate,

you will have to swap the locking mechanism

out of the old handle to the new one. (Fig. E)

Fig. A

Fig. B

Fig. C

Fig. E

Fig. D

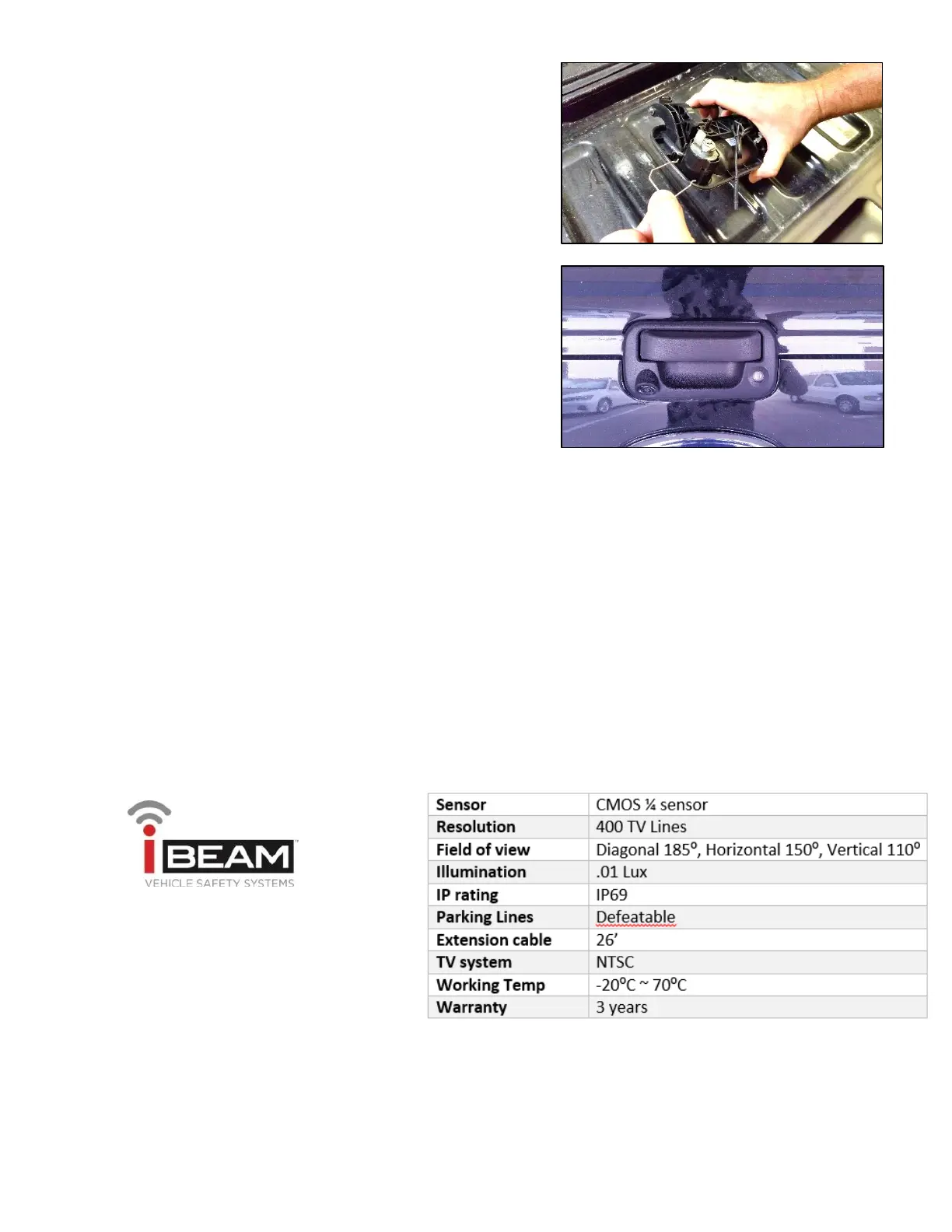

7. Start by removing the securing pin on the

locking mechanism, and then remove

mechanism from handle. Now place the

locking mechanism in the new handle and

secure it with the new securing pin. (Fig. F)

8. Now gently reinsert new tailgate handle.

9. Remove taillight and splice the red camera wire into

the reverse light’s 12v positive wire this will trigger the

camera to turn on when vehicle is placed in reverse.

Attach the black ground wire to a metal non-painted

surface.

10. Wires can now be fully routed from the tailgate to the

cab of the truck and to a video source. Red wire goes

to the rear camera input trigger wire on your video

source, plug RCA to your video screen input

NOTE: Test to make sure video is working

before securing new handle.

NOTE: If desired, parking lines can be

removed by cutting the green loop wire.

NOTE: Avoid pinching cable running to

camera

11. Realign the handle’s post with the tailgate’s

opening mechanism and reattach 10mm nuts

to secure handle in tailgate.

12. Plug wiring harness into tailgate handle’s camera and

run harness through truck to a video source on a

monitor.

13. Reattach the tailgate’s access panel and bed liner

cover to complete your install. (Fig. G)

1.800.221.0932

www.iBeamUSA.com

460 Walker Street, Holly Hill, FL 32117

Fig. F

Fig. G

REV. 05/21/2018
