1) Find a suitable location to surface mount install the camera. Make sure the

camera’s view is unobstructed and be careful not to drill into any wires that might

damage the vehicle. When all connections have been made and before mounting

the camera, verify the camera is working and has good view of the area. Then

mount the camera down with the supplied two screws.

2) Connect the RED wire to the +12 volt reverse wire

3) Connect the BLACK wire to ground (a metal, non-painted surface).

4) Run video cable though vehicle, up to video display. (Avoid placing video cable

where it can get pinched or damaged).

5) Attach the YELLOW video rca to camera’s output and to the reverse camera input

of the radio or video display.

6) Attach audible device to camera’s mini pin plug and place audible device in a safe

area (avoid placing video cable where it can get pinched or damaged). Also place

the device where the device can be clearly heard.

NOTE: The camera is supplied with 3 angled mounting plates, (3 degree, 5 degree

and 7 degree) to assure the proper viewing angle of the camera system.

1) Find a suitable location to surface mount install the camera. Make sure the

camera’s view is unobstructed and be careful not to drill into any wires that might

damage the vehicle. When all connections have been made and before mounting

the camera, verify the camera is working and has good view of the area. Then

mount the camera down with the supplied two screws.

2) Connect the RED wire to the +12 volt reverse wire

3) Connect the BLACK wire to ground (a metal, non-painted surface).

4) Run video cable though vehicle, up to video display. (Avoid placing video cable

where it can get pinched or damaged).

5) Attach the YELLOW video rca to camera’s output and to the reverse camera input

of the radio or video display.

6) Attach audible device to camera’s mini pin plug and place audible device in a safe

area (avoid placing video cable where it can get pinched or damaged). Also place

the device where the device can be clearly heard.

NOTE: The camera is supplied with 3 angled mounting plates, (3 degree, 5 degree

and 7 degree) to assure the proper viewing angle of the camera system.

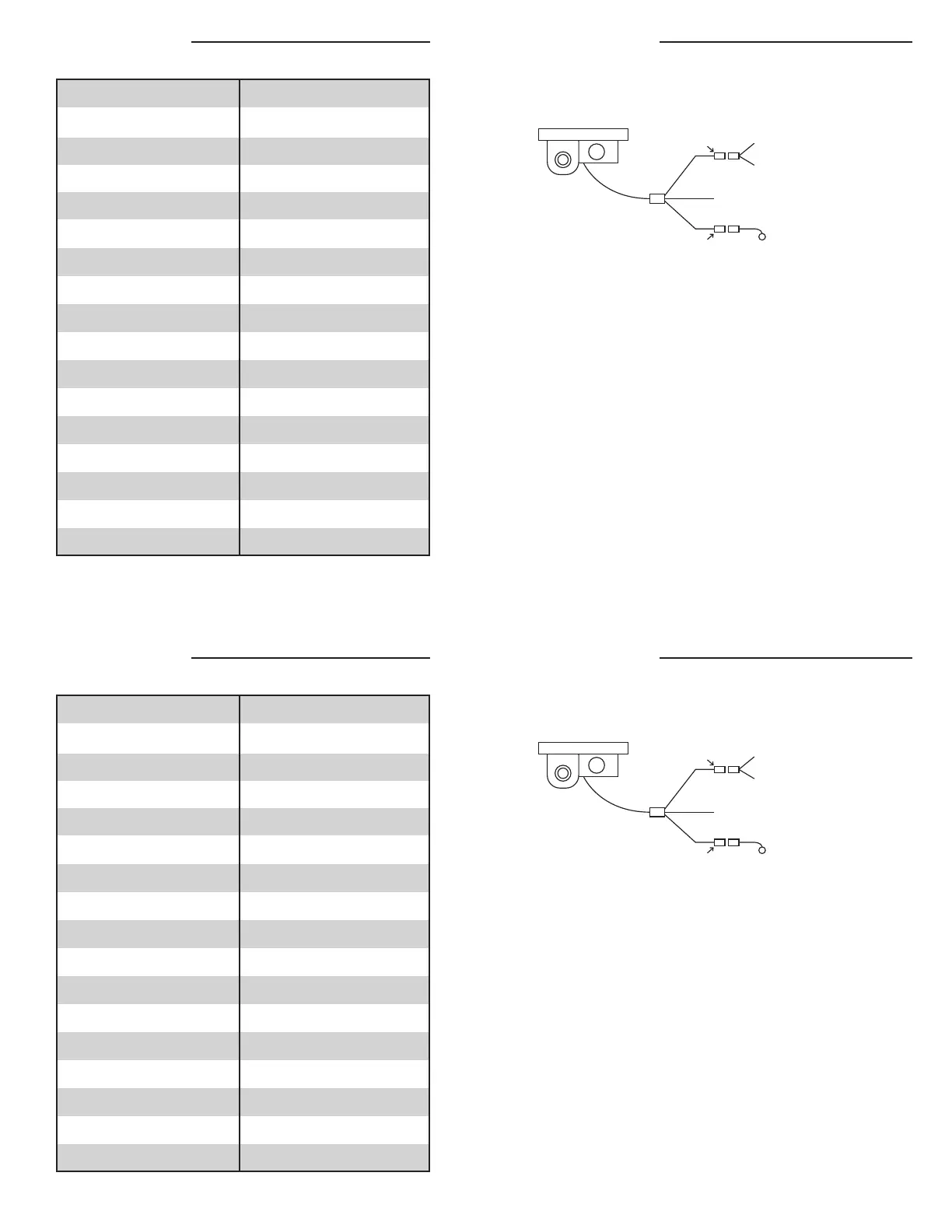

II. Connection

I. Speciﬁcations

SENSOR

Effective Pixel

Horizontal Sync Frequency

Vertical Sync Frequency

Scanning System

Sync System

AGC

BLC

Resolution

S/N Ratio

Current Consumption

Power Supply

Operating Temperature

Storage Tempurature

Viewing Angle

Water-Proof

Minimum Illumination

SENSOR

Effective Pixel

Horizontal Sync Frequency

Vertical Sync Frequency

Scanning System

Sync System

AGC

BLC

Resolution

S/N Ratio

Current Consumption

Power Supply

Operating Temperature

Storage Tempurature

Viewing Angle

Water-Proof

Minimum Illumination

CMOS II

656 X 492

15625KHZ

PAL50HZ / NTSC 60HZ

2 : 1 Interlace

Internal

Auto

420 TV Lines

More Than 48dB

No More 150mA

DC12V ± 10%

-22°

176° F

-40°

176° F

170°

IP67

0.5Lux/F1.2(0Lux with LED)

CMOS II

656 X 492

15625KHZ

PAL50HZ / NTSC 60HZ

2 : 1 Interlace

Internal

Auto

420 TV Lines

More Than 48dB

No More 150mA

DC12V ± 10%

-22°

176° F

-40°

176° F

170°

IP67

0.5Lux/F1.2(0Lux with LED)

CAMERA

POWER

MINI PIN BUZZER

(RED) 12+

(BLACK) 12-

VIDEO (YELLOW RCA)

CAMERA

POWER

MINI PIN BUZZER

(RED) 12+

(BLACK) 12-

VIDEO (YELLOW RCA)

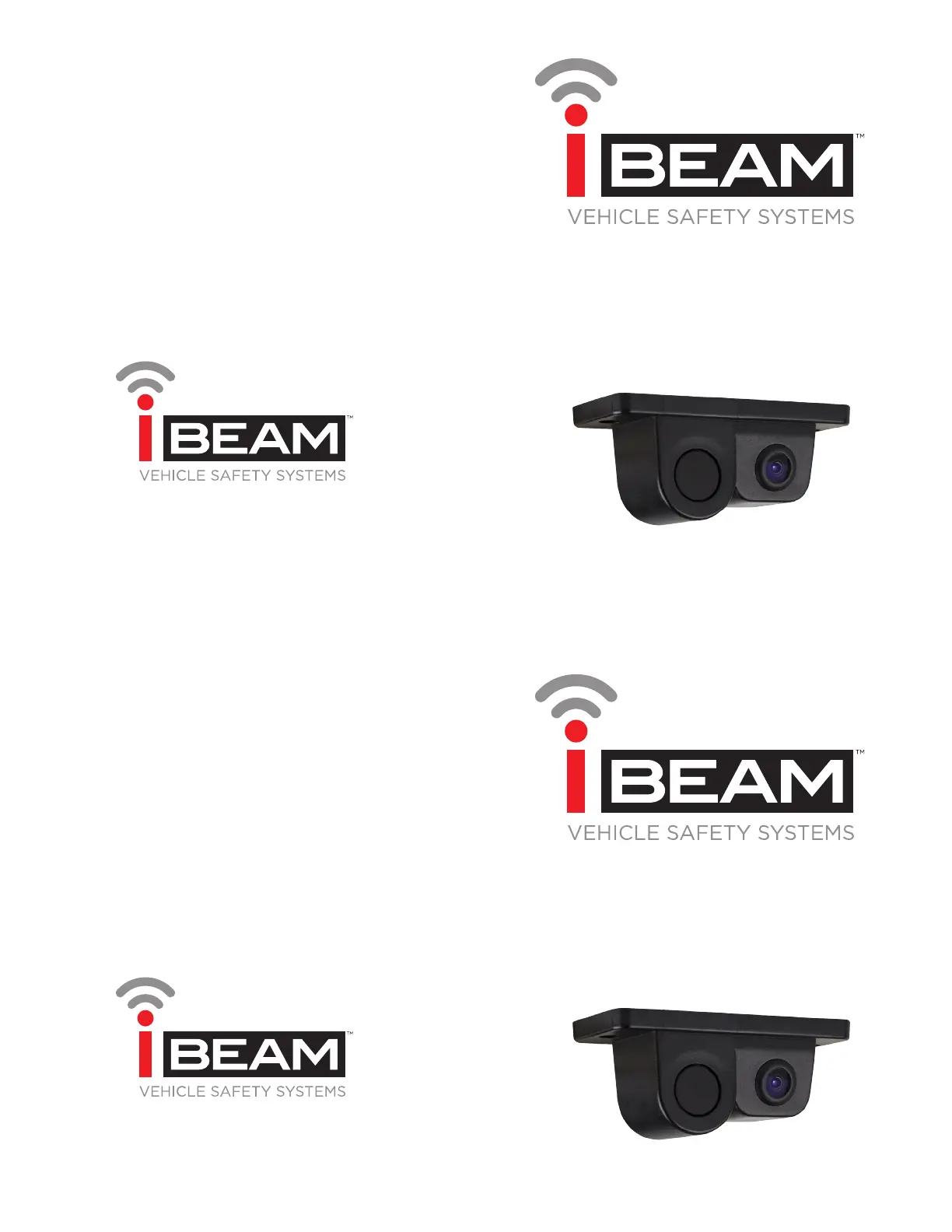

The TE-CPSS is a camera and parking sensor system all in one unit,

with an audible warning device to alert drivers as well as an on

screen display showing distance to object.

The TE-CPSS is a camera and parking sensor system all in one unit,

with an audible warning device to alert drivers as well as an on

screen display showing distance to object.
