TE-DGH/TE-DGHC (CMOS)

RAM 1500 (2009-2017)

RAM 2500 (2010-2017)

Replacement Tailgate Handle

with Camera

Removal and Installation

Instructions

Tools Needed: T30 torx bit, ratchet, 8mm

socket.

1. Start by lowering the tailgate and remove

the (8) T30 torx screws from the bed liner,

remove liner (Fig. A), remove access panel

(Fig. B), and place aside.

2. Now that you have access to the handle

assembly, disconnect harness running to lock

actuator and unclip (2) latch rods. (Fig. C)

3. Next, remove (2) 8mm nuts located below

latch connectors, then slide latch assembly

aside. (Fig. C)

4. Gently remove handle by lifting the handle

from the outside and slowly working it out.

5. Now that the handle is out of the tailgate,

you will have to swap the locking mechanism

out of the old handle to the new one.

6. Start by removing the (2) 8mm screws from

locking mechanism, and then remove

mechanism from handle. (Fig. D)

7. Now place the locking mechanism in the new

handle and secure it with the factory 8mm

screws.

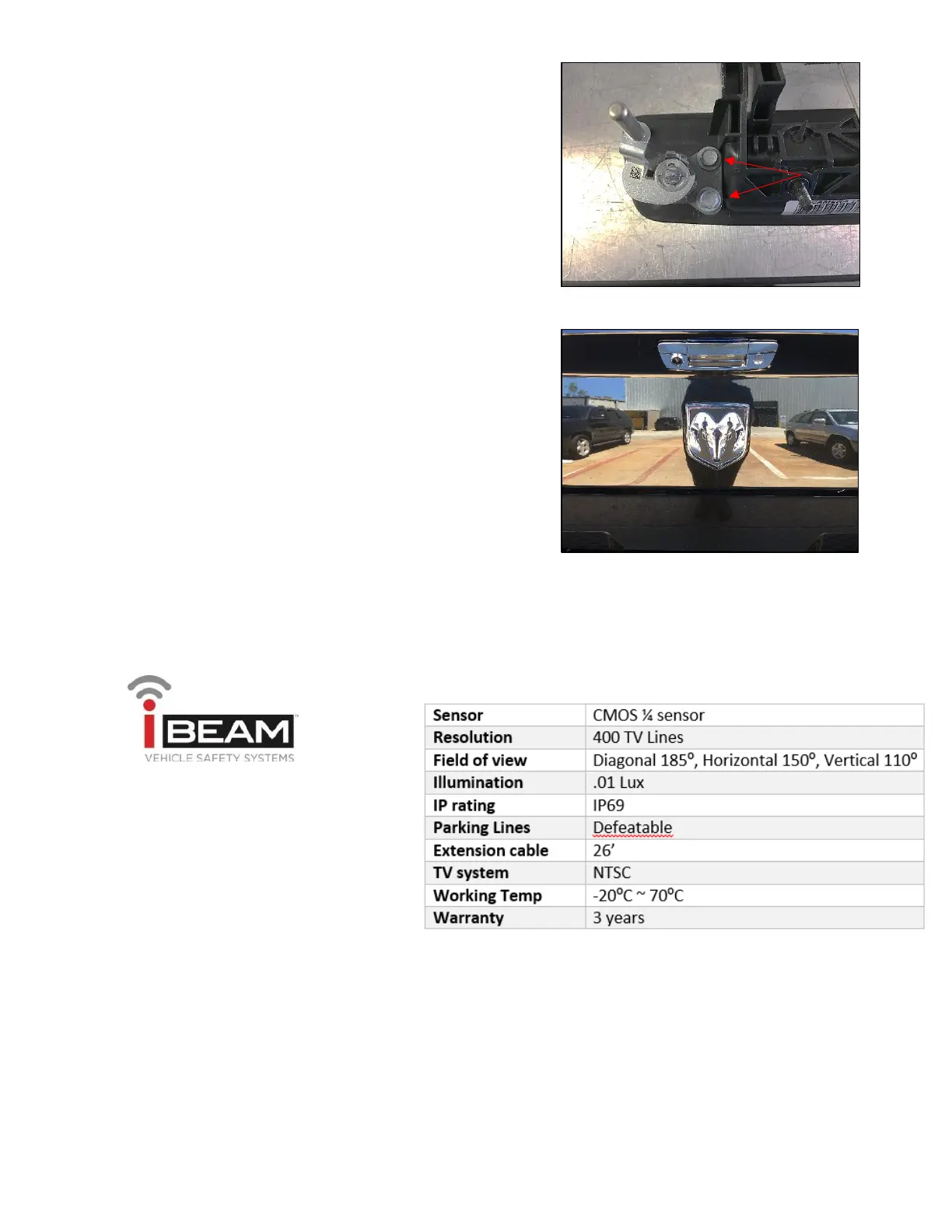

Fig. A

Fig. B

Fig. C

8. Next, remove taillight and splice the red

power wire from the camera’s harness into

the reverse light’s 12v positive wire. This will

trigger the camera to turn on when vehicle is

placed in reverse. Attach the black ground

wire to a metal non-painted surface.

9. Wires can now be fully routed from the

tailgate to the cab of the truck and to a video

source, securing every 16”. The Yellow RCA

will plug into the input of your video source;

the Red wire goes to the rear camera input

trigger wire on your video source.

NOTE: Test to make sure video is working

before securing new handle.

NOTE: If desired, parking lines can be

removed by cutting the green loop wire.

10. Now gently reinsert new tailgate handle and

route cable trough tailgate.

NOTE: Avoid pinching cable running to

camera

11. Realign the handle’s post with latch assembly

opening mechanism and reattach 8mm nuts

to secure handle in tailgate.

12. Reconnect harness to lock actuator and

reattach latch rods, then reattach the

tailgate’s access panel and bed liner cover to

complete your install.
