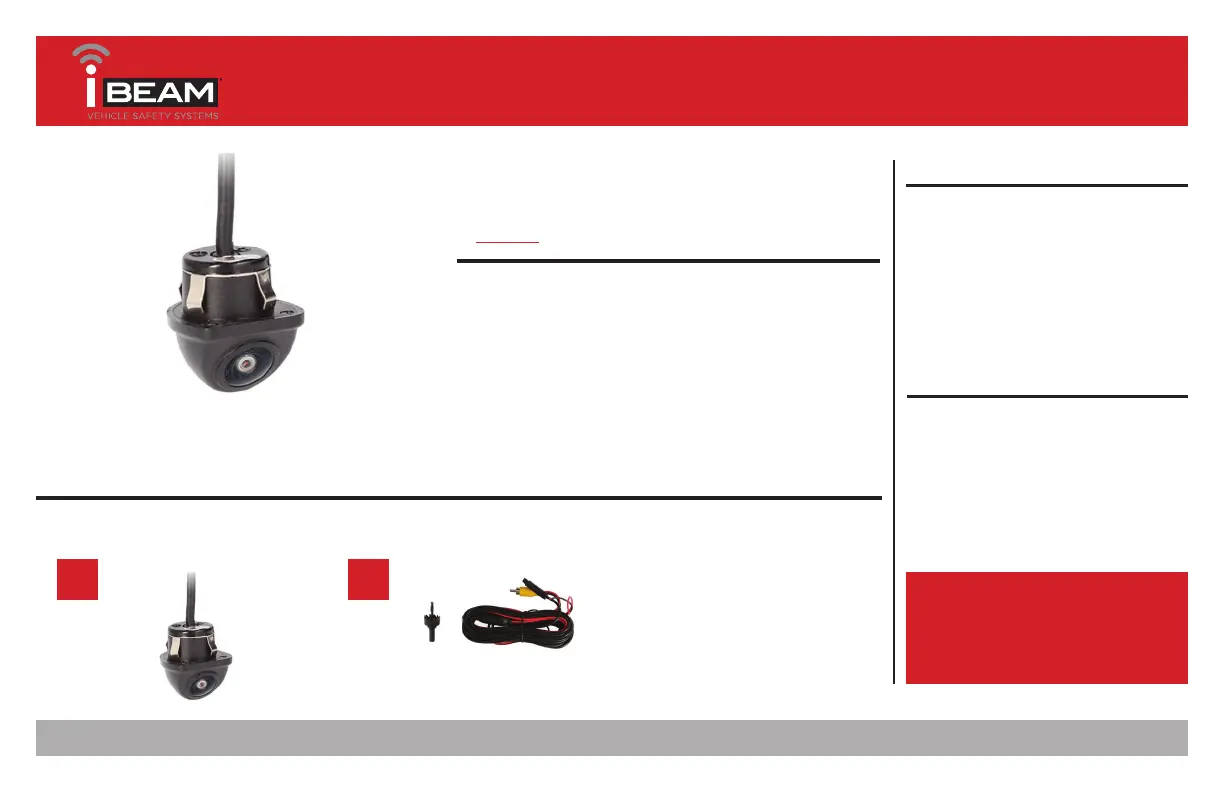

iBEAMUSA.comiBEAM Vehicle Safety Sytems ®REV. 08/04/2021 INSTTE-MIPI

Attention! When testing the aftermarket

equipment, ensure that all factory equip-

ment is connected before cycling the key to

ignition.

TE-MIPI

INSTALLATION INSTRUCTIONS

#IBEAMSAFETY

Wiring 2 .....................................................................

Specifications 3 .........................................................

TABLE OF CONTENTS

TOOLS REQUIRED

• Wire stripper

• Tape

• Digital Multi-meter

• Cutter

Universal 800 TV Line

Micro Camera

Visit for more detailed informatuon about the product. iBEAMUSA.com

Product Features

• 55° fixed angled camera

• Resolution: 800 TV Lines

• Water resistant - IP69

• Mirror image - switchable

• Selectable parking lines or independantly triggered

• Viewing angle: 188° Diagonal, 155° Horizontal, 133° Vertical

Part Components

A) Camera B) Hardware and harness

A B

386.257.1187

iBEAMUSA.com

Camera Wiring/Install

(Figure A)

1. Find a desirable location to mount the cam-

era. Make sure this location is away from

moving objects and has a clear visual of the

desired view wanted from the camera.

2. Drill a 22mm size hole for the camera and

wiring to be ran into the vehicle.

3. Connect the wires to the designated sources

below. Verify with a multi-meter that the

correct wire is being used

• RED wire to 12V reverse or accessory

if desired

• BLACK wire to chassis ground

• GREEN wire is to activate the parking

lines. If parking line are desired, this

can be wired to a 12v reverse signal.

4. Run the extention wire to the location

where the visual will be displayed, ex.

aftermarket radio or monitor.

5. There are three loops located on the camera

wire.

• GREEN loop - Parking lines on/off

• BROWN loop - Mirror/normal image

• WHITE loop - Image vertical flipping

NOTE: Figure B shows WHITE loop mounting

options.

(Figure A)

(Figure B)

24 in20 ft

WIRING/INSTALL
