TE-SSIR

Product Manual

TE-SSIR

Product Manual

800.221.0932

iBeamUSA.com

460 Walker Street, Holly Hill, FL 32117

800.221.0932

iBeamUSA.com

460 Walker Street, Holly Hill, FL 32117

1) Find a suitable location to surface mount install the camera. Make sure the

camera’s view is unobstructed and be careful not to drill into any wires that

might damage the vehicle. When all connections have been made and before

mounting the camera, verify the camera is working and has good view of the

area. Then mount the camera down with the supplied two screws.

2) Connect the RED wire to the +12 volt reverse wire

3) Connect the BLACK wire to ground (a metal, non-painted surface).

4) Run video cable though vehicle, up to video display. (Avoid placing video

cable where it can get pinched or damaged).

5) Attach the YELLOW video rca to camera’s output and to the reverse camera

input of the radio or video display.

NOTE: The camera comes with the parking assist lines. If you want to remove the

parking lines follow the steps below:

A) Disconnect power to the camera

B) Cut the WHITE loop to remove the parking assist lines, isolate and tape the wires

C) Reconnect power to the camera

If the parking assist lines are wanted just follow the steps above and reconnect

the wires.

1) Find a suitable location to surface mount install the camera. Make sure the

camera’s view is unobstructed and be careful not to drill into any wires that

might damage the vehicle. When all connections have been made and before

mounting the camera, verify the camera is working and has good view of the

area. Then mount the camera down with the supplied two screws.

2) Connect the RED wire to the +12 volt reverse wire

3) Connect the BLACK wire to ground (a metal, non-painted surface).

4) Run video cable though vehicle, up to video display. (Avoid placing video

cable where it can get pinched or damaged).

5) Attach the YELLOW video rca to camera’s output and to the reverse camera

input of the radio or video display.

NOTE: The camera comes with the parking assist lines. If you want to remove the

parking lines follow the steps below:

A) Disconnect power to the camera

B) Cut the WHITE loop to remove the parking assist lines, isolate and tape the wires

C) Reconnect power to the camera

If the parking assist lines are wanted just follow the steps above and reconnect

the wires.

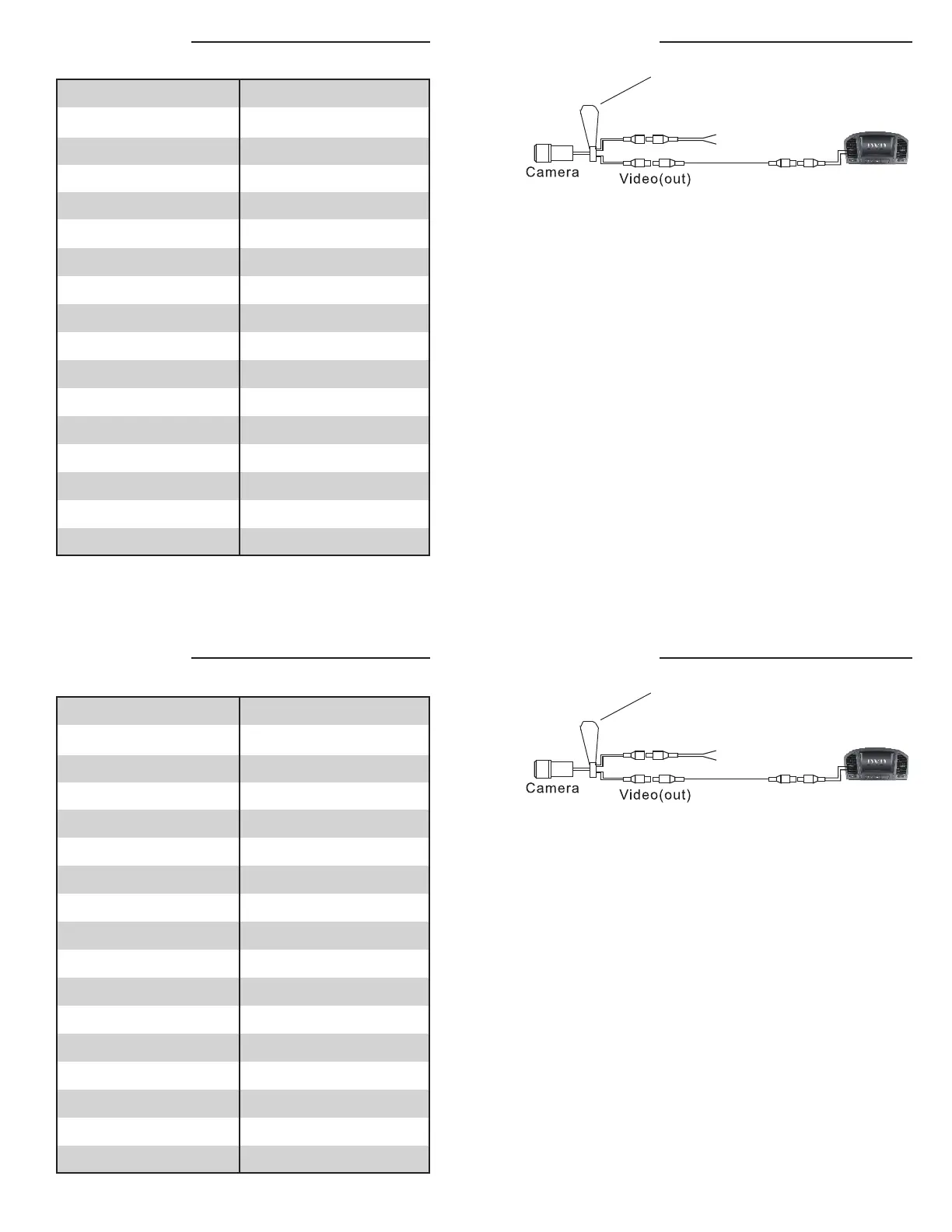

II. Connection

I. Speciﬁcations

Parking assist line disable loop

RED

BLACK

Video (in)

Parking assist line disable loop

RED

BLACK

Video (in)

SENSOR

Effective Pixel

Horizontal Sync Frequency

Vertical Sync Frequency

Scanning System

Sync System

AGC

BLC

Resolution

S/N Ratio

Current Consumption

Power Supply

Operating Temperature

Storage Tempurature

Viewing Angle

Water-Proof

Minimum Illumination

SENSOR

Effective Pixel

Horizontal Sync Frequency

Vertical Sync Frequency

Scanning System

Sync System

AGC

BLC

Resolution

S/N Ratio

Current Consumption

Power Supply

Operating Temperature

Storage Tempurature

Viewing Angle

Water-Proof

Minimum Illumination

CMOS II

656 X 492

15625KHZ

PAL50HZ / NTSC 60HZ

2 : 1 Interlace

Internal

Auto

420 TV Lines

More Than 48dB

No More 150mA

DC12V ± 10%

-22° ~ 176° F

-40° ~ 176° F

170°

IP67

0.5Lux/F1.2(0Lux with LED)

CMOS II

656 X 492

15625KHZ

PAL50HZ / NTSC 60HZ

2 : 1 Interlace

Internal

Auto

420 TV Lines

More Than 48dB

No More 150mA

DC12V ± 10%

-22° ~ 176° F

-40° ~ 176° F

170°

IP67

0.5Lux/F1.2(0Lux with LED)
