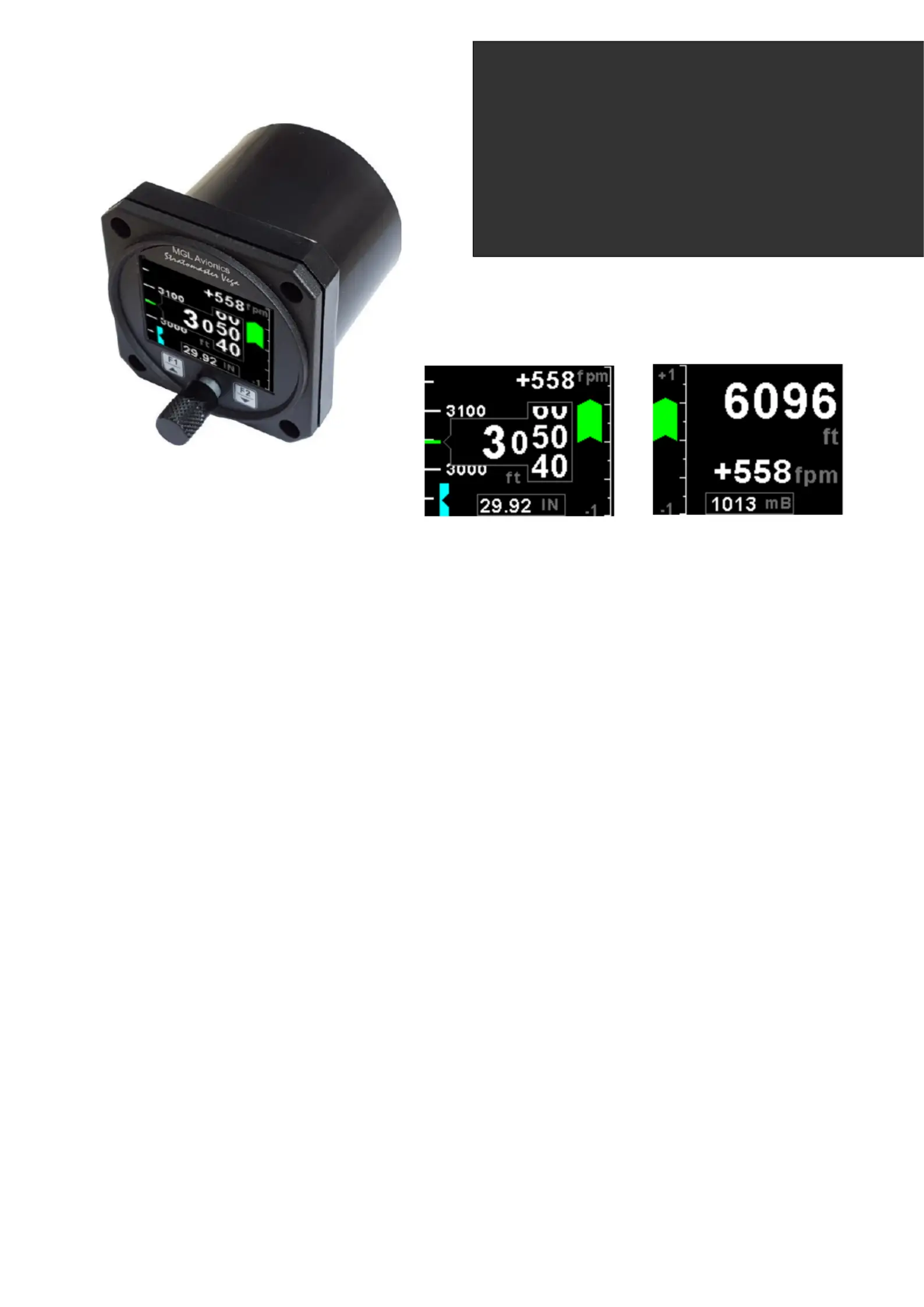

Introduction
The ALT-5 is a 2 1/4” sunlight readable encoding altimeter and a wide range vertical speed indicator.
The altimeter contains an internal high accuracy 24 bit digital altitude sensor which calculates altitude from -1000 ft up to
a maximum of 35000 ft. The ALT-5 outputs various formatted RS232 serial data protocols compatible with serial input
transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc. The altimeter can display altitude in
feet or meters and local pressure can be set in millibars or inches of mercury
The VSI indicator can be displayed in either feet/minute (ft/min) or meters/second (m/s). The VSI can be calibrated by the
user once the instrument has been installed in the aircraft.
The ALT-5 also features a user settable altitude bug and an encoder test function. The ALT-5 provides a parallel Gillham
code interface when used in conjunction with the MGL Avionics CNV-ALT.
1 Features
•Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display
• An internal high accuracy 24 bit digital altitude sensor calculates altitude from –1000 ft up to a maximum
of 35000 ft (-304m to 10668m)
• The ALT-5 outputs various formatted RS232 serial data protocols compatible with serial input
transponders such as that from Garmin, Magellan, Northstar, Trimble, Microair etc.
• Provides a parallel Gillham code interface for transponders when used in combination with the MGL
Avionics CNV-ALT
• Built in encoder test function
• The altimeter can display altitude in feet or meters
• Local pressure can be set in millibars or inches of mercury
• Contains a wide range VSI indicator from +/-20 ft/min to as high as +/-10000 ft/min
• VSI units can be in feet/minute (ft/min) or in meters/second (m/s)
• User settable altitude bug
• Standard 2 1/4” aircraft enclosure (can be front or rear mounted)
• Rotary control plus 2 independent buttons for easy menu navigation and user input
• Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection
for harsh electrical environments
• 1 year limited warranty
Vega ALT-5
Altimeter and Vertical Speed Indicator
with a transponder compatible serial
RS232 output
Operating Manual – English 1.00
Vega ALT-5 Operating Manual Page 2
2 ALT-5 Layout
3 Main Displays
The ALT-5 has 2 different display screens. The main display screen can be selected in the menu. “ALT SETUP”
3.1 Altitude "TAPE" Display
F2 / Down Button:
Menu system: Softkey button
Normal display: Altitude
bug setting display
Sunlight readable color
graphic display:
Backlight can be adjusted in the
menu system
Rotary Control (Up/Down) & Enter Button:
Press the rotary control during the normal display screens to access the menu system. Rotate anti/clockwise
for up/down menu scrolling. Rotate the rotary control during the normal display mode to adjust the local
pressure. Local pressure can be set in either mB or in “Hg.
F1 / Up Button:
Menu system: Softkey button
Normal display: Enable/disable
altitude bug
2 1/4” enclosure.
Can be front or rear mounted
VSI scale indication
VS I (Vertical Speed Indication)
VSI unit
Altitude Tape
Altitude Value
Altitude Bug
Local pressure readout (Either in mB or in “HG)
VSI Value
Altitude unit
