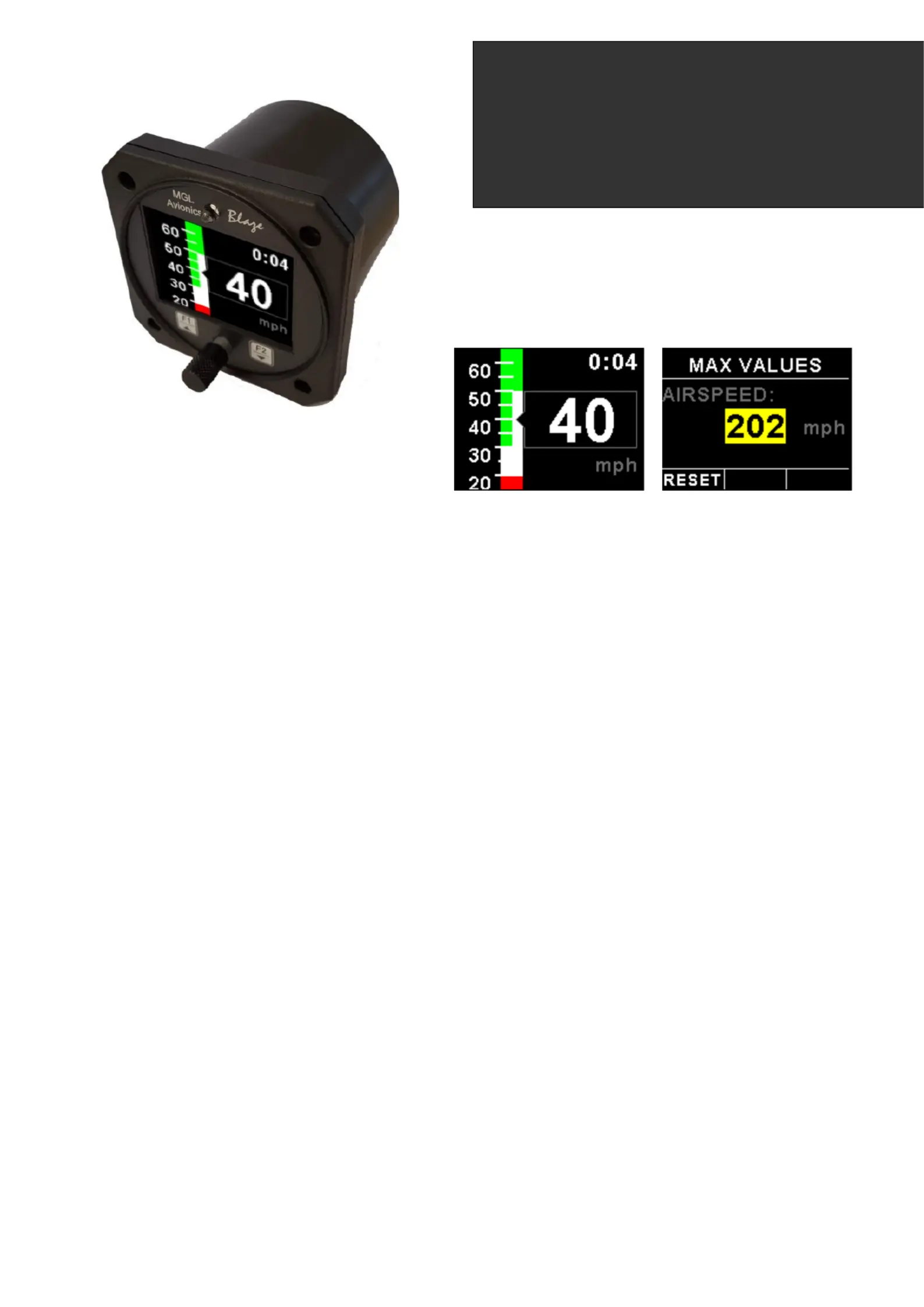

Introduction
The ASI-5 is a 3 1/8” sunlight readable instrument that provides a wide range airspeed indication in both digital and
analog tape formats. Airspeed is based on the pressure generated by a pitot tube system and a static port is provided as
well for use by high speed aircraft. In addition, the ASI-5 provides a flight timer since takeoff and records the maximum
airspeed reached.
Airspeed can be indicated in statute miles per hour (mph), kilometers per hour (km/h) or nautical miles per hour (kts). The
analog airspeed tape can be scaled according to the aircraft’s flying speed range and ranges for Vs0, Vs1, Vfe, Vno and
Vne can be set. The ASI-5 also provides a programmable Vs and Vne airspeed alarm output. ASI sensitivity can be
calibrated by the user to cater for errors caused by pitot tube placement.
The ASI-5 instrument measures airspeed from 16mph to 250mph and is well suited to slower aircraft due to very good
sensitivity and linearity at low air speeds.
1 Features
•Large 2.6” high resolution 320x240, IPS (fully viewable in all directions), sunlight readable color LCD
display
• Measures airspeed from 16mph to 250mph and is well suited to slow aircraft due to very good sensitivity
and linearity at low air speeds
• Includes a flight timer since takeoff
• Airspeed units can be set to miles per hour (mph), kilometer per hour (km/h) or nautical miles per hour
(kts)
• Analog tape with programmable ranges for Vs0, Vs1, Vfe, Vno and Vne
• Contains a programmable Vs and Vne airspeed alarm output
• Records maximum airspeed reached in permanent memory
• Standard 3 1/8” aircraft enclosure (can be front or rear mounted)
• The LED backlight can automatically adjust to the ambient light, or it can be manually adjusted in the
menu system
• Rotary control plus 2 independent buttons for easy menu navigation and user input
• Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection
for harsh electrical environments
• 1 year limited warranty
Blaze ASI-5
Airspeed Indicator (ASI)
Operating Manual – English 1.00
Blaze ASI-5 Operating Manual Page 2
2 Layout
3 Main Display

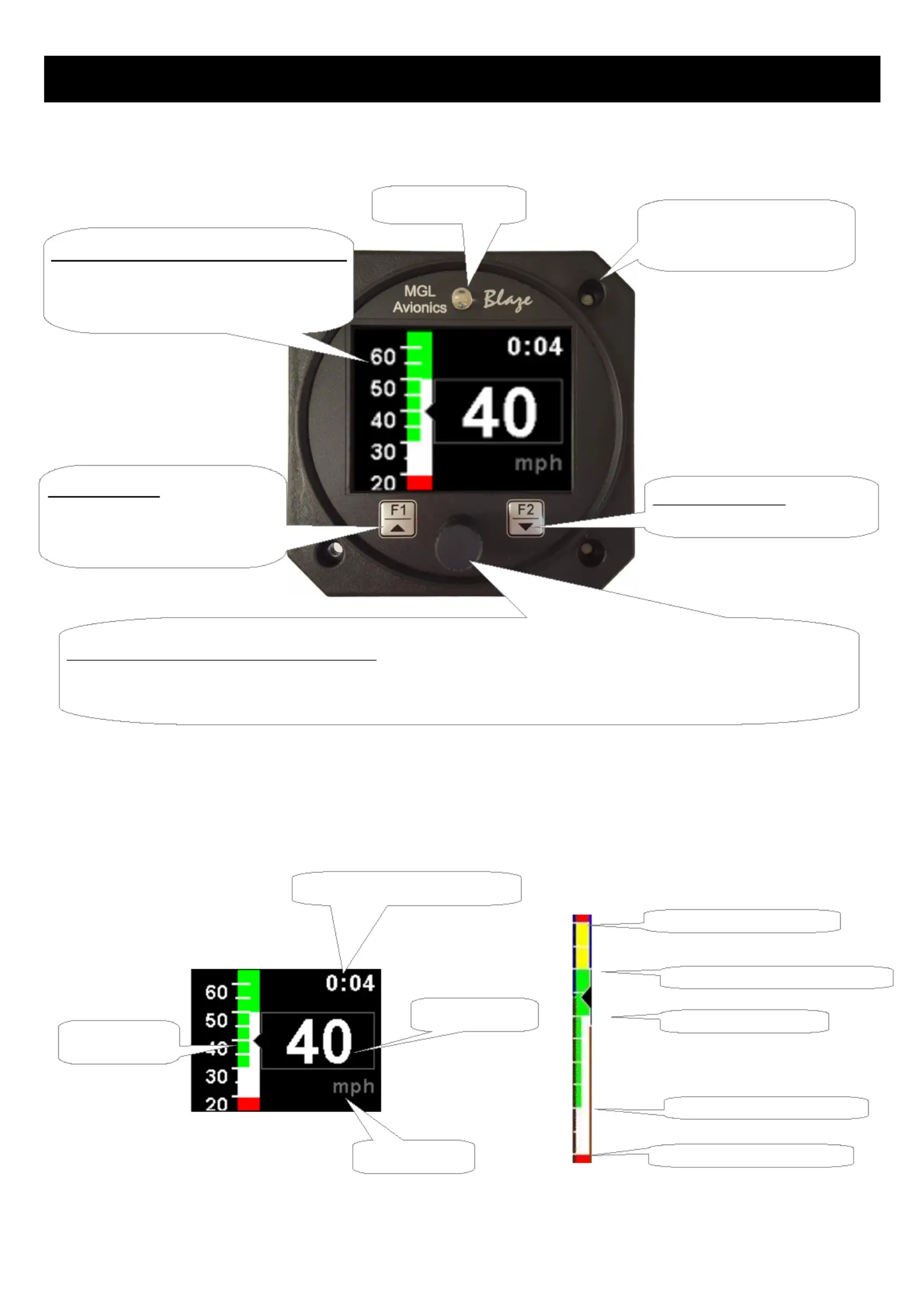

F2 / Down Button:
Menu system: Softkey button
Sunlight readable color graphic display:
The backlight can automatically adjust
to the ambient light or it can be manually
adjusted in the menu system
Rotary Control (Up/Down) & Enter Button:
Press the rotary control during the normal display screens to access the menu system. Rotate anti/clockwise for
up/down menu scrolling. Rotate the rotary control during the normal display mode to view the Max Values display.
F1 / Up Button:
Menu system: Softkey button
Normal Display: Start / Stop the
flight timer (Manual flight only)
3 1/8” enclosure.
Can be front or rear mounted
Airspeed unit
Digital airspeed
Airspeed tape
Duration of flight since takeoff
Vso (Min safe speed, landing)
Vs1 (Min safe speed, normal)
Vfe (Max flap speed)
Vno (Max maneuvering speed)
Vne (Max exceed speed)
Ambient light sensor
