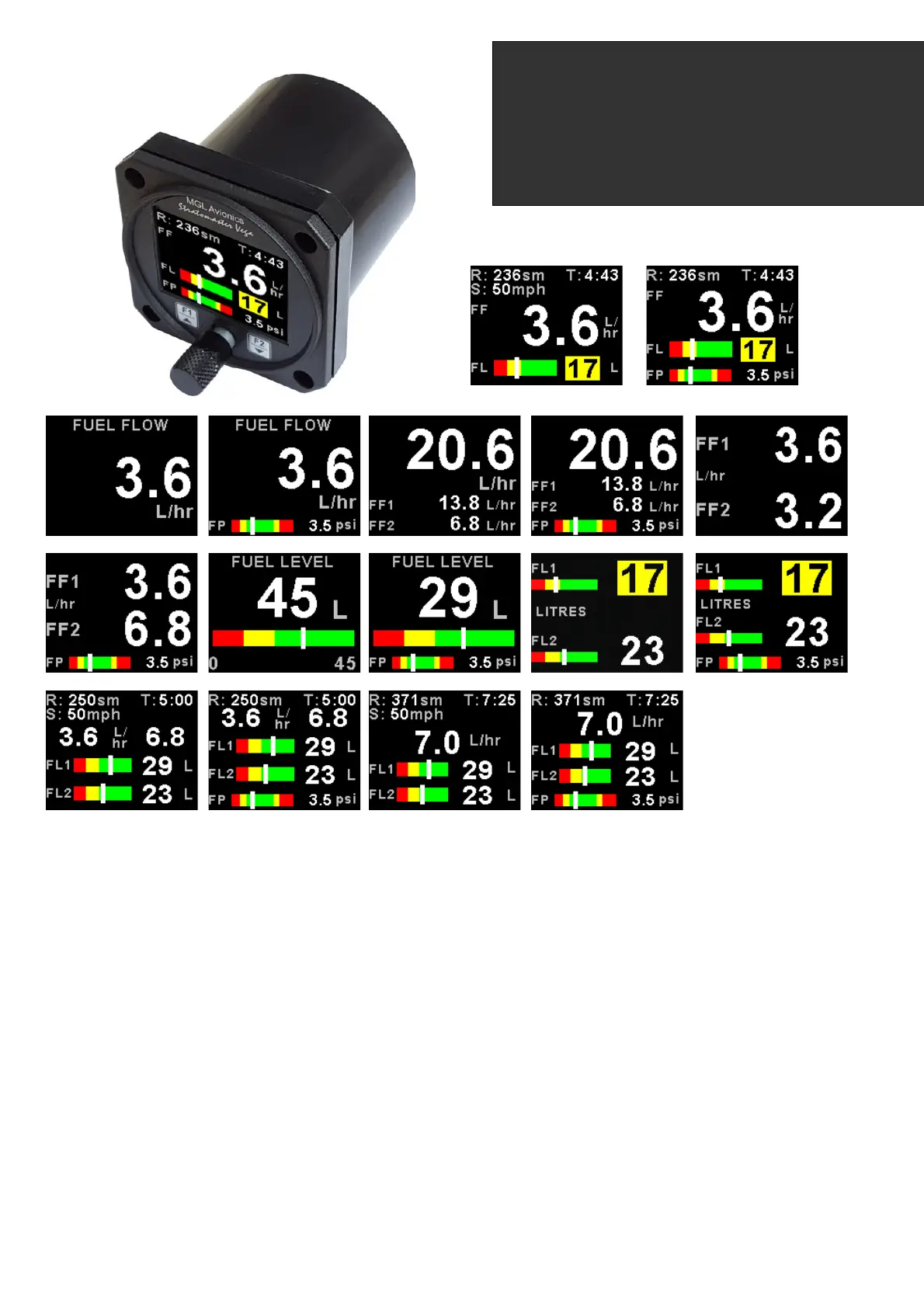

Introduction

The FF-4 is a 2 1/4” sunlight readable color display instrument intended for efficient monitoring of fuel related information

for single or dual fuel tanks. The FF-4 has many display configurations based on single/dual flow senders, single/dual

level senders and a fuel pressure sender.

Full functionality is available with a fuel flow and level sender or only with a fuel flow sender using calculated fuel levels

based on fuel usage. Differential fuel flow calculations are also supported for fuel return systems. Fuel injector systems

are also supported. Standard automotive fuel level senders can be used, even with odd shaped tanks due to a

comprehensive, multi-point calibration system. Most fuel flow senders can be used as the K-factor of the sender can be

entered into the system for simple calibration.

MGL Avionics supplies a lightweight dual range fuel flow sender that is ideally suited for the FF-4. Fuel flow senders from

other manufactures (e.g. Floscan) are equally suitable.

In addition, the FF-4 can use the actual ground speed from a RS232 NMEA enabled GPS receiver to determine fuel

range.

The FF-4 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Unit). This allows

for easier installation as the RDAC unit is normally mounted in the engine compartment.

Vega FF-4

Fuel Computer

Operating Manual – English 1.10

Vega FF-4 Operating Manual Page 2

1 Features

•1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display

• Advanced fuel computer with various modes of operation

• Supports single or dual fuel tanks

• The FF-4 can connect to one or two fuel flow senders, fuel level senders or fuel injectors

• The FF-4 can connect to a single fuel pressure sender

• Differential fuel flow calculations are also supported for fuel return systems

• The FF-4 has the ability to connect to a NMEA enabled RS232 GPS receiver for range based calculations. It

can also accept a manually entered estimate cruising speed if a GPS is not available.

• Standard automotive fuel level senders can be used, even with odd shaped tanks due to a comprehensive,

multi-point calibration system

• External RDAC interfacing via the CAN bus

• Standard 2 1/4” aircraft enclosure (can be front or rear mounted)

• Rotary control plus 2 independent buttons for easy menu navigation and user input

• An external output activates when an alarm condition has been reached

• Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection

for harsh electrical environments

• 1 year limited warranty

2 FF-4 Layout

F2 / Down Button:

Menu System: Softkey button

Normal Display: Manually enter

your current fuel level after

fueling or defueling your aircraft

(Mode dependent)

Sunlight readable color

graphic display:

Backlight can be adjusted in the

menu system

Rotary Control (Up/Down) & Enter Button:

Press the rotary control during the normal display screens to access the menu system.

Rotate anti/clockwise for up/down menu scrolling. Rotate the rotary control during the

normal display mode to view the fuel totals display.

F1 / Up Button:

Menu System: Softkey button

Normal Display: Manual speed

Input. (Mode dependent)

2 1/4” enclosure.

Can be front or rear mounted
