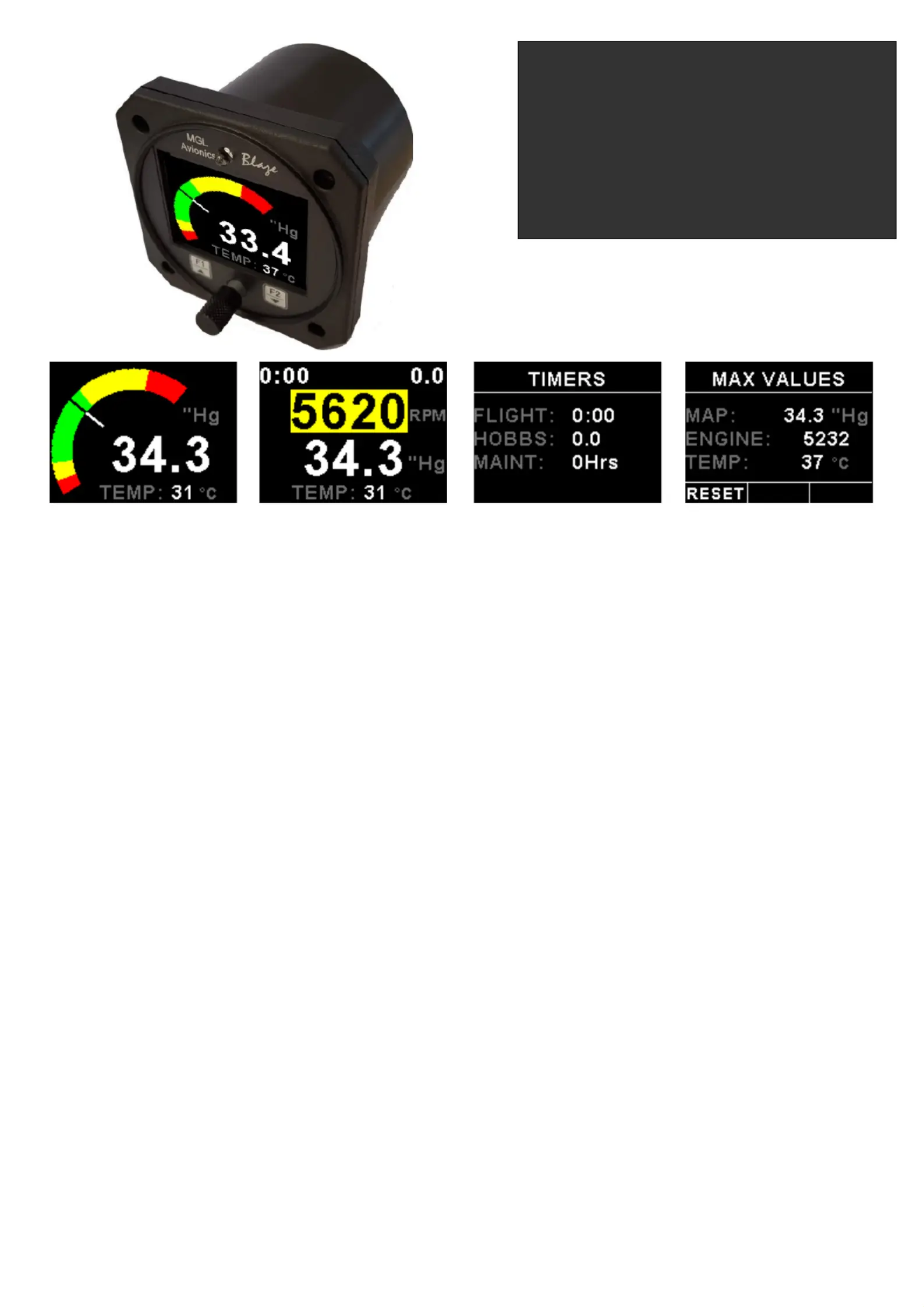

Side 1/23
Introduction
The MAP-4 is a 3 1/8” sunlight readable Manifold pressure indicator which can simultaneously display RPM and
temperature from a universal RPM and temperature input.
The manifold pressure display is also available in the form of a scalable analog bar graph, if the RPM input is not
displayed.
The MAP-4 also has a Hobbs meter (can be set to the current engine time) which is password protected, an engine
running timer / flight timer and a programmable maintenance timer to schedule routine engine maintenance.
The MAP-4 also features a programmable low/high alarm for manifold pressure, RPM and temperature. A handy magneto
check function is also available to easy diagnose magneto problems. The MAP-4 also records the maximum manifold
pressure, RPM and temperature reached in permanent memory.
allows for easier installation as the RDAC unit is normally mounted in the engine compartment.
1 Features
•Large 2.6” high resolution 320x240, IPS (fully viewable in all directions), sunlight readable color LCD
display
• Manifold pressure, RPM and Temperature indicator
• Manifold pressure can be displayed in millibar (mB) or in inches of Mercury (“Hg”)
• Scalable analog manifold pressure bar graph
• Temperature can be displayed in degrees Celsius or in degrees Fahrenheit
• Includes a settable Hobbs meter which is password protected
• Includes an engine running and flight timer
• Includes a programmable maintenance timer for scheduled routine engine maintenance
• Includes a magneto check function
• Records maximum MAP, RPM and temperature reached in permanent memory
• A programmable low/high alarm for manifold pressure, RPM and temperature
• External RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus
• Standard 3 1/8” aircraft enclosure (can be front or rear mounted)
• The LED backlight can automatically adjust to the ambient light, or it can be manually adjusted in the
menu system
• Rotary control plus 2 independent buttons for easy menu navigation and user input
• Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection
for harsh electrical environments
• 1 year limited warranty
Blaze MAP-4
Manifold Pressure, RPM and
Temperature Indicator
Operating Manual – English 1.00
Blaze MAP-4 Operating Manual Page 2
2 Layout
3 Main Displays
The MAP-4 has 2 different display screens. The main display screen can be selected to display Manifold pressure only or
Manifold pressure and RPM combined.
3.1 Manifold Pressure Only Display
Sunlight readable color graphic display:
The backlight can automatically adjust
to the ambient light or it can be manually
adjusted in the menu system
3 1/8” enclosure.
Can be front or rear mounted
Pressure unit
Manifold pressure graphic display
Temperature Reading. If the temperature display is set to off then
the maximum manifold pressure value will be displayed.
Pressure value
F1 / Up Button:
Menu System: Softkey button
Normal Display: Start / Stop the
flight timer (Manual flight only, RPM
display on)
F2 / Down Button:
Menu System: Softkey button
Normal Display: Enable magneto
check function (RPM display on)
Rotary Control (Up/Down) & Enter Button:
Press the rotary control during the normal display screens to access the menu system.
Rotate anti/clockwise for up/down menu scrolling. Rotate the rotary control during the
normal display mode to view the Timers and Max Values display.
Ambient light sensor
