Introduction
The TP-3 is a 2 1/4” (57mm) sunlight readable 4 channel universal analog input color display instrument. Each channel
can be individually programmed to display either pressure, temperature, current or volts from a universal analog input that
can interface to many sensors such as oil temperature, coolant temperature, oil pressure, fuel pressure, manifold
pressure, boost pressure and many more.

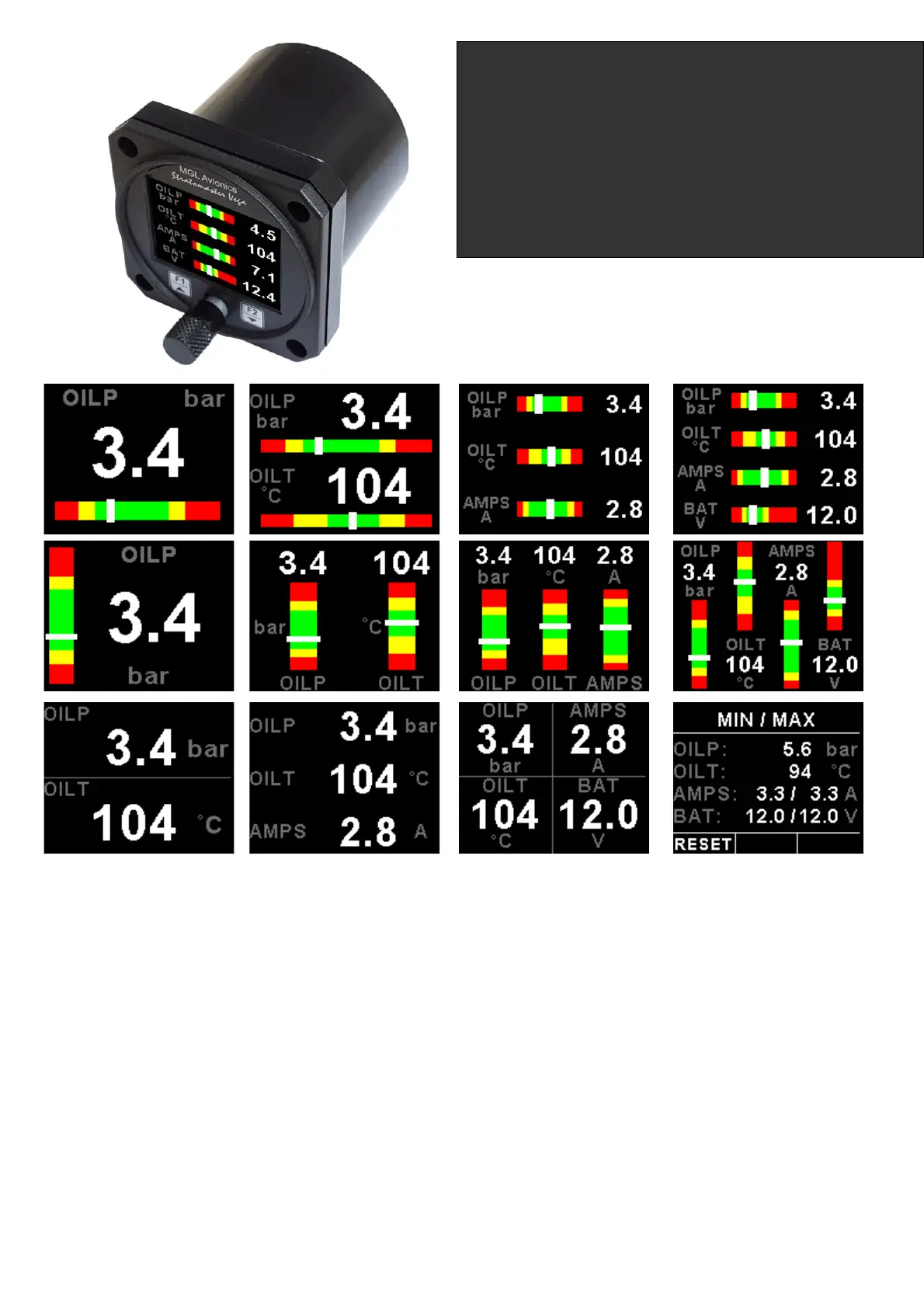

The TP-3 can display any combination of 1 to 4 analog channels in a horizontal / vertical bargraph or a numeric display
format.
Pressure can be measured using standard automotive resistive senders (e.g. VDO 2, 5 and 10 Bar), Rotax 4-20mA
senders as well as voltage output pressure senders (e.g. UMA). Temperature can be measured using standard
automotive resistive senders (e.g. VDO, Westach) as well as the MGL Avionics precision LM335 semiconductor sensor.
In addition the temperature, pressure and current inputs can be programmed to a user defined curve for custom senders.
All analog channels have a programmable low and high alarm. This results in a contact closure that is typically used to
switch a warning lamp on. The TP-3 also records the minimum and maximum values reached for each channel in
permanent memory.
The TP-3 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Computer). This
allows for easier installation as the RDAC unit is normally mounted in the engine compartment.
Vega TP-3
4 Channel Universal Analog input
(Pressure / Temperature / Current / Volts)
indicator
Operating Manual – English 1.04
Vega TP-3 Operating Manual Page 2
1 Features
• Large 1.8” high resolution 160x128, sunlight readable, wide viewing angle, 1000 cd/m2 TFT LCD display
• Four universal analog inputs that can be used for pressure / temperature / current or volts
• Pressure can be measured using standard automotive resistive senders (e.g. VDO 2, 5 and 10Bar), Rotax
4-20mA senders as well as voltage output pressure senders (e.g. UMA)
• Temperature can be measured using standard automotive resistive senders (e.g. VDO, Westach) as well
as the MGL Avionics precision LM335 semiconductor sensor
• Current can be measured using the MGL Avionics Magnetic Closed Loop Current Sensor (Sold Separately)
• High accuracy: Built in linearization curves for common senders
• Analog channels can be programmed to a user defined curve for custom senders
• Supports the Rotax 4-20mA pressure sender as used in the 912/914 engines
• Temperatures can be displayed in ºC or ºF
• Pressure can be displayed in psi or bar
• Records minimum and maximum values reached for each channel
• External RDAC (Remote Data Acquisition Computer) interfacing via the CAN bus
• Includes a RS232 serial output for interfacing to external equipment e.g dataloggers etc.
• Standard 2 1/4” (57mm) aircraft enclosure (can be front or rear mounted)
• Rotary control plus 2 independent buttons for easy menu navigation and user input
• An external output activates when a high alarm condition has been reached
• Wide input supply voltage range of 8 to 30V DC with built in voltage reversal and over voltage protection
for harsh electrical environments
• 1 year limited warranty
