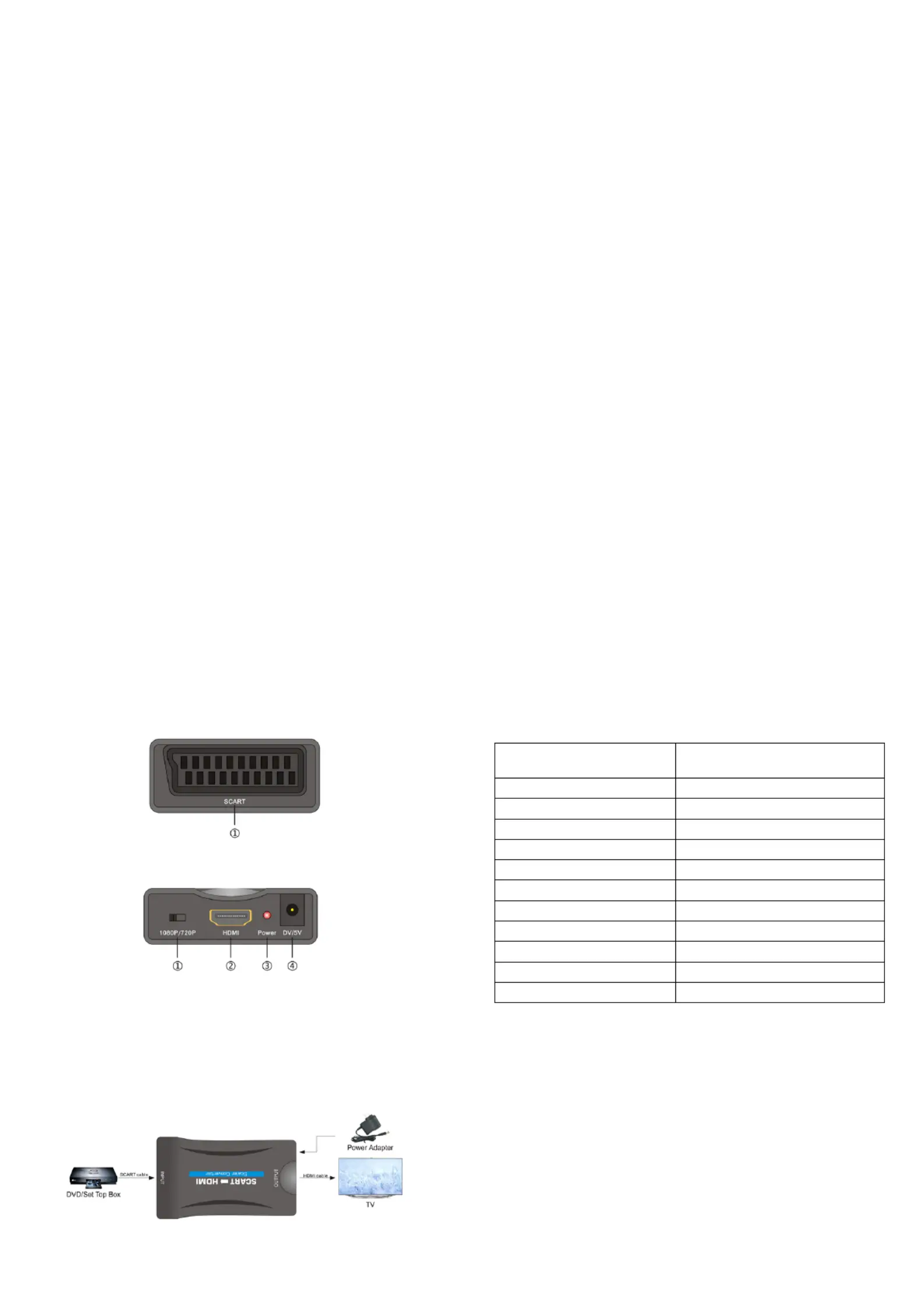

Quick Installation Guide

Ver. 1.0

All brand names and trademarks are properties of

their respective owners

INTRODUCTION:

FEATURES:

SPECIFICATIONS:

CONNECTION DIAGRAM:

This SCART To HDMI converter is a universal converter for analog

SCART input to HDMI 1080p (60HZ) output. It can connect the playback

device only has SCART interface such as DVD , Set-top box to the HD

display device. The analog to digital conversion in this module employs

10 bits maximal 162MSPS sampling, black/white level expansion, color

transition improvement, dynamic range expansion, blue stretch,

auto-detect and auto-convert the composite signal to 1080p(60Hz)

output. Making video come alive, delivering the sharpest, most realistic

HD visuals.

Thank you for choosing our products. We focus on producing

professional, high-quality, cost-effective high-tech products, So you

can easily enjoy high-definition digital life brought by technology.For

the optimum performance and safety, please read these instructions

carefully before connecting, operating or adjusting the product. And

please keep this manual for future reference.

● 1xSCART to HDMI Converter

● 1xUSB cable

● 1xUser Manual

① SCART : SCART Input Interface. Use a SCART to SCART cable to

connect your SCART device to this converter. Such like DVD, Sky

Box, STB, etc.

① 1080P/720P : Output video resolution switch button.

② HDMI Output : Use a HDMI to HDMI cable to connect this converter

to your TV which has a HDMI input interface.

③ Power : When the DC5V power on, this indicator will be light.

④ DC/5V : Connect to power adapter or use the USB power cable to

connect the converter to the computer's USB, TV's USB or your 5V

USB charger, etc.

Note Please correctly use and keep the converter to guarantee the :

product performance and work as expected.

1.Please do not expose this unit to the damp, high-temperature, dusty,

erosive, or oxidative environment.

2.All parts will be free from the strong shake, hit, fall.

3.Please do not touch the item with wet hands.

4.Please hold the plug when unplugging. Do not pull the power cable

directly.

5.Please turn the unit off when it is not in use for a long period of time.

6.Please do not open the cover and do not touch the inside parts.

7.Please use the original factory power adapter.

● No need to install drivers, portable, flexible, plug and play.

● Provide advanced signal processing to ensure great precision,

colors, resolutions, and details.

● Support PAL, NTSC3.58. NTSC4.43, SECAM, PAL/M, PAL/N

standard TV formats input.

● Support HDMI 1080p or 720p output.

PACKAGE CONTENTS:

OPERATION CONTROLS AND FUNCTIONS:

SCART Input PAL, NTSC3.58. NTSC4.43,

SECAM, PAL/M, PAL/N

1080p/720pHDMI Output

HDMI Output Cable Distance ≤7m AWG26 HDMI Standard Cable

SCART Input Cable Distance

Max Working Current 350mA

Power Adapter Format AC 100V-240V 50/60HZ,DC 5V/1A

Operating Temperature Range -10~+55°C

Storage Temperature Range

Operating Humidity Range

Storage Humidity Range

Case Dimension

Weight

-20~+60°C

≤8m AWG26 SCART Standard Cable

10~90%RH No Condensation（）

5~95%RH No Condensation（）

60g

88.5X57.5X25 mm（）

SCART to HDMI Converter
