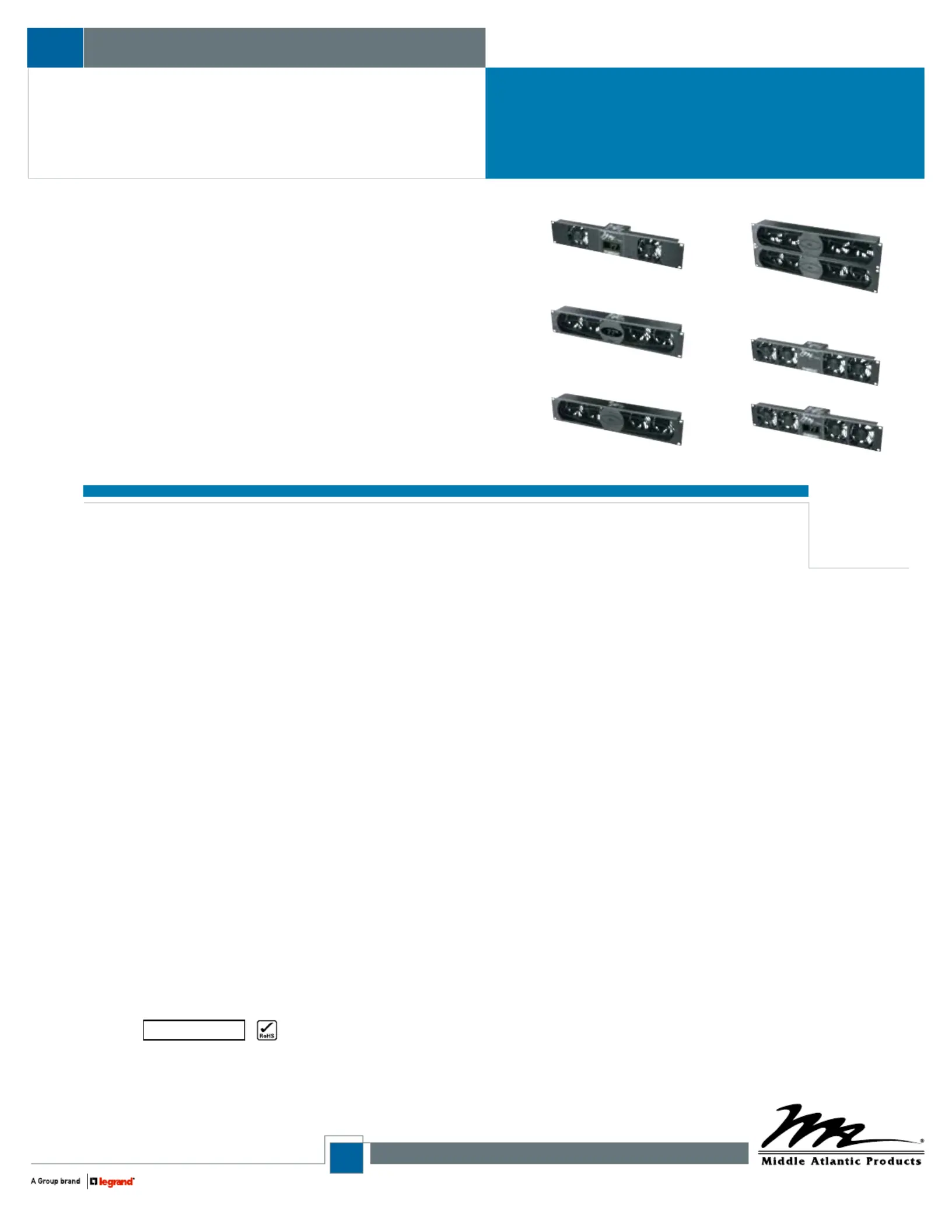

UQFP Series

ultra quiet fan panels

provides smart cooling and monitoring where

fan noise is not an option

features:

• Quiet operation, 27dB at full speed for 4 fan models,

24dB at full speed for 2 fan models

• Overtemp and fan failure notiﬁcation

• 100 CFM in 4 fan units, 50 CFM in 2 fan units

• Available with commercial and designer inspired

aesthetic treatments

• Fan speeds proportional to temperature of enclosure

to extend fan life, reduce dust and maintenance

• Model available with intake and exhaust units

• Temperature probe with 9’ cord and wire ties included

• Compact design occupies only 2 rackspaces

UQFP-4RA-I/O

UQFP-4DRA

UQFP-4RA

UQFP-4D

UQFP-2D

UQFP-4

EI A/ TIA CO MP LIANT

Model #s UQFP-2, UQFP-4

EIA compliant 19” Ultra Quiet Fan Panel shall be Middle Atlantic Products model # UQFP-__(2,4). Panel shall be constructed of 16-gauge steel,

ﬁnished in a durable black powder coat and shall occupy 2 rackspaces. Fans shall activate at 81°F (27°C), reach full speed at 90°F (32°C) and switch off

at 79°F (26°C). Fans shall displace __CFM (50,100) with a maximum decibel level of __ (24,27) dB (measurements made 1 meter from source, centered

horizontally and vertically). Overtemp alarm set point shall be 100°F (37°C). Panel shall provide local status notiﬁcation of power (green LED), fan speed

(yellow LED) and overtemp (red LED). Fan LED light shall blink relative to fan speed. Rear, normally open dry switch closure shall provide overtemp alarm

signal to compatible, customer supplied monitoring device. Fan panel shall be RoHS EU Directive 2002/95/EC compliant. Fan panel shall be manufactured

by an ISO 9001 and ISO 14001 registered company. Fan panel shall be warrantied to be free from defects in materials and workmanship under normal use

and conditions for a period of 3 years. Panel shall include a UL Listed 5V DC power supply with 6’ cord and temperature probe with a 9’ cord.

Model #s UQFP-2D, UQFP-4D (with display)

EIA compliant 19” Ultra Quiet Fan Panel with local notiﬁcation display shall be Middle Atlantic Products model # UQFP-__(2,4)D. Panel shall be

constructed of 16-gauge steel, ﬁnished in a durable black powder coat and shall occupy 2 rackspaces. Fans shall activate at 81°F (27°C), reach full speed

at 90°F (32°C) and switch off at 79°F (26°C). Fans shall displace __CFM (50,100) with a maximum decibel level of __ (24,27) dB (measurements made

1 meter from source, centered horizontally and vertically). Panel shall provide local status notiﬁcation of power (green LED), fan speed (yellow LED) and

overtemp (red LED). Fan LED light shall blink relative to fan speed. Rear, normally open dry switch closure shall provide overtemp alarm signal to compatible,

customer supplied monitoring device. Overtemp alarm set point shall be user deﬁnable from 95°-115°F (35°-46°C). Unit shall remember settings when

unplugged or during power outage. Front display shall provide notiﬁcation of overtemp and fan fault conditions. Rear, normally open dry switch closure

shall provide fan fault alarm signal to compatible, customer supplied monitoring device. Alarm set point button shall control Fahrenheit/Celsius setting and

overtemp alarm threshold in 1-degree increments. Fan panel shall be RoHS EU Directive 2002/95/EC compliant. Fan panel shall be manufactured by an

ISO 9001 and ISO 14001 registered company. Fan panel shall be warrantied to be free from defects in materials and workmanship under normal use and

conditions for a period of 3 years. Panel shall include a UL Listed 5V DC power supply with 6’ cord and temperature probe with a 9’ cord.

Model #s UQFP-4RA, UQFP-4RA-I/O, UQFP-4DRA, UQFP-4RIS, UQFP-4RA-INT (Designer Inspired)

Designer Inspired Ultra Quiet Fan Panel shall be Middle Atlantic Products model # UQFP-4__. Overtemp alarm set point shall be user deﬁnable from

95°-115°F (35°-46°C) (not available on UQFP-4RA, UQFP-4RA-I/O, UQFP-4RIS or UQFP-4RA-INT). UQFP-4RA-INT shall include an intake only.

UQFP-4RA-I/O shall include an intake and exhaust fan. UQFP-4RIS shall be intake only, and connect with an ethernet cable. Overtemp alarm output shall

be normally open dry contact closure for use with customer supplied monitoring system. Unit shall remember settings when unplugged or during power \

outage. Fans shall activate at 81°F (27°C) and operate at speeds proportional to temperature inside enclosure. Fans shall displace 100 CFM with a

maximum decibel level of 27dB (measurements made 1 meter from source, centered horizontally and vertically). Fan panel shall occupy two rackspaces.

Chassis shal be constructed of 20-gauge steel with 16-gauge aluminum face. Fan panel shall provide local sensor fault notiﬁcation (not available on

UQFP-4RA or UQFP-4RA-I/O). Fan panel shall be RoHS EU Directive 2002/95/EC compliant. Fan panel shall be manufactured by an ISO 9001 and ISO

14001 registered company. Fan panel shall be warrantied to be free from defects in materials and workmanship under normal use and conditions for a

period of 3 years. Panel shall include a UL Listed 5V DC power supply with 6’ cord and temperature probe with a 9’ cord.

Customizable speciﬁcation clips available at middleatlantic.com

speciﬁcations:

Produkt Specifikationer

Mærke:	Middle Atlantic
Kategori:	Hardwarekoeling
Model:	IUQFP-4D
Bredde:	482.6 mm
Dybde:	86.4 mm
Højde:	89 mm
Produktfarve:	Sort
Indbygget skærm:	Ja
Kølekapacitet i watt (maks.):	- W
Støjniveau:	27 dB
Indgangseffekt:	- W
Certificering:	Greenguard
Harmoniseret systemkode (HS):	85389099
Indgangsspænding:	220 V
Husets farve:	Sort
Antal blæsere:	4 blæser(e)
Lydalarmer:	Ja
Maksimal luftstrøm:	100 kubikfod/min.
Rackkapacitet:	2U
Temperaturovervågning:	Ja
