Installation Instructions

Lever L ock™ Series

I-00508 Rev C

Lever Lock™ TOOL FREE INTERNAL MANAGEMENT SYSTEM

PATENT PENDING

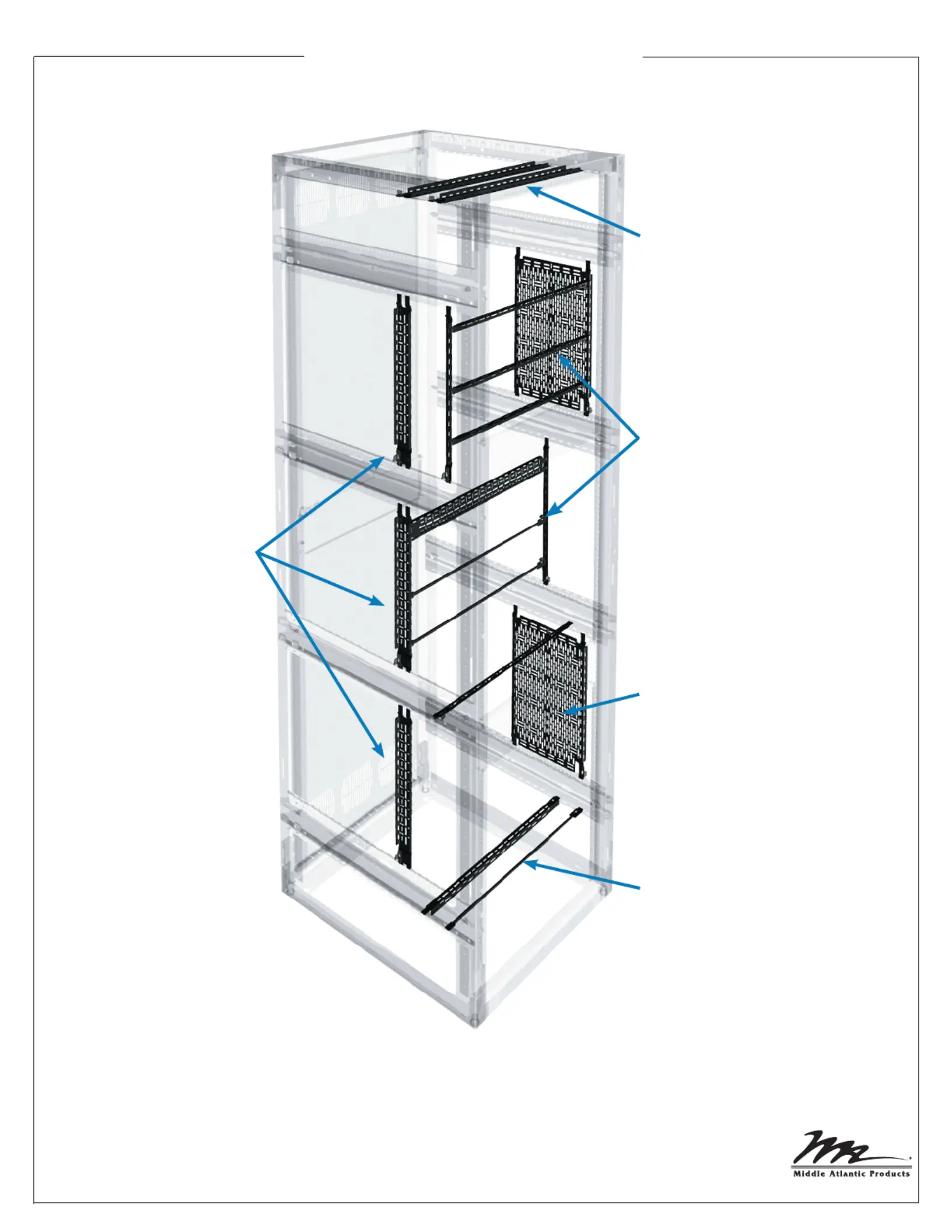

BGR Serie Enclosure Optionss

use horizontal channels

in the top of the rack

to manage cables

between bays

install horizontal lacer

bars, angles, and

channels between

vertical Lever Lock

™

accessories, for strain

relief and cable

management

use vertical plates to

mount small devices

install horizontal

Lever Lock

™

lacer bars,

angles, and channels

on any location on

rackrail brackets to

provide offset

cable management

use vertical

channels or

angles to

lace cable

bundles from

top to bottom

VERTICAL INSTALLATION

Lever Lock ™ OPERATION EXAMPLE S

1) Insert the Lever Lock™ accessory into the mating slots in the top rackrail brackets. Ensure the lock

mechanism is installed in the bottom rackrail bracket for proper securement.

2) Fully insert into the top rackrail slots, and then push down into the corresponding slots in the lower

rackrail bracket to lock the accessory into place. The Lever Lock™ will click into place when

engaged.

- Shown here is an example of Lever Lock™ operation

(horizontal installation shown).

- Included with the Lever Lock™ accessory are plastic securing

- When using Din Rail, the clip must go to the outside if the rack.

- Face the flanges to the outside of the rack for the most usable

surface (plate and channel).

rivets. See page 3 for rivet installation.
