• High quality equipment rack features an oak, maple or

black wood grain finish

• 5/8” or 3/4” furniture grade MDF board construction

(depending on model)

• Four depths available to accommodate any permanent

installation

• Assembles easily with included hardware

• Rear access panel available for 22” and 28” deep models

BRK/MBRK/OBRK/RK/SRK/OSR

Laminate Racks

The BRK/MBRK/OBRK/RK/SRK/OSR Series 19” Equipment Racks

RK/BRK/OBRK/MBRK

EIA compliant Wooden Studio Rack shall be Middle Atlantic Products model # __RK__ (refer

to chart). __RK__ shall have __ useable rackspaces with a __" overall height (refer to chart).

__RK__ shall have a __” depth. Studio rack shall be constructed of __” furniture grade MDF

board and shall feature a high quality _____ wood grain laminate finish (refer to chart). Rackrail

shall be equipped with one set of 11-gauge steel with tapped 10-32 holes in universal EIA spacing

(2 sets included for racks with 22” and 28” depths). Assembly hardware shall be ¼ turn bolts with

¼ turn cams for MBRK, 22” and 28” deep racks. Other models use joint connector screws. Studio

rack shall be rated to ___lb. weight capacity. Studio Rackshall be GREENGUARD Indoor Air Quality

Certified for Children and Schools. Studio Rack shall be RoHS EU Directive 2002/95/EC compliant.

Studio rack shall be manufactured by an ISO 9001 and ISO 14001 registered company. Studio rack

shall be warrantied to be free from defects in material or workmanship under normal use and

conditions for a period of 7 years.

SRK

EIA compliant Sloped Rolling Equipment Rack shall be Middle Atlantic Products model # SRK.

Equipment rack shall provide a 16 rackspace lower bay and an upper 12 rackspace bay sloped back

at a 25° angle. SRK shall be constructed of 5/8” furniture grade MDF board and shall feature a high

quality black wood grain laminate finish. Pre-installed rackrail shall be 11-gauge steel with tapped

10-32 holes in universal EIA spacing. Assembly hardware shall be 2-1/4” joint connector screws.

A hex key shall be included for assembly. Black plastic screw caps shall snap into place to cover

the included hardware. Studio rack shall be rated to 200 lb. weight capacity. Studio rack includes

four pre-installed casters. Studio rack shall be rated to 200 lb. weight capacity. Studio Rack shall

be GREENGUARD Indoor Air Quality Certified for Children and Schools. Studio Rack shall be RoHS EU

Directive 2002/95/EC compliant. Studio rack shall be manufactured by an ISO 9001 and ISO 14001

registered company. Studio rack shall be warrantied to be free from defects in material or

workmanship under normal use and conditions for a period of 7 years.

OSR

EIA compliant Sloped Rolling Equipment Rack shall be Middle Atlantic Products model

# OSR-___(refer to chart). Equipment rack shall provide a __ rackspaces (refer to chart) sloped

at __°(refer to chart. OSR shall be constructed of 3/4” furniture grade MDF board and shall feature

a high quality Oak laminate finish. Pre-installed rackrail shall be 11-gauge steel with tapped 10-32

holes in universal EIA spacing. Assembly hardware shall be 2-1/4” joint connector screws. A hex key

shall be included for assembly. Black plastic screw caps shall snap into place to cover the included

hardware. Studio rack shall be rated to 200 lb. weight capacity. Studio rack includes four pre-installed

casters. Studio Rack shall be GREENGUARD Indoor Air Quality Certified for Children and Schools.

Studio Rack shall be RoHS EU Directive 2002/95/EC compliant. Studio rack shall be manufactured

by an ISO 9001 and ISO 14001 registered company. Studio rack shall be warrantied to be free from

defects in material or workmanship under normal use and conditions for a period of 7 years.

OPTIONS (OBRK, BRK and RK)

• Set of four casters shall be model # RKW, RKW shall have a 150 lb. weight capacity.

• Set of 4 heavy duty casters shall be model # RKW-HD. RKW-HD shall have a weight

capacity of 250 lbs.

• Additional set of rear rackrail, shall be model # RK-RRX (X = total # of rackspaces)

OPTIONS

• Smoked glass front door shall be model #

RK-GD__ (6, 8, 10, 12, 14, 16, 20, 28) for __ rackspace (M), (O), (B)RK rack

• Quick-PositionTM shelf with built-in cable management slots shall be model # SH-BRK.

Shelf mounts without rackrail for OBRK/BRK and MBRK-18” depth and accepts horizontal

mounting of PD-815SC or PD-815SC-NS power strip

OPTIONS (BRK, MBRK 22” and 28” DEPTHS)

• Rear access panel shall be Middle Atlantic Products model #__ (refer to chart). Rear access

panel shall have an overall height of __ (refer to chart). Rear access panel shall include a

2-space top vented panel and a 2-space cable management panel.

• Fan kit shall be Middle Atlantic Products model #DCFANKIT-4 (110V), or IDCFANKIT-4

(220V). Fans shall displace 100 CFM of free air and replaces vented panel on rear access

panel. Fan kit works with rear access panel.

96-032 / rev 3 / 4-3-12

96-032 / rev 3 / 4-3-12 /MBRK/OBRK/RK/BRK Laminate Racks

RK/BRK/MBRK SRK OBRK

EIA/TIA Compliant

EXCEPTIONAL SUPPORT & PROTECTION™

C U S T O M I Z A B L E S P E C I F I C A T I O N C L I P S A VA I L A B L E AT M I D D L E AT L A N T I C C O M.

Features

US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com

Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca

Architects’ and Engineers’ Specifications

OSR

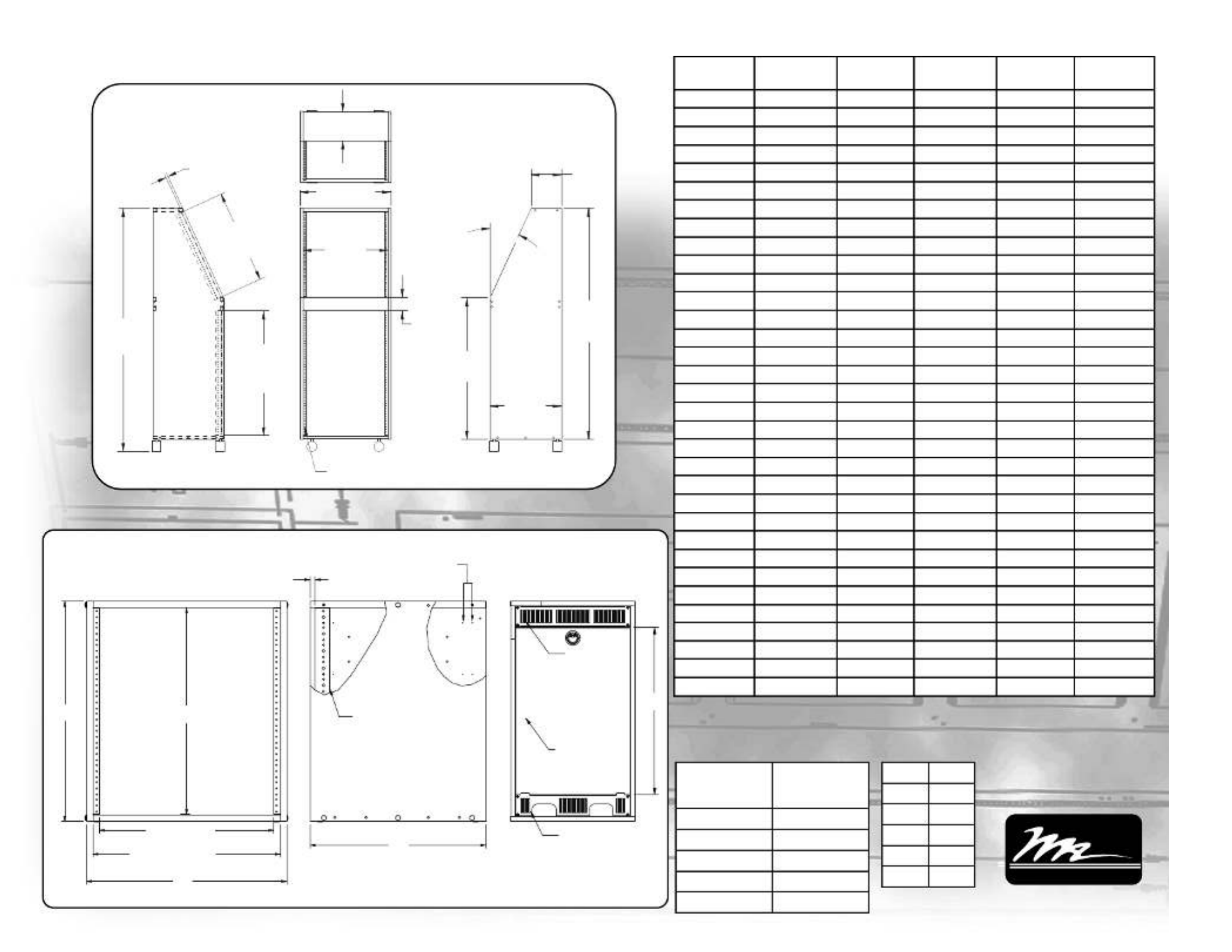

RK/BRK/OBRK/MBRK basic dimensions

cutaway to show

location of rackrail

All dimensions in inches [Bracketed dimensions in millimeters]

17.78 [452]

19.13 [486]

2 space top

vented panel

0.50 [13] RAIL

SETBACK

21.00 [533]

(12 SPACES)

28.00 [711]

(16 SPACES)

54.60

[1387]

6.50 [165]

20.38 [518]

19.13

[486]

3.00

[76]

NOTE: 10-32

THREADED RAILS

16.00

[406]

31.75

[806]

25°

6.75

[171]

51.90

[1318]

SRK basic dimensions

US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com

Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca

rackrail pilot holes allow setback

of .50 [13] or 1.50 [38]

rear rackrail pilot holes

setback of .50 [13] and

1.50 [38] for use with

optional rear rail kit

RK-RRXX

E2 space cable

management panel

Model Number

Rear Access Panel

RK-RAP8(-MP) 6.78 (172)

RK-RAP12(-MP) 13.78 (350)

RK-RAP16(-MP) 20.78 (528)

RK-RAP20(-MP) 27.78 (706)

RK-RAP28(-MP) 41.78 (1062)

RK and BRK (18" depths) racks are constructed of 5/8" furniture grade MDF board construction.

BRK (22" and 28" depths), MBRK and OBRK racks are constructed of 3/4"

furniture grade, MDF board construction.

Model Color

RK Black

OBRK Oak

MBRK Maple

BRK Black

SRK Black

Model Number

Overall Height

Racking Height

Outside Width

Overall Depth Weight Capacity

RK2 4.98 (126) 3.50 (89) 20.40 (518) 15.91 (404) 200 lbs.

RK4 8.48 (215) 7.00 (178) 20.40 (518) 15.91 (404) 200 lbs.

RK6 11.98 (304) 10.50 (267) 20.40 (518) 15.91 (404) 200 lbs.

RK8 15.48 (393) 14.00 (356) 20.40 (518) 15.91 (404) 200 lbs.

RK10 18.98 (482) 17.50 (445) 20.40 (518) 15.91 (404) 200 lbs.

RK12 22.48 (571) 21.00 (533) 20.40 (518) 15.91 (404) 200 lbs.

RK14 25.98 (660) 24.50 (622) 20.40 (518) 15.91 (404) 200 lbs.

RK16 29.48 (749) 28.00 (711) 20.40 (518) 15.91 (404) 200 lbs.

RK20 36.48 (927) 35.00 (889) 20.40 (518) 15.91 (404) 200 lbs.

BRK6 11.98 (304) 10.50 (267) 20.40 (518) 17.91 (455) 200 lbs.

BRK8 15.48 (393) 14.00 (356) 20.40 (518) 17.91 (455) 200 lbs.

BRK10 18.98 482) 17.50 (445) 20.40 (518) 17.91 (455) 200 lbs.

BRK12 22.48 (571) 21.00 (533) 20.40 (518) 17.91 (455) 200 lbs.

BRK14 25.98 (660) 24.50 (622) 20.40 (518) 17.91 (455) 200 lbs.

BRK16 29.48 (749) 28.00 (711) 20.40 (518) 17.91 (455) 200 lbs.

BRK20 36.48 (927) 35.00 (889) 20.40 (518) 17.91 (455) 200 lbs.

OBRK8 15.63 (397) 14.00 (356) 20.70 (526) 17.91 (455) 200 lbs.

OBRK12 22.63 (575) 21.00 (533) 20.70 (526) 17.91 (455) 200 lbs.

OBRK16 29.63 (753) 28.00 (711) 20.70 (526) 17.91 (455) 200 lbs.

OBRK20 36.63 (930) 35.00 (889) 20.70 (526) 17.91 (455) 200 lbs.

MBRK8 15.63 (397) 14.00 (356) 20.70 (526) 17.91 (455) 200 lbs.

MBRK12 22.63 (575) 21.00 (533) 20.70 (526) 17.91 (455) 200 lbs.

MBRK16 29.63 (753) 28.00 (711) 20.70 (526) 17.91 (455) 200 lbs.

MBRK20 36.63 (930) 35.00 (889) 20.70 (526) 17.91 (455) 200 lbs.

(M)BRK8-22 15.63 (397) 14.00 (356) 20.70 (526) 22.00 (559) 200 lbs.

(M)BRK12-22 22.63 (575) 21.00 (533) 20.70 (526) 22.00 (559) 200 lbs.

(M)BRK16-22 29.63 (753) 28.00 (711) 20.70 (526) 22.00 (559) 200 lbs.

(M)BRK20-22 36.63 (930) 35.00 (889) 20.70 (526) 22.00 (559) 250 lbs.

(M)BRK28-22 50.63 (1286) 49.00 (1245) 20.70 (526) 22.00 (559) 250 lbs.

(M)BRK12-28 22.63 (575) 21.00 (533) 20.70 (526) 28.00 (711) 200 lbs.

(M)BRK16-28 29.63 (753) 28.00 (711) 20.70 (526) 28.00 (711) 200 lbs.

(M)BRK20-28 36.63 (930) 35.00 (889) 20.70 (526) 28.00 (711) 250 lbs.

(M)BRK28-28 50.63 (1286) 49.00 (1245) 20.70 (526) 28.00 (711) 250 lbs.

rear access

panel

Middle Atlantic Products, Inc.

Middle Atlantic Products

Produkt Specifikationer

Mærke:	Middle Atlantic
Kategori:	Ikke kategoriseret
Model:	RK-RR16
Type:	Stativskinne
Bredde:	17.2 mm
Dybde:	38.9 mm
Højde:	711.2 mm
Antal pr. pakke:	1 stk
Produktfarve:	Black, Wood colour
Husmateriale:	Træ
Certificering:	Greenguard
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	RoHS
Størrelse:	28 "
Rackkapacitet:	16U
