INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

PROGRAMMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

MIDI CHANNEL TABLE . . . . . . . . . . . . . . . . . . . . . . . 19

MIDI CONTROL CHANGE TABLE . . . . . . . . . . . . . . . 21

HEXADECIMAL CONVERSION TABLE . . . . . . . . . . . 25

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

MIDI Solutions Router

Operating Instructions M201

2001 MIDI Solutions, Inc.

Printed in Canada

MIDI Solutions, Inc.

P.O. Box 3010

Vancouver, BC Canada V6B 3X5

www.midisolutions.com

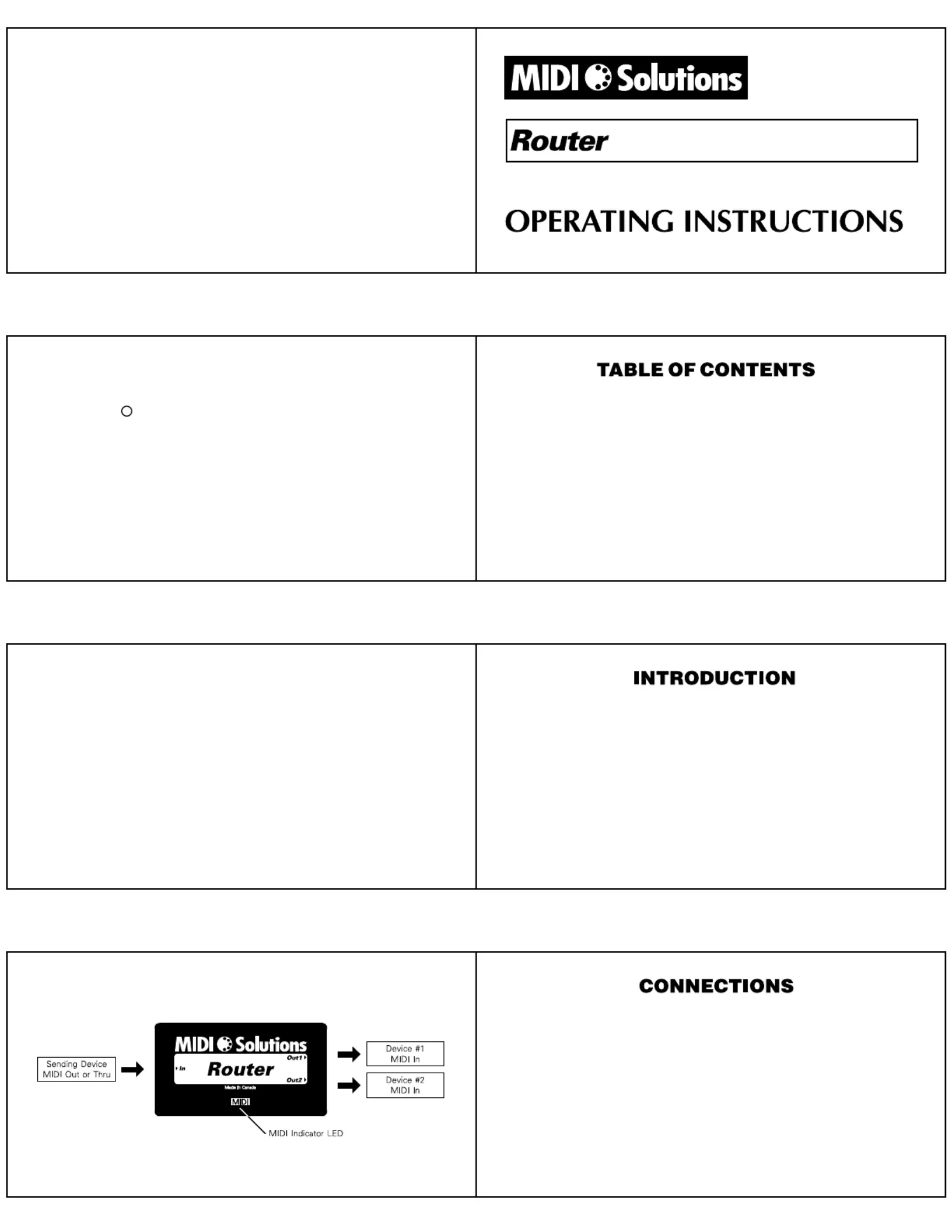

To program the Router, connect the of the Router to the In

MIDI Out of the device that is sending the programming

commands. and can be left disconnected during Out1 Out2

programming. Once the Router is programmed, it can be inserted

anywhere in your MIDI setup. Connect the of the Router to the In

MIDI Out or Thru of the sending MIDI device. Connect of the Out1

Router to the MIDI In of the rst receiving MIDI device. Connect

Out2 of the Router to the MIDI In of the second receiving MIDI

device. It is recommended that the number of MIDI Solutions

products chained together between any two MIDI devices be

limited to ve.

TMTM

Congratulations on your purchase of the MIDI Solutions

Router. The MIDI Solutions Router has the capability of routing

selected MIDI messages to either of two MIDI outputs. Routing

capabilities include Note, Polyphonic Key Pressure, Control

Change, Program Change, Channel Pressure, Pitch Bend, and

System messages, on all or selected MIDI channels. Up to 10

settings may be stored by the Router. Programmed settings are

retained in non-volatile memory until cleared or overwritten with

new settings. The Router is MIDI-powered and requires no

batteries or power supply to operate.

Clear Settings

To clear all of the Router’s settings, send it the following

System Exclusive programming message:

F0 00 00 50 01 00 F7 (all values in Hexadecimal)

It is advisable to send the Clear Settings command to the

Router prior to programming it to insure that all previous

settings are cleared.

To set up the Router to process all of its settings, regardless

of their priority, send it the following command in place of the

above Clear Settings command:

F0 00 00 50 01 00 01 F7 (all values in Hexadecimal)

Route Setting

To program the Router to route an incoming MIDI message to

a selected output, send it the following Sysex message:

F0 00 00 50 01 02 aa bb xx yy cc dd F7

aa = input data type (see p. 16)

bb = input MIDI channel (see p. 19)

xx yy = range of input values to route (see p. 16)

cc = output MIDI channel (see p. 19)

dd = output select:

00: neither output

01: Out1

02: Out2

03: both outputs

Dump Settings

To dump all of the Router’s current settings, send it the

following System Exclusive message:

F0 00 00 50 01 10 F7 (all values in Hexadecimal)

Upon receipt of this command the Router will dump its

current settings to both MIDI Outs.

Router Setting Priority

The Router will accept up to 10 settings. If more than 10

settings are sent to the Router, the oldest setting is discarded to

make room for the most recent setting. MIDI Solutions Router

gives the most recent setting priority over all previous settings. For

example, if the Router is rst programmed to route all channel

messages to Out2, and then programmed to route on all channels

all channel messages to Out1, the result is that on channel 1

incoming channel messages on channels 2 through 16 are sent to

Out2, and incoming channel messages on channel 1 are sent to

Out1. It is possible for the Router to ignore priority (see next page)

The routing functions of the Router are programmed by

sending it MIDI System Exclusive programming messages from a

device capable of creating System Exclusive messages, such as

a computer-based sequencer. These messages are described in

detail on the following pages. For decimal to hexadecimal

conversions, see the chart on page 25. Upon receipt of a System

Exclusive programming message, the MIDI indicator LED ashes

rapidly for about one second to indicate that the setting has been

stored. Settings are retained in non-volatile memory until cleared

or overwritten with new settings.

The Router’s MIDI Indicator LED will light as soon as the

sending device is turned on, and ashes whenever MIDI data

passes through the unit. MIDI messages are routed according to

the Router’s programmed settings as described on the following

pages. All unrouted messages are sent to both outputs.
