Standard TQFP card80-pin
with MCUPIC18F87J50
EasyPIC PRO
v7
page 2
What's on Card
PIC18F87J50 microcontroller. Featuring nanoWatt technology, it has up to
10 MIPS operation, 128K bytes of linear program memory, 3936 bytes of linear
8MHz crystal oscillator. We carefully chose the most convenient crystal
value that provides clock frequency which can be used directly, or with the PLL
multipliers and dividers to create higher MCU clock value.
VCAP jumper. Some PIC18FK and all PIC18FJ microcontrollers have cores that
work on 1.8V-2.5V voltage range, and peripherals that work with 3.3V and
5V voltages. Internally, those microcontrollers have power regulators which
adjust the core voltage levels. In order for those devices to have a stable
operation of the core, manufacturer recommends that decoupling capacitive
lters should be provided, and connected between specic microcontroller
pins designated with VCAP and GND. This MCU card provides a VCAP jumper
which is used for this purpose. Jumper is removed by default.
USB communication lines. These two jumpers, when in USB position, connect
D+ D- and lines of the on-board USB connector with and microcontroller RF3 RF4
pins. Jumpers are in USB position.
VUSB line jumper. For PIC18F8xJ5x devices, this jumper should be connected
to VCC for enabling internal USB controller. For PIC18F87J50 microcontroller this
jumper is in USB position.
ENVREG selection jumper. PIC18FJ and PIC18FK microcontrollers are using
internal voltage regulator which is enabled by placing this jumper in VCC position.
For PIC18F87J50 this jumper is in VCC position.
EasyPIC PRO
v7
2
3
4
5
6
1

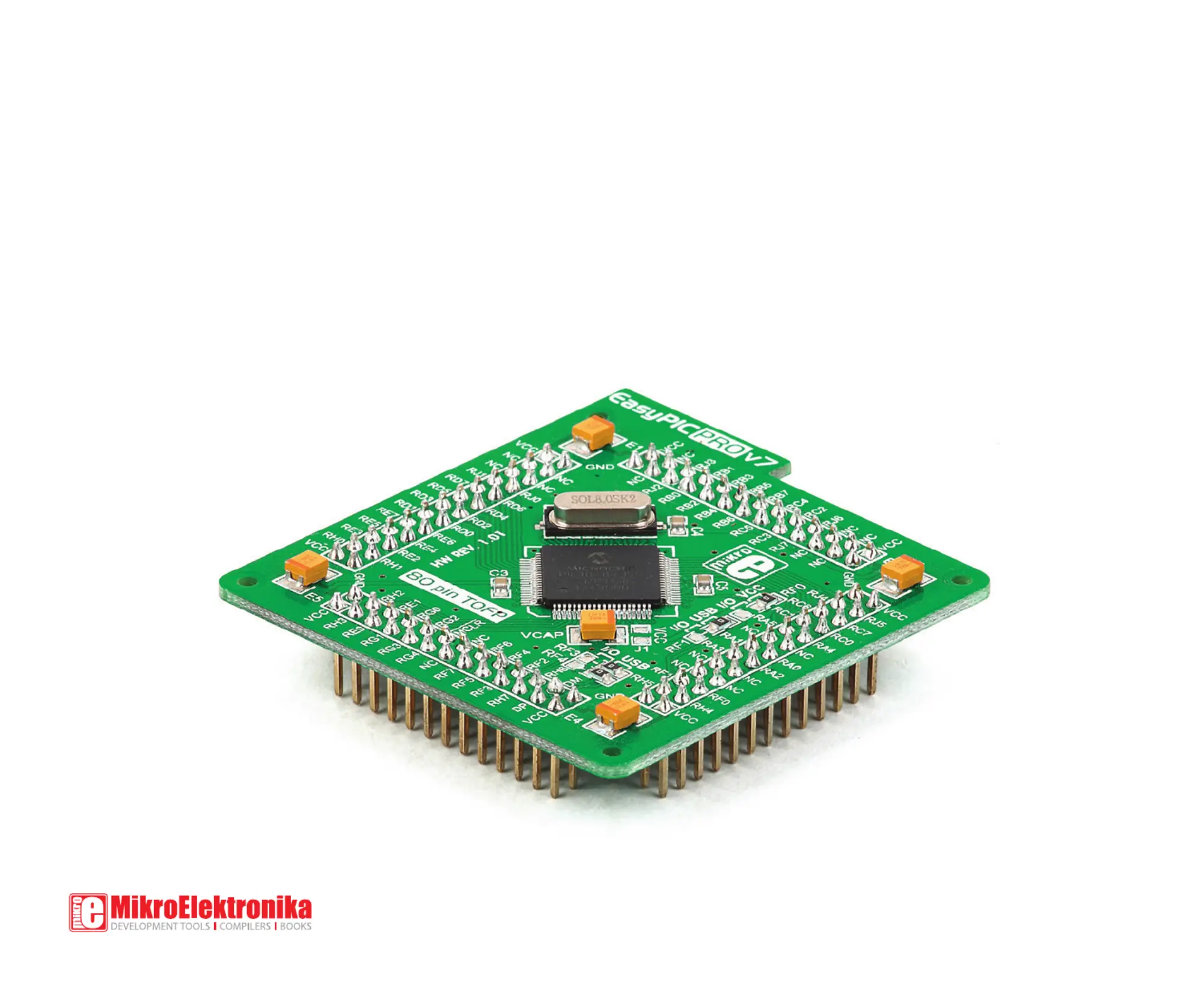

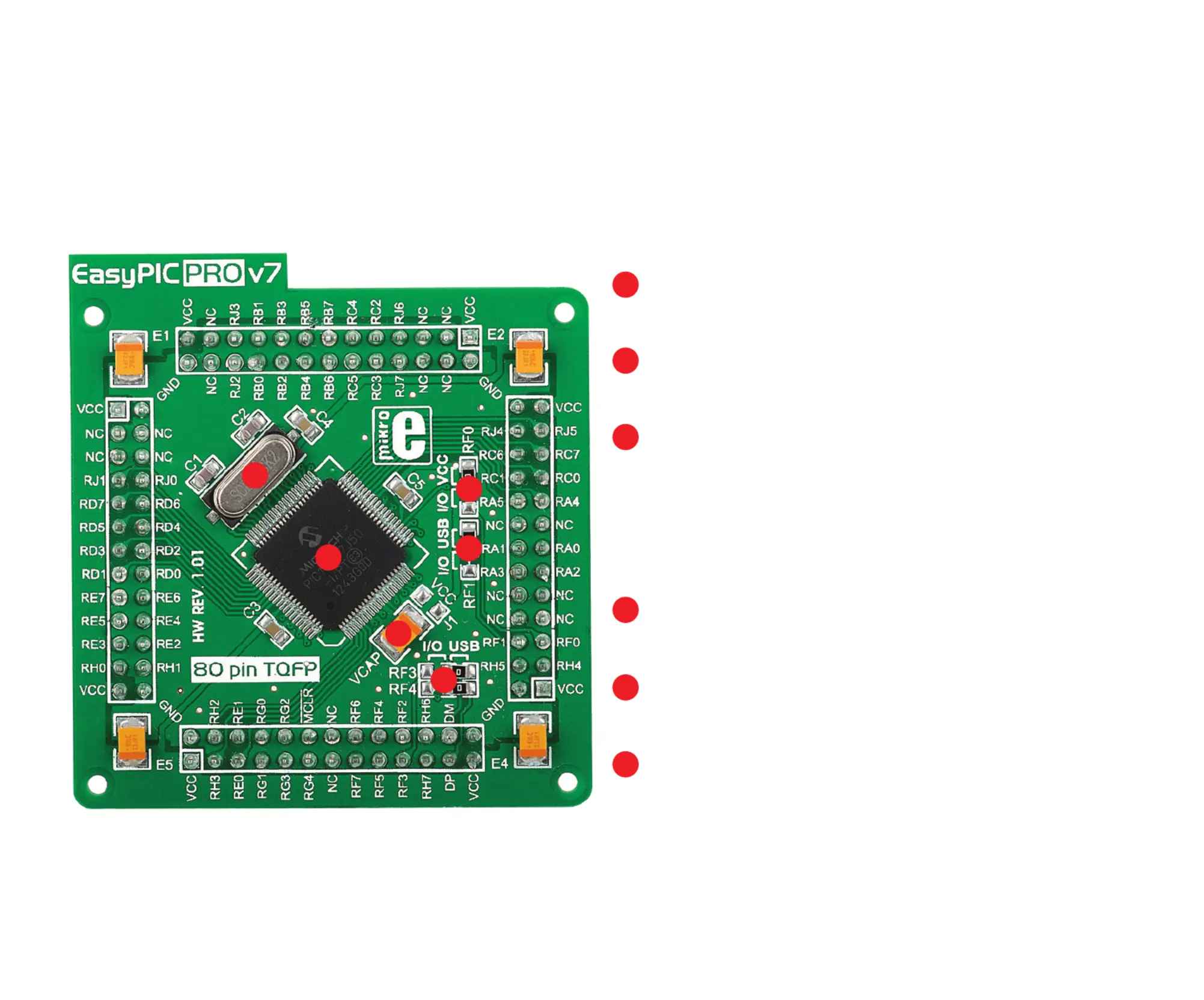

Figure 1: MCU card with PIC18F87J50
1
2
3
4
5
6
