SPLIT-TYPE AIR CONDITIONERS
English
OP ERATING INSTRUCTIONS F o r u s e r
• To use this unit correctly and safely, be sure to read these operating
instructions before use.
MSZ-LN2 5V GV MSZ-LN3 5V GV MSZ-LN50 V GV MSZ-LN60 V GV
MSZ-LN2 5V GR MSZ-LN3 5V GR MSZ-LN50 V GR MSZ-LN60 V GR
MSZ-LN2 5V GB MSZ-LN3 5V GB MSZ-LN50 V GB MSZ-LN60 V GB
INDOOR UNIT
En-1
● OPERATING INSTRUCTIONS ●
WARNING
Do not connect the power cord to an intermediate point, use an
extension cord, or connect multiple devices to a single AC outlet.
• This may cause overheating, fi re, or electric shock.
Make sure the power plug is free of dirt and insert it securely into
the outlet.
• A dirty plug may cause fi re or electric shock.
Do not bundle, pull, damage, or modify the power cord, and do not
apply heat or place heavy objects on it.
• This may cause fi re or electric shock.
• Since rotating parts and parts which could cause an electric shock are used in this product,
be sure to read these “Safety Precautions” before use.
• Since the cautionary items shown here are important for safety, be sure to observe them.
• After reading this manual, keep it together with the installation manual in a handy place
for easy reference.
• Be sure to receive a guarantee card from your dealer and check that the purchased data
and shop name, etc. are entered correctly.
Marks and their meanings
WARNING : Incorrect handling could cause serious hazard, such as death, serious
injury, etc. with a high probability.
CAUTION : Incorrect handling could cause serious hazard depending on the
conditions.
Do not turn the breaker OFF/ON or disconnect/connect the power
plug during operation.
• This may create sparks, which can cause fi re.
• After the indoor unit is switched OFF with the remote controller, make
sure to turn the breaker OFF or disconnect the power plug.
Do not expose your body directly to cool air for a prolonged length
of time.
• This could be detrimental to your health.
Meanings of symbols used in this manual
: Be sure not to do.
: Be sure to follow the instruction.
: Never insert your fi nger or stick, etc.
: Never step onto the indoor/outdoor unit and do not put anything on them.
: Danger of electric shock. Be careful.
: Be sure to disconnect the power supply plug from the power outlet.
: Be sure to shut off the power.
: Risk of fi re.
: Never touch with wet hand.
: Never splash water on the unit.
SAFETY PRECAUTIONS
CONTENTS
Meanings of symbols displayed on indoor unit and/or outdoor unit
WARNING
(Risk of fi re)
This unit uses a fl ammable refrigerant.
If refrigerant leaks and comes in contact with fi re or heating part, it will create harmful gas and there is risk of fi re.
Read the OPERATING INSTRUCTIONS carefully before operation.
Service personnel are required to carefully read the OPERATING INSTRUCTIONS and INSTALLATION MANUAL before operation.
Further information is available in the OPERATING INSTRUCTIONS, INSTALLATION MANUAL, and the like.
■SAFETY PRECAUTIONS 1
■NAME OF EACH PART 4
■PREPARATION BEFORE OPERATION 5
■I-SEE OPERATION 6
■SELECTING OPERATION MODES 7
■FAN SPEED AND AIRFLOW DIRECTION ADJUSTMENT 8
■AIRFLOW CONTROL MODE 9
■ABSENCE DETECTION 9
■I-SAVE OPERATION 10
■ECONO COOL OPERATION 10
■NIGHT MODE OPERATION 11
■AIR PURIFYING OPERATION 11
■POWERFUL OPERATION 12
■TIMER OPERATION (ON/OFF TIMER) 12
■WEEKLY TIMER OPERATION 13
■CLEANING 14
■Wi-Fi INTERFACE SETTING UP 15
■WHEN YOU THINK THAT TROUBLE HAS OCCURRED 18
■EMERGENCY OPERATION 19
■AUTO RESTART FUNCTION 19
■WHEN THE AIR CONDITIONER IS NOT GOING TO BE USED FOR A LONG TIME 19
■INSTALLATION PLACE AND ELECTRICAL WORK 20
■SPECIFICATIONS 20
En-2
The unit should not be installed, relocated, disassembled, altered,
or repaired by the user.
• An improperly handled air conditioner may cause fi re, electric shock,
injury, or water leakage, etc. Consult your dealer.
• If the power supply cord is damaged, it must be replaced by the manu-
facturer or its service agent in order to avoid a hazard.
When installing, relocating, or servicing the unit, make sure that
no substance other than the specifi ed refrigerant (R32) enters the
refrigerant circuit.
• Any presence of foreign substance such as air can cause abnormal
pressure rise and may result in explosion or injury.
•
The use of any refrigerant other than that specifi ed for the system will cause
mechanical failure, system malfunction, or unit breakdown. In the worst case,
this could lead to a serious impediment to securing product safety.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of ex-
perience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
Do not insert your fi nger, a stick, or other objects into the air inlet
or outlet.
• This may cause injury, since the fan inside rotates at high speeds during
operation.
In case of an abnormal condition (such as a burning smell), stop the
air conditioner and disconnect the power plug or turn the breaker OFF.
• A continued operation in the abnormal state may cause a malfunction,
fi re, or electric shock. In this case, consult your dealer.
When the air conditioner does not cool or heat, there is a possibility of refrig-
erant leakage. If any refrigerant leakage is found, stop operations and venti-
late the room well and consult your dealer immediately. If a repair involves
recharging the unit with refrigerant, ask the service technician for details.
• The refrigerant used in the air conditioner is not harmful. Normally, it
does not leak. However, if refrigerant leaks and comes in contact with
fi re or heating part of such a fan heater, kerosene heater, or cooking
stove, it will create harmful gas and there is risk of fi re.
The user should never attempt to wash the inside of the indoor unit.
Should the inside of the unit require cleaning, contact your dealer.
• Unsuitable detergent may cause damage to plastic material inside
the unit, which may result in water leakage. Should detergent come in
contact with electrical parts or the motor, it will result in a malfunction,
smoke, or fi re.
• The appliance shall be stored in a room without continuously operating
ignition sources (for example: open fl ames, an operating gas appliance
or an operating electric heater).
• Be aware that refrigerants may not contain an odour.
• Do not use means to accelerate the defrosting process or to clean the
appliance, other than those recommended by the manufacturer.
• Do not pierce or burn.
The indoor unit must be installed in rooms which exceed the fl oor
space specifi ed. Please consult your dealer.
• LN25/35(HZ): 1.7 m²
• LN50: 2.5 m²
• LN50HZ/60: 3.9 m²
When the indoor unit is connected to the multi type outdoor unit of R32
refrigerant, please consult your dealer about the fl oor space specifi ed.
This appliance is intended to be used by expert or trained users in
shops, in light industry and on farms, or for commercial use by lay
persons.
Do not touch the air purifying device from the top of the indoor unit
during operation.
CAUTION
Do not touch the air inlet or the aluminum fi ns of the indoor/outdoor
unit.
• This may cause injury.
Do not use insecticides or fl ammable sprays on the unit.
• This may cause a fi re or deformation of the unit.
Do not expose pets or houseplants to direct airfl ow.
• This may cause injury to the pets or plants.
Do not place other electric appliances or furniture under the indoor/
outdoor unit.
• Water may drip down from the unit, which may cause damage or
malfunction.
Do not leave the unit on a damaged installation stand.
• The unit may fall and cause injury.
Do not step on an unstable bench to operate or clean the unit.
• This may cause injury if you fall down.
SAFETY PRECAUTIONS
Do not pull the power cord.
• This may cause a portion of the core wire to break, which may cause
overheating or fi re.
Do not charge or disassemble the batteries, and do not throw them
into a fi re.
•
This may cause the batteries to leak, or cause a fi re or explosion.
Do not operate the unit for more than 4 hours at high humidity (80%
RH or more) and/or with windows or outside door left open.
• This may cause the water condensation in the air conditioner, which
may drip down, wetting or damaging the furniture.
• The water condensation in the air conditioner may contribute to growth
of fungi, such as mold.
Do not use the unit for special purposes, such as storing food,
raising animals, growing plants, or preserving precision devices
or art objects.
• This may cause deterioration of quality, or harm to animals and plants.
Do not expose combustion appliances to direct airfl ow.
• This may cause incomplete combustion.
Never put batteries in your mouth for any reason to avoid accidental
ingestion.
• Battery ingestion may cause choking and/or poisoning.
Before cleaning the unit, switch it OFF and disconnect the power plug
or turn the breaker OFF.
• This may cause injury, since the fan inside rotates at high speeds during
operation.
When the unit will be unused for a long time, disconnect the power
plug or turn the breaker OFF.
• The unit may accumulate dirt, which may cause overheating or fi re.
Replace all batteries of the remote controller with new ones of the
same type.
• Using an old battery together with a new one may cause overheating,
leakage, or explosion.
If the battery fl uid comes in contact with your skin or clothes, wash
them thoroughly with clean water.
•
If the battery fl uid comes in contact with your eyes, wash them thoroughly
with clean water and immediately seek medical attention.
Ensure that the area is well-ventilated when the unit is operated
together with a combustion appliance.
• Inadequate ventilation may cause oxygen starvation.
Turn the breaker OFF when you hear thunder and there is a possibility
of a lightning strike.
• The unit may be damaged if lightning strikes.
After the air conditioner is used for several seasons, perform inspec-
tion and maintenance in addition to normal cleaning.
• Dirt or dust in the unit may create an unpleasant odor, contribute to
growth of fungi, such as mold, or clog the drain passage, and cause
water to leak from the indoor unit. Consult your dealer for inspection
and maintenance, which require specialized knowledge and skills.
Do not operate switches with wet hands.
• This may cause electric shock.
Do not clean the air conditioner with water or place an object that
contains water, such as a fl ower vase, on it.
• This may cause fi re or electric shock.
Do not step on or place any object on the outdoor unit.
• This may cause injury if you or the object falls down.
IMPORTANT
Dirty fi lters cause condensation in the air conditioner which will contribute to the
growth of fungi such as mold. It is therefore recommended to clean air fi lters every
2 weeks.
Before starting the operation, ensure that the horizontal vanes are in the closed posi-
tion. If operation starts when the horizontal vanes are in the open position, they may
not return to the correct position.
En-3
● OPERATING INSTRUCTIONS ●
SAFETY PRECAUTIONS
WARNING
(Improper handling may have serious consequences, including serious
injury or death.)
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervi-
sion or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance. Cleaning and user mainte-
nance shall not be made by children without supervision.
Do not use the Wi-Fi interface nearby the medical electrical equipment
or people who have a medical device such as a cardiac pacemaker
or an implantable cardioverter-defi brillator.
• It can cause an accident due to malfunctions of the medical equipment
or device.
Do not install the Wi-Fi interface nearby the automatic control devices
such as automatic doors or fi re alarms.
• It can cause accidents due to malfunctions.
Do not touch the Wi-Fi interface with wet hands.
• It can cause damage to the device, electric shock, or fi re.
Do not splash water on the Wi-Fi interface or use it in a bathroom.
• It can cause damage to the device, electric shock, or fi re.
When the Wi-Fi interface is dropped, or the holder or cable is dam-
aged, disconnect the power supply plug or turn the breaker OFF.
• It may cause fi re or electric shock. In this case, consult your dealer.
• This device complies with all Australia and New zealand
regulrements for EMC and electrical safety.
CAUTION
(Improper handling may have consequences, including injury or damage
to building.)
Do not step on unstable stepstool to set up or clean the Wi-Fi interface.
• It may cause injury if you fall down.
Do not use the Wi-Fi interface nearby other wireless devices, micro-
waves, cordless phones, or facsimiles.
• It can cause malfunctions.
For Wi-Fi interface
WARNING
Consult your dealer for installing the air conditioner.
• It should not be installed by the user since installation requires specialized
knowledge and skills. An improperly installed air conditioner may cause
water leakage, fi re, or electric shock.
Provide a dedicated power supply for the air conditioner.
• A non-dedicated power supply may cause overheating or fi re.
Do not install the unit where fl ammable gas could leak.
• If gas leaks and accumulates around the outdoor unit, it may cause an
explosion.
Earth the unit correctly.
• Do not connect the earth wire to a gas pipe, water pipe, lightning rod, or
a telephone earth wire. Improper earthing may cause electric shock.
CAUTION
Install an earth leakage breaker depending on the installation location
of the air conditioner (such as highly humid areas).
• If an earth leakage breaker is not installed, it may cause electric shock.
Ensure that the drain water is properly drained.
• If the drain passage is improper, water may drip down from the indoor/
outdoor unit, wetting and damaging the furniture.
In case of an abnormal condition
Immediately stop operating the air conditioner and consult your dealer.
For installation
En-4
Operation indicator lamp
Remote control
receiving section
Emergency op-
eration switch
Page 19
Horizontal
vane
Air inlet
Air fi lter
Air cleaning fi lter
(Deodorizing fi lter,
black )
Front panel

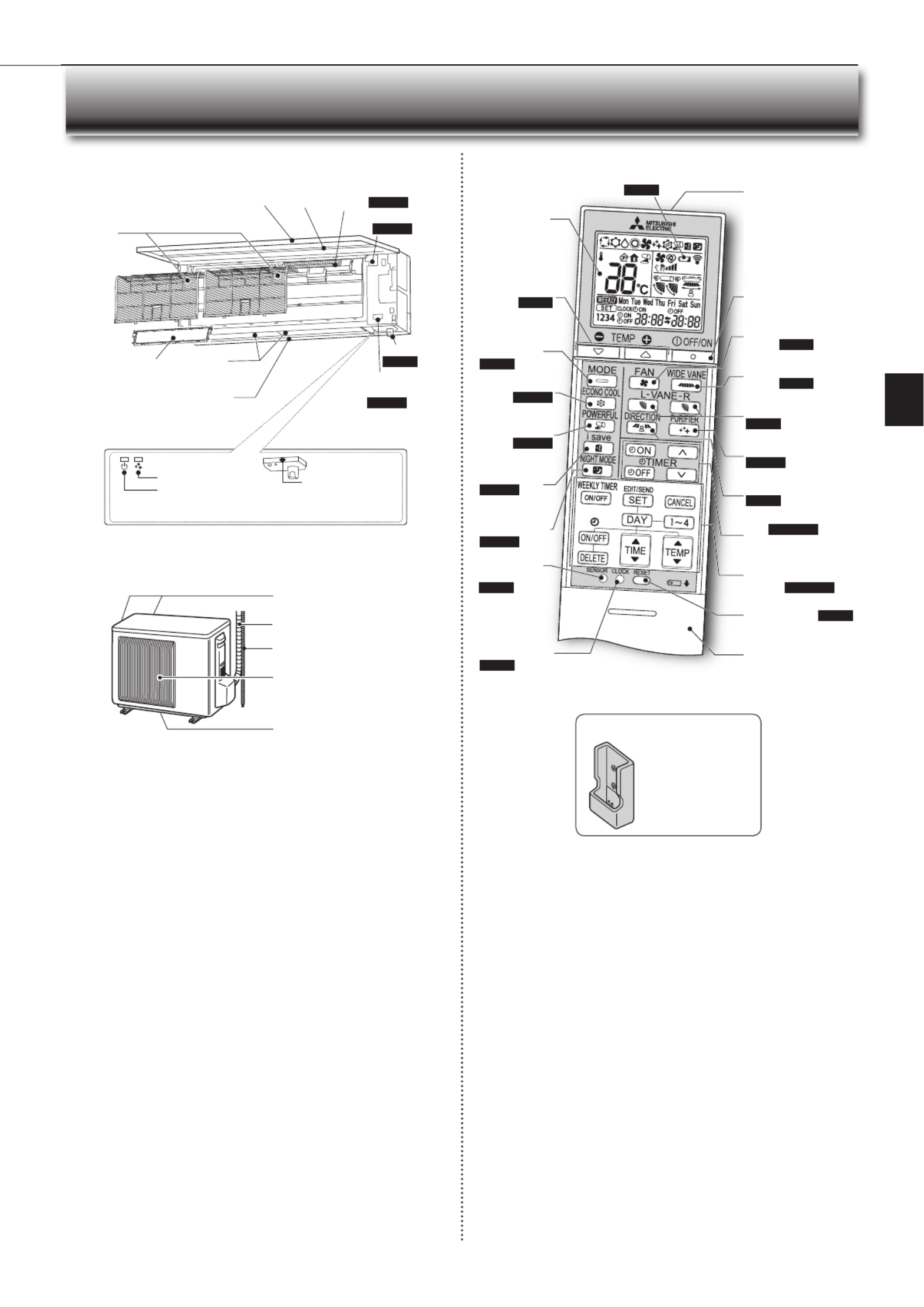

NAME OF EACH PART
Indoor unit Remote controller
Signal transmitting
section
Distance of signal :
About 6 m
Beep(s) is (are) heard from
the indoor unit when the
signal is received.
Operation dis-
play section
OFF/ON (stop/operate)
button
Temperature
buttons Page 7
Operation
select button
Page 7
ECONO COOL
button Page 10
FAN speed control
button Page 8
VANE control button
Page 8
TIME, TIMER set but-
tons
Page 5, 12
Increase time
Decrease time
CLOCK button
Page 5
RESET button Page 5
Lid
Slide the lid down
to open the remote
controller. Slide it down
further to get to the
weekly timer buttons.
Only use the remote controller provided with the unit.
Do not use other remote controllers.
If 2 or more indoor units are installed in proximity to one another, an indoor unit
that is not intended to be operated may respond to the remote controller.
i-save button
Page 10
WEEKLY TIMER set
buttons Page 5, 13
Air outlet
Outdoor unit
Outdoor units may be different in appearance.
Air purifying
device Page 14
Air inlet (back and side)
Refrigerant piping
Drainage hose
Air outlet
Drain outlet
WIDE VANE
button Page 8
PURIFIER button
Page 11
DIRECTION
Page 9
POWERFUL
button Page 12
NIGHT MODE
button
Page 11
SENSOR
(i-see) button
Page 6
i-see sensor
Page 6
(Air purifying)
(Power)
Wi-Fi interface
Page 15
Battery replacement indicator Page 5
Remote controller holder
• Install the remote con-
troller holder in a place
where the signal can be
received by the indoor
unit.
• When the remote con-
troller is not used, place
it in this holder.
En-5
● OPERATING INSTRUCTIONS ●

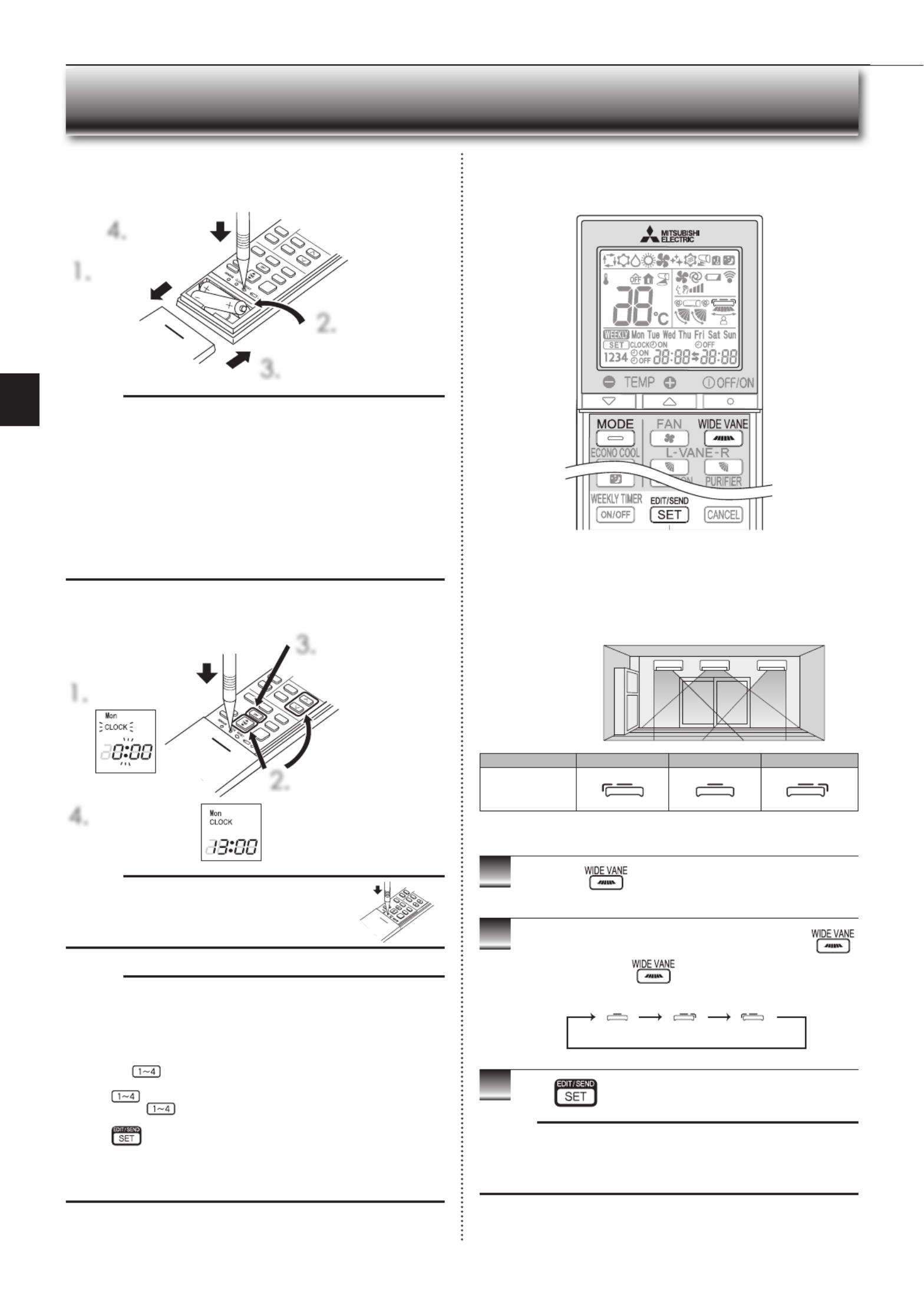

Installation position:
Left: Distance to objects (wall, cabinet, etc.) is less than 50 cm to the left
Center: Distance to objects (wall, cabinet, etc.) is more than 50 cm to the left
and right
Right: Distance to objects (wall, cabinet, etc.) is less than 50 cm to the right
Setting the installation position
Be sure to set the remote controller in accordance with the installed position of
the indoor unit.
Before operation: Insert the power supply plug into the power outlet and/or
turn the breaker on.
Installing the remote controller batteries
1.
Remove the front lid.
2. Insert the negative
pole of AAA alkaline
batteries fi rst.
3. Install the front lid.
4.
Press RESET.
Setting current time
1. Press CLOCK.
4. Press CLOCK again.
2. Press either the TIME button
or the TIMER buttons to set
the time.
Each press increases/decreas-
es the time by 1 minute (10
minutes when pressed longer).
3. Press the DAY button
to set the day.
Area Left Center Right
Remote controller
display
(Left) (Center) (Right)
PREPARATION BEFORE OPERATION
Hold down on the remote controller for 2 sec-
onds to enter the position setting mode.
Select the target installation position by pressing .
(Each press of the displays the positions in
order:)
Press to complete the position setting.
Note:
The installation position can be set only when all the following conditions are met:
• The remote controller is powered off.
• Weekly timer is not set.
• Weekly timer is not being edited.
1
2
3
(Center) (Right) (Left)
Note:
• Make sure the polarity of the batteries is correct.
• Do not use manganese batteries and leaking batteries. The remote controller
could malfunction.
• Do not use rechargeable batteries.
• The battery replacement indicator lights up when the battery is running low.
In about 7 days after the indicator starts lights up, the remote controller stops
working.
• Replace all batteries with new ones of the same type.
• Batteries can be used for approximately 1 year. However, batteries with ex-
pired shelf lives last shorter.
• Press RESET gently using a thin instrument.
If the RESET button is not pressed, the remote controller may not operate
correctly.
Note:
• Press CLOCK gently using a thin instrument.
Note:
How to set remote controller exclusively for a particular indoor unit
A maximum of 4 indoor units with wireless remote controllers can be used in a room.
To operate the indoor units individually with each remote controller, assign a number
to each remote controller according to the number of the indoor unit.
This setting can be set only when all the following conditions are met:
• The remote controller is powered OFF.
(1) Hold down button on the remote controller for 2 seconds to enter the pairing
mode.
(2) Press button again and assign a number to each remote controller.
Each press of button advances the number in the following order: 1 → 2 →
3 → 4.
(3) Press button to complete the pairing setting.
After you turn the breaker ON, the remote controller that fi rst sends a signal to an
indoor unit will be regarded as the remote controller for the indoor unit.
Once they are set, the indoor unit will only receive the signal from the assigned
remote controller afterwards.
En-6

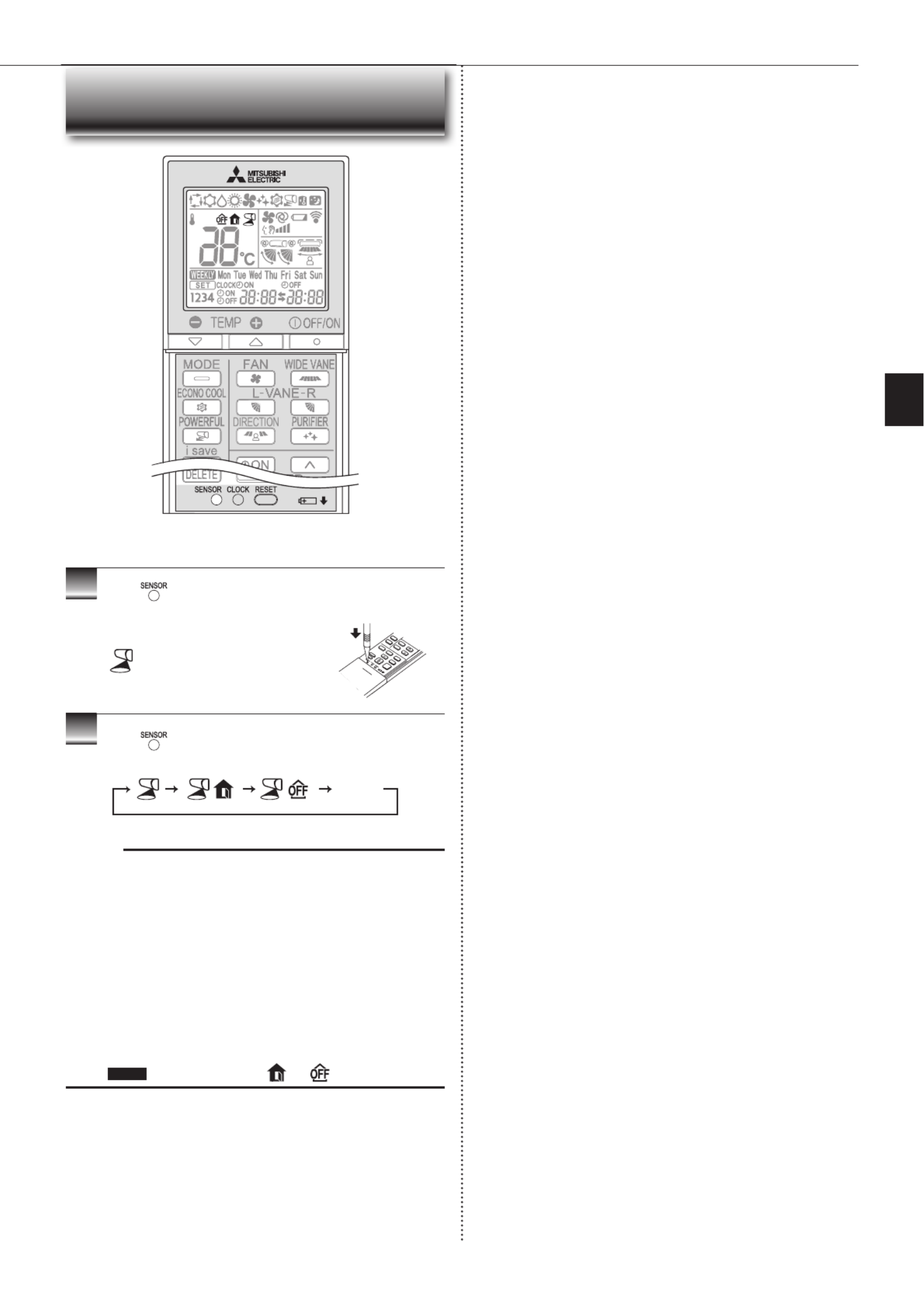

I-SEE OPERATION
Press during COOL, DRY, HEAT and AUTO mode
to activate the i-see control mode.
• Press gently using a thin instrument.
• lights. (Operation display section)
• The default setting is “active”.
2Press several times to cancel the i-see control
mode.
Note:
Any person at the following places cannot be detected:
• Along the wall on which the air conditioner is installed
• Directly under the air conditioner
• Where any obstacle, such as furniture, is between the person and the air
conditioner
A person may not be detected in the following situations:
• Room temperature is high.
• A person wears heavy clothes and his/her skin is not exposed.
• A heating element of which temperature changes significantly is present.
• Some heat sources, such as a small child or pet, may not be sensed.
• A heat source and the air conditioner are more than 6 m apart.
• A heat source does not move for a long time.
Do not touch the i-see sensor. This may cause malfunction of the i-see sensor.
The intermittent operating sound is a normal sound produced when the i-see
sensor is moving from side to side.
Refer to “Absence Detection” for page 9 and .
1
2
In the i-see control mode, the room temperature is controlled based on the
sensible temperature.
Cancel
En-7
● OPERATING INSTRUCTIONS ●
AUTO mode (Auto change over)
The unit selects the operation mode according to the difference between the
room temperature and the set temperature. During AUTO mode, the unit
changes mode (COOL↔HEAT) when the room temperature is about 2°C
away from the set temperature for more than 15 minutes.
Note:
Auto Mode is not recommended if this indoor unit is connected to a MXZ
type outdoor unit. When several indoor units are operated simultaneously,
the unit may not be able to switch operation mode between COOL and
HEAT. In this case, the indoor unit becomes standby mode (Refer to table
of Operation indicator lamp).
COOL mode
Enjoy cool air at your desired temperature.
Note:
Do not operate COOL mode at very low outside temperatures (less than
-10°C). Water condensed in the unit may drip and wet or damage furni-
ture, etc.
DRY mode
Dehumidify your room. The room may be cooled slightly.
Temperature cannot be set during DRY mode.
HEAT mode
Enjoy warm air at your desired temperature.
FAN mode
Circulate the air in your room.
Note:
After COOL/DRY mode operation, it is recommended to operate in the
FAN mode to dry inside the indoor unit.
Note:
Multi system operation
Two or more indoor units can be operated by one outdoor unit. When several
indoor units are operated simultaneously, cooling/dry/fan and heating opera-
tions cannot be done at the same time. When COOL/DRY/FAN is selected with
one unit and HEAT with another or vice versa, the unit selected last goes into
standby mode.
Operation indicator lamp
The operation indicator lamp shows the operation state of the unit.
Indication Operation state
Standby mode (only during multi system operation)
Lit Blinking

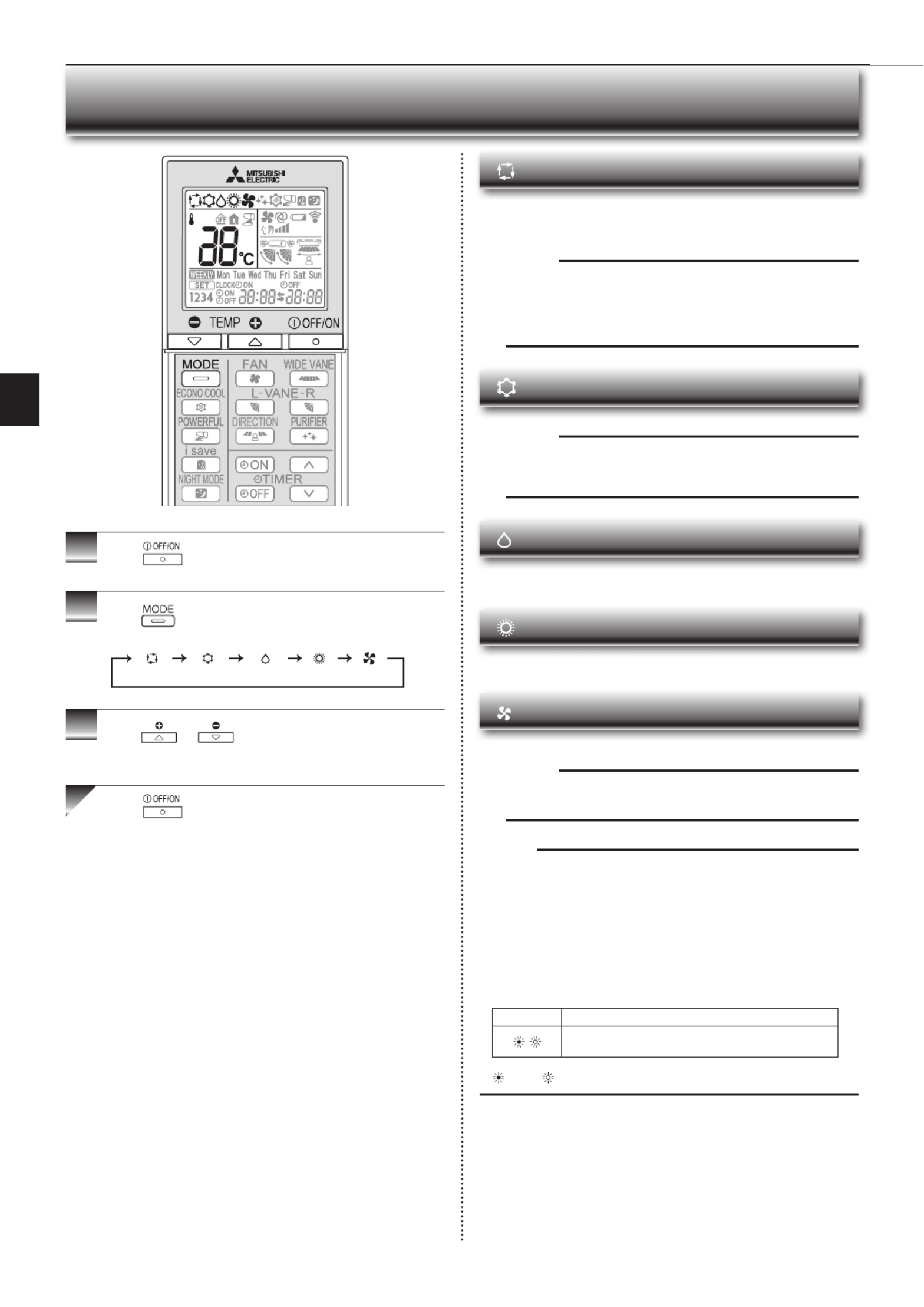

1Press to start the operation.
2Press to select operation mode. Each press
changes mode in the following order:
3Press or to set the temperature.
Each press raises or lowers the temperature by 1°C.
Press to stop the operation.
SELECTING OPERATION MODES
(AUTO) (COOL) (DRY) (HEAT) (FAN)
En-8

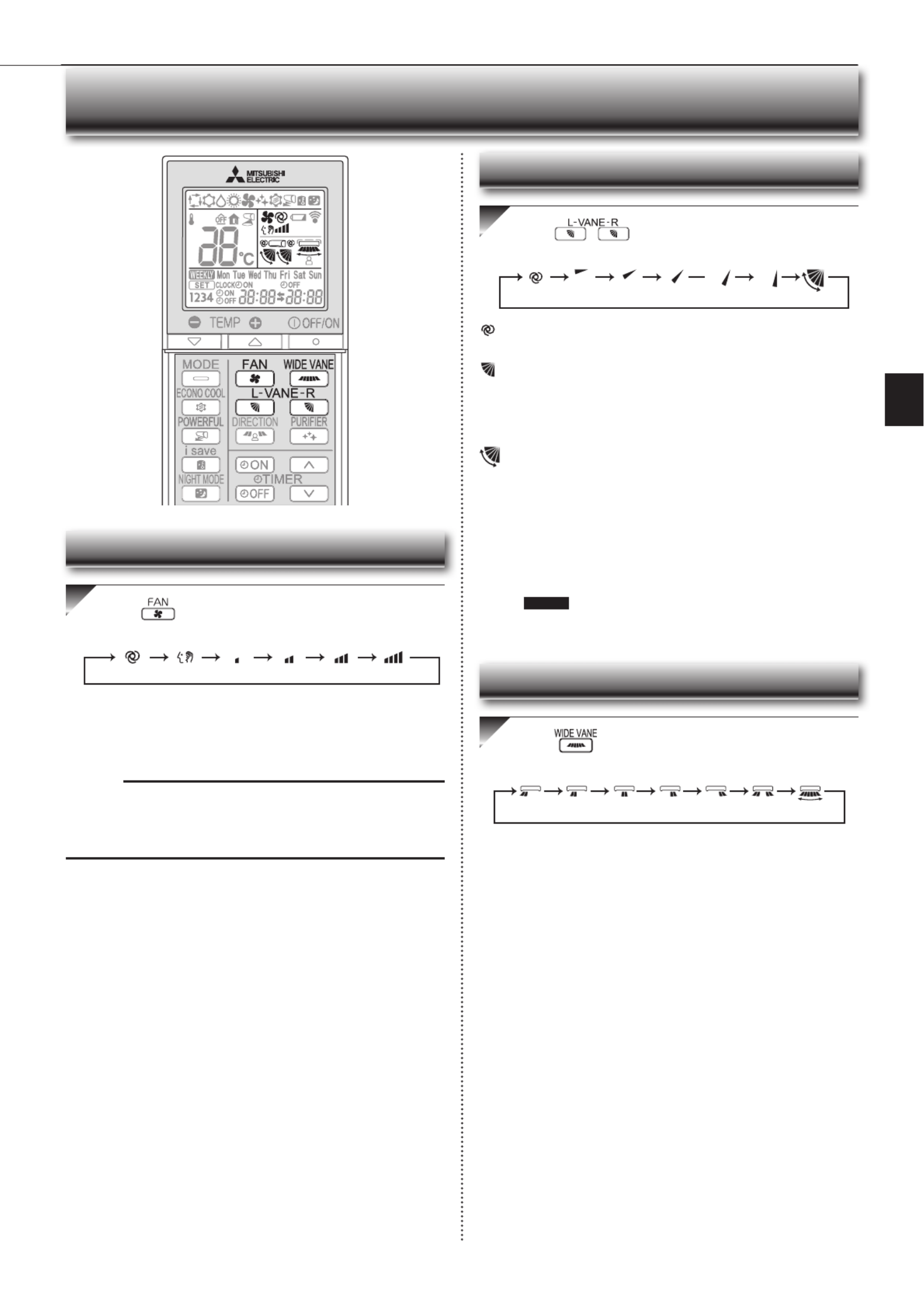

Press to select fan speed. Each press changes
fan speed in the following order:
• Two short beeps are heard from the indoor unit when set to AUTO.
• Use higher fan speed to cool/heat the room quicker. It is recommended
to lower the fan speed once the room is cool/warm.
• Use lower fan speed for quiet operation.
Note:
Multi system operation
When several indoor units are operated simultaneously by one outdoor unit for
heating operation, the temperature of the airfl ow may be low. In this case, it is
recommended to set the fan speed to AUTO.
(AUTO) (Quiet) (Low) (Med.) (High) (Super High)

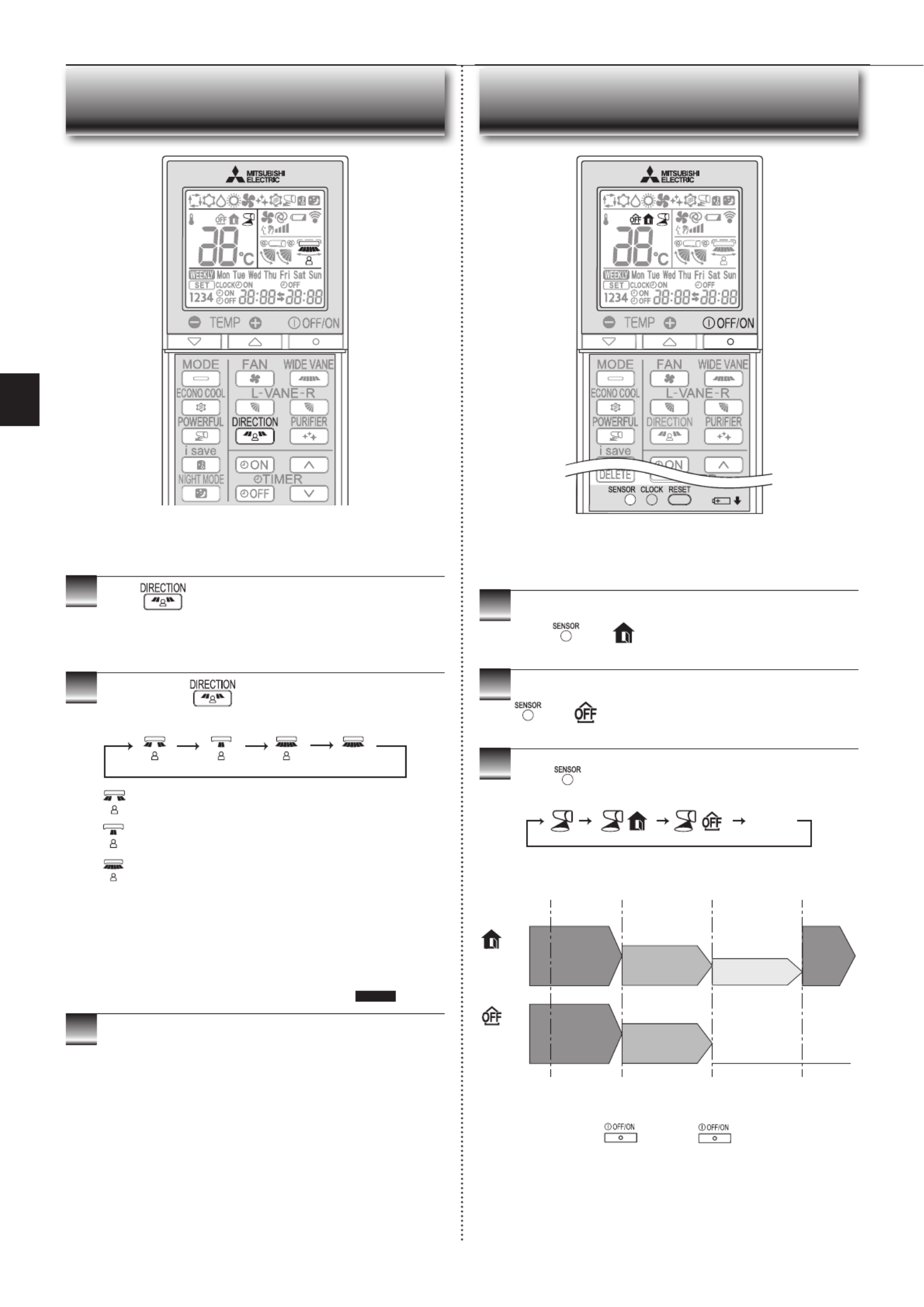

Press to select airfl ow direction. Each
press changes airfl ow direction in the following order:
(AUTO) .........The vane is set to the most effi cient airfl ow direction. COOL/
DRY/FAN: horizontal position. HEAT: position (4).
(Manual) .......For efficient air conditioning, select the upper position for
COOL/DRY, and the lower position for HEAT. If the lower
position is selected during COOL/DRY, the vane automatically
moves to the upward position (1) after 0.5 to 1 hour to prevent
any condensation from dripping.
(Swing) .........The vane moves up and down intermittently.
• Two short beeps are heard from the indoor unit when set to AUTO.
• Always use the remote controller when changing the direction of air-
flow. Moving the horizontal vanes with your hands causes them to mal-
function.
• When the breaker is turned on, the horizontal vanes’ position will be
reset in about a minute, then the operation will start. The same is true
in the emergency cooling operation.
• When the horizontal vanes seem to be in an abnormal position, see
page 16 .
• The right and left horizontal vanes set to the same level may not align
perfectly.
(AUTO) (1) (2) (3) (4) (5) (SWING)
FAN SPEED AND AIRFLOW DIRECTION ADJUSTMENT
Press to select airfl ow direction. Each press
changes airfl ow direction in the following order:
(
SWING
)
Left-right Airflow direction
Fan speed
Up-down Airflow direction
En-9
● OPERATING INSTRUCTIONS ●
Airfl ow Control mode offers air conditioning according to a location of
an occupant in a room detected by i-see Sensor.
1Press during COOL, DRY, HEAT or AUTO
mode to activate the AIRFLOW CONTROL mode. This
mode is only available when the i-see control mode is
effective.
2Each press of changes AIRFLOW CONTROL
in the following order:
(INDIRECT) : An occupant will be less exposed to
direct airfl ow.
(DIRECT) : Mainly the vicinity of an occupant will
be air-conditioned.
(EVEN) : The unit learns the area where an
occupant spend most of the time,
and evens out the temperature of
that area.
• Horizontal and vertical airflow directions will be automatically selected.
• When more than a couple of people are in a room, the AIRFLOW
CONTROL mode may work less effectively.
• If you still feel uncomfortable with the air direction determined by the
INDIRECT mode, adjust the air direction manually. Page 8
3Cancelling the i-see control mode automatically can-
cels the AIRFLOW CONTROL mode.
• The AIRFLOW CONTROL mode is also cancelled when the VANE or
WIDE VANE buttons is pressed.
AIRFLOW CONTROL MODE
This function automatically changes the operation to No occupancy
energy-saving mode or No occupancy Auto-OFF mode when nobody
is in the room.
ABSENCE DETECTION
1To activate this No occupancy energy-saving mode,
press until appears on the operation display of
the remote controller.
2To activate this No occupancy Auto-OFF mode, press
until appears on the operation display of the
remote controller.
3Press again to cancel the ABSENCE DETEC-
TION.
• Even if the unit is turned OFF due to No occupancy Auto-OFF mode,
the display of the remote controller remains to indicate the unit is in
operation. Press then press again to restart opera-
tion.
• When OFF timer is set, a priority is given to OFF timer.
• No occupancy energy saving mode or No occupancy Auto-OFF mode
are not available during POWERFUL operation.
• The unit will not be turned off if no one is detected during normal
operation mode, even though No occupancy Auto-OFF mode is acti-
vated.
(INDIRECT) (DIRECT) (EVEN) (OFF)
Energy-
saving
mode
Auto-OFF
mode
No
occupancy
detected
Occupancy
detected
About
10 min.
Normal Normal
Normal
About 1 HR.
Saving energy Saving more
Turn OFF
Saving energy
Cancel
En-10

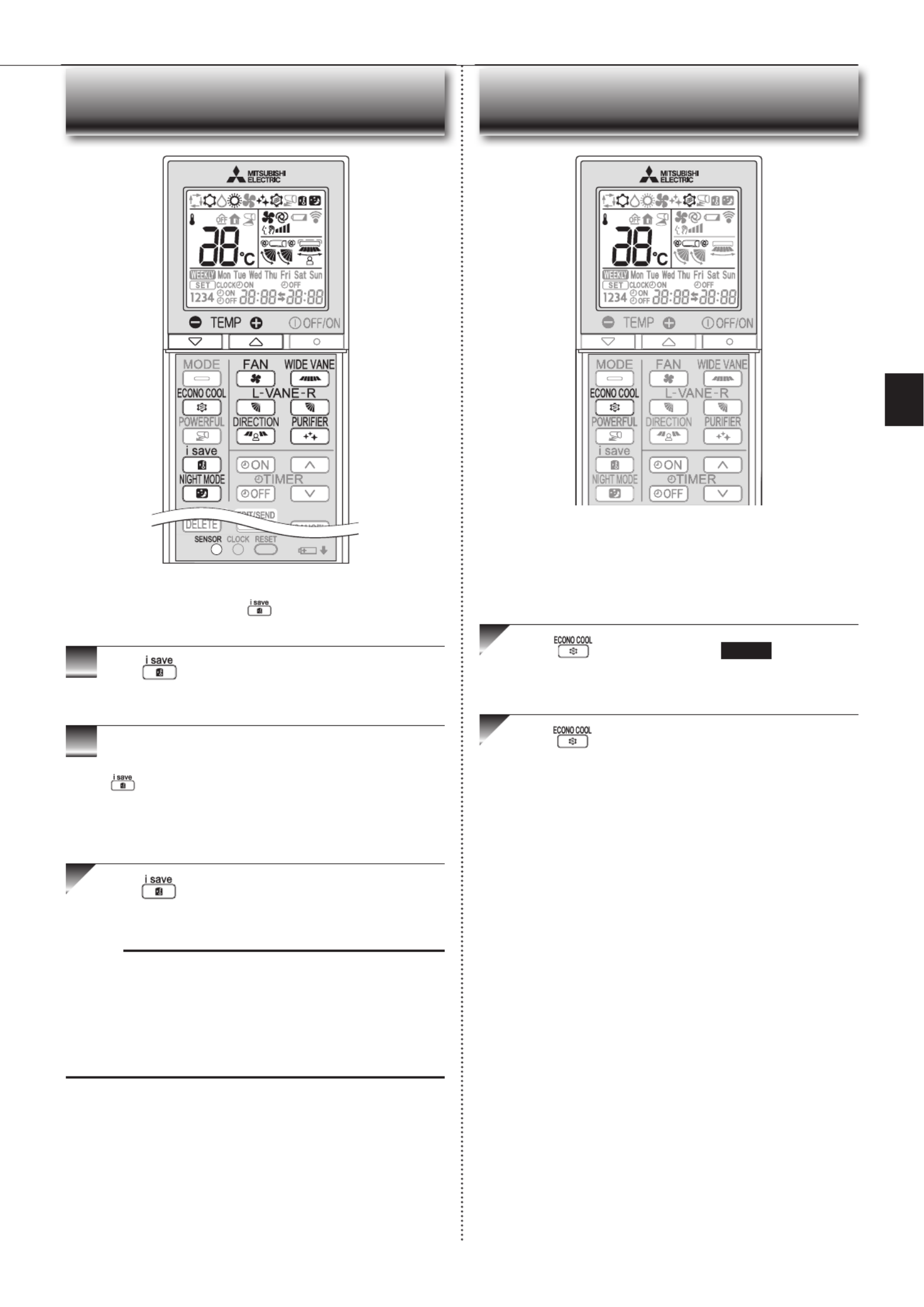

I-SAVE OPERATION
1Press during COOL, ECONO COOL, HEAT
mode and NIGHT MODE operation to select i-save
mode.
2Set the temperature, fan speed, and airfl ow direction.
• The same setting is selected from the next time by simply pressing
.
• Two settings can be saved. (One for COOL/ECONO COOL, one for
HEAT)
• Select the appropriate temperature, fan speed, and airflow direction
according to your room.
Press again to cancel i-save operation.
• i-save operation also is cancelled when the MODE or POWERFUL
button is pressed.
Note:
Example of use:
1. Low energy mode
Set the temperature 2°C to 3°C warmer in COOL and cooler in HEAT mode.
This setting is suitable for unoccupied room, and while you are sleeping.
2. Saving frequently used settings
Save your preferred setting for COOL, ECONO COOL, HEAT mode and
NIGHT MODE operation. This enables you to select your preferred setting
with a single push of the button.
A simplifi ed set back function enables to recall the preferred (preset)
setting with a single push of the button. Press the button again
and you can go back to the previous setting in an instance.
ECONO COOL OPERATION
Press during COOL mode to start page 7
ECONO COOL operation.
The unit performs swing operation vertically in various cycles according to the
temperature airflow.
Press again to cancel ECONO COOL operation.
• ECONO COOL operation is also cancelled when the VANE or POW-
ERFUL button is pressed.
Swing airfl ow (change of airfl ow) makes you feel cooler than station-
ary airfl ow.
The set temperature and the airfl ow direction are automatically changed
by the microprocessor. It is possible to perform cooling operation with
keeping comfort. As a result energy can be saved.
En-11
● OPERATING INSTRUCTIONS ●

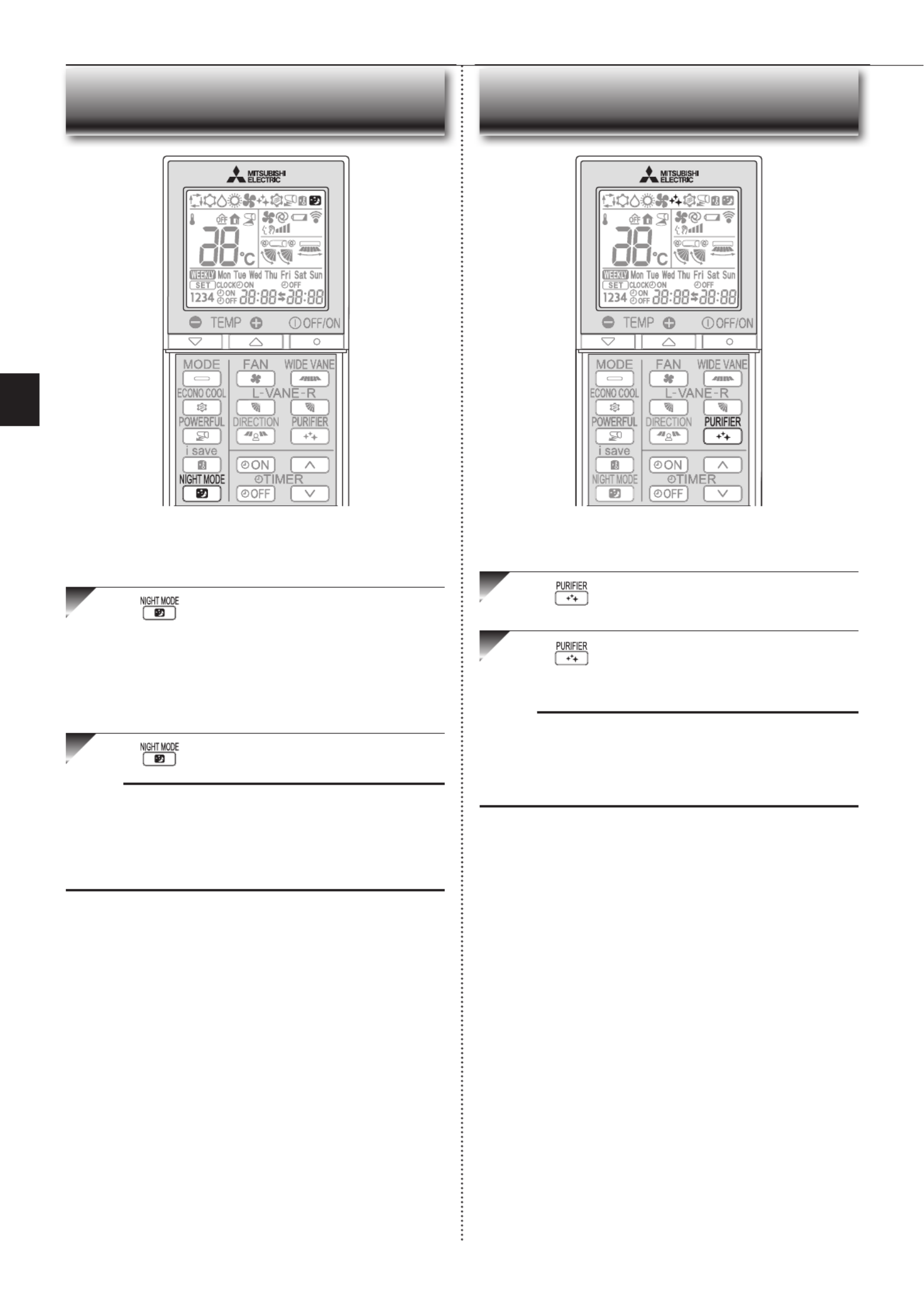

NIGHT MODE OPERATION
Press during operation to activate NIGHT MODE
operation.
• The operation indicator lamp dims.
• The beep sound will be disabled except that emitted when the opera-
tion is started or stopped.
• Noise level of the outdoor unit will be lower than that mentioned in
SPECIFICATIONS.
Press again to cancel NIGHT MODE operation.
Note:
• Noise level of the outdoor unit may not change after start-up of the unit, dur-
ing the protection operation, or depending on other operating conditions.
• The fan speed of the indoor unit will not change.
•
The operation indicator lamp will be hard to be seen in a bright room.
•
Operating POWERFUL operation during NIGHT MODE operation will increase
the noise level of the outdoor unit.
•
Noise level of the outdoor unit will not decrease during Multi system operation.
AIR PURIFYING OPERATION
Press to start AIR PURIFYING operation.
• AIR PURIFYING lamp turns on. (Display section)
Press again to cancel AIR PURIFYING opera-
tion.
• AIR PURIFYING lamp turns off. (Display section)
Note:
• Never touch the air purifying device during operation. Although the air pu-
rifying device is safety-conscious design, touching this device could be the
cause of trouble as this device discharge high voltage electricity.
• A “hissing” sound may be heard during the air purifying operation. This sound
is produced when plasma is being discharged. This is not a malfunction.
• Air purifying lamp does not turn on if the front panel is not closed completely.
In the AIR PURIFYING operation, the indoor unit built-in device reduces
airborne fungi, viruses, mold, and allergens.
NIGHT MODE operation changes the brightness of the operation
indicator, disables the beep sound and limits the noise level of the
outdoor unit.
En-12

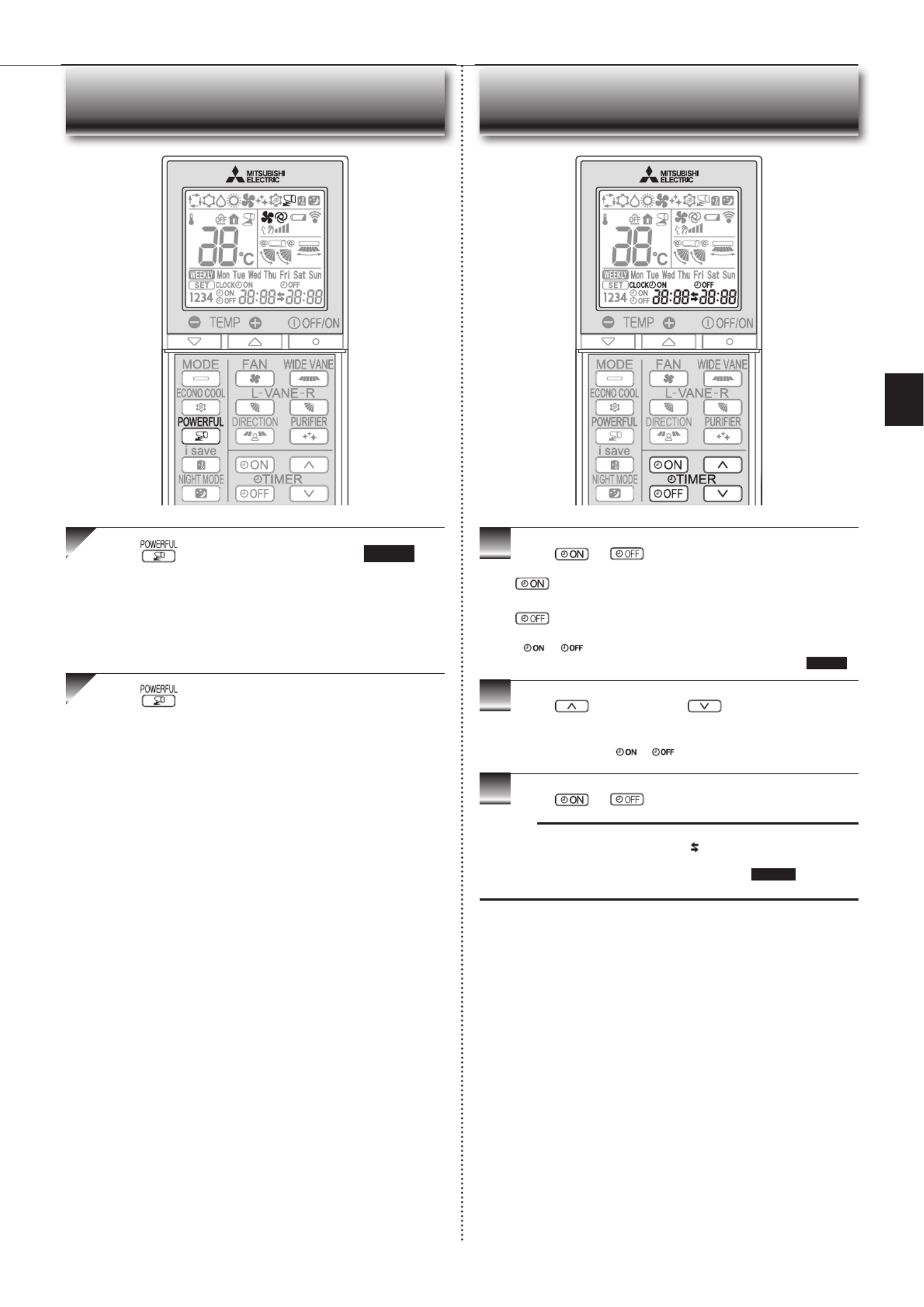

Press during COOL or HEAT mode to page 7
start POWERFUL operation.
Fan speed : Exclusive speed for POWERFUL mode
Horizontal vane : Set position, or downward airflow position during
AUTO setting
• Temperature cannot be set during POWERFUL operation.
Press again to cancel POWERFUL operation.
• POWERFUL operation is also cancelled automatically in 15 minutes,
or when the OFF/ON, FAN, ECONO COOL or i-save button is pressed.
POWERFUL OPERATION
1Press or during operation to set the timer.
(ON timer) : The unit turns ON at the set time.
(OFF timer) : The unit turns OFF at the set time.
* or blinks.
*
Make sure that the current time and day are set correctly.
Page 5
2Press (Increase) and (Decrease) to set the
time of timer.
Each press increases or decreases the set time by 10 minutes.
• Set the timer while or is blinking.
3Press or again to cancel timer.
Note:
• ON and OFF timers can be set together. mark indicates the order of timer
operations.
• If power failure occurs while ON/OFF timer is set, see page 19 “Auto restart
function”.
TIMER OPERATION (ON/OFF TIMER)
En-13
● OPERATING INSTRUCTIONS ●

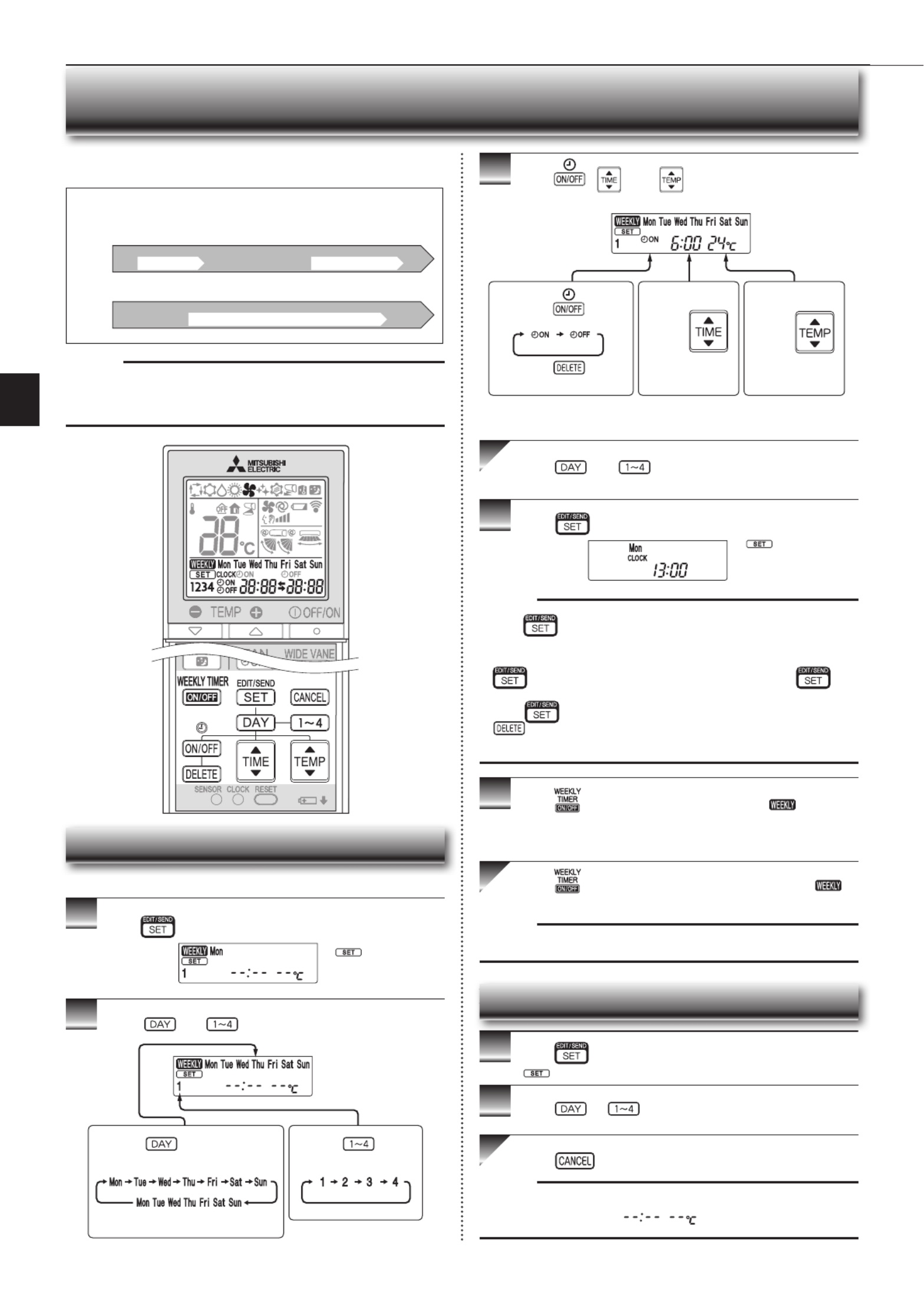

WEEKLY TIMER OPERATION
• A maximum of 4 ON or OFF timers can be set for individual days of the week.
• A maximum of 28 ON or OFF timers can be set for a week.
Setting the weekly timer
* Make sure that the current time and day are set correctly.
1Press to enter the weekly timer setting mode.
2Press and to select setting day and number.
3Press , , and to set ON/OFF, time, and
temperature.
Press and to continue setting the timer for
other days and/or numbers.
4Press to complete and transmit the weekly timer
setting.
Note:
• Press to transmit the setting information of weekly timer to the indoor
unit. Point the remote controller toward the indoor unit for 3 seconds.
• When setting the timer for more than one day of the week or one number,
does not have to be pressed per each setting. Press once
after all the settings are complete. All the weekly timer settings will be saved.
• Press to enter the weekly timer setting mode, and press and hold
for 5 seconds to erase all weekly timer settings. Point the remote
controller toward the indoor unit.
5Press to turn the weekly timer ON. ( lights.)
* When the weekly timer is ON, the day of the week whose timer setting
is complete, will light.
Press again to turn the weekly timer OFF. (
goes out.)
Note:
The saved settings will not be cleared when the weekly timer is turned OFF.
Checking weekly timer setting
1Press to enter the weekly timer setting mode.
* blinks.
2Press or to view the setting of the particular
day or number.
Press to exit the weekly timer setting.
Note:
When all days of the week are selected to view the settings and a different set-
ting is included among them, will be displayed.
* which was blink-
ing goes out, and the
current time will be
displayed.
* blinks.
Note:
The simple ON/OFF timer setting is available while the weekly timer is on. In
this case, the ON/OFF timer has priority over the weekly timer; the weekly timer
operation will start again after the simple ON/OFF timer is complete.
E.g. : Runs at 24°C from waking up to leaving home, and runs at 27°C from
getting home to going to bed on weekdays.
Runs at 27°C from waking up late to going bed early on weekends.
Setting1 Setting2 Setting3 Setting4
Setting1 Setting2
6:00 8:30 17:30 22:00
8:00 21:00
24°C 27°C
ON OFF ON OFF
ON OFF
Mon
Fri
~
Sat
Sun
~
27°C
Pressing selects the day of
the week to be set.
Pressing selects
the setting number.
* All days can be selected.
E.g. : [Mon Tue ... Sun]
and [1] are selected.
E.g. : [ON], [6:00]
and [24°C] are
selected.
Pressing selects
ON/OFF timer.
Pressing deletes
timer setting.
Pressing
adjusts the time.
Pressing
adjusts the tem-
perature.
* Hold down the button to change the time quickly.
Produkt Specifikationer
| Mærke: | Mitsubishi |
| Kategori: | Aircondition |
| Model: | MSZ-LN60VG2V |
Har du brug for hjælp?
Hvis du har brug for hjælp til Mitsubishi MSZ-LN60VG2V stil et spørgsmål nedenfor, og andre brugere vil svare dig
Aircondition Mitsubishi Manualer
19 Februar 2025
5 Februar 2025
31 December 2025
14 December 2024
14 December 2024
14 December 2024
14 December 2024
14 December 2024
8 Oktober 2024
4 Oktober 2024
Aircondition Manualer
- Sencor
- Prem-i-air
- Simplicity
- Orima
- TechniSat
- Edy
- Camry
- Profilo
- SHE
- Easy Home
- Gree
- Master
- Dantherm
- Hisense
- Equation
Nyeste Aircondition Manualer
6 Juli 2025
5 Juli 2025
13 Juni 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
9 April 2025
