USER GUIDE
Operating instructions for the Maestro are described in the installation guide shipped with the product.
2CONFIGURATION
The Maestro conguration is included in its µSD card.
The content of this card can be changed in order to modify the product conguration.
The original µSD card can be replaced with a customized and pre-congured card, by respecting recommendations and
explanations described in this document.
The card shipped with the product has a 4GB capacity. A card with a different capacity can be used.
The µSD card has folders, their names and the tree structure must be preserved.
These folders, with explicit names, hold several pre-recorded messages which can be easily replaced.
• the «Ambiance» folder holds the le which is permanently broadcast if this mode is enabled;
• the «Calendar» folder holds the different les which are used by the calendar, if this option is enabled;
• the «Carillon» folder holds the le which can be broadcast before a message or an announcement over the phone;
• the «Dtmf» folder holds the folders «1» to «9» with the les to broadcast for each dial number if this option is enabled;
• the «Examples» folder holds examples of conguration les and audio les;
• the «Message 1» folder holds the le to broadcast when triggering input contact 1;
• the «Message 2» folder holds the le to broadcast when triggering input contact 2;
• the «Message 3» folder holds the le to broadcast when triggering input contact 3;
• the «Message 4» folder holds the le to broadcast when triggering input contact 4;
• the «Message 5» folder holds the le to broadcast when triggering input contact 5;
• the «Message 6» folder holds the le to broadcast when triggering input contact 6;
• the «Test» folder holds the le to broadcast if the test button has been pushed;
The µSD card also has 2 specic les :
• the conguration le «conf.txt» which contains all the product’s parameters and settings (cf. §6)
• the le «time.txt» which allows to set the date and time for the product (cf. §6.10)
A le «info.txt» is also included in the µSD card, indicating the Maestro version plus the product date and time.
This le is updated at each product start-up and it should not be modied.
A le «error.txt» can also be found in the µSD card, in case of an error within the conguration le.
This le gives some details about the error with the name of the parameter and the error type.
1SYNOPTIC VIEW
MAESTRO-1
PA system
(Aux. or Line input)
Example : flashing light
Telecom remote
Power supply unit
Analog line (ex : PABX)
Contact 6
Contact 5
Contact 4
Contact 3
Contact 2
Contact 1
2/7
5MESSAGES
Messages from the Maestro can be triggered by one of the 6 input contacts (cf. §6.7), by a DTMF dial number (cf. §6.8), or
by a calendar schedule (cf. §6.11).
Whatever the triggering source, all messages have a list of common parameters which can be modied in order to ensure
the proper functioning.
• Broadcast repetition
The Maestro offers the possibility to repeat the broadcast of each message and to insert a delay between these repeti-
tions. This allows to repeat a message without having to create a specic digital audio le.
• Priority
The Maestro handles messages priority to decide on the action to take if a broadcast is already in progress.
If a message with higher priority is triggered, the message in progress is stopped and the new message, or the phone
announcement, will be broadcast instead.
By default, the test button message has the higher priority, followed by messages from input contacts 1 to 6 and DTMF
dial numbers 1 to 6, then DTMF number 7 to 9, next messages from the calendar and nally the phone announcement.
• Volume
The Maestro allows to adjust the volume for each message to broadcast.
Volume management is optional as the les included in the product have all been normalized. Furthermore, the product
has 2 front panel volume buttons, for the messages (MES.) and for the voice (VOI.) during a phone announcement.
Nevertheless, if a new message is used on the product and if its audio rendering need to be tuned with the other mes-
sages, it is possible to modify the volume parameters and/or the front panel volume in order to so.
• Output relays
The Maestro has 2 output relays, R1 et R2, which can be connected to the PA system in order to command or mix an audio
input, or to select a broadcast zone.
For each message, it is possible to activate relay R1, relay R2, or both R1 and R2. Relays can also be deactivated.
4DIGITAL AUDIO FILES
Messages are digital audio les with MP3 format (max : 256kb/s) or WAV format (max : 44kb/8 bits).
Each folder must contain one and only one digital audio le corresponding to the matching message.
Only the folder name matters. Filenames, in most folders, are free and not taken into account.
The «Calendar» folder is an exception because it holds all the les used by the calendar. Filenames are taken into account
in this folder. They are used in the calendar’s parameters (cf. §6.11).
The lename length («lename.mp3») must not exceed 50 characters.
3TREE STRUCTURE OF THE MICRO SD CARD

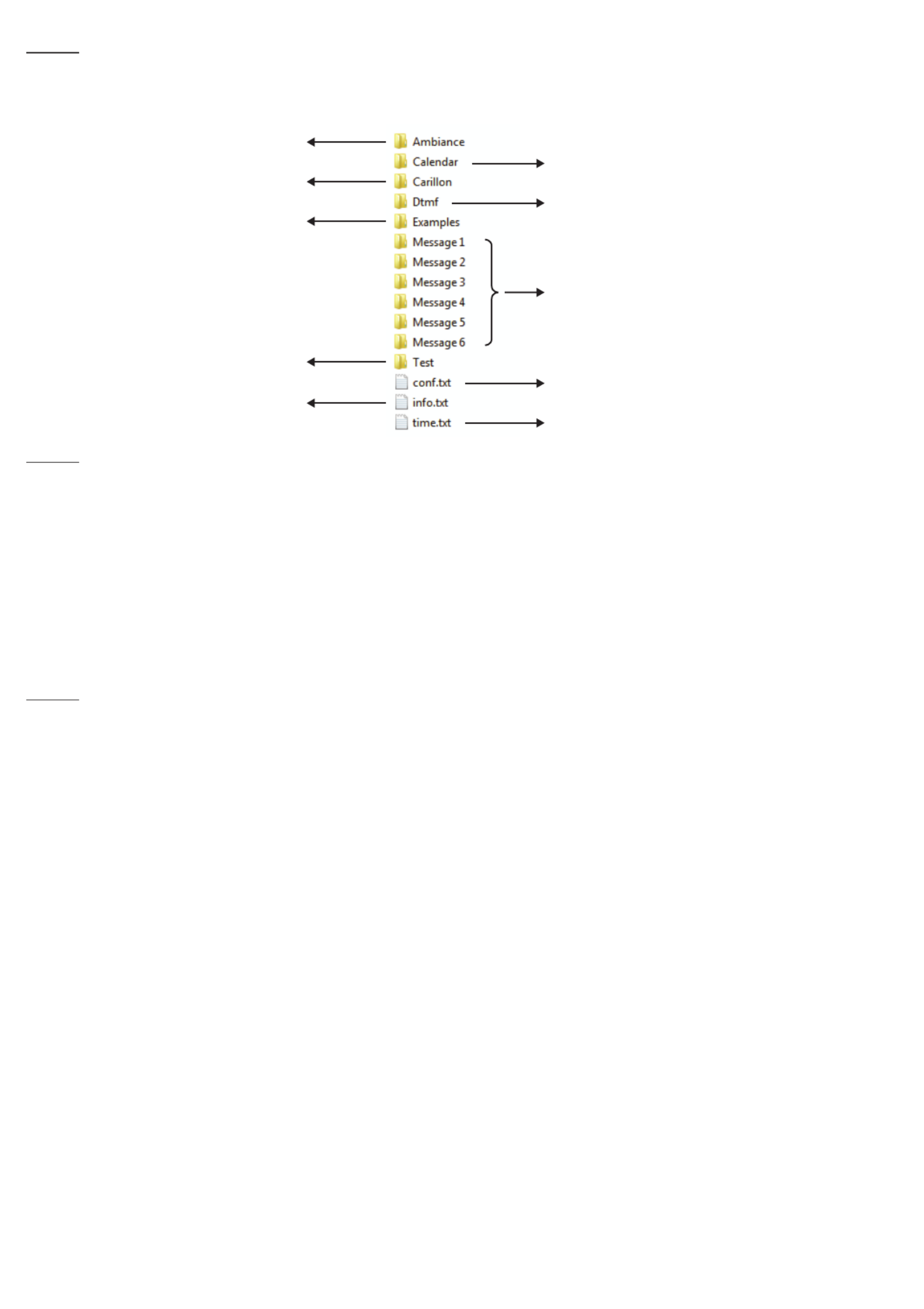

Configuration file
Date/Time setup
Maestro information
Messages for the calendar
Messages for the DTMF option
Messages for input contacts 1 to 6
Message for test button
Message for ambiance mode
Message used as carillon
Files examples
