Inside Drum

Outside Drum

Bolt

Flat Nut

Instructions for Pro Magnum Feeder

THANK YOU for your purchase of the Pro Magnum Feeder. Please read this sheet before

operating the unit. If you should have any questions about this product or any other Moultrie

product, please contact us using the information on the back of this sheet. To help us to

better serve you and to activate your Lifetime Warranty, please submit your warranty

information online at http://www.moultriefeeders.com/warranty

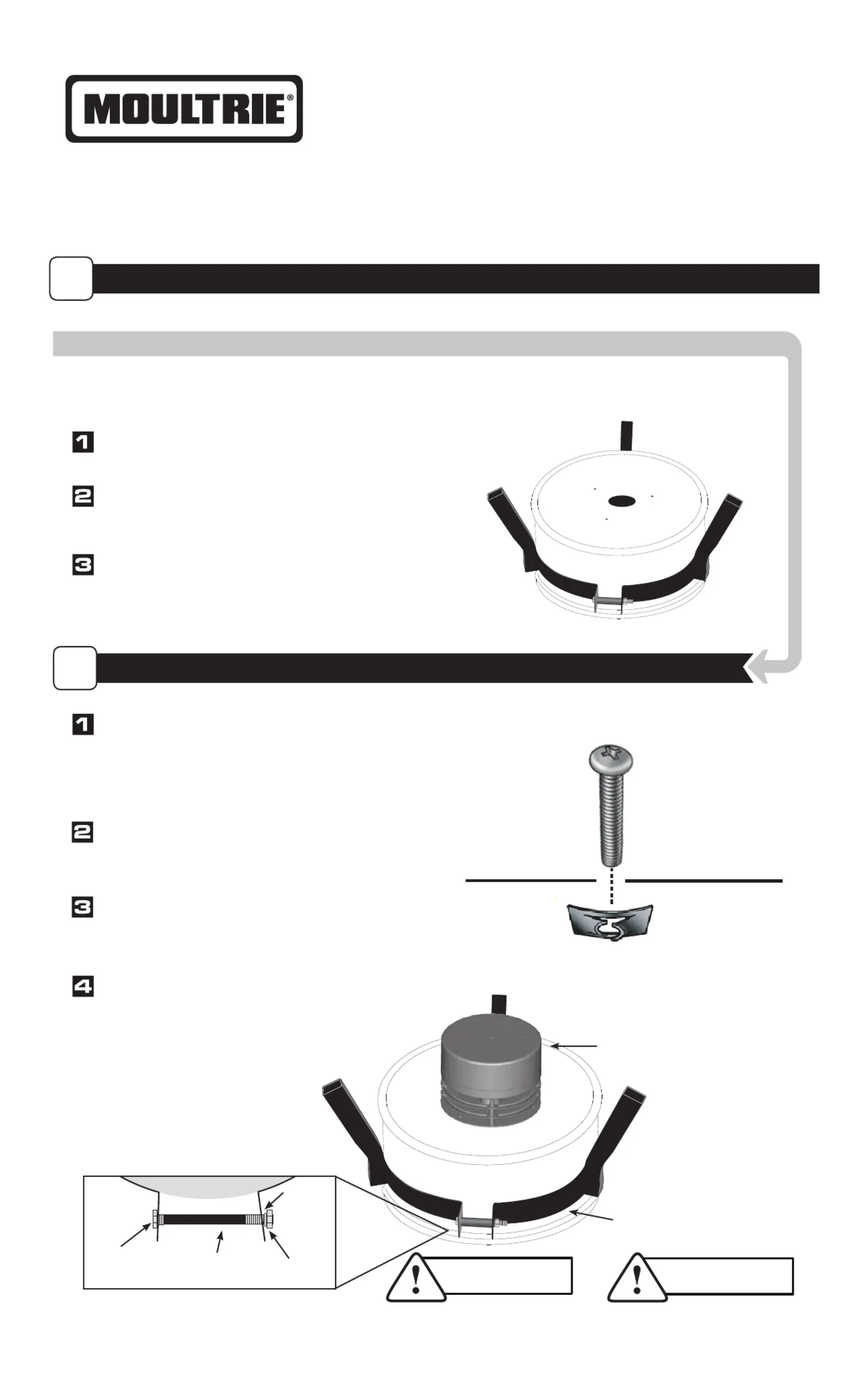

DRILLING YOUR DRUM/BARREL/BUCKET

MOUNTING THE FEEDER

Turn drum over, measure and mark the center of the bottom.

Center the provided template on the bottom of the drum

and secure with tape. Drill three 5/16” Feeder Leg Holes.

Using a Hole Saw, drill a 2.25” hole in the center of the

bottom of your drum.

From the inside of the drum, slide the three provided Bolts

through the holes on the bottom and into the provided

Flat Nuts. From the inside, using a Phillips head screwdriver,

turn the clockwise until the is tight against Bolt Flat Nut

the bottom.

Slide feeder over three that are sticking rmly through Bolts

the bottom of the drum. Attach Feeder Kit Drum to the

using the three provided .Wing-Nuts

Pro Magnum will mount to the bottom of any drum or bucket

NOTE: If you purchased a Moultrie barrel, go to step II

DO NOT EXCEED 400 LBS

OF FEED IN 55-GAL FEEDERS

Pro Magnum

Feeder Kit

Belly Band

Ring

Bolt

Spacer

Lock

Washer

Nut

NOTE: DO NOT LOAD FEEDER until it is standing up and in place (see Section E).

DO NOT EXCEED 200 LBS

OF FEED IN 30-GAL FEEDERS

Belly Band

Ring

Slide the bolt through the , and Belly Band Ring Spacer

Lock Washer as shown. Tighten nut on bolt until metal

Belly Band Ring tabs are touching spacer on each side.

Turn the upside down and slide the Metal Drum Belly Band Ring

around perimeter and make sure that belly band is snug against

the bottom structure ring as shown (Moultrie barrel only).

03162016 / MFHP53764

Our Service Department will gladly answer any questions you have. Call , Monday - Friday, 800-653-3334

8:00 AM to 5:00 PM CST.

www.moultriefeeders.com

CONFIGURING AND TESTING FEEDER

Helpful Tips:

– For extended battery life, the Moultrie Deluxe Solar Panel (MFH-DSP) or Feeder PowerPanel (MFA-12602) can be added using the External Power Port.

– For added security against pests, the Moultrie Varmint Guard (MFA-12650) can be added.

– Replacement parts can be purchased from Moultrie’s customer service line at the number below.

– Your Moultrie Pro Magnum Feeder Kit has a Lifetime Warranty, just pay a $35.00 processing fee. Call for payment and shipping information. 800-653-3334

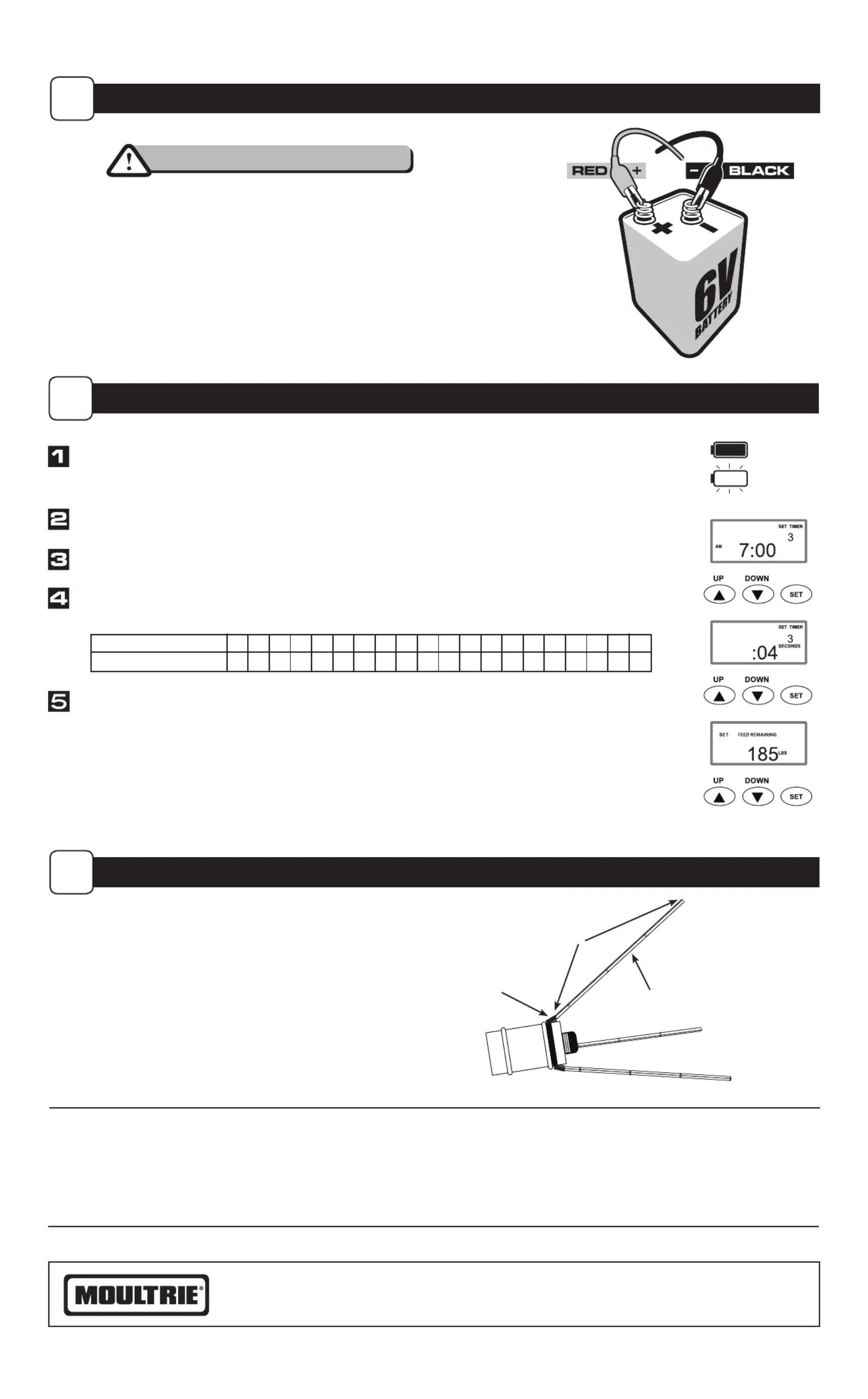

INSTALLING BATTERY

caution: wear eye protection

INSTALL BATTERY: Open Kit by removing wingnut located on the bottom and remove outer case. Install a 6-Volt Alkaline

(ex. Energizer™) or Moultrie rechargeable battery (MFH-SRB6) by attaching the Red Alligator Clip to the positive terminal (+)

and the Black Alligator Clip to the negative (-) terminal. Note: When Battery Level Indicator is full, the battery is good.

If the icon is ashing, you will need to replace or recharge your battery.

SET TIME OF DAY: Press the UP or DOWN button until the correct time of day appears.

Press and release button to single-step through the minutes or hold down to advance quickly.

SET FEED TIMES: Press the SET button until the correct Timer Number appears in the upper right hand corner as

shown. Press the UP or DOWN button to set the Feed Time. Note: Factory settings are 7am and 6pm.

SET RUN DURATION: Press the SET button again to set the RUN-TIME SECONDS which can range from zero

to twenty seconds. Adjust RUN-TIME SECONDS using the chart below. Set the RUN-TIME SECONDS to zero to

disable the specic timer. Note: Factory setting is 4 seconds.

TEST FEEDER: PRESS AND HOLD the SET button while the RUN-TIME SECONDS are displayed. Release the button

and get away from the feeder when the message “TESTING GET AWAY” appears on the display.

SET FEED LEVEL: Your Feeder Timer is equipped with a Feed Level Estimator. Press the SET button until “SET FEED

REMAINING” appears. Enter the amount of feed (lbs.) added to Hopper. The timer will automatically estimate the amount

of feed remaining in lbs. and days after auto-scroll begins.

Note: The above estimates are based on using deer corn. Feed type, size and density will aect calculations.

RUN TIME (sec.)

Approx. Feed Dispensed (lbs.)

.38

.62

.88

1.0

1.2

1.5

1.7

1.9

2.2

2.4

2.6

2.8

3.0

3.3

3.5

3.7

4.0

4.2

4.4

4.6

Full Battery

Empty Battery

NOTE: Be sure that the Red and Black alligator clips labeled with a 1 are

attached to the same to the same battery and that the Red and Black alligator

clips labeled with a 2 (if used) are attached to the same battery.

Remove bottom and install one or two 6-volt alkaline (ex. Energizer™)

or Moultrie rechargeable batteries by attaching the Red Alligator Clip

to the postitive terminal (+) and the Black Alligator Clip to the

negative (-) terminal.

STAND UP FEEDER AND INSTALL LID

Place Hopper on side. Assemble three Leg Poles using four

Leg Sections Leg Pole each. Install a on the inside of each of

the Square Leg Brackets. Make sure to have all leg sections

connected properly with the sections inserted as far as they

will go. With two Leg Poles against the ground as shown,

carefully stand up the Feeder assembly.

Install lid and tighten bolt securely after adding feed.

Leg Section

Leg Pole

Square Leg

Brackets
