This ﬁxture is suitable for use in damp locations. When using this ﬁxture in a damp

location, it must be recess mounted in a ceiling where it is protected from moisture.

This ﬁxture is IC rated for direct contact with insulation. This ﬁxture is a Type IC ﬁxture.

This ﬁxture is rated and approved for direct contact with insulation.

Installation to be performed by a qualiﬁed and licensed electrician.

Rough-In

We recommend using the Rough-In Bracket provided.Before installing the ceiling backer board, lay out your

light locations and securely fasten the rough-in plate to your joists at each light location. The rough-in brackets

have convenient slots in them allowing you to make minor adjustments to the bracket positioning after you’ve

mounted them.

• Run your Wire to the Light Location

Run your electrical wire from the switch/dimmer location to your light ﬁxture. Be sure to check your local

code for which type of wire to run, most electrical codes require NM (also called Romex), BX, or MC wire.

Leave about 12-16” of wire sticking out of your hole, which will give you enough wire to connect to your

driver box.

Before installing the ceiling backer board, double check the location of each light. Once the ceiling is closed

you won’t be able to adjust the positioning.

Install ﬁnished ceiling, cut out the holes for each light using the rough-in bracket as a template. Once the ceiling

is ﬁnished, install your lights by following the remainder of the installation instructions below.

• Make your Electrical Connections

Remove the wiring compartment plate on your junction box.

Make a knockout on your junction box and install the appropri-

ate type of connector. For NM/Romex wire, you will typically

use a NM/clamp connector. For BX or MC, you’ll use a con-

nector speciﬁc to the wire that you’ve used.

Bring your incoming wire into the junction box and strip the

black and white wires. Be sure to ground the driver box by

connecting the green ground wire on your driver box to your

incoming ground wire using UL listed wire nuts/connectors.

Connect the black wire in your driver box to the incoming hot/

line wire (usually black). Connect the white wire in your driver

box to the incoming neutral wire (usually white). Be sure to only make connections using UL Listed wire

nuts/connectors.

Once you’ve ﬁnished making your electrical connections, install your wiring compartment cover and snap it

shut.

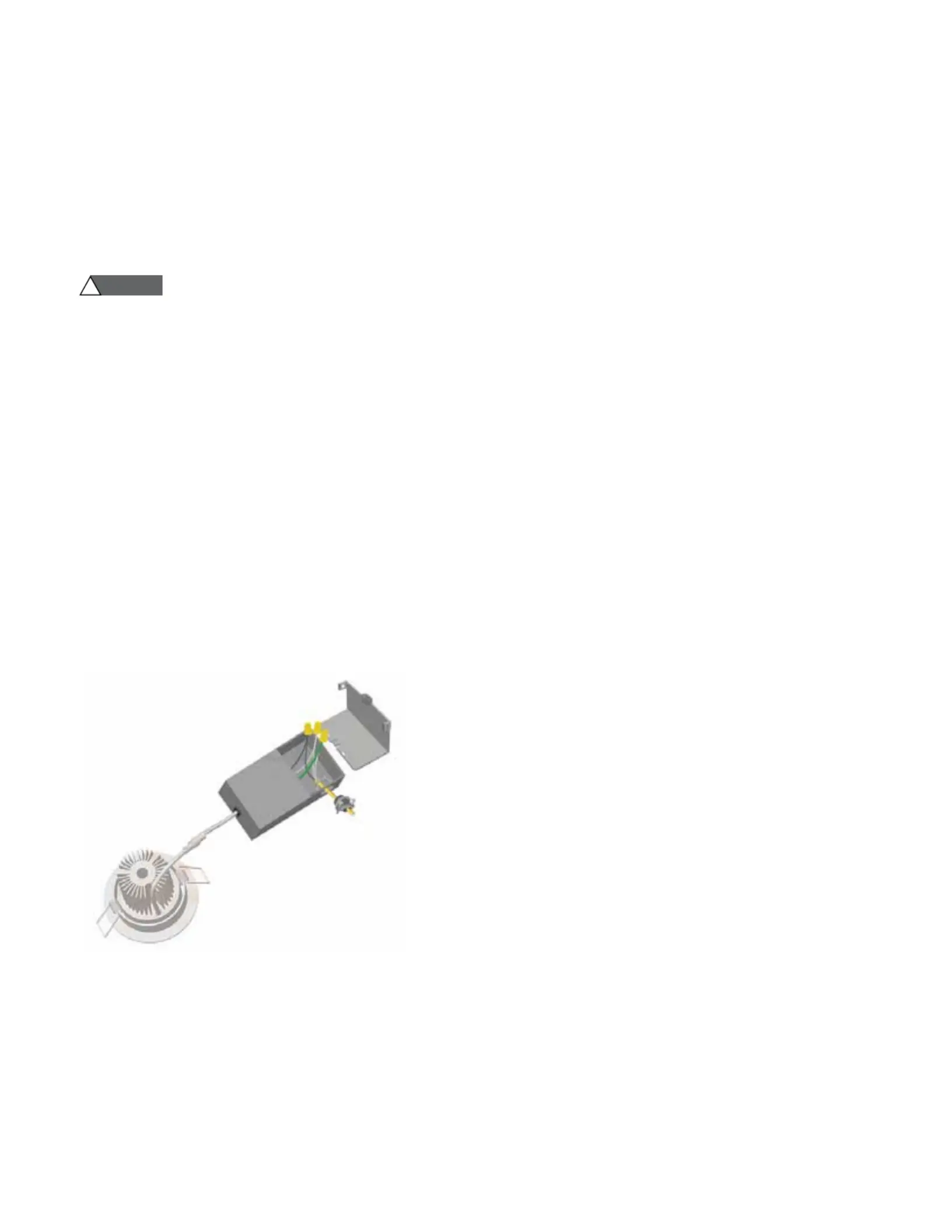

• Connect the Driver to the Light

Connect the driver cable plug to the plug on your light. Be sure to pay close attention to the arrows lo-

cated on plug (there is one small arrow molded into the plug on the light side of the cable and one small

arrow molded into the plug on the driver side of the cable). These arrows must point towards each other.

WARNING

steam

Recessed LED Light Installation

______________________________________________________________________________________________________________________

Model LEDLITE

Ratings:

120 VAC 230 mA

3000K color temperature

600 Lumens

Maximum ceiling thickness 1

”

mr.steam

Recessed LED Light Installation

__________________________________________________________________________________________________________________________________________

Also, if you look inside the plug, you’ll notice a groove on the light side and a bump/key on the driver side.

Be sure that the bump/key ﬁts nicely into the slot. Screw the connectors together.

It is important to remember that each model light has its own speciﬁc driver and drivers are NOT inter-

changeable between different model lights.

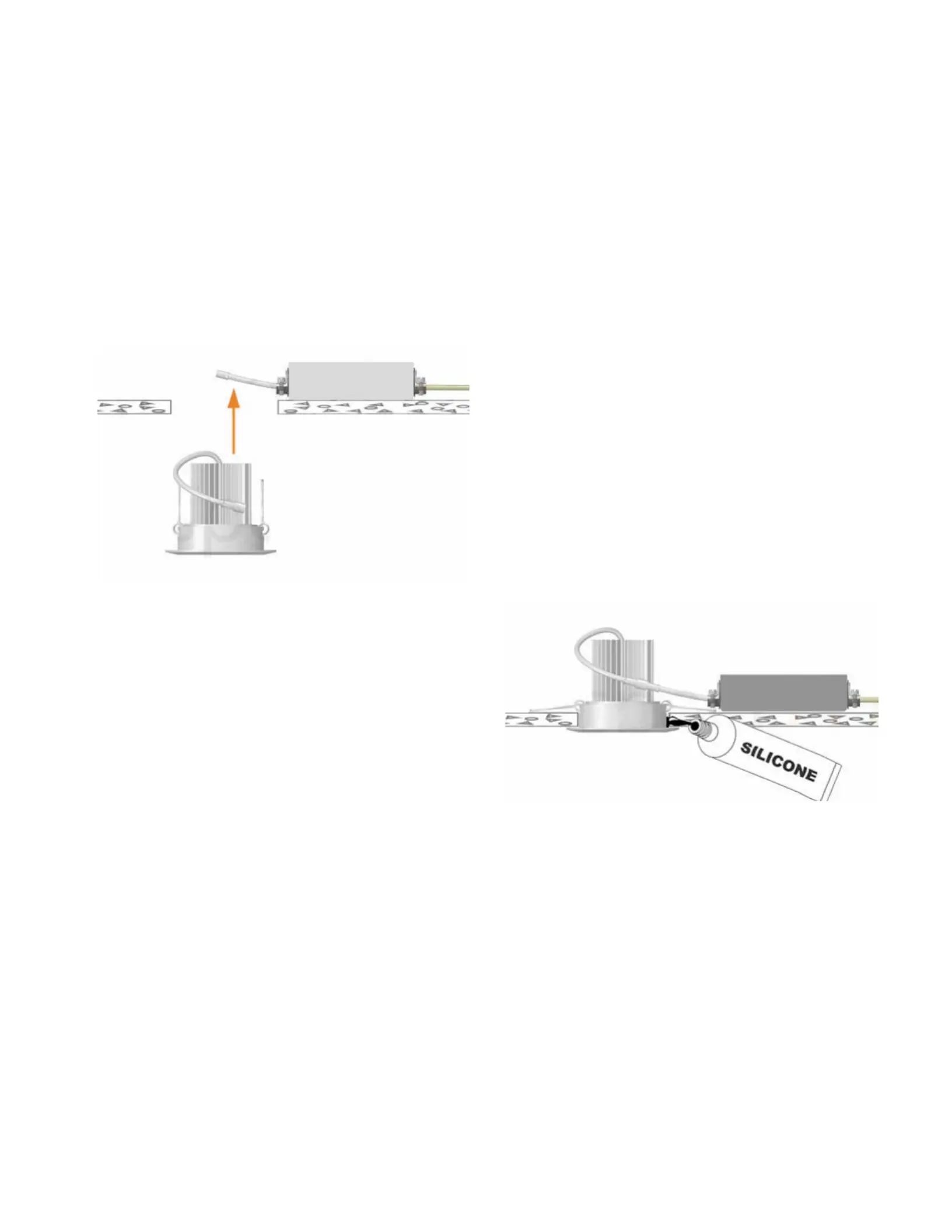

• Tuck the Driver Box through the Hole

Carefully tuck the driver box up through the hole and allow it to sit on the ceiling at or near the light loca-

tion. If your code/jurisdiction requires you to fasten the driver box to a nearby truss, stud, structural com-

ponent, or other approved member using the keyhole slots provided on the back of the driver box.

• Install Your Light Into the Hole

After you’ve veriﬁed that your light cord is connected

to the driver output cord, gently lift upwards on the

retention clips on each side of your light ﬁxture and

carefully push it into your cut-out hole. Once the light

ﬁxture is in the hole, allow the spring-loaded reten-

tion clips to come down, holding the light ﬁrmly in

place against the drywall or ceiling material. The max-

imum ceiling material thickness that these lights are

designed to work in is 1

”

. Apply a bead of silcone

around the perimeter of the light where it meets the

ceiling as required for sealing.

If you ever need to remove the light in order to access

your driver box , simply grab hold of the sides of the

light and gently pull downwards until the light comes

about 1/2” down out of the hole. Before pulling the

light all the way out of the hole, be sure to get a ﬁrm

grip on the retention clips, so you can hold them up-

wards in order to avoid them snapping closed. Then,

pull the light the rest of the way out of the hole and

gently let the retention clips back down.

• Dimming

LEDLITE is dimmable, make sure to use an ELV style (LED) dimmer switch.

This will be reverse phase dimming.

A few popular dimmers that we have thoroughly tested are:

• Eaton DAL06P • Eaton Toggle AL TAL06P1

• Eaton SAL06P • Eaton AAL06

• Lutron Caseta ELV+ (PD-5NE) • Lutron Maestro MAELV-600

• Lutron Skylark SELV-300P • Leviton Vizia VRE06-1LZ

• Devine Slide Dimmer - DE06P • Lutron Diva DVELV-300P

mr.steam

Sussman-Automatic Corp.

www.mrsteam.com hello@mrsteam.com PN 100534 rev 4.19

43-20 34th Street, Long Island City, NY 11101 1 800 76 STEAM I 9410 S. La Cienega Blvd. Inglewood CA 90301 1 800 72 STEAM
