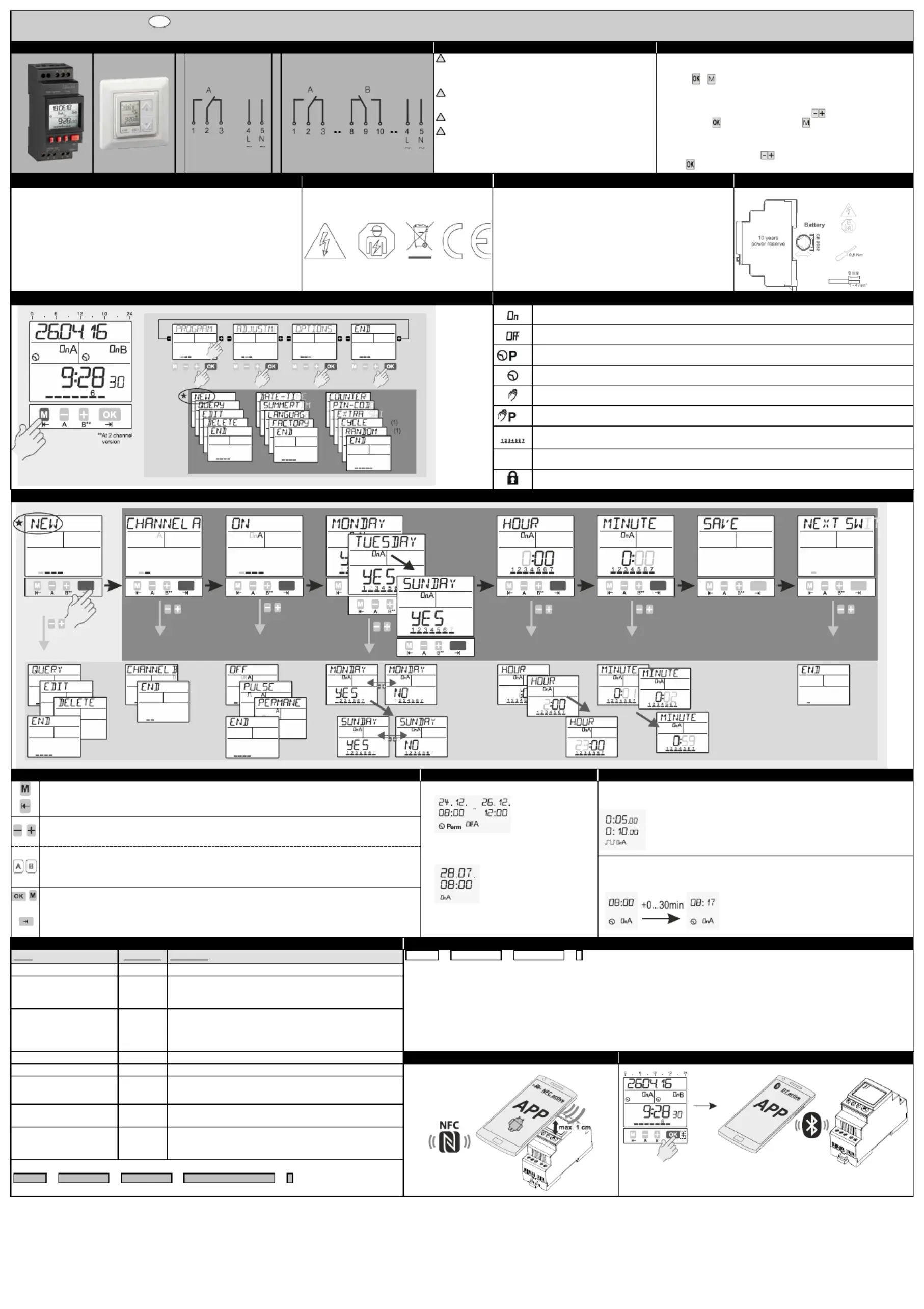

BA SC18x 0easy SC28x1pro4 en da no N; , , ,fi –- 2 4 23695 2020.0 V0

(1) Option

Instruction Manual

Time switch

Connection diagram

1. Safety instructions

2. Initial operation

1 channel

2 channels

The installation and assembly of electrical equipment must

be only carried out only by a skilled Person! Otherwise fire

danger or danger of an electric shock exists!

Connect the supply voltage/frequency as stated on the

product label!

Warranty void if housing opened by unauthorised person!

The electronic circuit is protected against a wide range of

external influences. Incorrect operating may occur if

external influences exceed certain limits!



The time switch is delivered in sleep mode, the display is switched -

off.



Press -/ button to wake it up.



The current date and time is already programmed and European

daylight savings time is activated.



Select the desired language by pressing buttons and confirm it -

by pressing . (Remark: By pressing you move one step

backwards from the current position)



If required, date, time and daylight savings time mode can be

adjusted -also by pressing

buttons and a subsequent confirmation

with .

3. Technical data

4. Service

5. Intended use

6. Battery

Supply voltage

See device

Contact material (115V / 230V)

AgSnO

Contact material (12V / 24V)

AgNi

Type of protection

IP 20 to DIN EN 60529

Permitted ambiet temperature

- 30°…+55°

Mode of operation

1 BSTU

Degree of contamination

Rated surge voltage

4 kV

Standard

DIN EN 60730 1/DIN EN 60730- -2-7

CFL, LED

Ideal for modern lamps

The device fits for the particular use of the following tasks: Illumination

of private and industrial areas, street and shop window lightening, -

regulation of air conditioning, flushing, motors, pumps, plants and

machinery as well as to simulate presence etc.

Operate the device in a dry room only! The installation must be in

accordance with the instruction manual. The device is not qualified for

security relevant tasks such as emergency doors, fire protection

equipment

DIN- rail mounting product:

7. Menu overview

8. Symbol legend

Channel is switched ON

Channel is switched OFF

erm

For the current date the “holiday program” / “permanent by date” is activated

Standard programming step

Current state is based on a manual over ride. The state will be cancelled with the next programming - step.

erm

Current state is based on a manual over ride. The state is permanent until terminated manuall.-

Days of the week Monday, Tuesday, ... Sunday;

The underscores indicate if the program is active for the days above.

Current state is based on a switching time with pulse function

The time switch is locked; to unlock the device the PIN has to be entered.

9. New Program

OKOK

**At 2 channel

version

OKOK

erm

OKOK

Automatic Mode

10. Key function

11. Permanent / Extra switching times

12. Cycle / Random (1)

1. To access the Enter ram, adjustments, options) from the automatic-mode (prog -mode.

2. To revert to the beginning of the current (sub ) menu. -



Permanent On / Off



Extra switching times

optionally selectable



Cycle

optionally selectable

h:mm:ss on-time (0:00:01 … 9:59:59)

h:mm:ss off-time (0:00:01 … 9:59:59)

1. To adjust the flashing digit.

2. To scroll through a choice

1. Automatic-mode: To switch the channel ON or OFF until the next programming step occurs.

2. Automatic c. = Permanent-mode: A push longer than 3 se switching status.



Random

optionally selectable

no yes

1. To activate the time switch when operated without power supply.

2. To confirm the selection or the entered data.

13. Additional adjustments

14. Pulse

Main menu

Application

Program New program Channel -> -> A/B -> …

The pulse function provides you programming the opportunity of a switching time with a defined duration.

As soon as the he time switch switches OFF pulse-duration has expired t automatically (the duration of the pulse is up to 59:59 mm:ss).

The programming is carried out like a standard switching time (see point 8 / 9) with following differences



Choose function Pulse ( 9F).



Define the duration of the pulse (pulstime minute / pulstime second).



Program the days of the week



Program the switching time (time hour / time minute)



Validation: Confirm the blinking summary of the pulse program

Program query

Program

To query the programming steps and memory locationsremaining

Program delete

Program

Deletion of switching time(s). The program for all channels, single

channels and single programming steps within on channel can be

deleted.

Date-Time

Adjustment

Adjustment of date and time

Summertime

Adjustment

Adjustment of the daylight saving time mode (ON/OFF)

15. Programming via NFC (1)

16. Programming via Bluetooth (1)

Language

Adjustment

Choice of languages

Factory Defaults

Adjustment

Reset to the state of delivery.

Counter

Options

Displays the hour counter and pulse counter for each channel and

the time switch itself.

PIN-Code

Options

The time switch can be locked with a 4 digit PIN Code. The code - -

can be adjusted, activated and deactivated. If you have forgotten

the Code please call customer service.

Extra switching time:

Program new program channel -> -> A/B Extra switching -> time -> …

These programming steps are single switching times by date.

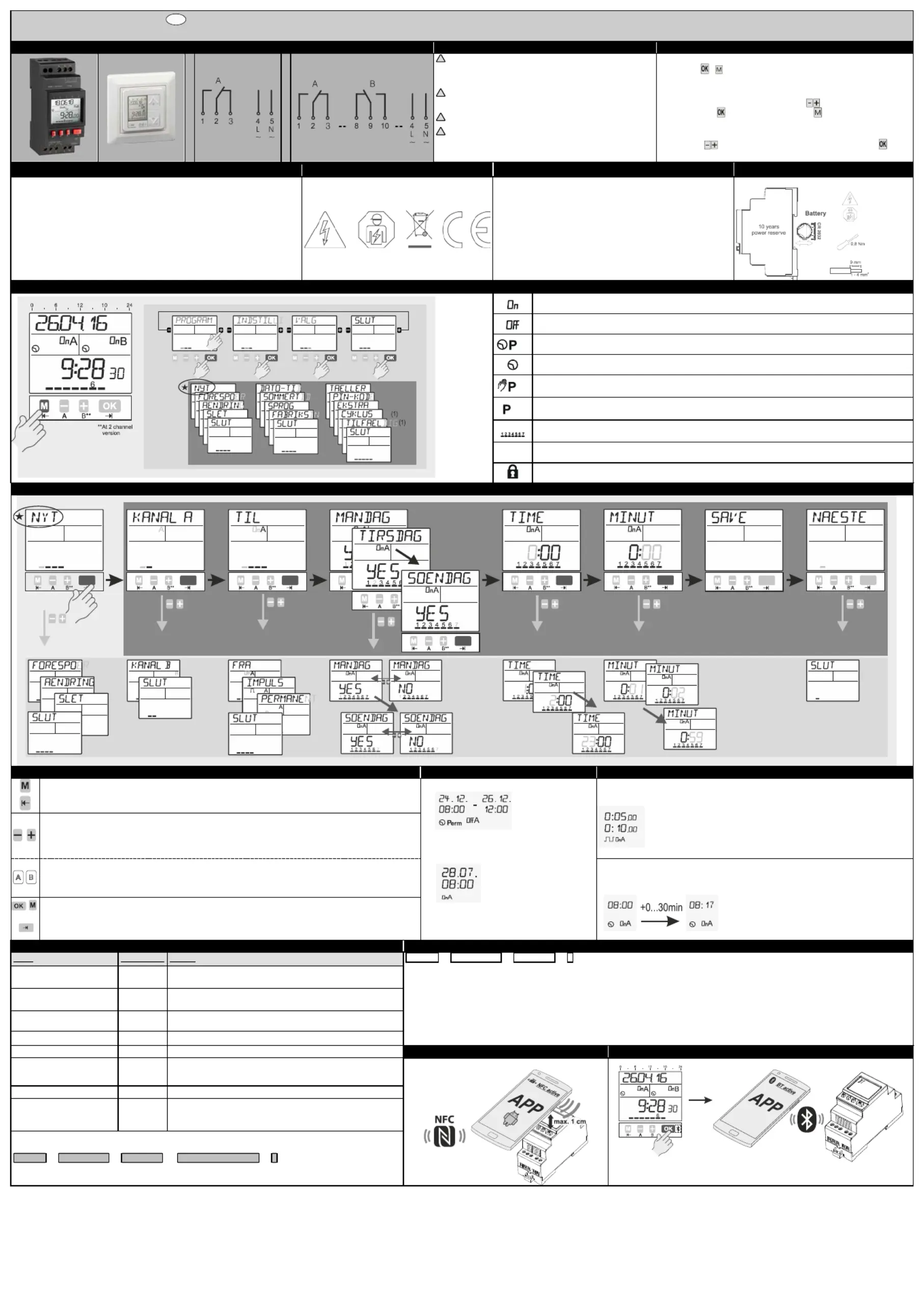

BA SC18x 0easy SC28x1pro4 en da no N; , , ,fi –- 2 4 23695 2020.0 V0

(1) Valg

Betjeningsvejledning

Koblingsur

Tilslutningsdiagram

1. Sikkerhedsinstruktioner

2. Start

1 kanal

2 kanaler

For at undgå brandfare og risiko for elektrisk stød må

installation og montage af elektrisk udstyr kun udføres af

autoriseret installatør!

Tilslut forsyningsspænding/frekvens som angivet på

mærkaten på produktet!

Garantien bortfalder hvis huset åbnes!

D e et elektrisk kredsløb er beskyttet imod de fleste udefra

kommende men forkert funktion kan forekomme hvis

forstyrrelserne overstiger de definerede grænseværdier!



Koblingsuret leveres - i sleep mode, displayet er slukket.



Tryk på -/ knappen i 1 sekund.



Den aktuelle dato og tid er allerede indstillet og europæisk

sommertidsskift er aktiveret.



Vælg det ønskede sprog ved trykke på -knapperne og bekræft

ved at trykke . (Bemærk: Ved at trykke skifter man et trin til

bage

fra den nuværende position)



Hvis nødvendigt kan dato, tid og sommertids mode ændres ved at

trykke på -knapperne og efterfølgende bekræftelse med .

3. Technical data

4. Service

5. Intended use

6. Battery

Supply voltage

See device

Contact materia (115V / 230V)l

AgSnO

Contact material (12V / 24V)

AgNi

Type of protection

IP 20 to DIN EN 60529

Permitted ambiet temperature

- 30°…+55°

Mode of operation

1 BSTU

Degree of contamination

Rated surge voltage

4 kV

Standard

DIN EN 60730 1/DIN EN 60730- -2-7

CFL, LED

Ideal for modern lamps

The device fits for the particular use of the following tasks: Illumination

of private and industrial areas, street and shop window lightening, -

regulation of air conditioning, flushing, motors, pumps, plants and

machinery as well as to simulate presence etc.

Operate the device in a dry room only! The installation must be in

accordance with the instruction manual. The device is not qualified for

security relevant tasks such as emergency doors, fire protection

equipment

DIN- rail mounting product:

7. oversigt Menu

8. Symboler

Kanal er indkoblet

Kanal er udkoblet

erm

For denne dato er “ferieprogram” / “permanent efter dato” aktiveret

Standard programmeringstrin

erm

Nuværende tilstand er forårsaget af en manuel betjening. Tilstanden vil blive ophævet af det næste

programmeringstrin.

erm

Nuværende tilstand er forårsaget af en manuel betjening. Tilstanden er permanent indtil den afsluttes

manuelt.

Ugedag, mandag, tirsdag, ... søndag;

Understregning markerer at programmet er aktivt I dagene ovenover.

Den nuværende tilstand er bestemt af en koblingstid med impulsfunktion.

Uret er låst; for at låse op skal PIN koden indtastes- .

9. Nyt program

OKOK

**At 2 channel

version

OKOK

erm

OKOK

Automatic Mode

10. Knap funktioner

11. Permanent / Ekstra Koblingstider

12.Cyklus / Tilfaedig (1)

1. For at komme i Indtastnings-mode (program, indstilling, optioner) fra automatisk- mode.

2. For at vende tilbage til begyndelse af den aktuelle -) (sub menu.



Permanent Til / Frau



Ekstra Koblingstider

v algbar option



Cyklus

v algbar option

h:mm:ss til tid- (0:00:01 … 9:59:59)

h:mm:ss Pause (0:00:01 … 9:59:59)

1. For at justere det blinkende ciffer.

2. For at rulle gennem valgmuligheder

1. Automatisk-mode: For at skifte kanalen TIL eller FRA indtil næste program trin forekommer.

2. Automatisk-mode: Et tryk længere end 3 sekunder = Permanent koblingstilstand.



Tilfaedig

v algbar option

Nej Ja

1. For at aktivere koblingsuret når det er uden driftsspænding.

2. For at bekræfte valget eller de indtastede data.

13. Yderligere indstillinger

14. Impuls

Hovedmenu

Formål

Program Nyt -> program Kanal A/B -> -> …

Impulsfunktionen igen muliggør programmering af en indkoblingstid med en d ud efineret varighed. Uret kobler

efter den programmerede impulstid

(Impulstid op til 59:59 mm:ss). Programmeringen følger den tilsvarende for en normal koblingstid (se punkt 8 d/ 9) og med følgende forskelle:



Vælg Impuls- ( funktion 9F).



Vælg indkoblingstidens varighed (Impuls Minut / Impuls Sekund).



Vælg ugedagen for indkoblingstiden.



Vælg indkoblingstidspunktet (Tid Time id Minut / T).



Kontrol: Bekræft den blinkende Impuls- . koblingstid

Program

forespoergsel

Program

For at se antal programtrin og tilbageværende hukommelses-

pladser.

Program slette

Program

Sletning af koblingstid(er). Programmet for alle kanaler, enkelt

kanaler og enkelte programtrin for en kanal kan slettes.

Dato-tid

Indstillinger

Justering af dato og tid

Sommertid

Indstillinger

Valg af automatisk sommertid mode (TIL/FRA)

Sprog

Indstillinger

Valg af sprog

15. Programmering via NFC (1)

16. Programmering via Bluetooth (1)

Fabriks- indstilling

Indstillinger

Reset til tilstanden ved levering.

Taeller

Valg

Vis timetæller og pulstæller for hver kanal og suret selv.kobling

Pin-kode

Valg

Koblingsuret kan låses med en 4 cifret PIN-kode. Koden kan

ændres, aktiveres og deaktiveres. Hvis man har glemt koden

venligst ring til kunde service.

Ekstra koblingstid:

Program Nyt -> program kanal A/B Ekstra -> -> koblingstid -> …

Disse programeringstrin er enkelte koblingstider på dato.
