GM UNI-CAM/UNI-CAM PRG
RVC for select GM vehicles equipped with MyLink IOH Radio controller interface &/or programmer
IOH = IO4 (4” screen) & IO5/IO6 (8” screen)
NTV-KIT629: Controller ONLY (for vehicles with OEM RVC)
NTV-KIT630: Controller & Programmer (for vehicles without OEM RVC)
BHM
09 26/ /17
NTV-DOC239
3950 NW 120th Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
BHM
09/26/17
NTV-DOC239
Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. :
If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger
entertainment only.
2 | P a g e
Overview
The GM UNI-CAM adds an addional video input on select GM vehicles equipped with the MyLink (model IOH)
4 color media screens Forcing (aermarket) AUX Video or front camera to display at any me is ” and 8” .
acvated with wire triggers. Note: NTV-KIT629 is a controller only, it will NOT program the MyLink radio
system for rear camera. If adding a reverse camera to a vehicle without OEM RVC and forced cam/AUX video
input is desired as well, you must purchase NTV-KIT630 (UNI-CAM with built-in programmer).

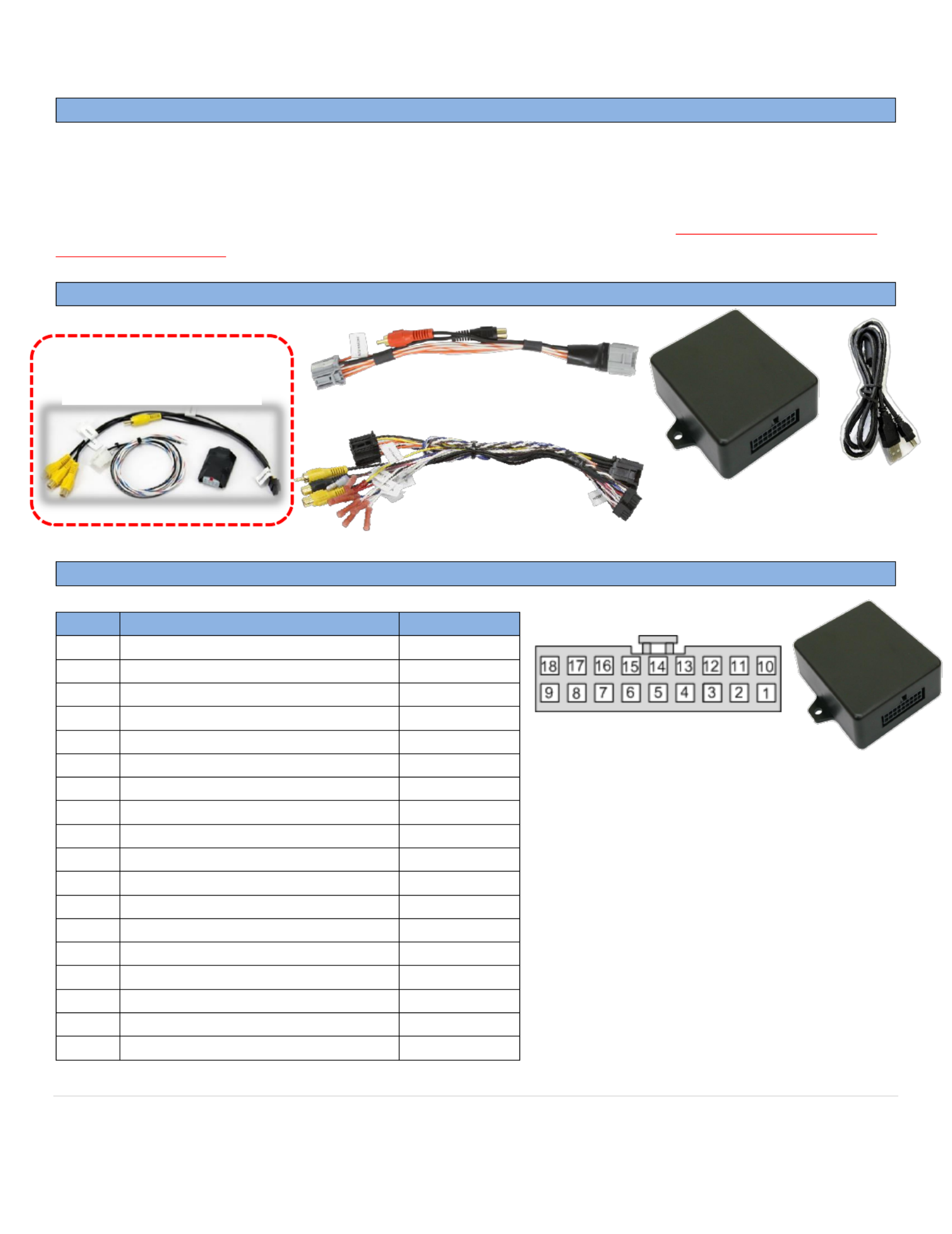

Kit Content
GM UNI-CAM Pinout
Pin #
Descripon
Color
1
12v Constant Power (+)
Yellow
2
Input 1 (Force Rear Cam) *
Red
3
Input 2 (Force Front Cam)
Blue
4
Input 3 ( Programming Wire) 4” **
Pink
5
--NOT USED --
Brown
6
RCA Signal (+) (Out to radio)
Yellow
7
RCA Shield (common)
Gray
8
CAN HI (HMI side)
White/Blue
9
CAN LO (vehicle side)
White/Brown
10
Ground (-)
Black
11
Output 1 (ACC 12v +)
White/Red
12
Output 2 (REV + & ) 12v FRVC
White/Blue
13
Output 3 (12v out when ) + FFVC
White/Purple
14
-- --Not Used
White/Brown
15
RCA Signal (+) Input (front cam)
White
16
RCA Signal (+) Input (rear cam)
Red
17
CAN HI (HMI side)
Blue
18
CAN LO (vehicle side)
Brown
Wire Side
Any wires not menoned here are not used for
this installaon.
USB Cable
(updates)
NTV-CAB009
*Forcing rear camera is only available for
aermarket cameras (unless OEM rear camera
is powered with an ACC source or OUTPUT 2
manually OEM RVC normally only powered in –
reverse)
**Used for (IO4) 4” screens ONLY.
Plug & Play I/O T-Harness
NTV-HAR284
CAM T-Harness
NTV-HAR283
VSW-R included with
NTV-KIT629
PIN 12 Forced Rear View Camera FRVC: ‘ ’
PIN 13 FFVC: ‘Forced Front View Camera’
