Overview

The TOY-CAM 2 kit includes a camera and harness to connect to the factory media screen in

select 2012+ Toyotas. The signal connecon to the radio is plug & play, however the camera

will have to be manually powered.

Kit Contents

High Quality Rear Camera

NTV-CAM046

17’ Camera Extension

NTV-CAM046

Video Input Harness

NTV-HAR206

BHM

05/05/14

NTV-DOC098

Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for :

misuse of its product. If you do not agree, please discontinue use immediately and return product to place of purchase. This product is

intended for off-road use and passenger entertainment only.

2 | P a g e

Installaon

1. Remove the factory radio, disconnect all harnesses and set the radio aside.

2. Install the provided camera into the trunk lid. Be certain to check for clearance before

drilling any holes!

3. Connect the provided to the camera and run the Camera Extension

RCA/power end forward to the dashboard opening.

4. Connect the and wires to ground (-) and ACC 12v (+). black red The radio must see the

camera upon vehicle startup in order for the screen to ip to the camera’s image when

in reverse. You MUST connect the camera to an accessory/ignion source and not a

reverse light for proper

operaon!

Note: you can nd ground (-)

and ACC 12v (+) at the

radio’s power harness

(test!):

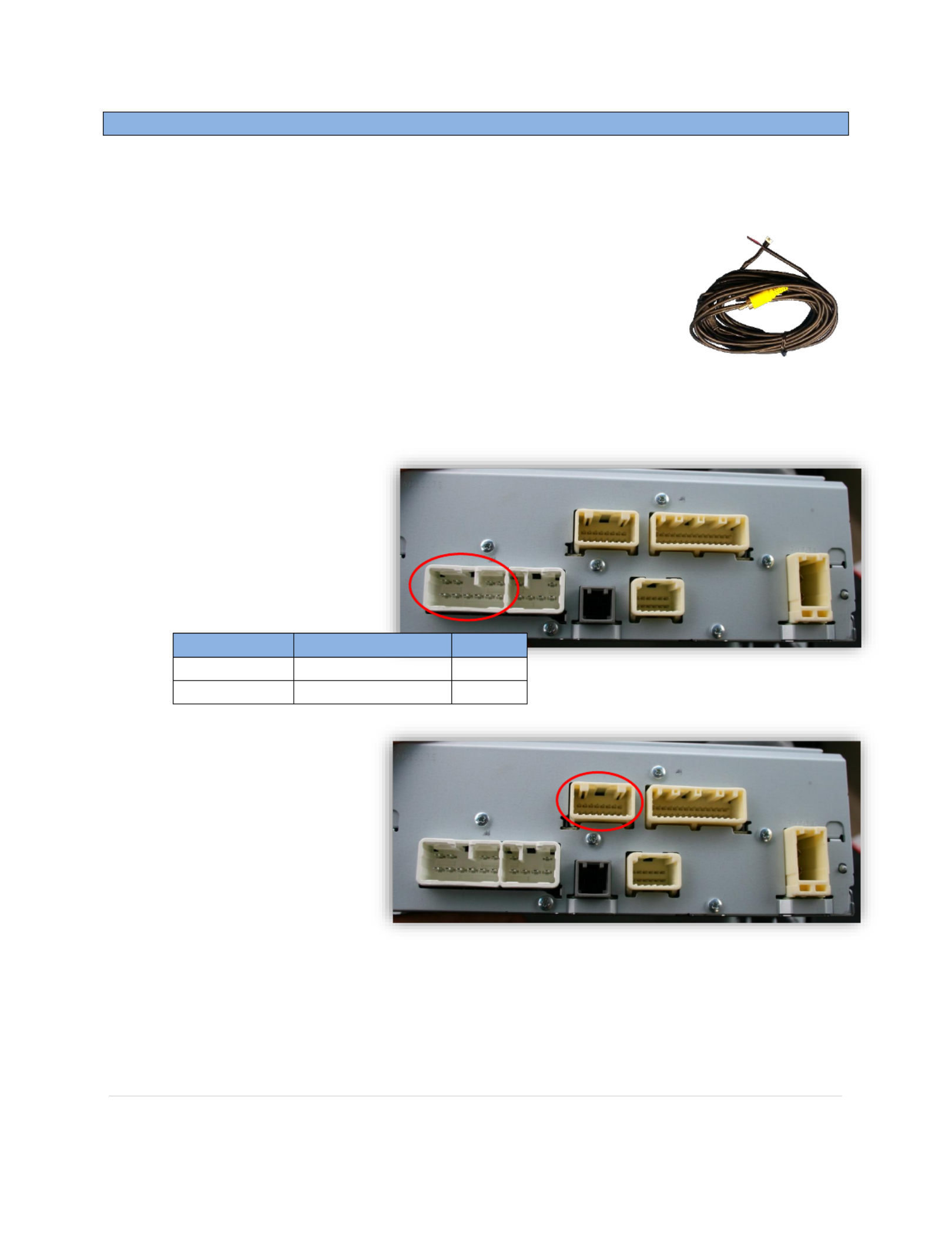

5. Connect the supplied

video input harness in

the connector shown

here (right). It is keyed

and will only t in one

direcon:

6. Connect the camera’s composite signal to the RCA on the provided Video input harness.

7. Reconnect all the harnesses to radio, reassemble the dash and test by starng the car

and placing it into reverse. The reverse image should acvate automacally (whenever

in reverse).

Toyota Pin #

Descripon

Color

Accessory 12v (+)

Gray

Ground (-)

Brown
