Jaguar F-TYPE CAM

Dual Camera interface for Jaguar vehicles select ’14+

NTV-KIT589

BHM

07 07/ /15

NTV-DOC207

3950 NW 120th Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760

BHM

07/07/15

NTV-DOC207

Agreement End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product. :

If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger

entertainment only.

2 | P a g e

Overview

Jaguar F-TY CAM interfaces 2 cameras (front & rear) and enables video and navigaon control in moon (if PE

equipped). Forcing either camera to display is acvated via the factory touch screen or oponal wired inputs.

This interface is currently only compable with the 14+ F-Type. 20

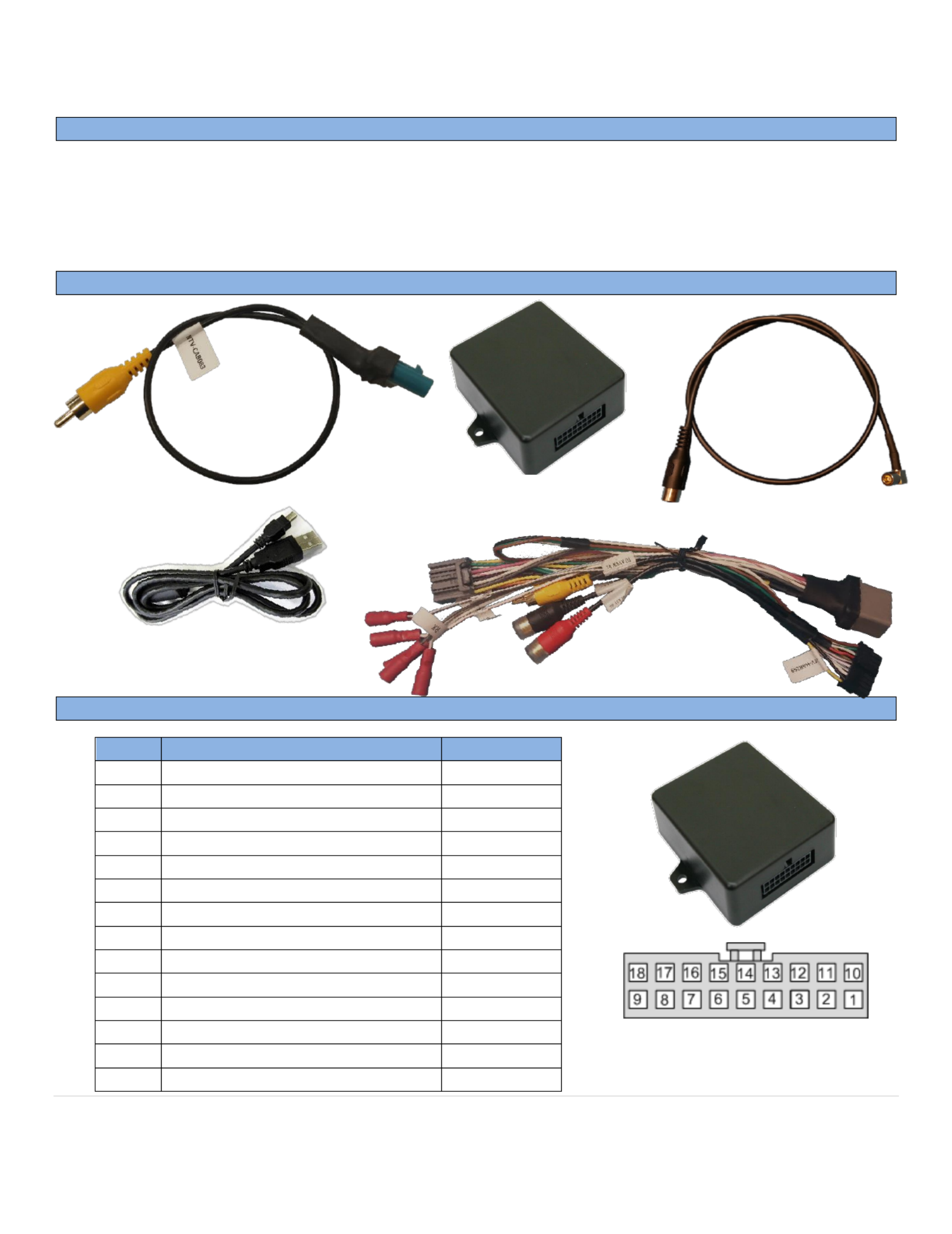

Kit Contents

F-TYPE CAM Pinouts

PIN #

Descripon

Color

1

12v (+) constant input

Yellow

2

Input 1 (+): force rear camera

Red

3

Input 2 (+): force front camera

Blue

6

VIDEO OUT RCA

Yellow

7

RCA Shield

Black

8

CAN HI (Radio Side)

White/Green

9

CAN HI (Car Side)

White/Brown

10

Ground (-)

Black

11

Output 1 ACC (+)

White/Red

12

Output 2 REVERSE (+)

White/Blue

15

Front RCA Video IN

Red

16

Rear RCA Video IN

White

17

CAN LO (Radio Side)

Green

18

CAN LO (Car Side)

Brown

F- CAM Module TYPE

NTV-ASY166

Plug & Play T-Harness

NTV-HAR269

SMB-RCA

Adapter

NTV-CAB007

USB Cable (updates)

NTV-CAB009

Wire side

FAKRA-RCA

Adapter

NTV-CAB083
