Package & Accessories
Included Quantity Mark Remark
Indoor Monitor 1 A
Indoor monitor with LCD screen
Screw 4 B
Two pairs depending on thickness
of the door
Outdoor Camera
1 C
The ribbon cable will go through
Peephole to connect Indoor Part
Steel Bra et 1 Dck
Use scre ra et w to fix the steel b ck
with Outdoor part
User Manual 1
Door
D. Steel Bracket
A. Indoor monitor
B. Fixing screws
Ribbon cable
Drill Hole in door
C. Outdoor camera
13-20mm 3x
Smart Peephole Viewer/
Visual Doorbell User Manual
You will need
01 04
1 2 3
07
02 05
03 06
Technical Specifications
Recycling
This symbol is known as the ‘Crossed-out Wheelie Bin Symbol’.
When this symbol is marked on a product or battery, it means that
it should not be disposed of with your general household waste.
Some chemicals contained within electrical/electronic products or
batteries can be harmful to health and the environment. Only dispose
of electrical/electronic/battery items in separate collection schemes,
which cater for the recovery and recycling of materials contained within.
Your co-operation is vital to ensure the success of these schemes and
for the protection of the environment
Indoor-part Dimension: 136×75×18mm
Outdoor-part Dimension: 30×30×7mm
Door hole range: 12mm~28mm
Door thickness range: 35mm~105mm
Battery: 3x AA batteries (Not included）
Battery life: 3 months (based on 10 operations per day)
Voltage: 4.5V~3.5V
Notes
We recommend that good quality, branded, alkaline batteries
are used.
Do not leave the product on uneven or unstable surfaces to prevent
damage caused by falling.
Try to avoid placing the product on high-temperature surfaces,
high humidity or a lot of dust, salt spray and other harsh environments
as this may reduce the lifespan of the product.
Take care with the ribbon cable on the door viewer to avoid damage.
In more detail...
Installation
Either remove your current door viewer or drill a new hole at least
13mm diameter up to 20mm diameter Into your door in a suitable
position to view the visitor.
N.B. Always test the product before installation.
Insert your selected screws (B) according to your door thickness
into the Outdoor camera (C) but do not fully tighten.
Push the door viewer (C) into position making sure the ribbon
cable is pushed through first and the up arrow on the back of the
camera is facing up.
Open the battery cover of the indoor monitor (A) and insert the Micro
SD card.
Then insert 3x AA batteries making sure they are inserted correctly.
N.B. Please install the Micro-SD card before inserting the
batteries.
Taking extra care with the ribbon cable gently push the indoor monitor
(A) back onto the steel bracket (D) and slide down to lock into position.
Connect the ribbon cable by pushing it onto the connection, you
will feel a “Click” as it locks onto the circuit board. Make sure the
cable is fitted the correct way around as shown in the image.
Using the steel bracket (D), make sure the up arrow is facing up
and push the ribbon Cable through the slot. Then allow the
screws to push through the holes so the steel bracket becomes
flush with the door.
Tighten the screws to fix the steel bracket and Outdoor camera
into position
Clip the battery cover back on, the ribbon cable will fit in a small
opening allowing it to come through the cover.

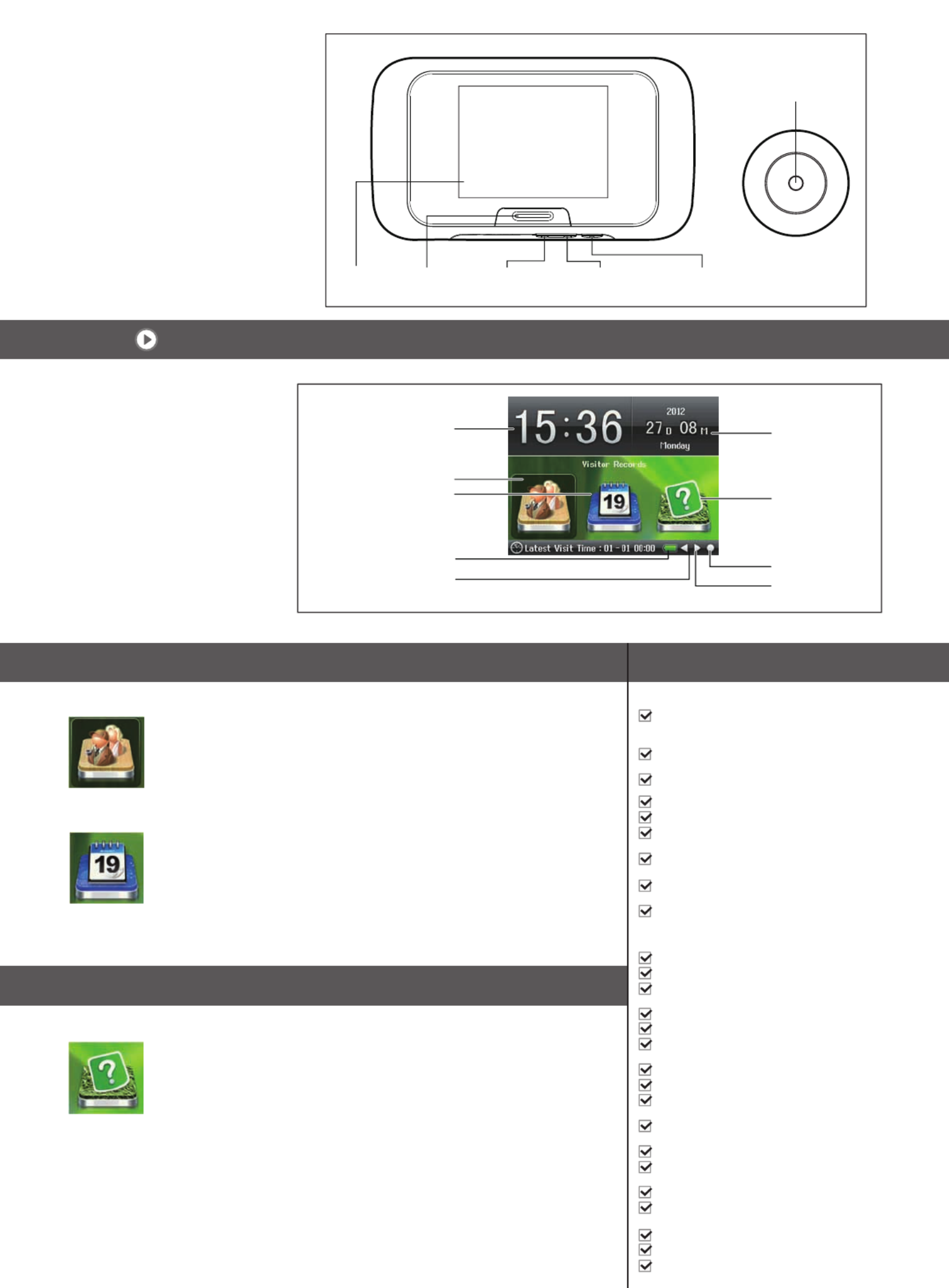

Time Date
Visitor Records
System Setting User Guide
Battery Indication Enter key
Right Key
Left Key
Smart Peephole Viewer/
Visual Doorbell User Manual
How to use
System Features
User Guide & Trouble Shooting
Safety Information
Main operation:
Menu settings:
View images / recordings:
Press the Menu/OK key (4) to enter recording menu. The date of recording will be displayed and press the Menu/OK key
(4) to enter the day and a list of stored images / recordings. Use the left (2) and right (3) keys to scroll through the list and
press the Menu/OK key (4) to display the image / recording.
To delete an image / recording:
Press the Menu/OK key (4) to enter recording menu. The date of recording will be displayed and press the Menu/OK
key (4) to enter the day and a list of stored images / recordings. Use the left (2) and right (3) keys to scroll through the
list and HOLD the Menu/OK key for 5 seconds and “Delete” will appear, press the Menu/OK button again to delete.
System settings:
Press the Right key (3) to highlight system setting and press the Menu/OK key (4). Use the Left (2) right (3) keys to scroll
through the menu using the Menu/OK key (4) to enter each section:
• Date & Time – Adjust the date and time that will show on images and recordings
• Language - Adjust the language of the device
• Recording mode – Select between images or recordings of the visitor
• LCD Brightness - Adjust the screen brightness (higher uses more battery power)
• Video Recording Time – Adjust the amount of time to record the visitor 3, 5 or 10 seconds
• Backlight time - Adjust how long to keep the screen on for 5, 10, 15 or 20 seconds
• Format Micro SD Card – Erase all data from the Micro SD Card
• Restore Factory settings - Restore the device to factory settings
IMPORTANT — RETAIN THIS INFOMATION FOR FUTURE REFERENCE — READ CAREFULLY
User Guide:
Press the Right key (3) to highlight User Guide and press the Menu/OK key (4) to Show the system information.
Troubleshooting:
Q. My unit does not power up / show anything on the screen when I press the buttons
A. Please check the batteries, make sure they are good quality and are inserted correctly.
Q. My unit randomly powers on/off
A. Please replace the batteries
Q. Unit displays “Insert Memory Card” when trying to take an image or recording
A. Make sure the Micro SD Card is inserted correctly, remove the batteries, remove and re insert the Micro SD
card and re insert the batteries
Q. Unit displays “Camera Module not Ready”
A. Make sure the ribbon cable is connected correctly to the Indoor monitor (See step 5 installation)
The ventilation should not be impeded by covering the
ventilation openings with items, such as newspapers,
tablecloths, curtains, etc...
DO NOT allow this product to come into direct contact
with heat or a naked flame.
The normal operation of the product may be disturbed
by strong electromagnetic interference.
This equipment is intended for domestic use only.
The appliance shall not be exposed to dripping or splashing.
No objects filled with liquids, such as vases, shall be
placed on the appliance.
Keep a minimum distance of 10 cm around the product
for sufficient ventilation.
Ensure the bell push is not mounted where it could become
immersed by water/rain.
DO NOT allow children to play with this appliance.
An adult must carry out battery replacement and installation.
Remove exhausted batteries from this product.
DO NOT dispose of batteries in a fire, batteries may
explode or leak.
DO NOT short-circuit the battery terminals.
DO NO mix used and new batteries.T
DO NO mix alkaline standard (carbon-zinc), lithium T
or rechargeable batteries.
DO NOT use rechargeable batteries in this product.
DO NOT recharge non-rechargeable batteries.
DO NOT allow any part to come in contact with heat
or a direct flame.
DO NOT allow water to come into contact with the
batteries or wiring.
Install carefully to prevent any damage to the batteries
When installing batteries in the battery compartments,
ensure the batteries are placed as marked (+)(-).
Only the recommended batteries should be used.
Remove batteries from product when not in use for long
periods of time.
Keep this product out of the reach of small children.
Store unused batteries in their original packaging.
Dispose of used batteries responsibly.
Safety
Battery Warnings
LCD
Camera
Answer Key Left Key Right Key Menu / OK Key (1) (2) (3) (4)
In order to operate the unit to view a visitor press
the Answer key (1) and the screen will display the
Camera image. After 10 seconds of no activity the
screen will turn off. Should you want to record an
image or video of the visitor press the Answer key
(1) to display the camera and the Answer key (1)
again to begin recording.
For all menu options use the LEFT (2) & Right (3)
keys to scroll through the options and use the
Menu/OK key (4) to select any option. To exit the
menus press the Answer Key (1). Press the
Menu/OK key (4) to enter the menu screen
(opposite):
