Key Features

• DMX512 / eDMX / LED Pixel Stand Alone controller

• DR1 6x Universes (3072 channels)

or DR1 LITE 2x Universes (1024 channels)

• Output Universes via DMX512 (up to 6 universes)

& Artnet/sACN (up to 12 universes with SUT

universe upgrade)

• 2x DALI buses (single-master) *

• SUT Technology allows the device to be

upgraded with more universes & used with

other Nicolaudie Group software

• USB & Ethernet connectivity

• Stand Alone mode with 2000 scenes & 20 zones

• 16MB flash memory & microSD slot

• 8 dry contact trigger ports

• RDM compatible

• Windows/Mac software for programming

• iPhone/iPad/Android/Mac & Windows apps for

remote control

• Compatible with NATouch-1 wall controller

• Control 2 external relays

• Nicolaudie Cloud * : Remote control and

management via internet connection

(subscription required)

• Audio triggering / sound-to-light *

• RS232 protocol scene control *

Coming soon

• Direct support for LED Pixel Tape *

* Optional features with DR1 LITE model

Technical Data

Input Power 12v DC (8-15V range)

Output Protocol DMX512 (x6), DALI-2,

eDMX,

LED Pixel (SPIx2)

Programmability PC, Mac, Android, iOS

Connections USB-C

Ethernet

Screw terminals for

- 6 DMX / RDM Universes

- LED Pixel (coming)

- 2 DALI loops

- 8 Contact ports

- Relay

- 12v power-in & pass

through

- RS232 scene trigger

- Audio in

Battery holder (LIR2032

3.6v), microSD slot

TCP Connections 10 + 1 cloud

Memory 16MB flash, SD Card (max

32Gb, FAT32)

Environment IP20

Buttons 2 scene, 2 page, 1 reset

Dim / Weight 160 x 91 x 62 mm 317g

OS Requirements Mac OSX 10.13+, Win 10/11

Standards ETL, Low voltage, EMC,

and RoHS

Optional Accessory 12V AC/DC power supply

Overview

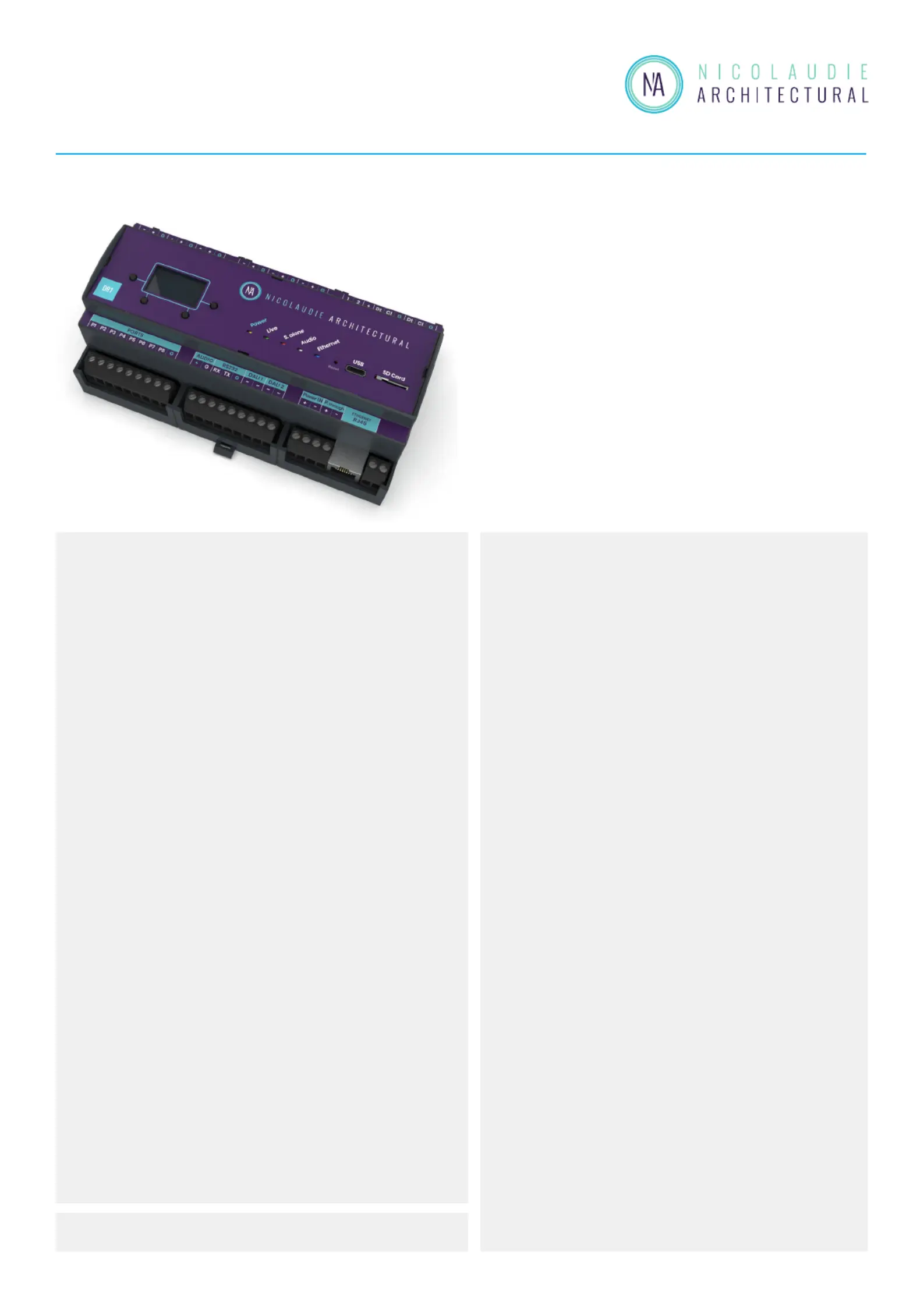

The DINA-DR1 is a lighting controller for the

most ambitious of projects, outputting 6

DMX512 universes (3072 channels) in 20

zones, eDMX and DALI simultaneously. Trigger

lighting scenes using calendar triggers and

conditional rules. Connect to the Nicolaudie

Cloud for remote control and management.

Lighting levels, color and effects can be

programmed from a PC or Mac. Remote

control from iPhone/iPad, Android, Win & Mac.

DINA-DR1 / LITE

DIN rail mounted - Advanced lighting controller

160mm

91mm

62mm

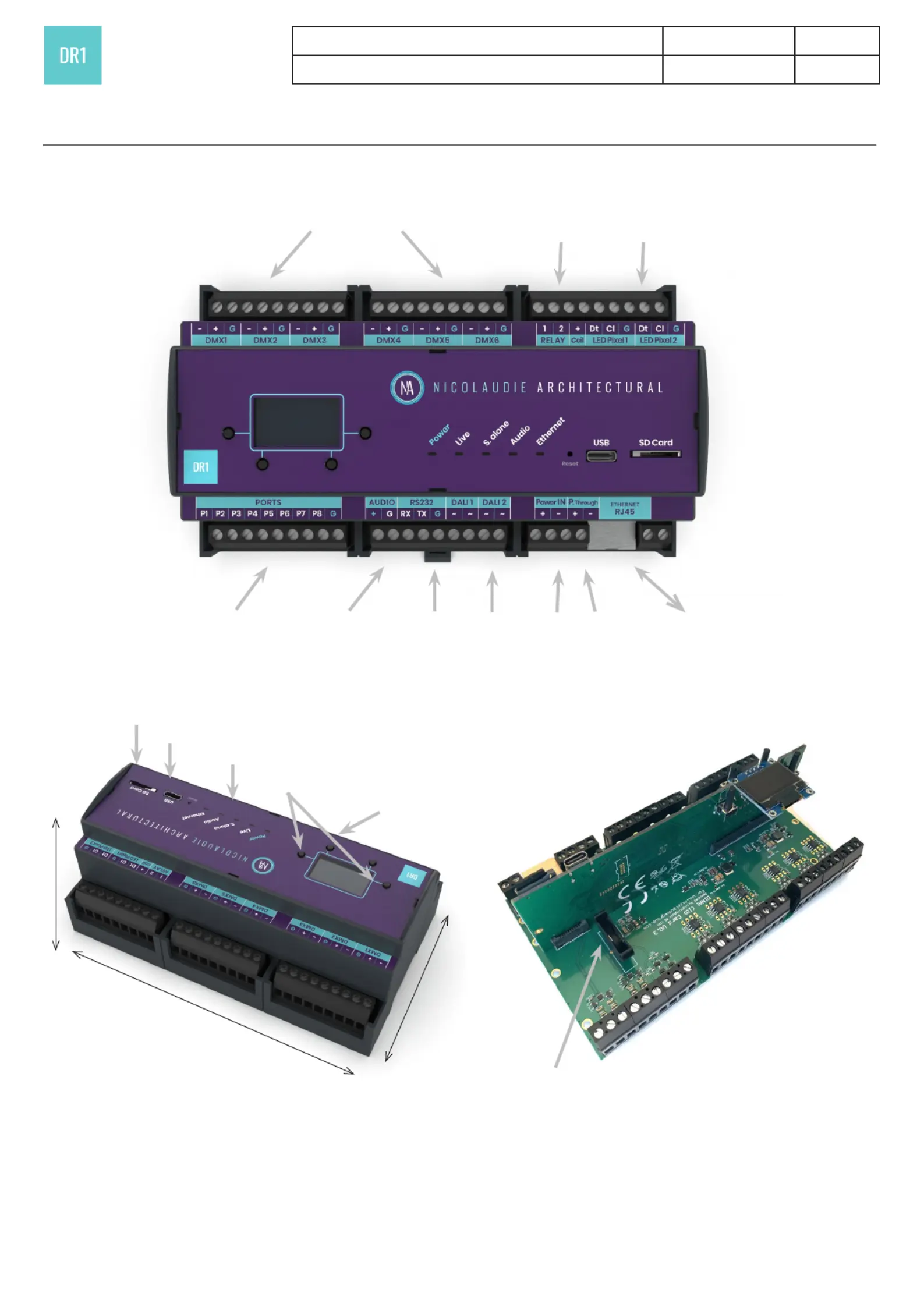

DINA-DR1

DMX 6 Universes

input / output

Ethernet

Audio input

RS232 input

DALI x 2

LED Pixel x 2 output

(coming)

8-15v

input

Power

pass-

through

Relay

Dry contact ports

input

USB-C

microSD

(32Gb Max)

LIR2032 3.6v

Battery Holder

LED Indicators

Page buttons

Scene buttons

Connections

V 1.07

www.nicolaudie.com

DIN rail mounted - Advanced lighting controller

Technical datasheet 3 Sept 2024
