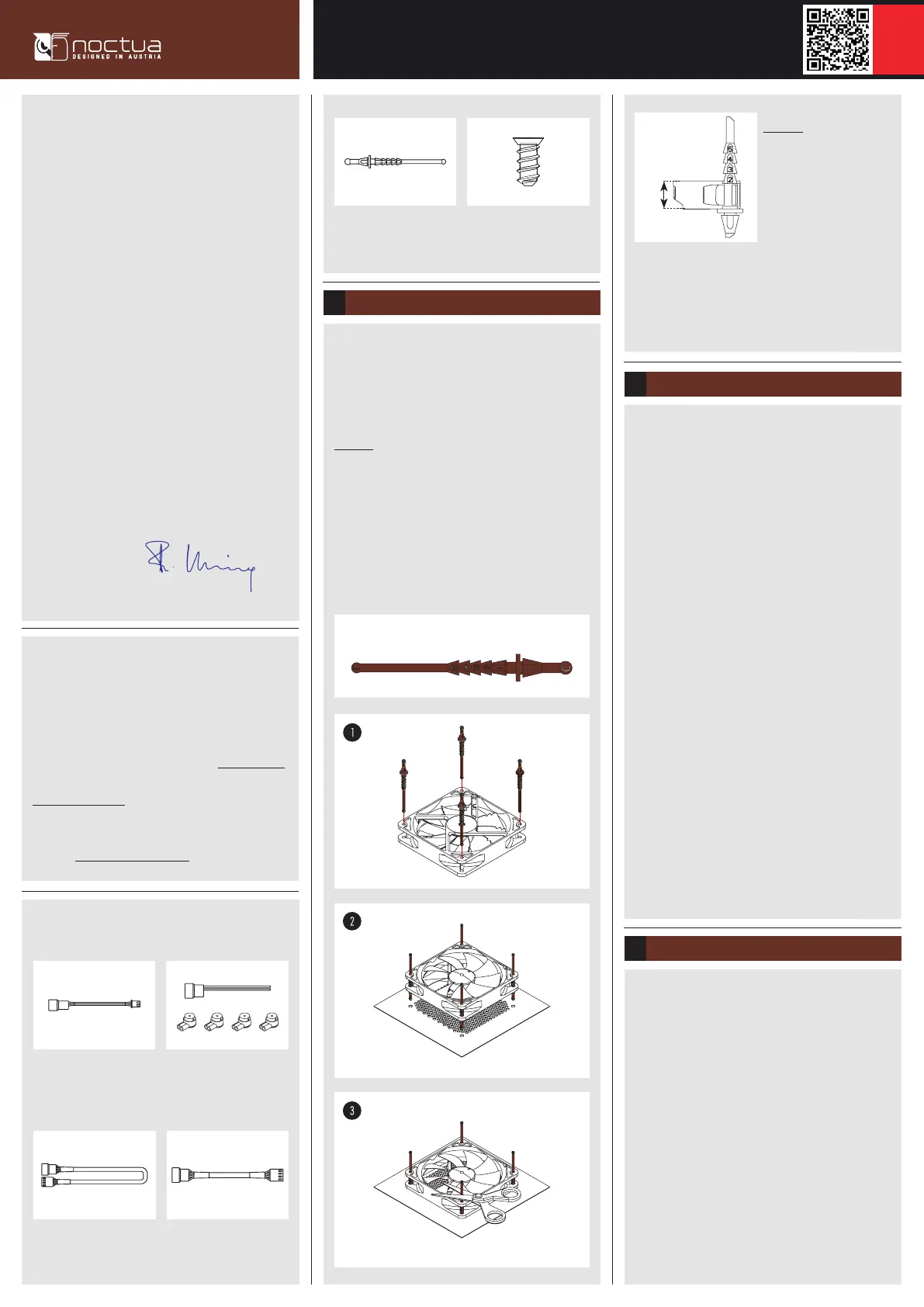

Side 1/2

Scan this code to display

multilingual manuals on

your phone.

Installation

This document includes some instructions for

installing, running and cleaning your NF-A4x10 24V

PWM.

Should you encounter any difculties, please

check the FAQs on our website (faqs.noctua.at)

and don’t hesitate to contact our support team at

support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

The NF-A4x10 24V PWM comes with a 4-pin PWM

fan connector for PWM based speed control. Please

note that the fan can also be connected to standard

3-pin fan headers, though. When connected to 3-pin

fan headers, the fan will run at full speed.

The included NA-AC9 adaptor cable allows the fan to

be connected to the 2-pin JST XHP-2 2.5mm sockets

used on many popular 3D printer models (e.g. Creality

Ender 3 and CR-10, Anycubic Mega).

If you would like to connect the fan to other fan

headers, please use the supplied OmniJoinTM adaptor

set as described below.

The fan features a short 20cm primary cable in order to

help you minimise cable clutter in typical applications.

If you need a longer cable, please add the supplied

30cm extension (NA-EC1).

The NF-A4x10 24V PWM comes with a Low-Noise

Adaptor (NA-RC8) that allows you to reduce the fan

speed from 5000 to 4100rpm. You can either use the

adaptor to set the fan to a xed speed of 4100rpm (if

speed control is deactivated) or to cap the maximum

speed to 4100rpm during PWM speed control.

Dear customer,

Congratulations on choosing the Noctua NF-A4x10

24V PWM.

We at Noctua always strive to achieve superior quiet

cooling performance regardless of whether it’s a big

200mm fan or a small 40mm one. That’s why the

NF-A4x10 24V PWM sports many of the features

and advanced aerodynamic design measures of our

award-winning larger models, making it perhaps the

most thoroughly optimised 40mm fan on the market.

Each Noctua fan is double-checked for awless

operation by our quality control team before it leaves

the factory and I’m condent that you will be able to

sense some of the research, attention and care we’ve

put into making this product.

Enjoy your NF-A4x10 24V PWM!

Yours sincerely,

Roland Mossig, Noctua CEO

Included mounting parts:

OmniJoin™ adaptor setNA-AC9

4-pin molex to 2-pin

adaptor cable

4x fan screws4x NA-AV3

anti-vibration mounts

If you replace an existing 40mm fan with the

NF-A4x10 24V PWM in devices such as 3D printers,

it is usually best to use the screws (or other mounting

mechanism) used for the original fan.

Caution: Being a 24V fan, the NF-A4x10 24V cannot

be run at 12V and requires a starting voltage of at

least 17V. It is therefore not suitable for standard PC

applications.

For installing the fan using the NA-AV3 anti-vibration

mounts, please rst pull the F side through the fan’s

mounting holes until pawl 2 is all the way through the

rst hole.

Connection

Using the OmniJoin

TM adaptor set3

The supplied OmniJoinTM adaptor set allows you to

easily connect the NF-A4x10 24V PWM to proprietary

fan headers.

Please rst identify the individual leads of the OmniJoinTM

adaptor and the original fan. The OmniJoin

TM adaptor

uses black for ground (GND) and red for +24V.

The black lead of the adaptor has to be matched with

the original GND lead and the red adaptor cable with

the original +24V lead. Many fan cables use the same

colours as the OmniJoinTM adaptor, but please note that

there is no guarantee for this, so make sure to correctly

identify the GND and +24V leads of the original fan.

Please refer to the manual that came with the device or

contact the device manufacturer if in doubt.

Then pull the C side through the mounting holes of the

case. If the long ends of the mounts are in the way, you

can use scissors to cut them after installation. Note

that this will then make them difcult to reinstall in the

future.

Caution: Only pull pawl 2

through the rst hole. Don’t

overstretch the mounts

by pulling further pawls

through!

NA-RC8

Low-Noise Adaptor (L.N.A.)

NA-EC1

30cm extension cable

Scan this code to display

multilingual manuals on

your phone.

After you’ve identied the individual leads, please

proceed with the following steps to install the

OmniJoinTM adaptor:

Cleaning and maintenance

In order to maintain maximum performance, please

clean your fans regularly using a duster, slightly moist

tissue or canned air. Please be careful not to use too

much force in order to prevent any damage to the fan.

Please don’t use a vacuum cleaner as this may apply

excessive force to the fan.

In order to ensure awless operation over many years

of usage, the NF-A4x10 24V PWM’s premium grade

SSO2 bearing is fully sealed to prevent the entering of

ne dust particles.

Please note that the fan is not designed to be taken

apart by the user. Removing the impeller from the

frame will break the sealing of the bearing and results

in a loss of warranty.

Make sure to correctly

identify the GND and

+24V leads of the

original fan!

Cable connectors

GND

+24V

OmniJoin TM

adaptor

Connector of the original fan

Step 1

Cut off the connector of the fan that was originally used

in the device. Make sure not to cut the cable directly at

the connector, there should be least 2-3cm of cable left:

2-3cm minimum!

Step 2

Then take one of the supplied cable connectors and

insert the GND lead of the original cable and the black

lead of the OmniJoinTM adaptor into the two holes of

the cable connector. Make sure that both leads are fully

inserted and pushed all the way back.

Step 3

Then use at nose pliers to push down the yellow button

of the cable connector. Make sure that the button is

not jammed and pushed all the way down. If the button

is jammed, push it down from both sides of the cable

connector using the at nose pliers.

Repeat step 2 and 3 for the +24V lead.

Warranty, support and FAQs

Even with high-grade products and strict quality

control, the possibility of defects cannot be eliminated

entirely. Therefore, we aim at providing the highest

possible level of reliability and convenience by offering

a warranty period of 6 years and direct, fast and

straightforward RMA service.

Should you encounter any problems with your

NF-A4x10 24V PWM, please don’t hesitate to contact

our support team (support@noctua.at).

Please also consult the FAQ section on our website:

faqs.noctua.at

After you’ve xed the original fan’s cable to the

OmniJoinTM adaptor using the cable connectors, simply

connect the NF-A4x10 24V PWM to the adaptor in

order to use it in your device.
