Dear customer,

Congratulations on choosing the Noctua NF-A9 5V.

We from Noctua always strive to achieve superior quiet cooling performance

regardless of whether it’s a big 200mm fan or a small 40mm one.

That’s why the NF-A9 5V sports many of the features and advanced

aerodynamic design measures of our award-winning larger models, making it

perhaps the most thoroughly optimised 92mm fan on the market.

Each Noctua fan is double checked for flawless operation by our quality control

team before it leaves the factory and I’m confident that you will be able to sense

some of the research, attention and care we’ve put into making this product.

Enjoy your NF-A9 5V!

Yours sincerely,

Roland Mossig, Noctua CEO

This document includes some instructions for

installing, running and cleaning your NF-A9 5V.

Should you have any further questions, our

support team (support@noctua.at) will be glad to

assist you at any time.

Please also have a look at the regularly updated FAQs

on our website: http://www.noctua.at/faqs

This document is also available in other languages at

the following URL: http://www.noctua.at/manuals

Scan this code to display

multi-lingual manuals on

your mobile phone.

Designed in Austria, Noctua’s premium cooling

components are internationally renowned for

their superb quietness, exceptional performance

and thoroughgoing quality.

Having received more than 6000 awards and

recommendations from leading hardware

websites and magazines, Noctua’s fans and

heatsinks are chosen by more than a hundred

th o usan d sa t i sf i e d cu s tom e rs aroun d th e glob e .

sales@noctua.at

www.noctua.at

NF-A9 5V

User Manual

www.noctua.at

In order to maintain maximum performance, please clean your fans

regularly using a duster, slightly moist tissue or canned air. Please be

careful not to use too much force in order to prevent any damage to

the fan. Please don’t use a vacuum cleaner as this may apply excessive

force to the fan.

In order to ensure flawless operation over many years of usage, the

NF-A9 5V’s premium grade SSO2 bearing is fully sealed to prevent the

entering of fine dust particles. Please note that the fan is not designed

to be taken apart by the user. Removing the impeller from the frame will

break the sealing of the bearing and results in a loss of warranty.

Cleaning and Maintenance

If you replace an existing fan, it is usually best to use the screws (or other mounting mechanisms) used for the original fan.

CAUTION: Being a 5V fan, the NF-A9 5V can not be run at 12V and will be damaged when used with typical 12V power sources such as PC mainboard fan

headers.

Depending on the application, it may also be possible to use the supplied mounting screws or silicone anti-vibration mounts.

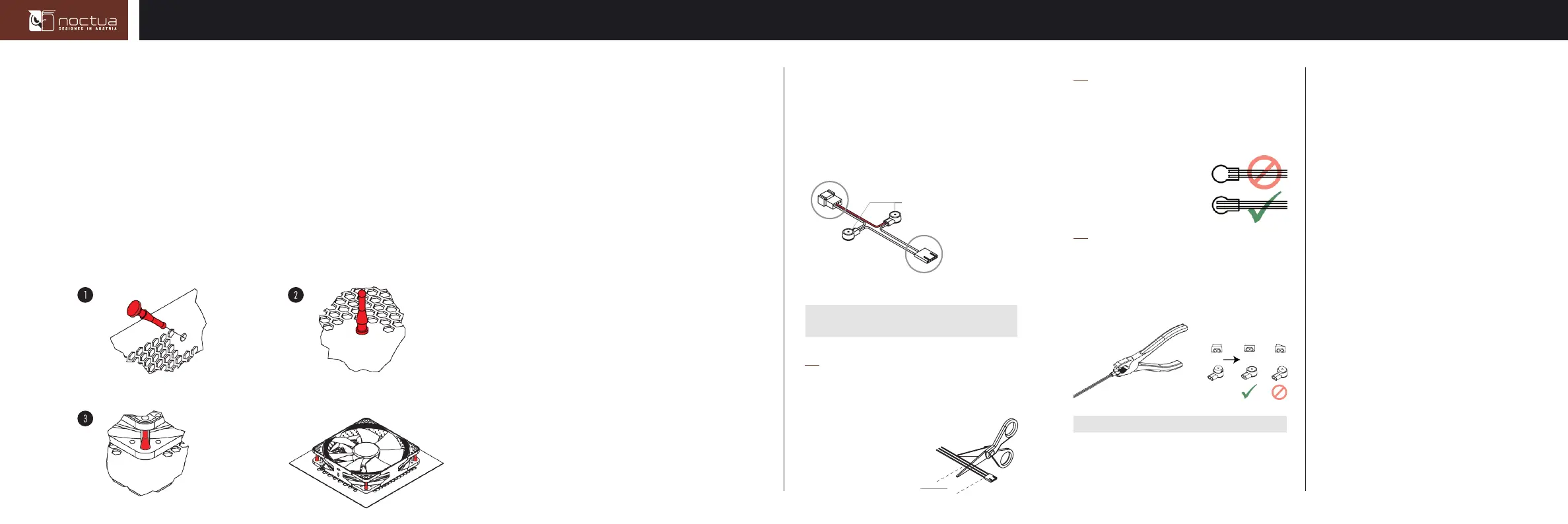

For installing the fan using the NA-AV1 anti-vibration mounts, please first pull the mounts through the mounting holes of the case. Then put the fan onto the

mounts and pull them through the mounting holes of the fan:

Installation Connection

After you’ve identified the individual leads, please proceed with the

following steps to install the OmniJoin adaptor:

Step 1

Cut off the connector of the fan that was originally used in the device.

Make sure not to cut the cable directly at the connector, there should be

least a 2-3 cm of cable left:

2-3cm minimum!

Step 3

Then use flat nose pliers to push down the white button of the

Skotchlok™ connector. Make sure that the button is not jammed and

pushed all the way down. If the button is jammed, push it down from

both sides of the Skotchlok™ connector using the flat nose pliers.

After you’ve fixed the original fan’s cable to the OmniJoin adaptor using

the Skotchlok™ connectors, simply connect the NF-A9 5V to the adaptor

in order to use it in your device.

Repeat Step 2 and 3 for the +5V lead.

Step 2

Then take one of the supplied 3M Skotchlok™ connectors and insert

the GND lead of the original cable and the black lead of the OminJoin

adaptor into the two holes of the Skotchlok™ connector. Make sure that

both leads are fully inserted and pushed all the way back.

The black lead of the adaptor has to be matched with the original GND

lead and the red adaptor cable with the original +5V lead. Many fan

cables use the same colours as the OmniJoin adaptor, but please note

that there is no guarantee for this, so make sure to correctly identify the

GND and +5V leads of the original fan. Please refer to the manual that

came with the device or contact the device manufacturer if in doubt.

The NF-A9 5V features a standard 3-pin fan connector. However, please

note that the fan can also be connected to standard 4-pin fan headers.

If you would like to run the fan on USB power sources such as devices

with USB host ports, power banks or USB power supplies, please use the

included NA-AC7 USB power adaptor cable. Please note that the NA-AC7

must be used exclusively with the NF-A9 5V fan because using it with

other fans bears the risk of damaging sensible USB host devices.

If you would like to connect the fan to other fan headers, please use the

supplied OmniJoin adaptor set as described below.

The fan features a short 20cm primary cable in order to help you minimise

cable clutter in typical applications. If you need a longer cable, please

add the supplied 30cm extension (NA-EC2).

Using the OmniJoin adaptor set

The supplied OmniJoin adaptor set allows you to easily connect the

NF-A9 5V to proprietary fan headers.

Please first identify the individual leads of the OmniJoin adaptor and

the original fan. The OmniJoin adaptor uses black for ground (GND) and

red for +5V.

Warranty and Support

Even with high-grade products and strict quality control, the possibility of

defects cannot be eliminated entirely. Therefore, we aim at providing the

highest possible level of reliability and convenience by offering a warranty

period of 6 years and direct, fast and straightforward RMA service.

Should you encounter any problems with your NF-A9 5V, please don’t

hesitate to contact our support team (support@noctua.at).

OmniJoin adaptor

3M Skotchlok

connectors

Connector of the original fan

GND

Make sure to correctly

identify the GND and

+5V leads of the

original fan!

+5V

Produkt Specifikationer

Mærke:	Noctua
Kategori:	Hardwarekoeling
Model:	NF-A9 5V
Type:	Ventilator
Bredde:	92 mm
Dybde:	25 mm
Højde:	92 mm
Produktfarve:	Beige, Brown
Pakkevægt:	250 g
Pakkedybde:	34 mm
Pakkebredde:	150 mm
Pakkehøjde:	210 mm
Omdrejningshastighed (maks.):	2000 rpm
Certificering:	CE
Kabellængde:	0.3 m
Harmoniseret systemkode (HS):	84733080
Luftstrøm:	78.9 m³/t
Bæredygtighedscertifikater:	RoHS
Hovedkassen højde (udvendigt):	390 mm
Hovedkassens længde (udvendigt):	360 mm
Hovedkassens bruttovægt (udvendigt):	11600 g
Hovedkassens bredde (udvendigt):	375 mm
Produkter pr. hovedkasse (udvendigt):	40 stk
Spænding:	5 V
Støjniveau (høj hastighed):	22.8 dB
Antal blæsere:	1 blæser(e)
Passende til rumtype:	Computerkabinet
Skruer inkluderet:	Ja
Ventilator diameter:	90 mm
Strømforsyning:	1.3 W
Kompatibel processor serie:	Ikke understøttet
Antal ventilatorblade:	7
Ventilatorstik:	3-stikben
Understøttede procesorsokler:	Ikke understøttet
Strøm (maks.):	0.26 A
Maksimalt lufttryk:	2.28 mmH2O
Anti-vibrationssystem:	Ja
Middeltid til fejl (MTTF):	150000 t
Lejetype:	Self-Stabilising Oil-pressure Bearing (SSO)
