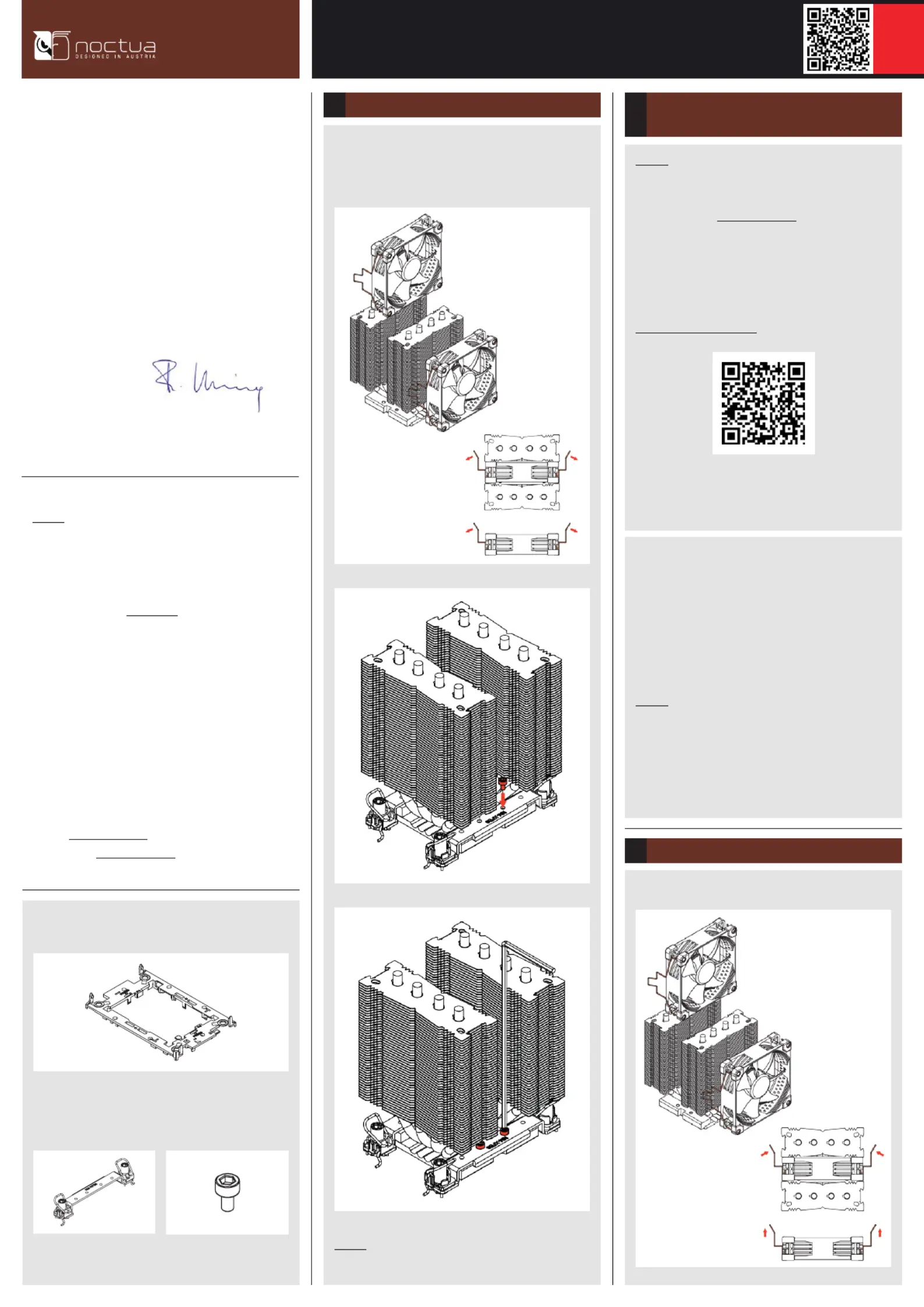

Take the fan(s) off the cooler. If the original mounting brackets

are already installed on the cooler, please take them off first. Then

install the NM-XFB8 brackets for LGA4189.

Dear customer,

Thank you very much for choosing a Noctua cooler for your

LGA4189 system.

This manual will guide you through the installation process step

by step using an NH-D9 DX-3647 heatsink as an example. Please

note that the installation procedure is identical for all models.

Enjoy your Noctua cooler on LGA4189!

Yours sincerely,

Roland Mossig, Noctua CEO

Caution: This mounting kit for LGA4189 is compatible with Noctua

DX-3647 and TR4-SP3 series heatsinks. It is not compatible with

most other Noctua CPU coolers.

Prior to installing the cooler, please consult the compatibility

centre on our website ( ) and verify that the coolerncc.noctua.at

is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient clearance for

the cooler and that there are no compatibility issues with any other

components (e.g. tall RAM modules). Double check that the

heatsink and fan clips do not make contact with the VGA

card, other PCIe cards, motherboard heatsinks or any other

components. Noctua cannot be held responsible for any damage or

losses caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs on our

website (www.noctua.at/faqs) and don’t hesitate to contact our

support team at support@noctua.at.

NOCTUA NM-i4189

INSTALLATION MANUAL

Installing/ replacing the mounting brackets1

When attaching the CPU carrier frame to the base of the heatsink,

turn the heatsink upside down so that the base is facing upwards.

Carefully put it down onto the tips of the heatpipes and secure

it with your hand so that it cannot tilt and that the fins cannot

get bent. Remove the plastic protection cover from the base of the

heatsink and be careful not to damage the layer of pre-applied

thermal compound.

Caution: If you are not using the heatsink for the first time and

it therefore doesn’t have a fresh layer of pre-applied thermal

compound anymore, you need to apply a thin layer of thermal

compound to the CPU yourself before clipping it to the heatsink.

If there are residual traces of previous thermal paste or thermal

pads on your CPU or on the heatsink, please clean them off first.

Assembly of carrier frame, CPU and heatsink &

installation to the socket

Caution: The supplied plastic CPU carrier frame is for LGA4189-4

(P4) only. LGA4189-5 (P5) systems use the same mounting

mechanism system but require a different CPU carrier frame.

Please contact us at if you would like to use support@noctua.at

the cooler on a LGA4189-5 (P5) type system.

Please follow the official Intel installation manual for how to

attach the CPU carrier frame to the heatsink, insert the CPU to the

carrier frame and install the CPU/heatsink assembly to the socket:

www.intel.com/processorinstall

Note that while the Intel illustrations show a 2U heatsink, the

Noctua NM-XFB8 brackets use the same mounting parts, so the

procedure is identical for Noctua heatsinks.

NOCTUA MOBILE-TAG

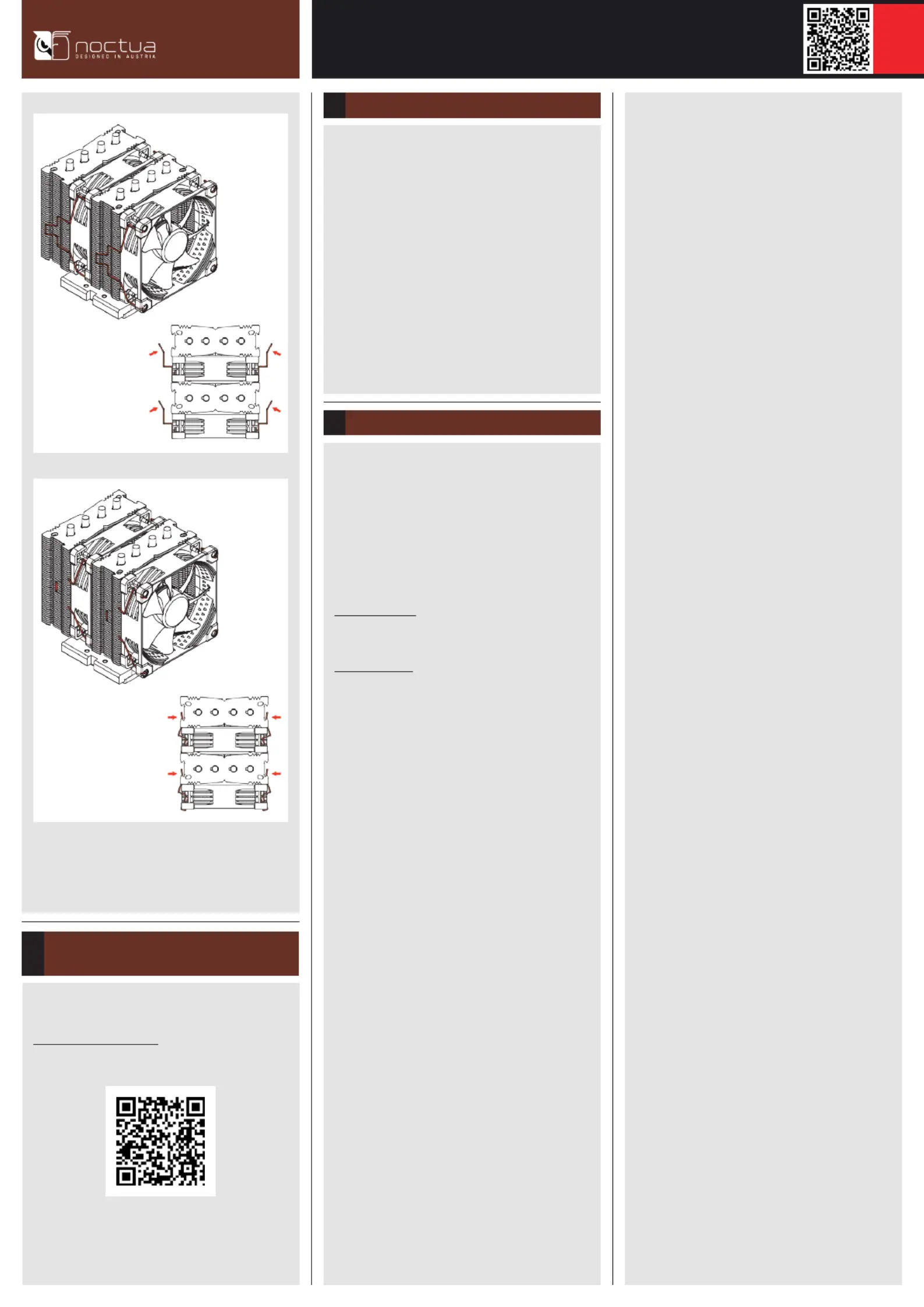

Reattach the fans to the heatsink using the supplied steel clips:

Installing the fans3

Caution: Gently tighten the screws until they stop, but do not use

excessive force (max. torque 0.6 Nm).

Required mounting parts:

1x NM-XRF6

plastic CPU carrier frame for

LGA4189-4 (P4)

4x NM-SSC2

short screws

2x NM-XFB8

brackets

NOCTUA MOBILE-TAG

NOCTUA NM-i4189

INSTALLATION MANUAL

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and direct,

fast and straightforward RMA service.

Should you encounter any problems with your Noctua product,

please don’t hesitate to contact our support team at

support@noctua.at.

Please also consult the FAQ section on our website:

www.noctua.at/faqs

Warranty, support and FAQs

As it is not possible to reliably calculate or control the forces

that act upon a system during transport (e.g. in shipping), we

generally recommend, for safety reasons, taking off coolers with

a total weight of more than 700g (incl. fan).

If the weight of the heatsink without fan is below 700g and

the total weight including fan is above 700g, we recommend

taking off the fan from the heatsink in order to reduce the weight

below 700g.

Noctua cannot be held responsible for any damage that may

arise due to excessive stress during transport if you keep the

heatsink installed.

Transporting your system!

Removing the heatsink from the socket and

the CPU from the heatsink

Please follow the official Intel guidelines for how to remove

the heatsink and how to take off the CPU and carrier frame:

www.intel.com/processorinstall

Connect the fans to the motherboard’s CPU fan header(s). If

necessary, use the supplied NA-YC1 y-cable to connect both

fans to one fan header.

Produkt Specifikationer

Mærke:	Noctua
Kategori:	Hardwarekoeling
Model:	NM-i4189
Type:	Monteringssæt
Antal pr. pakke:	1 stk
Velegnet til:	Processor
Produktfarve:	Black, Metallic
Kapabilitet:	Noctua NH-U14S TR4-SP3, NH-U12S TR4-SP3, NH-U9 TR4-SP3, NH-U14S DX-3647, NH-U12S DX-3647, NH-D9 DX-3647 4U
Understøttede procesorsokler:	LGA 4189
