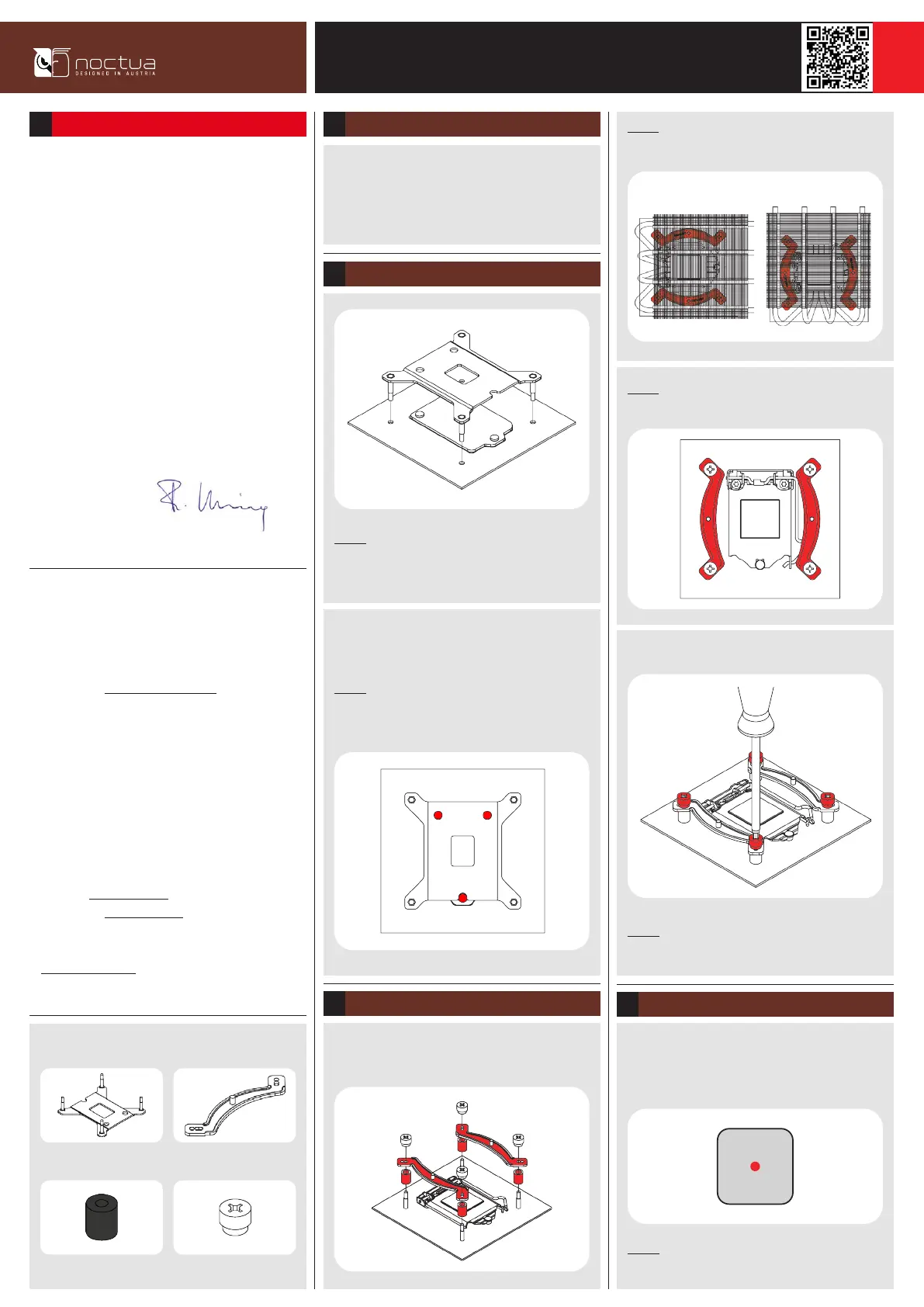

Side 1/6

Caution: The supplied backplate will install over the mother-

board’s stock backplate, so the motherboard’s stock backplate

must not be taken off.

Attaching the backplate

Place the backplate on the rear side of the motherboard so that the

bolts stick through the mounting holes.

Caution: Please make sure that the three cut-outs in the

supplied backplate align with the screws of the motherboard’s

stock backplate.

First put the plastic spacers onto the bolts of the backplate, then

add the mounting bars.

Installing the mounting bars3

Caution: Choose the alignment of the mounting bars according to the

desired final orientation of the cooler:

In case you want to use the cooler on an assembled system and

your case doesn’t have a cut-out at the rear side of the mother-

board tray, you first have to remove the motherboard from the

case in order to be able to install the supplied backplate.

Removing the motherboard1

Caution: Make sure that the curved sides of the mounting bars are

pointing outwards.

Fix the mounting bars using the 4 thumbscrews.

Caution: Gently tighten the thumbscrews until they stop, but don’t

use excessive force (max. torque 0.6 Nm).

Dear customer,

Congratulations on choosing the Noctua NH-L12 Ghost S1 edition.

Our classic NH-L12 has proven to be the best air cooling

solution for Louqe’s award-winning Ghost S1 enclosure. With its

single 92mm fan, the new Ghost S1 edition is tailored for use

in this case and has been updated with the latest SecuFirm2™

mounting hardware for all current mainstream sockets. Topped

off with our further improved NT-H2 thermal compound and a

full 6-year manufacturer’s warranty, the NH-L12 Ghost S1 edition

is the ideal choice for premium grade quiet builds in the Louqe

Ghost S1 chassis.

Enjoy your NH-L12 Ghost S1 edition!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that the

cooler is fully compatible with your motherboard. Please also make

sure that your PC case offers sufficient clearance for the cooler and

that there are no compatibility issues with any other components

(e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make contact

with the VGA card or other PCIe cards. Noctua cannot be held

responsible for any damage or losses caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs on

our website (www.noctua.at/faqs) and don’t hesitate to contact our

support team at support@noctua.at.

Multilingual versions of this manual are available on our website:

www.noctua.at/manuals

Required mounting parts:

2x NM-IMB3 mounting bars1x NM-IBP2 backplate

4x NM-ITS1 thumbscrews4x NM-IPS1 plastic spacers

Orientation A Orientation B

LGA115x & LGA1200

Applying the thermal paste4

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first. Then press a drop (3-4mm

diameter) of NT-H2 onto the centre of the heatspreader.

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Noctua NH-L12 Ghost S1 Edition|

Installation Manual

Scan this code to display

multilingual manuals on

you mobile phone.

Produkt Specifikationer

Mærke:	Noctua
Kategori:	Hardwarekoeling
Model:	NH-L12 Ghost S1 Edition
Type:	Heatsink/Radiatior
Bredde:	128 mm
Dybde:	150 mm
Højde:	66 mm
Vægt:	500 g
Antal pr. pakke:	1 stk
Produktfarve:	Aluminium, Copper colour
Omdrejningshastighed (min.):	300 rpm
Omdrejningshastighed (maks.):	1600 rpm
Strømforbrug (typisk):	0.96 W
Pakketype:	Kasse
Materiale:	Aluminium, Copper, Nickel
Luftstrøm:	64.3 m³/t
Støjniveau (høj hastighed):	17.6 dB
Antal blæsere:	1 blæser(e)
Passende til rumtype:	Processor
Ventilator diameter:	95 mm
Ventilatorens støjniveau (maks.):	17.6 dB
Køler materiale:	Aluminium
Blæser, spænding:	12 V
Blæser, hastighed (min.):	300 rpm
Blæser, hastighed (maks.):	1600 rpm
Understøttede procesorsokler:	Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Køler bredde:	128 mm
Køler dybde:	150 mm
Køler højde:	66 mm
Nominel spænding:	12 V
Ventilator dimensioner (BxDxH):	92 x 92 x 25 mm
Materiale for grundplade:	Kobber
Lejetype:	Self-Stabilising Oil-pressure (SSO) bearing
Lamelmateriale:	Aluminium
Garantiperiode:	6 År
Ventilatorens middeltid til fejl (MTTF):	150000 t
