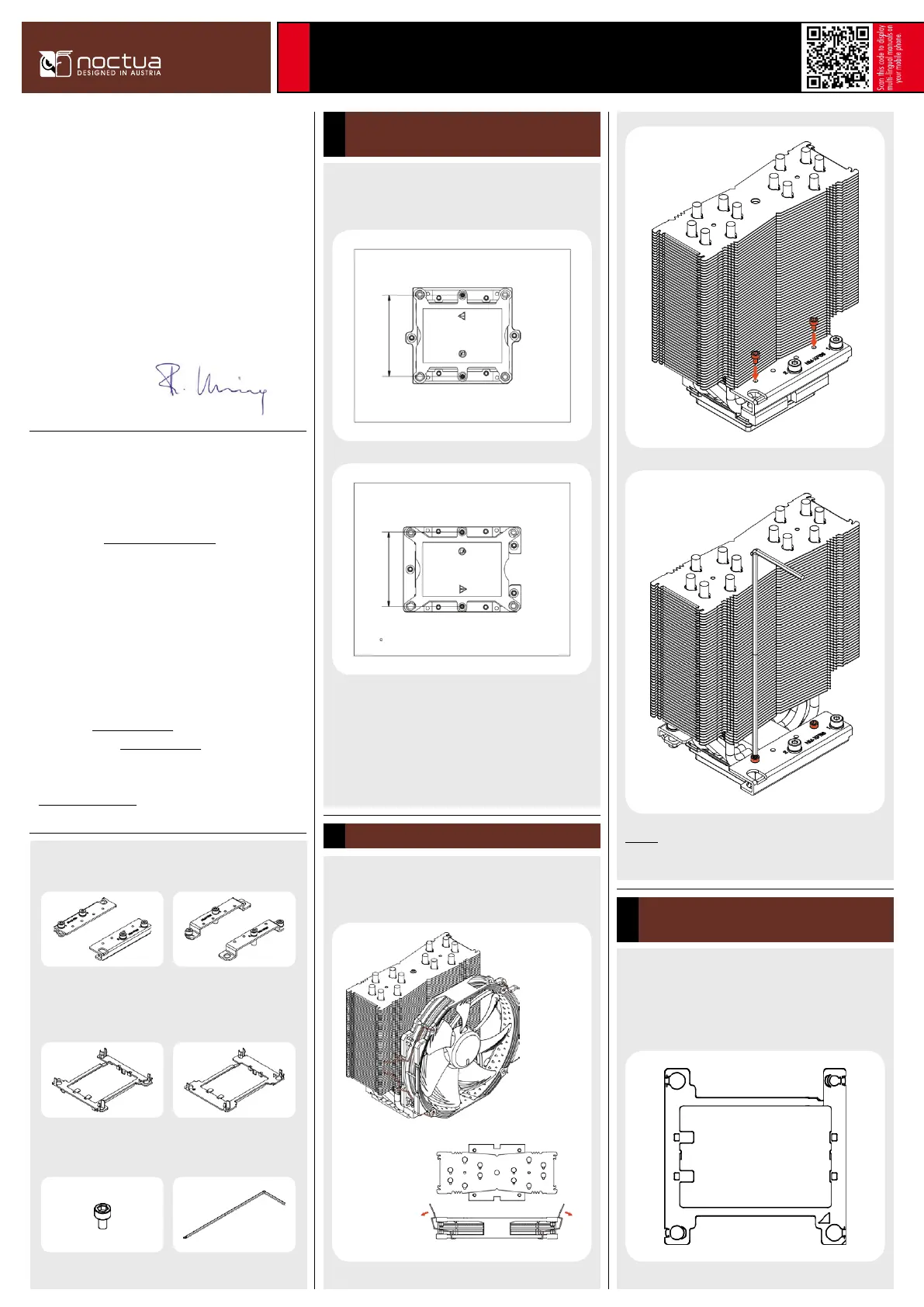

Side 1/4

Dear customer,

Congratulations on choosing the Noctua NH-U14S DX-3647.

Our DX line of coolers has become a default choice in high perfor-

mance quiet cooling solutions for Intel Xeon CPUs and the latest

DX-3647 revision supports LGA3647 (both Square and Narrow ILM)

based Xeon platforms. Each Noctua product is double checked for

flawless operation by our quality control team before it leaves the

factory and I’m confident that you will be able to sense some of

the research, attention and care we’ve put into making this product.

Enjoy your NH-U14S DX-3647!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that the

cooler is fully compatible with your motherboard. Please also make

sure that your PC case offers sufficient clearance for the cooler and

that there are no compatibility issues with any other components

(e.g. tall RAM modules). Double check that the heatsink and fan

clips do not make contact with the VGA card or other PCIe cards.

Noctua cannot be held responsible for any damage or losses caused

by compatibility issues.

Should you encounter any difficulties, please check the FAQs on

our website (www.noctua.at/faqs) and don’t hesitate to contact

our support team at support@noctua.at.

Multilingual versions of this manual are available on our website:

www.noctua.at/manuals

Noctua NH-U14S DX-3647 |

Installation Manual | LGA3647

LGA3647

Take the fan off the cooler. Use the included mounting tool and

the short screws to install the appropriate brackets to the cooler.

Required mounting parts:

Determining the socket type (square vs narrow)

and selecting the appropriate brackets

Please first check if your motherboard uses square or narrow type

socket(s):

Select the NM-XFB6 brackets for square type sockets and the

NM-XFB7 brackets for narrow type sockets.

This manual shows the installation procedure on square type

sockets, but the procedure is identical on narrow type platforms.

Installing the brackets2

2x NM-XFB6

brackets for square type sockets

2x NM-XFB7

brackets for narrow type sockets

Plastic processor clip square type Plastic processor clip narrow type

4x NM-SSC2 short screws NM-SMT4 mounting tool

75,25 mm

69,00 mm

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

The LGA3647 platform uses a plastic clip that fixes the CPU to the

heatsink and ensures that it is properly inserted into the socket.

There are different clips for square and narrow type sockets. Please

first select the clip that matches your socket type.

Putting the CPU into the processor clip and

fixing it to the heatsink

NM-XFB6 for square type sockets

NM-XFB7 for narrow type sockets

Produkt Specifikationer

Mærke:	Noctua
Kategori:	Hardwarekoeling
Model:	NH-U14S DX-3647
Type:	Køler
Bredde:	150 mm
Dybde:	78 mm
Højde:	165 mm
Vægt:	957 g
Pakkevægt:	1710 g
Pakkedybde:	198 mm
Pakkebredde:	227 mm
Pakkehøjde:	160 mm
Omdrejningshastighed (min.):	300 rpm
Omdrejningshastighed (maks.):	1500 rpm
Materiale:	Kobber
Harmoniseret systemkode (HS):	84733080
Luftstrøm:	140.2 m³/t
Hovedkassen højde (udvendigt):	342 mm
Hovedkassens længde (udvendigt):	481 mm
Hovedkassens bruttovægt (udvendigt):	15200 g
Hovedkassens bredde (udvendigt):	417 mm
Produkter pr. hovedkasse (udvendigt):	8 stk
Støjniveau (høj hastighed):	24.6 dB
Antal blæsere:	1 blæser(e)
Passende til rumtype:	Processor
Ventilator diameter:	150 mm
Strømforsyning:	1.56 W
Kompatibel processor serie:	Intel® Xeon®
Ventilatorstik:	4-polet
Understøttede procesorsokler:	LGA 3647 (Socket P)
Understøttelse af puls-bredde modulering (PWM):	Ja
Maksimalt lufttryk:	2.08 mmH2O
Nominel spænding:	12 V
Ventilator dimensioner (BxDxH):	140 x 150 x 25 mm
Dimensioner for kølelegeme (BxDxH):	150 x 52 x 165 mm
Middeltid til fejl (MTTF):	150000 t
Kølelegemets vægt:	797 g
Lejetype:	Self-Stabilising Oil-pressure Bearing (SSO)
Lamelmateriale:	Aluminium
