WARNING

IMPORTANT SAFETY

INSTRUCTIONS

READ ALL INSTRUCTIONS

BEFORE USING

1. Do not leave appliance when plugged in. Unplug

from outlet when not in use and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow to be used as a toy. Close attention

is necessary when used by or near children.

4. Use only as described in this manual. Use only

manufacturer’s recommended attachments.

5. Do not handle plug or appliance with wet hands.

6. Do not put any object into openings. Do not use

with any openings blocked, keep free of dust,

lint, hair, and anything that may reduce air flow.

7. Keep hair, loose clothing, fingers, and all parts of

body away from openings and moving parts.

Product specifications subject to change without notice.

Madison and Red Bank Roads, Cincinnati, Ohio 45227

Printed in Canada, Rev. 1/01, Part No. 88611

Save These Instructions

ELECTRIFIED INLET

Models: CI-390, CI-395

Installation Instructions

For use with NuTone CH610, CH615 or

CH620 Central Cleaning System Hoses.

UL Listed Assembly

E150280

One Year

Limited Warranty

WARRANTY OWNER: NuTone warrants to the original consumer purchaser of its products

that such products will be free from defects in materials or workmanship for a period of one (1)

year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MER-

CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

During this one year period, NuTone will, at its option, repair or replace, without charge, any

product or part which is found to be defective under normal use and service. THIS WARRAN-

TY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS OR TUBES, FILTERS,

DUCT, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This war-

ranty does not cover (a) normal maintenance and service or (b) any products or parts which

have been subject to misuse, negligence, accident, improper maintenance or repair (other

than by NuTone), faulty installation or installation contrary to recommended installation instruc-

tions.

The duration of any implied warranty is limited to the one year period as specified for the

express warranty. Some states do not allow limitation on how long an implied warranty lasts,

so the above limitation may not apply to you.

NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT NUTONE’S OPTION, SHALL BE

THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.

NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL

DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFOR-

MANCE. Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not apply to you. This warranty gives you

specific legal rights, and you may also have other rights, which vary from state to state. This

warranty supersedes all prior warranties.

WARRANTY SERVICE: To qualify for warranty service, you must (a) notify NuTone at

the address stated below or telephone 1/800-543-8687, (b) give the model number and

part identification and (c) describe the nature of any defect in the product or part. At the

time of requesting warranty service, you must present evidence of the original pur-

chase date.

Date of Installation Builder or Installer

Model No. and Product Description

IF YOU NEED ASSISTANCE OR SERVICE:

For the location of your nearest NuTone Independent

Authorized Service Center:

Residents of the contiguous United States Dial Free 1-800-543-8687

Please be prepared to provide:

Product model number • Date and Proof of purchase

• The nature of the difficulty

Residents of Alaska or Hawaii should write to: NuTone Inc. Attn: Department of National

Field Service, Madison and Red Bank Roads, Cincinnati Ohio 45227-1599.

Residents of Canada should write to: Broan-NuTone Canada,

6300 Tomken Road,Mississauga, Ontario, Canada L5T 1H9. Rev. 01/2000

8. Do not use to pick up flammable or combustible

liquids such as gasoline or use in areas where

they may be present.

9. Connect only to NuTone current carrying hose

models CH610, CH615 or CH620.

10. Do not install a wall valve outdoors.

11. Do not use with a damaged hose. Return hose to

an authorized NuTone service center.

12. To unplug, grasp and pull on the hose connec-

ton. Do not unplug by pulling the hose.

13. Do not handle the hose or connector with wet

hands.

Electrified Inlet (with 12 AWG Wire)

NEW HOME INSTALLATION

INSTRUCTIONS

(For Household Use)

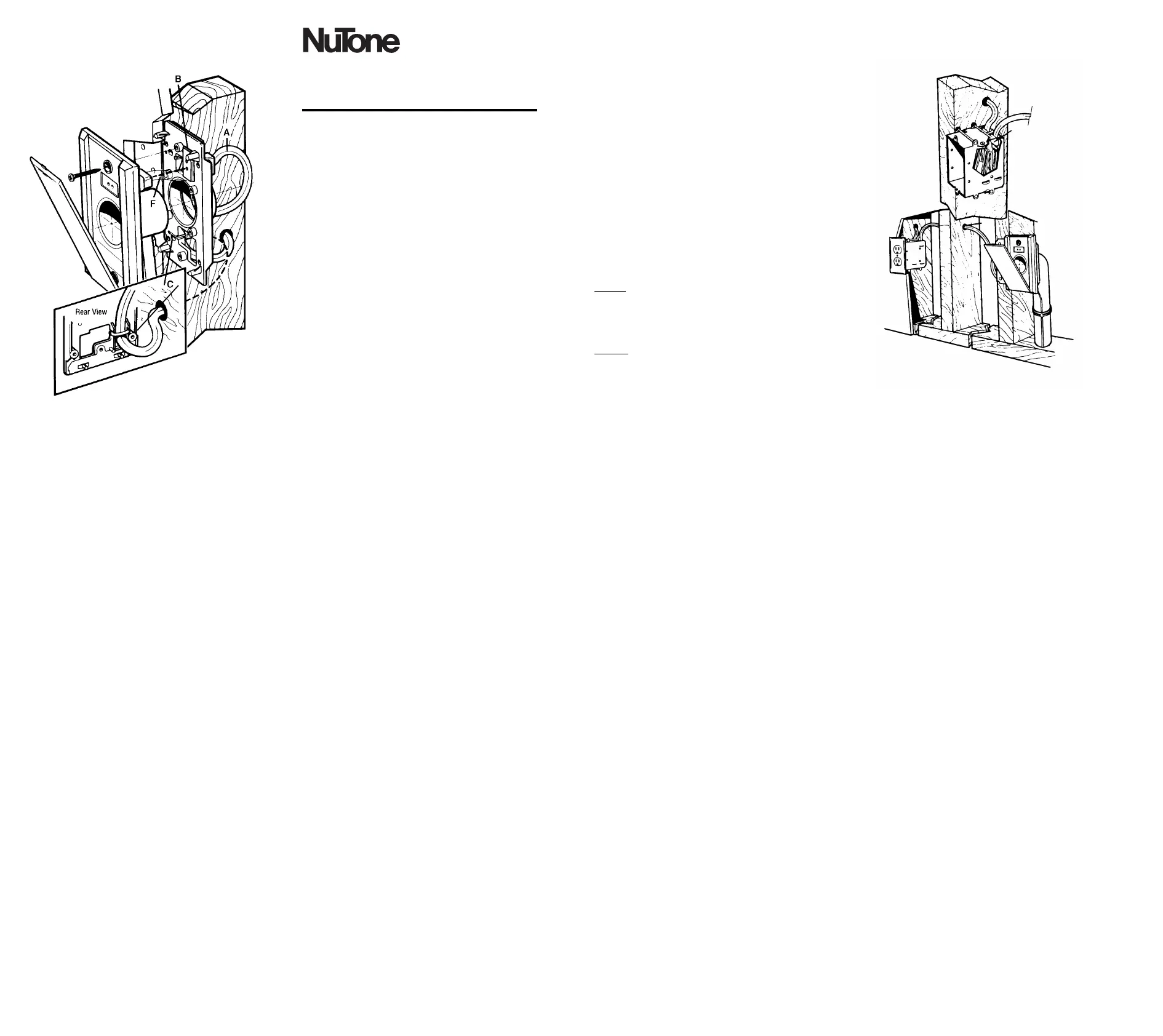

1. Fasten the mounting plate to a stud within three

studs (48") of an electrical outlet box. Measure

and mark the wire 10" from the plug (A), Feed

the wire through the top hole in the mounting

plate (Just above the circular opening). Snap the

molded plug into the mounting plate as pictured

(B). This will keep it secure and out of harm’s

way during drywalling and finishing. Line up the

wire at the previously measured 10" mark with

the strain relief channel on the back of the

mounting plate. Secure it in place with the sup-

plied wire tie (C).

2. Run the inlet wire to the adjacent electric box. If

you must run wire through a stud, drill directly

through the center of the stud (D).

3. Place the exposed ends of the two wires into the

electrical box through a strain relief channel (E).

Tighten the strain relief (do not overtighten) on

the white sheathing leaving 1/2" of this sheathing

exposed inside the outlet box.

Fold the 6" of black and white wire into the outlet

box. Leave the wires to be connected by the elec-

trician when plug receptacles are being installed.

(Attention: Power tools such as routers are not

recommended for use with the inlet installation, as

removal of drywall with these devices may cause

damage to the mounting plate and/or inlet plug.)

4. Once drywall and finishing processes have been

completed, remove molded plug from mounting

plate (with the aid of a slot screwdriver) and snap

it into the wing slot at the back of the inlet (F).

(Please note: molded plug fits one way only, with

the narrow opening at the top.) Insert inlet into

mounting plate and secure inlet to mounting plate

with screws provided.

NOTE: All electrical devices such as the electri-

fied inlet should be reported to the construction

electrician for listing on the inspection report for

building inspection purposes.

NOTE: Plumb inlet to tubing using NuTone

Model 382-S 90° Ell fitting.
