VDB 824YA Video Doorbell

The operating manual is a component part of the device.

It contains important information regarding safety, use and

disposal. Familiarize yourself with all the information con-

cerning operation and safety of the product before starting

to use it. Only use the product in the way described and

within the area of application specied. If you pass the

product on to third parties, be sure to hand over all the

documents with it.

Safety Instructions

Information on safety, intended use and disposal is

available in the separate supplementary sheet titled

"Safety Information".

Package Contents

Check the package contents of the doorbell carefully before putting

the doorbell into operation. If anything is missing or damaged,

please contact our Service Department.

■1 × video doorbell, VDB 824YA

■1 × operating manual

■1 × USB cable

■1 × assembly material

■3 × name labels made of paper

■1 × mounting plate

■6 × connection cables

■6 × clamping devices

■1 × Function board, CA 824

Separate Accessories Available

■Angle adapter, AM 824

■Digital gong, DC 433

System Requirements

You need a web-capable smartphone which has the Android (from

4.1) or iOS (from 8) operating system and the latest version of the

Tuya Smart app.

To put the doorbell into operation for the rst time, it must be con-

nected to the Tuya Smart app and the wi of your router.

The doorbell and smartphone/tablet PC must be registered on the

same wi system.

Observe the following points when selecting the assembly location:

■The doorbell must be within the range of the wireless home

network (wi).

■It is essential to observe local laws and regulations!

Features

The functions provided to compile pictures and sound means the

doorbell has many areas of application in the elds of surveillance

and communication.

All the functions can also be controlled via remote access using the

Tuya Smart app on your smartphone/tablet PC.

■Remote access

You can enjoy remote access to the doorbell via the Tuya Smart

app. You can then watch live pictures or a video recording and con-

trol other functions.

■Intercom function

You can use the Tuya Smart app to listen or speak directly into the

room being monitored.

■Shared access

You can use the Tuya Smart app to share access to your doorbell

and allow trusted persons to watch the live images from the doorbell

and control functions.

Inserting a MicroSD Memory Card (Option)

If you want to save photos or videos locally on the doorbell

you

can insert a microSD memory card (not contained in the package

supplied) with up to 64 GB memory space in the doorbell

1. microSD card slot Open the cover of the

on the rear side of

the device.

2. microSD card slot Insert the microSD memory card in the

Pay attention that the microSD memory card is aligned correctly.

The design of the microSD card slot

ensures correct

alignment.

►The microSD memory card latches audibly in place.

Switching the Doorbell On

1. Switch the doorbell

on using the On/O󰀨 button

Resetting the Doorbell

Before installation, you must charge the battery of the

doorbell

fully by connecting the USB cable (contained in

the package supplied) to the USB charging port

Before assembly, you must connect the doorbell

to the

Tuya Smart app.

Before connecting the doorbell

to the Tuya Smart app, you must

reset the doorbell

1. Reset buttonPress and hold the

for about 5 seconds.

►The doorbell

conrms the reset function via the loud-

speaker

After the reset process, the doorbell

is switched on

automatically and ready for connection.

As a result of the reset, the connection to the home net-

work and Tuya Smart app is disconnected.

Installing the Tuya Smart App

To dene further settings on the doorbell

and establish a

connection to your home network (wi), follow the instructions

provided by the Tuya Smart app.

1. Tuya SmartDownload the app from the App Store or Google

Play Store or scan this QR code.

Pay attention that the doorbell

and your smartphone/

tablet PC are within range of the same home network

(wi).

2. Tuya SmartOpen the app on your smartphone/tablet PC and

tap on .Add Device

3. Camera & Lock Smart Access the screen option and select the

Doorbell device type.

4. Tuya SmartConrm in the app that the indicator is ashing fast

and tap on . Next

5. Select your home network and enter the corresponding WiFi

password.

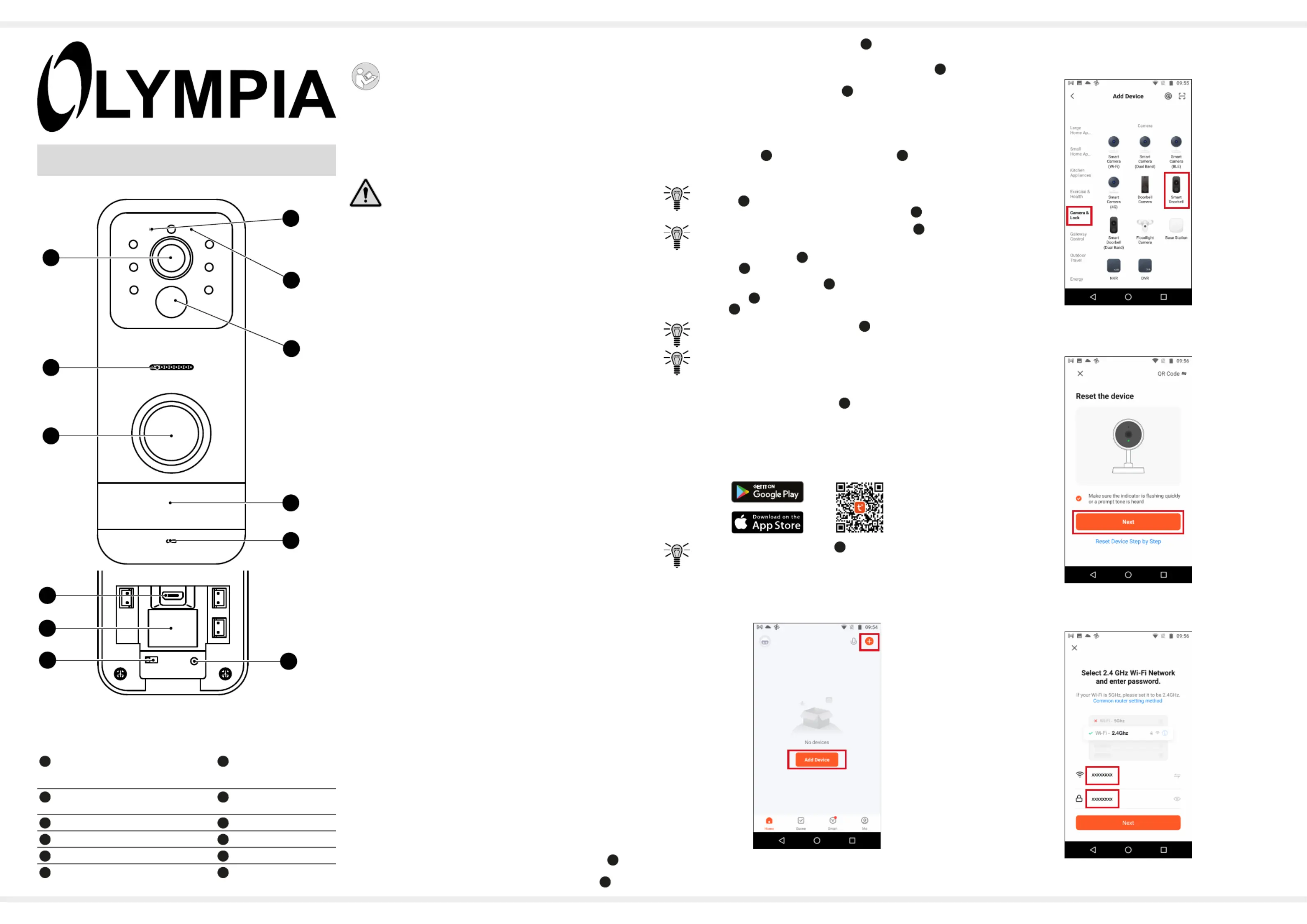

General View

The gures illustrate the device in detail.

Wi LED

Blue, ashing: Not connected

Blue, on: Connected to WiFi

Loudspeaker

Battery charge indicator LED

Red: Charge; Green: Ready

Camera

Motion detector

Reset button

Name label slot

On/O󰀨 button

Microphone

MicroSD card slot

Doorbell button

USB charging port

6. Tuya SmartScan the QR code displayed in the app from a

distance of 15 to 20 cm using the camera

in the doorbell

7. Tuya SmartUse the app to conrm that you heard an acoustic

signal from the doorbell

after the scanning process.

►A counter runs backwards until the connection has been

established.

►When a connection has been established, you hear an

audible conrmation from the loudspeaker

in the

doorbell

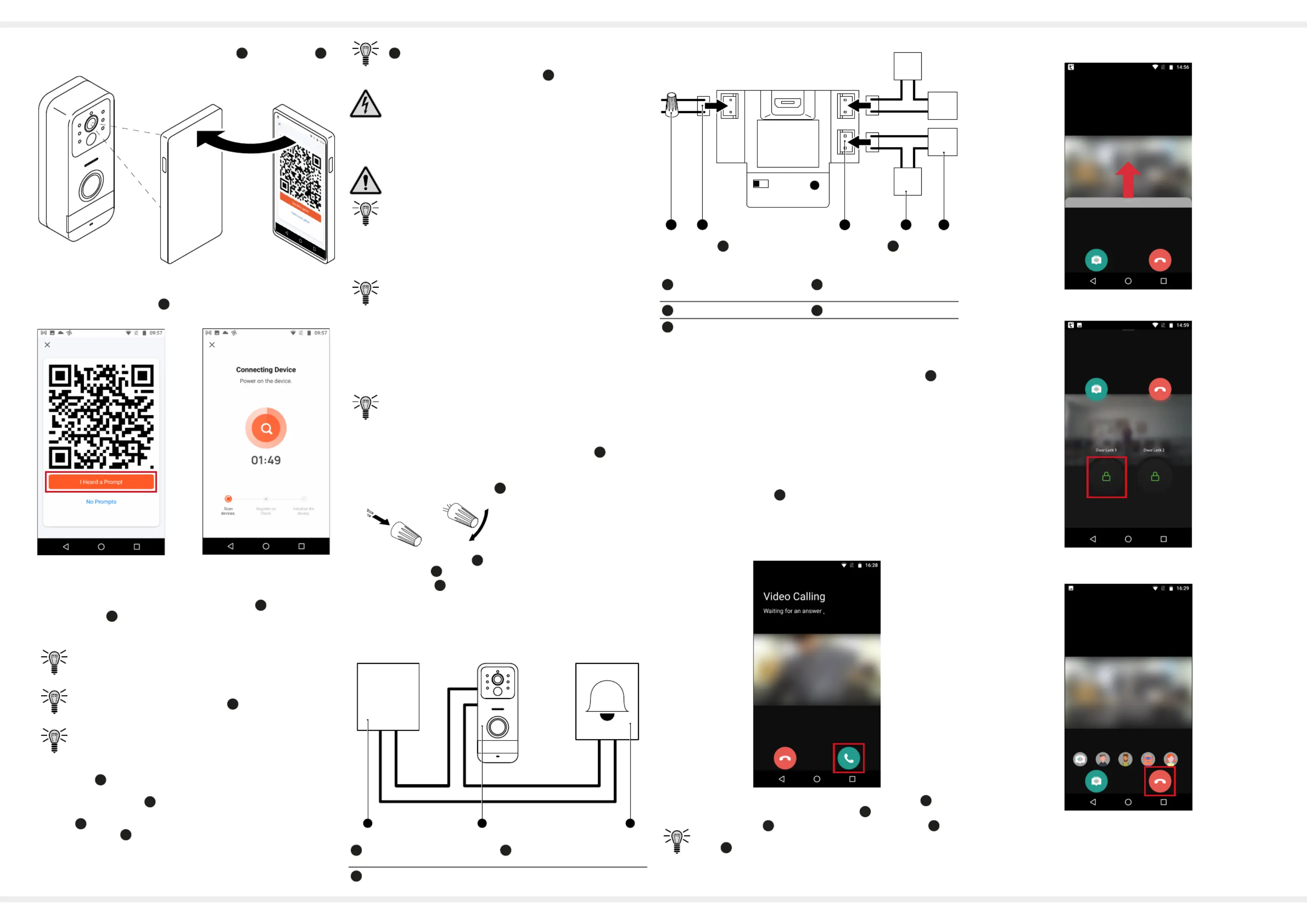

Assembling the Doorbell

Before beginning assembly, check that camera surveil-

lance is permitted in the area concerned. Also check

whether the area being monitored must be identied.

When using the wireless option, pay attention that the

installation location of the camera

is within the operat-

ing range of the home network (wi system).

Insert the microSD memory card before completing the

wall installation.

Selecting an Installation Location

The doorbell

is splashproof at the installation location in accord-

ance with the criteria dened for Protection Class IP44. When

assembling the doorbell

, pay attention that it is installed in a dry

location and the electrical equipment will not get wet. Ideally, the

doorbell

should be installed at a height of approx.1.5 metres.

Install the doorbell

directly beside the entrance door and use the

bell wire (AC 8 – 24 V) provided for the power supply.

Alternatively, you can recharge the battery in the doorbell

at regular intervals by connecting the USB cable

supplied or a powerbank (not contained in the package

supplied) to the USB charging port

Warning! Risk of fatal injury from electric shock or

gas explosion! During installation, pay attention to the

possibility of electrical cables and gas pipes running

in the walls. Pay attention that you do not damage

electric cables or gas pipes. In case of doubt, contact

a specialist!

Attention! Before starting any assembly work,

unscrew any relevant fuses.

Call in a trained electrician to complete the connection.

1. Ensure that the power supply to the bell wire has been discon-

nected.

2. Ensure that there are no electric cables, gas or water pipes near

the installation location.

The mounting plate must be assembled on the wall rst. Pay

attention that the mounting plate is correctly aligned. The

opening for the feed-through of the bell wire must point down

wards.

3. Mark the drill holes at the distance measured on the wall at the

installation location.

4. Drill the holes.

5. Insert the appropriate dowels contained in the assembly material

supplied.

We recommend the use of special dowels according to the

properties of the mounting surface.

6. Fix the mounting plate on the wall using the screws supplied.

7. Two bell wires come out of the wall. Connect each bell wire with

a bell wire in the doorbell. Use the clamping devices

for this

(contained in the package supplied). You need not pay attention

to the polarity of the bell wires.

8. Tighten the clamping devices

by turning them clockwise.

9. Ensure that the doorbell

is switched on via the

On/O󰀨 switch

10. Fix the doorbell

to the mounting plate using the screws

supplied.

11. Switch on the power supply to the bell wire.

► The light ring around the bell button ashes red.

Circuit Diagram 1: Connecting to the building wiring

8 V - 24 V

13 14 15

Current source

(AC: 8 V - 24 V)

House doorbell

Doorbell

Circuit Diagram 2: Extension with door opener

Lock

8 V -

24 V

Lock

8 V -

24 V

1918

AC 8 V - 24 V

The doorbell

has 2 connections for the door lock

. In the circuit

diagram, Connection 2 is indicated. The designation also applies for

Connection 1.

Terminal

Current source

(AC: 8 V - 24 V)

Bell wire socket

Door lock

Door lock 2 socket

Installing the CA 824 Function Board

If hissing or humming noises can be heard after the doorbell

has

been properly installed, you can install a CA 824 function board in

the bell to clear the noises.

More information is available in the Installing the CA 824 Function

Board information sheet enclosed.

Operating the Doorbell

The following illustrations do not reect the quality of the images

provided by the Tuya Smart app. They are made unrecognisable

due to reasons of personal rights.

1. Bell buttonPress the

►A video call is started in the Tuya Smart app.

2. Call button Tuya SmartPress the in the app.

►The call begins.

You can control two door locks (Door Lock 1 / Door Lock 2)

via

the Tuya Smart app. Actuation of a door lock

is described below.

The door lock

must be connected to the doorbell

order to use the Tuya Smart app to operate the door

lock

3. Use your nger to draw the button upwards.

4. Press on the lock icon.

►You have unlocked the door.

5. On-hook buttonEnd the call by pressing on the .

►The call is ended.
