User Manual

Doc No. : OE-DD220630 / Rev1.5

Manual Contents

__________________________________________

Manual Contents 1-0

Welcome! Product Description 1-1

System Requirements for Setup 1-2

Installation 1-3

Self-EDID Programming Procedure 1-5

Troubleshooting, Maintenance, Technical Support 1-6

Product Specifications 1-7

Warranty Information 1-8

Certifications 1-9

Pictorials

Figure 1 – Connection Diagram of Optical DVI

Extension Modules 1-1

Figure 2 – Fiber numbering and Status LED position

on a label 1-3

Figure 3 – Connection of optical fiber 1-4

Figure 4 – Position of EDID-PRG. Button and

Status LED 1-5

2-Fiber Detachable

Dual Link DVI module,

DDFX-100

www.opticis.com

Welcome!

Congratulations on your purchase of the Stretch DVI

DDFX-100-TR

Optical Dual Link DVI (Digital Visual Interface) Extension Module. This manual

contains information that will assist you in installing and operating the product.

Product Description

The DDFX-100-TR optical DVI module transmits uncompressed WQXGA

(2560x1600), 60Hz or WQUXGA (3840x2400), 33Hz vertical refresh rate of

Dual-link DVI up to 500 meters (1,640feet) over two (2) LC multi-mode fibers

OM2 or OM3, and 300 meters (984 feet) with OM1 fiber. The EDID (Extended

Display Identification Data) in a display can be read and restored by just

plugging once transmitter to the display. This Self-EDID programming feature

makes the installation of DDFX-100-TR more easy and flexile at any variable

resolution display systems. For your convenience, WQXGA EDID had been

stored before shipment as a default.

Shipping Group

 DDFX-100-TR Optical Dual Link DVI Extension Module: One (1)

pair

 AC/DC power adapter: Two (2) units of +5V, 1A

 User Manual

 Option Product: Duplex LC Patch Cord (Multi-mode fiber)

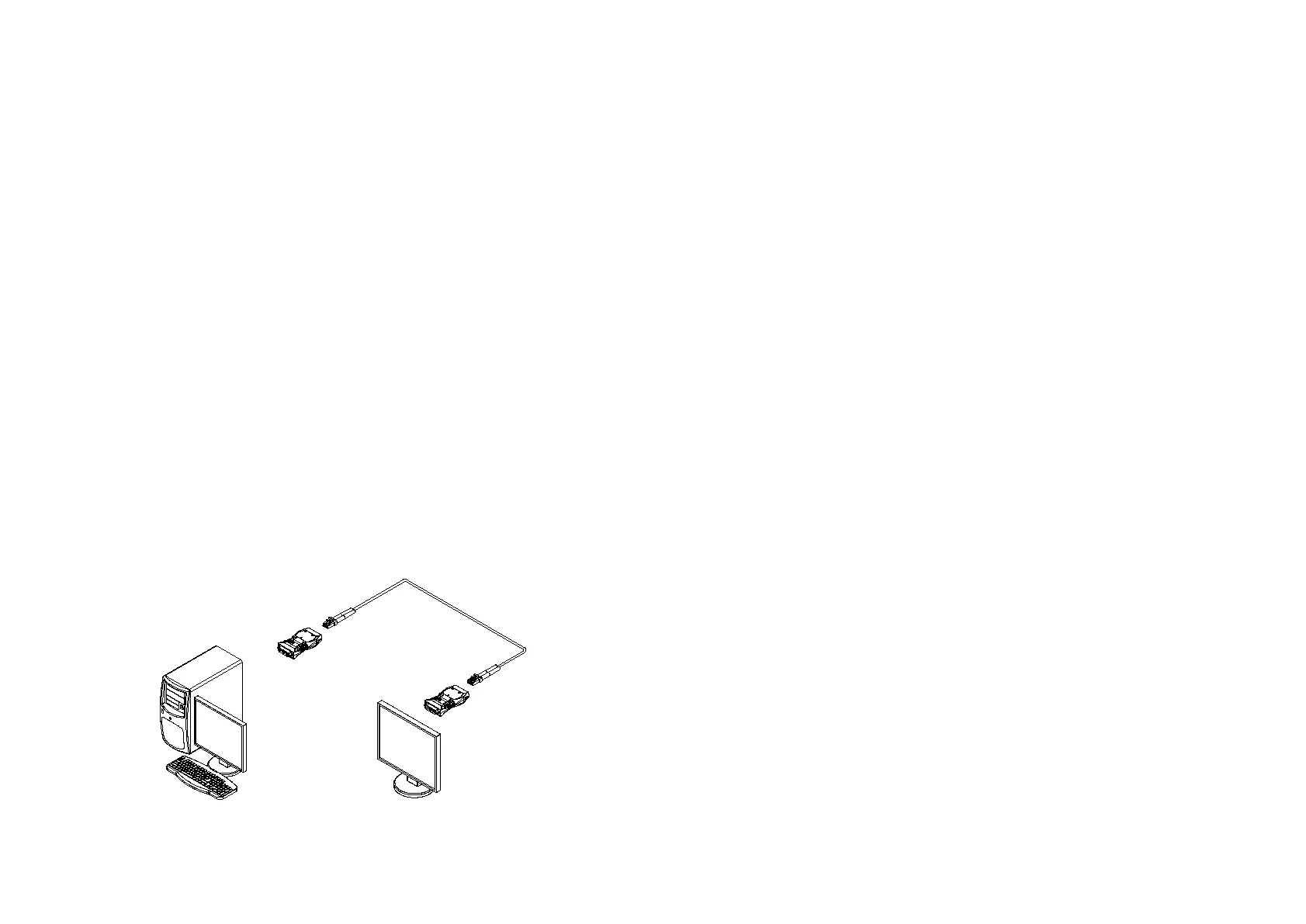

Figure 1 – Connection Diagram of Optical DVI Extension Module

1-1 Welcome, Product Description

Two (2) Optical Fiber

Up to 500m at WQUXGA (3840x2400) @33Hz

Dual link DVI Source

Dual link DVI Display

DDFX-100

System Requirements for Setup

 Hardware requirements

 You must have a DVI graphic controller or card having a DVI port

in your PC, SUN or Mac systems. It should support the maximum

graphic resolution feature of displays to be connected.

 No special requirements for

memory size, CPU speed and

chipsets, if you’ve already properly installed your DVI graphic

controllers or cards.

 Software requirements

 No special restrictions, if you’ve already properly installed your

DVI graphic controller in your OS.

 AC/DC Power Adapter Technical Advisory

The transmitter (Tx) module of DDFX-100-TR is designed for power

protection circuit from conflict of power supply between the external

AC/DC power adapter and your DVI source by #14 pin.

We strongly recommend to use external A

C/DC adapter for

Transmitter (TX) for stable power supplying. In case of Receiver (RX),

power should be supplied by AC/DC adapter due to no internal power

supplying from the displays.

1-2 System Requirements for Setup
