SPIDER

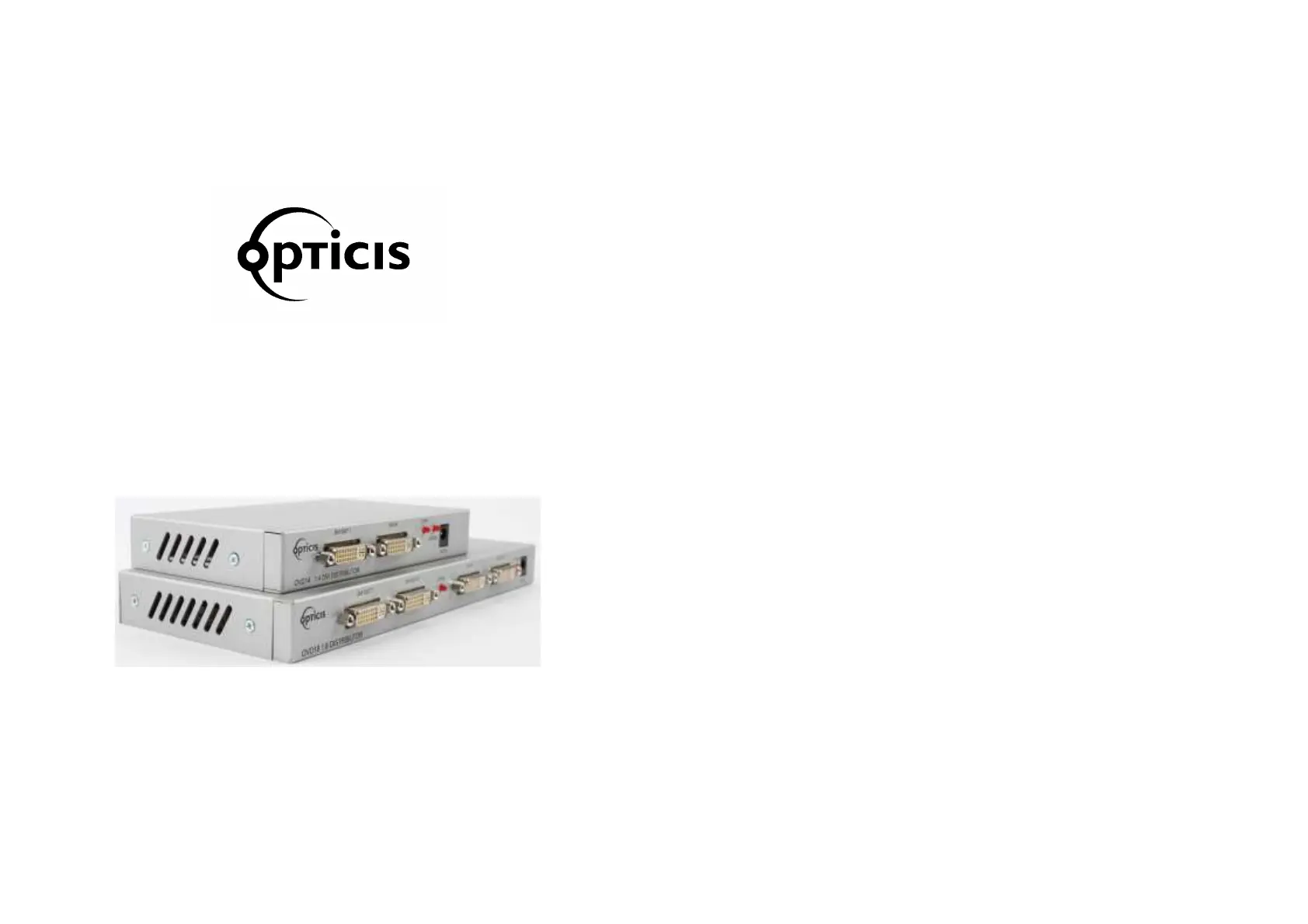

1:4 DVI Distributor (OVD14)

1:8 DVI Distributor (OVD18)

User’s Manual

Doc No. : OD-D130903 / Rev2.8

CONTENTS

Contents 1-1

Introduction 1-2

Specification 1-3

Product picture(OVD14) 1-4

Product picture(OVD18) 1-5

Features 1-6

Installation 1-7

Warranty Information 1-8

Trouble shooting 1-9

1-1 Contents

Package Includes

Each SPIDER

DVI Distributor package includes the following items;

OVD14 or OVD18 SPIDER

DVI Distributor Unit

5V, 2.6A Power Supply Universal adapter

User manual

Safety Precautions

1. To prevent fire or shock hazard, do not expose the unit to rain, moisture

or install this product near water.

2. Never spill liquid of any kind on or into this product.

3. Do not attach the power supply cabling to building surfaces.

4. To protect the equipment from overheating, do not block the slots and

openings in the module housing that provide ventilation.

Introduction

SPIDER

OVD14 and OVD18, DVI Distributor is a high performance HDCP

compliant DVI distributor. It allows same DVI or HDMI signal source split up to

four (OVD14) and eight (OVD18) identical and buffered displays for multi –

viewing purpose.

High Quality Picture - No Signal Loss and Digital Noise Free

Our Distributors are built to deliver the highest quality picture preserving

the native resolutions of the video sources without any signal loss. At the

same time, the digital noises that may affect the picture quality will be

eliminated. Due to the nature of the digital signals and passing through

multiple stages of connection when using distributors, it is important to

eliminate the digital noises and boost the signal strength to preserve

/enhance the video signal quality.

Signal distribution for signal reliability and long length signal

transmission

Our 5V power adapter supplies adequate power to amplify the video

signals from the video source. This is necessary as the overall length from

the video source to the displays is longer when using the distributor

(distance from the video source to the distributor + distance from the

distributor to the display). In most cases, the overall distance that the DVI

signal will need to travel is over 10ft. Due to the nature of DVI signals,

amplification is necessary to warrant the video quality and reliability.

(Without amplification, there may be occasional blackouts or blinking

effects) With this amplification feature, your video display can be extended

using our fiber optical DVI cables.

1-2 Introduction

Produkt Specifikationer

Mærke:	Opticis
Kategori:	Audio/video konverter
Model:	OVD14
Bredde:	160 mm
Dybde:	91 mm
Højde:	25 mm
Vægt:	240 g
Opbevaringstemperatur (T-T):	-20 - 45 °C
Relativ luftfugtighed ved drift (H-H):	30 - 80 %
Driftstemperatur (T-T):	0 - 40 °C
Indgangstype:	1x DVI
Antal udgange:	4 outputs
