Side 1/6
ㅕ
Manual Contents
__________________________________________
Manual Contents 1-0
Welcome! Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting 1-5
Maintenance, Technical Support, and Service 1-6
Product Specifications 1-7
Warranty Information 1-8
Certifications 1-9
Pictorials
Figure 1 – Overall Connection of DPFX-100-TR 1-1
Figure 2 – Position of the LED 1-3
Figure 3 – Fiber numbering & Caution on both fiber ports 1-3
Figure 4 – Connection of optical fiber 1-4
1-0 Manual Contents
User Manual
DPFX-100-TR
Doc No. : OE-DP210106 / Rev1.5
Two (2) fibers Detachable
DisplayPort Extender
Welcome!
Congratulations on your purchase of the two (2) fibers DisplayPort extender,
DPFX-100-TR. This manual contains information that will assist you in
installing and operating the product.
Product Description
New compact optical DisplayPort extender, DPFX-100-TR enables to transmit
WQXGA (2560x1600) at 60Hz and 4K (3840x2160) at 30Hz signal up to 200m
(656feet), avoiding any tricks like scaling or data compression for lessening a
burden of data transmission. It provides total data throughput 10.8Gbps
(2.7Gbps per lane).
The pure fiber connection by two (2) LC fibers connector between transmitter
and receiver, gives clean, secure and easy installation with perfect electrical
isolation, but without electrical hazard and interference. The DPFX-100-TR can
be operated by both USB power by plugging the USB cable and DC power
included as a shipping group.

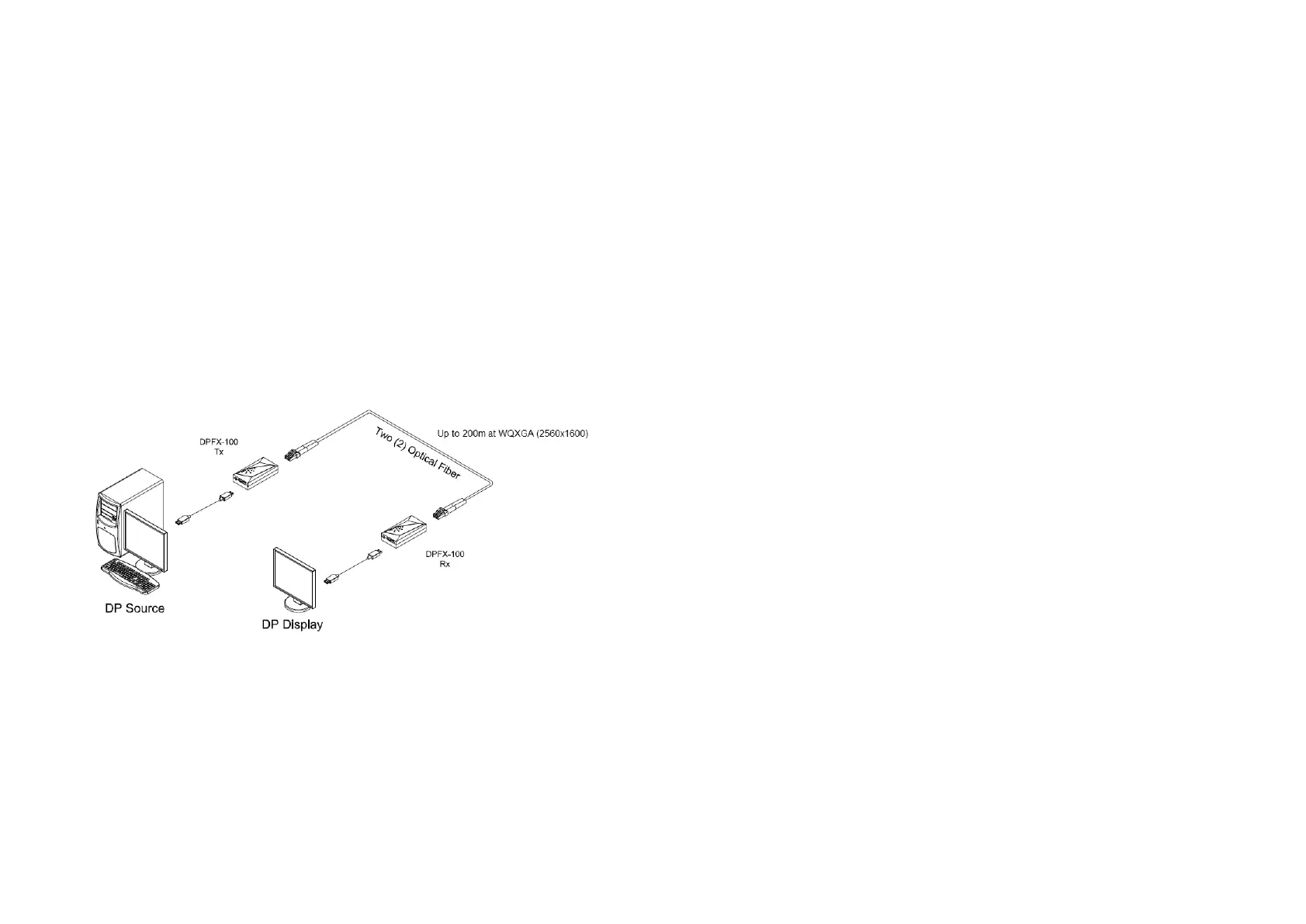

Figure 1 – Overall Connection of DPFX-100-TR
The Shipping Group of DPFX-100-TR;
One (1) Transmitter (Tx) and One (1) Receiver (Rx)
Two (2) DP copper cables (0.5m)
Two (2) USB to DP plug Cables
Two (2) DC +5V,1A power adapters
User Manual
1-1 Welcome, Product Description
System Requirements for Setup
□ Hardware requirements
▪ You must have a DisplayPort source and display. It should
support the maximum graphic resolution feature of displays to
be connected.
▪ No special requirements of memory size, CPU speed and
chipsets, if you’ve already properly installed your DisplayPort
systems or graphic cards.
▪ Proper initial trial of the entire platform with its application using
a short length copper cable is recommended prior to install with
the optical link.
□ Software requirements
▪ No special restrictions, if you’ve already properly installed your
DisplayPort systems.
□ Power Technical Advisory
▪ Enclosed Power Adaptors and USB cables supply power to both
Transmitter and Receiver.
□ Connection Advisory
▪ It is highly recommended that DisplayPort source is directly
connected into DisplayPort display output via DPFX-100-TR
without connection to incompatible distributor, switcher and
selector.
1-2 System Requirements for Setup
