Side 1/6

Manual Contents

__________________________________________

Manual Contents

1-0

Welcome! Product Description

1-1

System Requirements for Setup

1-2

Installation

1-3

Troubleshooting, Maintenance, Technical Support, and Service

1-5

Product Specifications

1-6

Warranty Information

1-7

Certifications

1-8

Pictorials

Figure 1 – Overall Connection of DPFX-300-TR

1-1

Figure 2 – Position of the LED

1-3

Figure 3 – Connection of optical fiber

1-4

1-0 Manual Contents

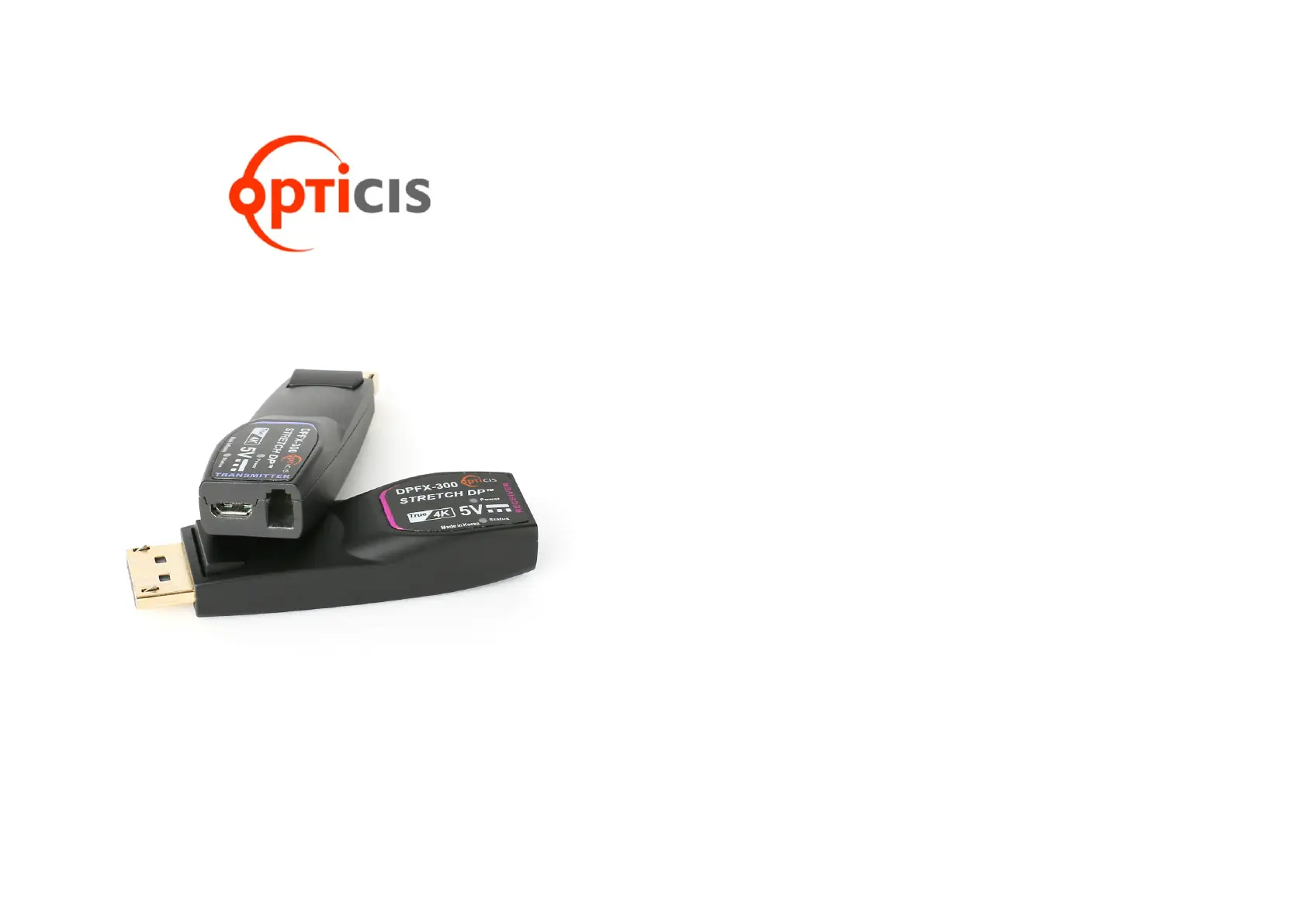

User Manual

DPFX-300-TR

Doc No. : OE-DP211025 / V1.3

One (1) Fiber DisplayPort 1.2

Optical Detachable Extender

Welcome!

Congratulations on your purchase of the one (1) fiber DisplayPort extender,

DPFX-300-TR. This manual contains information that will assist you in

installing and operating the product.

Product Description

DisplayPort 1.2 one(1) fiber optical detachable extender, DPFX-300, extends

DisplayPort 1.2 signal up to 200m (656feet) and transmits 4K UHD

(4096x2160) at 60Hz over one(1) LC multi-mode fiber. Leading-edge

technology of Opticis allows long distance transmission of 4K signal without

any video/audio degradation.

DPFX-300-TR is designed compact enough to be fitted into various installation

environments. It gives slim, light, easy installation with

perfect electrical

isolation, but without electrical hazard and interference.

Between Transmitter (DPFX-300-Tx) and receiver (DPFX-300-Rx), pure fiber

connection by single LC fiber connector gives clean

, secure and easy

installation. Additional DPFX-300-TR can interoperate with DPFX-700 as a

pair.

DPFX-300-TR can be operated by USB power without external DC power

adapter with plugging micro USB (DPFX-300 module side) – USB

(source/display devices side) cable which is supplied in shipping group.

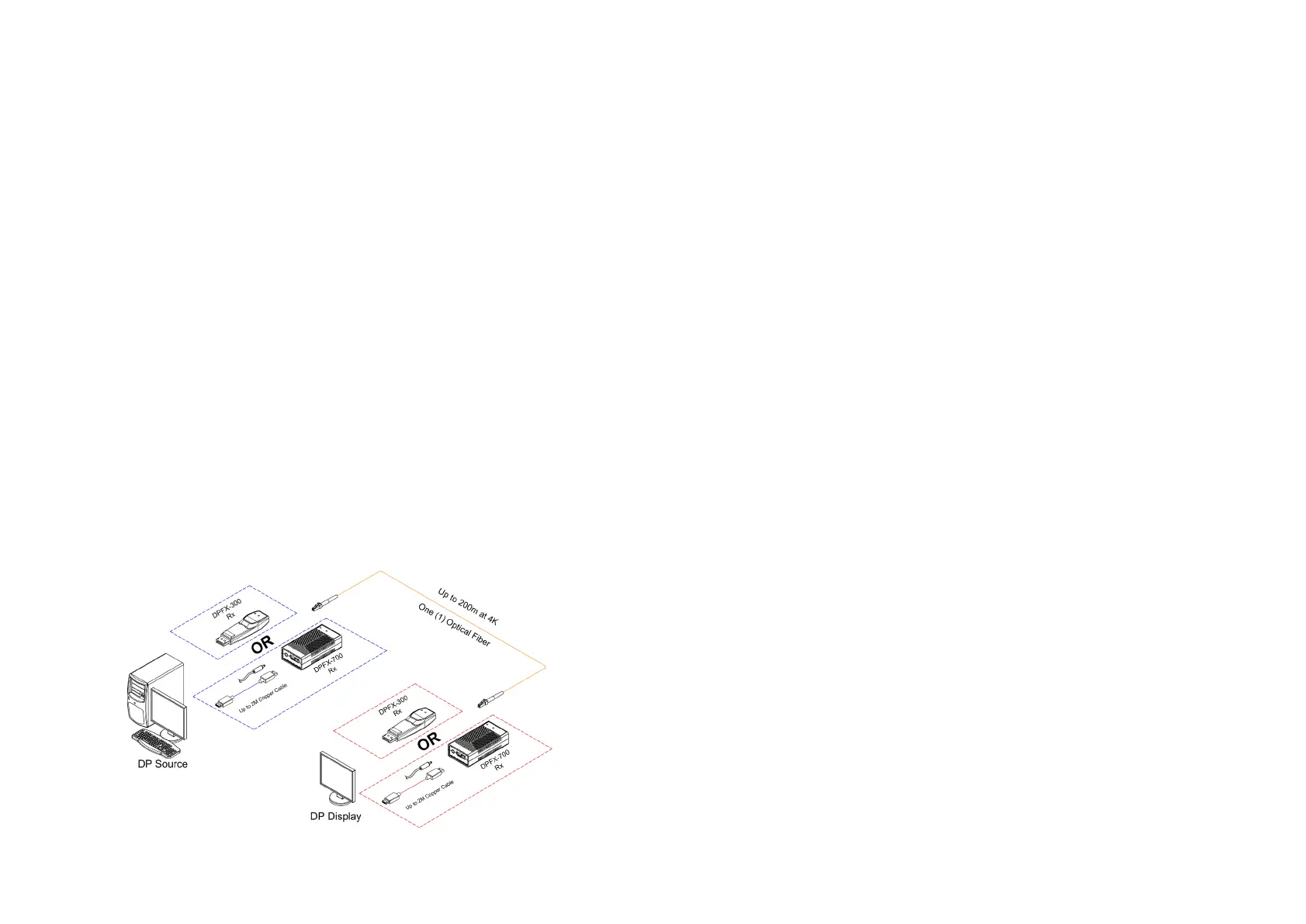

Figure 1 – Overall Connection of DPFX-300-TR

1-1 Welcome, Product Description

System Requirements for Setup

□ Hardware requirements

▪ You must have a DisplayPort source and display. It should

support the maximum graphic resolution feature of displays to

be connected.

▪ No special requirements of memory size, CPU speed and

chipsets, if you’ve already properly installed your DisplayPort

systems or graphic cards.

▪ Proper initial trial of the entire platform with its application using

a short length copper cable is recommended prior to installation

with the optical link.

□ Software requirements

▪ No special restrictions, if you’ve already properly installed your

DisplayPort systems.

□ Power Technical Advisory

▪ Enclosed Power Adaptors and USB cables supply power to both

Transmitter and Receiver.

□ Connection Advisory

▪ It is highly recommended that DisplayPort source is directly

connected into DisplayPort display output via DPFX-300-TR

without connection to incompatible distributor, switcher

and selector.

The Shipping Group of DPFX-300-TR;

 One (1) Transmitter (Tx) and One (1) Receiver (Rx)

 One (1) 0.2m Male to Female DisplayPort copper cable

 Two (2) Micro USB to USB cables

 Two (2) 5V 1A power adapter

 User Manual

※

Default connection is direct connection to both source (Tx side) and

display (RX side)

※

If direct connection is impracticable, 0.2m DisplayPort copper cable

is strongly recommended to use on Tx(Display Source) side only

1-2 System Requirements for Setup

Produkt Specifikationer

Mærke:	Opticis
Kategori:	AV forlænger
Model:	DPFX-300-TR
Type:	AV sender
Bredde:	67 mm
Dybde:	22 mm
Højde:	14 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Opbevaringstemperatur (T-T):	-30 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 85 %
Strømforbrug (typisk):	2 W
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	4096 x 2160 pixel
Forbindelsesteknologi:	Ledningsført
Certificering:	FCC, CE
USB version:	2.0
Antal USB-porte:	1
Plug and play:	Ja
Driftsspænding:	5 V
Fiber optisk strømstik:	LC
Maksimal overførselsafstand:	200 m
USB-drevet:	Ja
USB-stik type:	Micro-USB
Understøttede kabeltyper:	Fiber
AUX udgang:	Ja
DisplayPorts indgang:	1
Fibertilstandsstruktur:	Multitilstand
