Side 1/6

Manual Contents

__________________________________________

Manual Contents

1-0

Welcome! Product Description

1-1

System Requirements for Setup

1-2

Installation

1-3

Troubleshooting, Maintenance, Technical Support, and Service

1-5

Product Specifications

1-6

Warranty Information

1-7

Certifications

1-8

Pictorials

Figure 1 – Overall Connection of HDFX-500-TR

1-1

Figure 2 – Position of the LED

1-2

Figure 4 – Connection of optical fiber

1-3

1-0 Manual Contents

One (1) fiber Detachable

HDMI 2.0 Extender

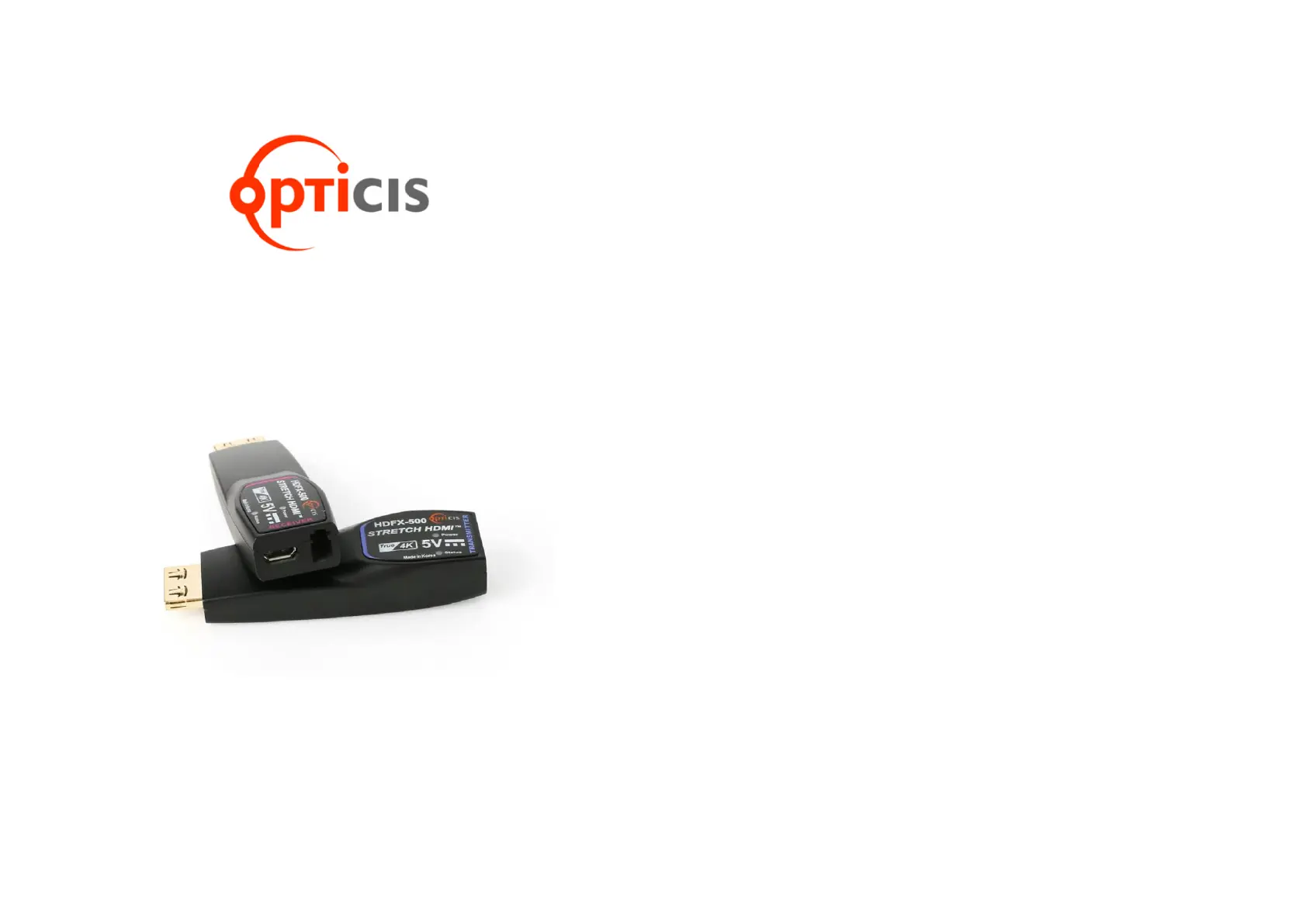

User’s Manual for the

HDFX-500-TR

Doc No. : OE-HD190724 / V. 1.0

Welcome!

Congratulations on your purchase of the one (1) fibers HDMI 2.0 extender,

HDFX-500-TR. This manual contains information that will assist you in

installing and operating the product.

Product Description

HDMI 2.0 optical fiber detachable extender, HDFX-500-TR, extends HDMI

2.0 signal up to 200m (656feet) and transmits 4K UHD (4096x2160) at 60Hz

over one LC multi-mode fiber. Leading-edge technology of Opticis allows long

distance transmission of 4K signal without any video/audio degradation.

HDFX-500-TR is designed compact enough to be fitted into various installation

environments. It gives slim, light, easy installation with perfect electrical

isolation, but without electrical hazard and interference.

HDFX-500-TR adopted High-Retention HDMI connector, which allows for more

retention force than standard HDMI connector, prevents accidental

disconnection.

HDFX-500-TR is compliant with HDMI standards features like CEC, EDID and

HDCP 2.2 for better installation flexibility and compatibility. It also supports

HDR to deliver more realistic, and objective video signal.

HDFX-500-TR can be operated by either USB power or DDC 5V power from

HDMI source (Tx only). Auto Power-Switching feature makes it more reliable

on its power supply.

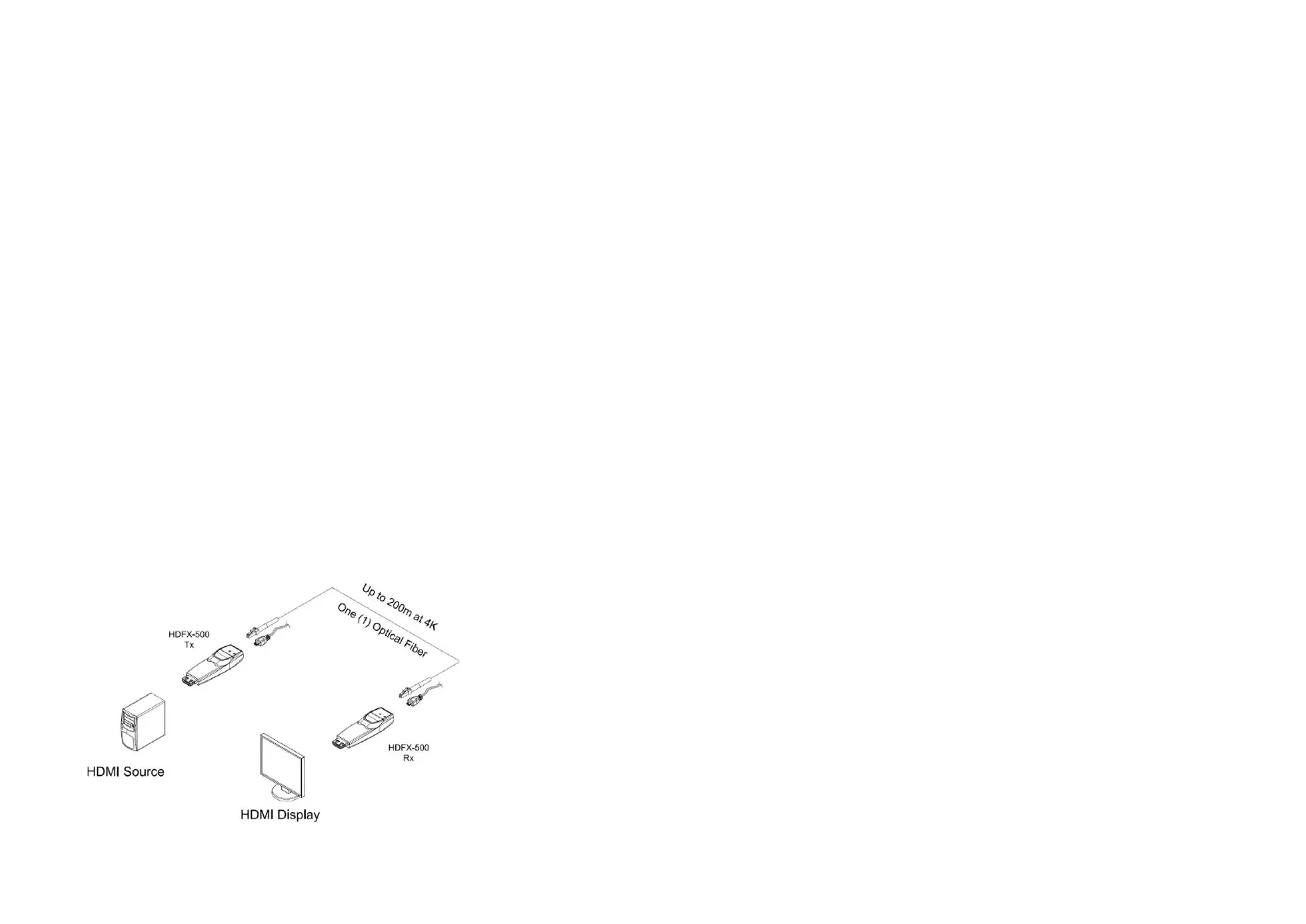

Figure 1 – Overall Connection of HDFX-500-TR

1-1 Welcome, Product Description

System Requirements for Setup

□ Hardware requirements

▪ You have to have a HDMI source and display. It should support

the maximum graphic resolution feature of displays to be

connected.

▪ No special requirements of memory size, CPU speed and

chipsets, if you’ve already properly installed your HDMI systems

or graphic cards.

▪ Proper initial trial of the entire platform with its application using

a short length copper cable is recommended prior to installation

with the optical link.

□ Software requirements

▪ No special restrictions, if you’ve already properly installed your

HDMI systems.

□ Power Technical Advisory

▪ Enclosed Power Adaptors and USB cables supply power to both

Transmitter and Receiver.

□ Connection Advisory

▪ It is highly recommend that HDMI source is directly

connected into HDMI display output via HDFX-500-TR

without connection to incompatible distributor, switcher

and selector.

The Shipping Group of HDFX-500-TR;

 One (1) Transmitter (Tx) and One (1) Receiver (Rx)

 Two (2) Micro USB to USB cables

 Two (2) 5V 1A power adapter

 User’s Manual

 HDMI male to HDMI female Cable (0.2m) – Optional

1-2 System Requirements for Setup

Produkt Specifikationer

Mærke:	Opticis
Kategori:	AV forlænger
Model:	HDFX-500-TR
Type:	AV sender & modtager
Bredde:	67 mm
Dybde:	22 mm
Højde:	14 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sort
3D:	Ja
Opbevaringstemperatur (T-T):	-30 - 70 °C
Relativ luftfugtighed ved drift (H-H):	10 - 85 %
HDCP:	Ja
Strømforbrug (typisk):	2.5 W
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	4096 x 2160 pixel
Forbindelsesteknologi:	Ledningsført
LED-indikatorer:	Activity, Power
USB version:	2.0
Antal USB-porte:	1
Farvedybde:	12 Bit
Driftsspænding:	5 V
Fiber optisk strømstik:	LC
Maksimal overførselsafstand:	200 m
USB-drevet:	Ja
HDMI-version:	2.0
USB-stik type:	Micro-USB
HSMI-indgang:	1
Antal HDMI-udgange:	1
HDCP-version:	2.2
Understøttede kabeltyper:	Fiber, HDMI
Båndbredde:	18 Gbit/sek.
Understøtter forbrugerelektronik (CEC):	Ja
Fibertilstandsstruktur:	Multitilstand
HDCP & EDID bypass:	Ja
