Side 1/6

Manual Contents

______________________________________________________

Manual Contents 1-0

Welcome!, Product Description 1-1

System Requirements for Setup 1-2

Installation 1-3

Troubleshooting, Maintenance, Technical Support 1-5

Product Specifications 1-6

Warranty Information 1-7

Regulatory Statements 1-8

Pictorials

Figure 1 – Fiber-Optic 3G-SDI Extension module 1-1

Figure 2 – Tx Module of SDISE-100 1-2

Figure 3 – SDISE-100 with power adapter 1-3

Figure

– Rx Module of SDISE-100 1-4

Figure 5 – Whole Connection of SDISE-100 1-5

1- 0 Manual Contents

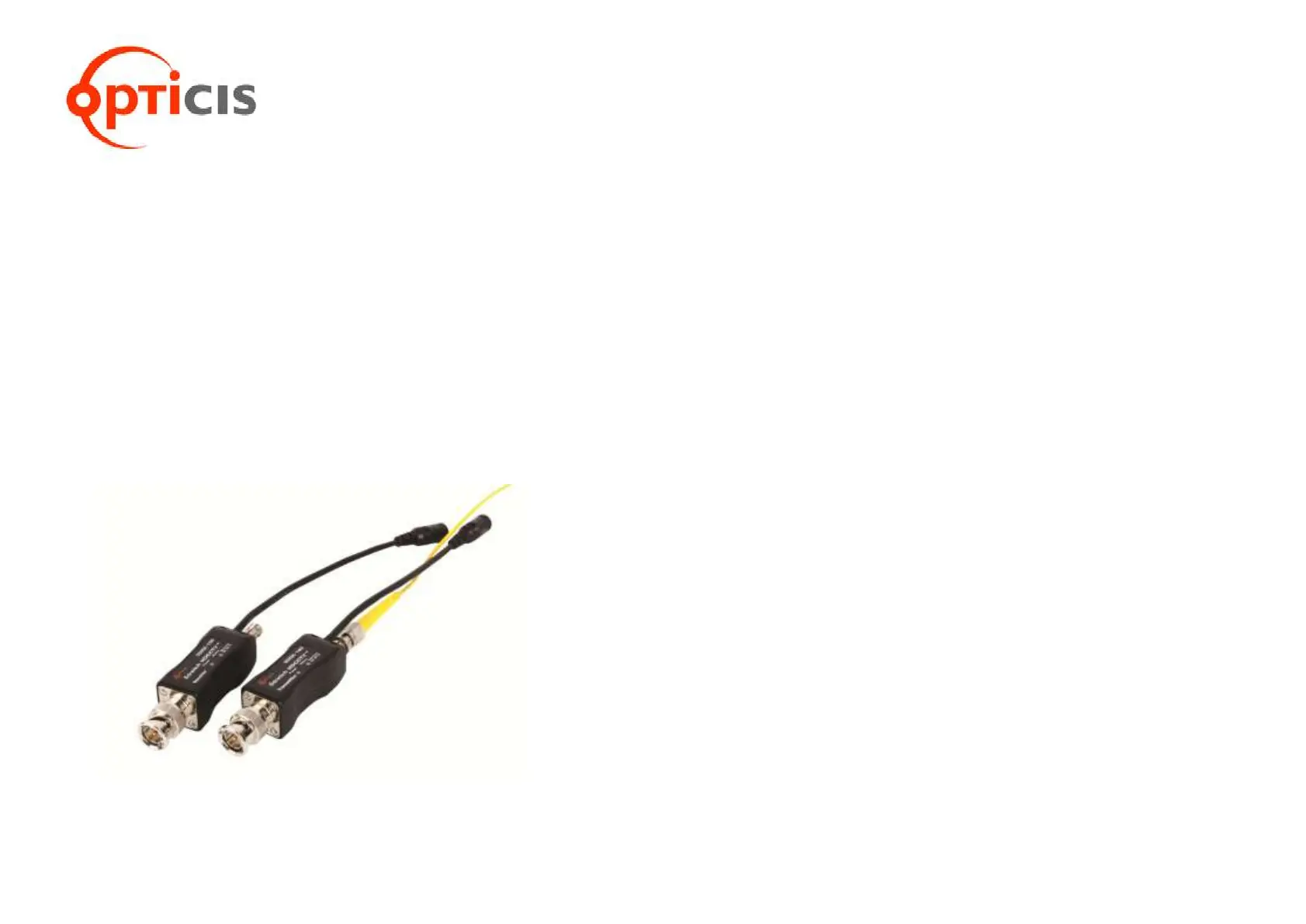

Miniature fiber-optic

3G-SDI extension module

for HDCCTV

User’s Manual

(SDISE-100-TR)

System Requirements for Setup

 Hardware requirements

 You have to have HDCCTV or broadcast products and displays

supporting HD-SDI input / output.

 No special requirements of memory size, CPU speed and

chipsets, if you’ve already properly installed your SDI systems.

 Software requirements

 No special restrictions, if you’ve already properly installed your

SDI systems.

 DC Power Adapter Technical Advisory

 The SDISE-100-TR is designed to use only +5V external

power.

1-2 System Requirements for Setup

Welcome!

Congratulations on your purchase of the Miniature Fiber-Optic 3G-SDI

Extension module, SDISE-100-TR. This manual contains information that will

assist you in installing and operating the product.

Product Description

Shipping Group

 SDISE-100-Tx, Rx Module: One (1) set of unit.

 DC 5V 1A power adapter : Two (2) units

 User’s Manual

 Option: One (1) ST optical cable (single-mode glass fiber)

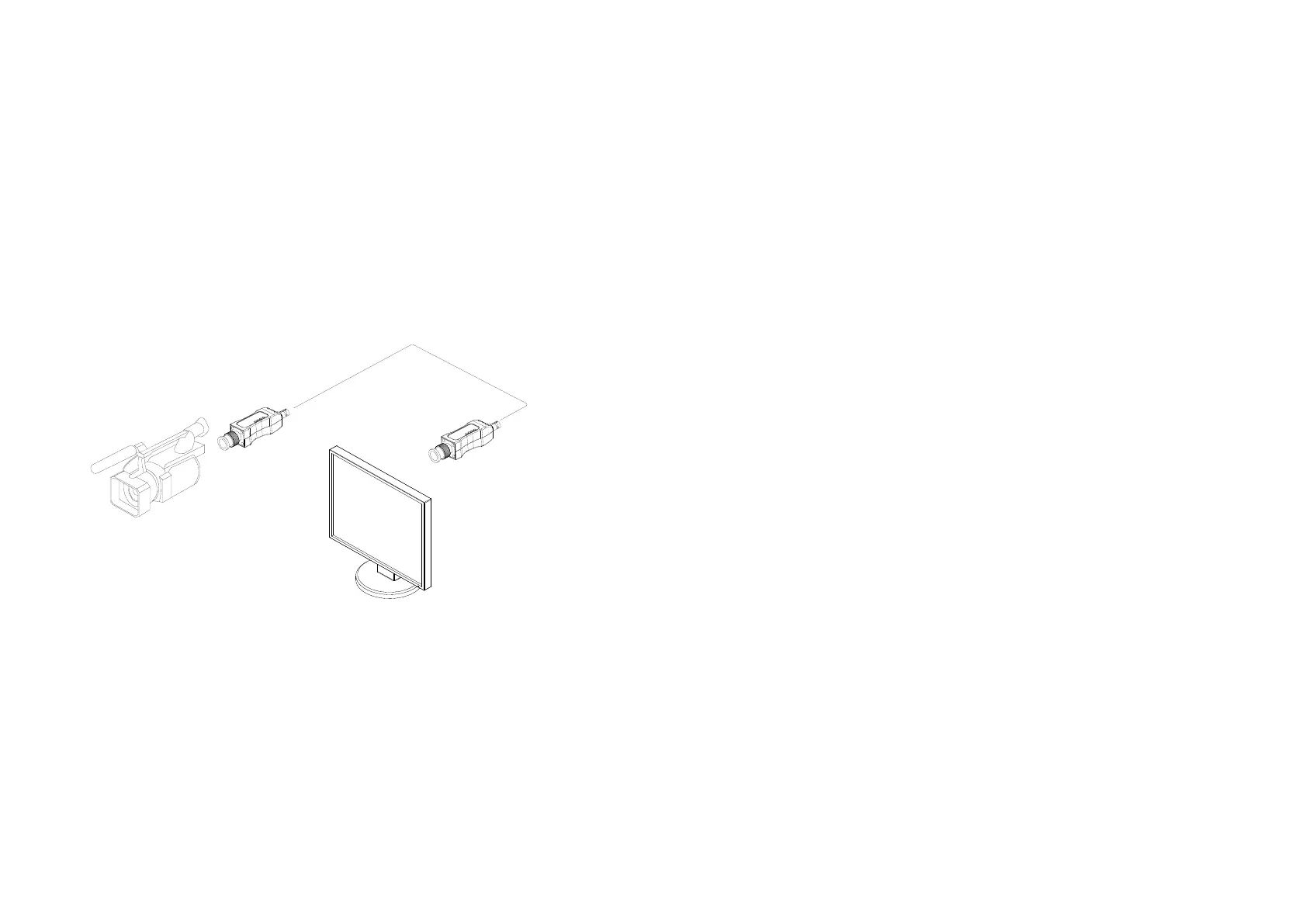

Figure 1 – Fiber-Optic 3G-SDI Extension module

1-1 Welcome, Product Description

SDI Source

SDISE-100-T

SDI Display

SDISE-100-R

Up to 2Km

One (1) Optical Fiber

Produkt Specifikationer

Mærke:	Opticis
Kategori:	AV forlænger
Model:	SDISE-100-TR
Type:	AV sender & modtager
Brugervejledning:	Ja
Understøttede videotilstande:	1080p
Opbevaringstemperatur (T-T):	-30 - 70 °C
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	1920 x 1080 pixel
Dimensioner (BxDxH):	19.5 x 82.7 x 19.5 mm
Understøttede grafikopløsninger:	1920 x 1080 (HD 1080)
Farve:	Ja
Indgangsstrøm:	1 A
Driftsspænding:	5 V
Maksimal overførselsafstand:	2000 m
Understøttede kabeltyper:	Fiber
Båndbredde:	3 Gbit/sek.
