Welcome!
Congratulations on your purchase of the one (1) fiber HDMI extender with
Diagnosis feature, HDX-1F20-TR. This manual contains information that will
assist you in installing and operating the product.
Product Description
HDX-1F20-TR is a high-performance HDMI fiber optical extender, transmitting
4K (4096x2160) at 60Hz up to 300m (984 feet) over one (1) LC multi-mode
fiber (OM3). It offers 3-meter extension for both transmitter and receiver sides,
enhancing installation flexibility. It meets HDMI 2.0 standards and transmits
uncompressed and transparent video signal.
When connecting with BR-600, the built-in Diagnosis function allows remote
monitoring and management for ensuring real-time error detection and
reduced downtime.
Combining robust performance, advanced diagnostics, and versatile extension
options, the HDX-1F20-TR is an ideal solution for demanding AV
installations.

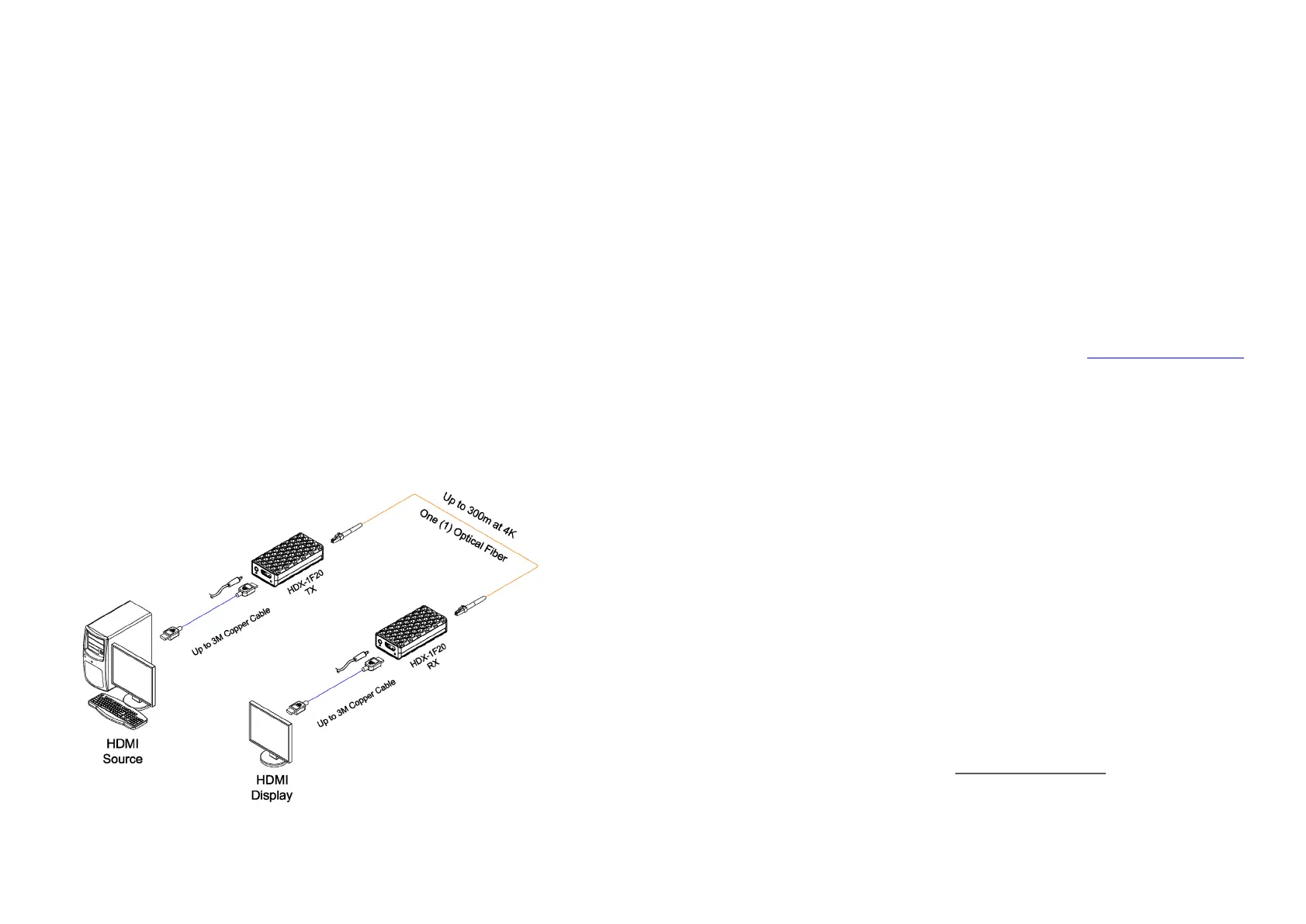

Figure 1 – Overall Connection of HDX-1F20-TR
1-1 Welcome, Product Description
System Requirements for Setup
□ Hardware requirements
You must have a HDMI source and display. It should support the
maximum graphic resolution feature of displays to be connected.
No special requirements of memory size, CPU speed and
chipsets, if you’ve already properly installed your HDMI systems or
graphic cards.
Proper initial trial of the entire platform with its application using a
short length copper cable is recommended prior to the installation
with the optical link.
□ Software requirements
No special restrictions, if you’ve already properly installed your
HDMI systems.
FW upgradable via USB Type-C: contact techsupp@opticis.com
to
download the most recent FW version.
□ Power Technical Advisory
Enclosed Power Adaptors should supply power for both
Transmitter and Receiver.
□ Connection Advisory
It is highly recommended that HDMI source is connected to HDMI
display output via HDX-1F20-TR without any connection with
incompatible distributor, switcher and selector.
The Shipping Group of HDX-1F20-TR;
□ One (1) Transmitter (TX) and One (1) Receiver (RX)
□ Two (2) 2m Male to Male HDMI copper cable
□ Two (2) 5V 1A power adapter
□ User Manual
※ In shipping group, two 2m copper cables are included. Contact the
regional sales representative or
tosales@opticis.com for using 3m copper
cable.
1-2 System Requirements for Setup
