Side 1/8

Manual Contents

__________________________________________

Manual Contents 1-0

Welcome! Product Description 1-1

System Requirements for Setup 1-2

Installation 1-3

Troubleshooting, Maintenance, Technical Support 1-5

Product Specifications 1-6

Warranty Information 1-8

Warning 1-9

Regulatory Statements 1-10

Pictorials

Figure 1 – Optical DVI Extension Module System 1-1

Figure 2 – Auto EDID button 1-3

Figure 3 – Connection of optical fiber 1-4

1-0 Manual Contents

User Manual

M1-201SA-TR

Doc No. : OE-D210222-201SA / Rev3.2

Four (4) Fiber Detachable

DVI Module

Welcome!

Congratulations on your purchase of the Stretch DVI

M1-201SA-TR Optical

DVI (Digital Visual Interface) Extension Module. This manual contains

information that will assist you in installing and operating the product.

Product Description

The M1-201SA-TR optical DVI module transmits four (4) optical data, Red,

Green, Blue and clock and can be extended up to 500 meters (1,640ft) over a

pair of LC duplex multi-mode fibers or four (4) LC simplex multi-mode fibers at

WUXGA (1920x1200) at 60Hz vertical refresh.

The EDID (Extended Display Identification Data) in a display can be read and

restored by just plugging once transmitter to the display. This Auto EDID

programming feature makes the installation of M1-201SA more easy and

flexile at any variable resolution display systems.

For your convenience, UXGA EDID would have been done before shipment

as a default.

Shipping Group

 M1-201SA-TR Optical DVI Extension Module: One (1) pair

 DC power adapter: Two (2) units

 User Manual

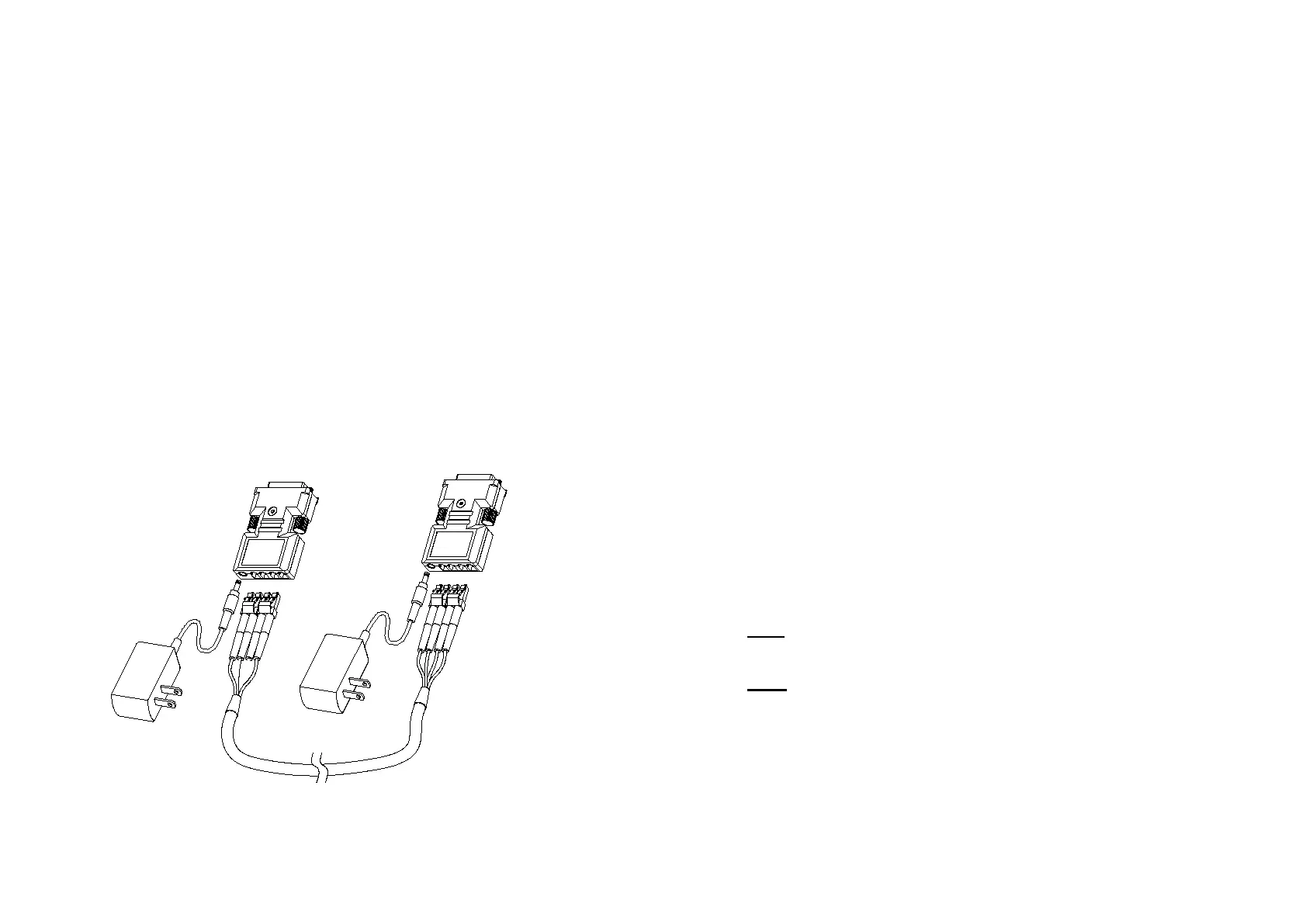

Figure 1 – Optical DVI Extension Modules System

1-1 Welcome, Product Description

System Requirements for Setup

 Hardware requirements

 You must have a DVI graphic controller or card having a DVI port

in your PC, SUN or Mac systems. It should support the maximum

graphic resolution feature of displays to be connected.

 No special requirements for memory size, CPU speed and

chipsets, if you’ve already properly installed your DVI graphic

controllers or cards.

 Software requirements

 No special restrictions, if you’ve already properly installed your

DVI graphic controller in your OS.

 AC/DC Power Adapter Technical Advisory

The transmitter (Tx) module of M1-201SA-TR provides DVI pin that

offers power protection circuit against the conflict of power supply

between the external DC power adapter and your graphic card. It

offers an auto switching function of whether to use an AC/DC power

adapter or not, depending on power supply capability of the graphic

card through the +5V pin, you are using.

However, the receiver (Rx) module should be used with an AC/DC

power adapter.

Tips: In general, most of laptops or desktop PCs with PCI Express graphic

card require AC/DC power adapter for the transmitter module.

Note:

Recommended to use power supply adapters offered by Opticis,

which has short-circuited break features.

1-2 System Requirements for Setup
