Side 1/2

OEM

Barcode laser scanner

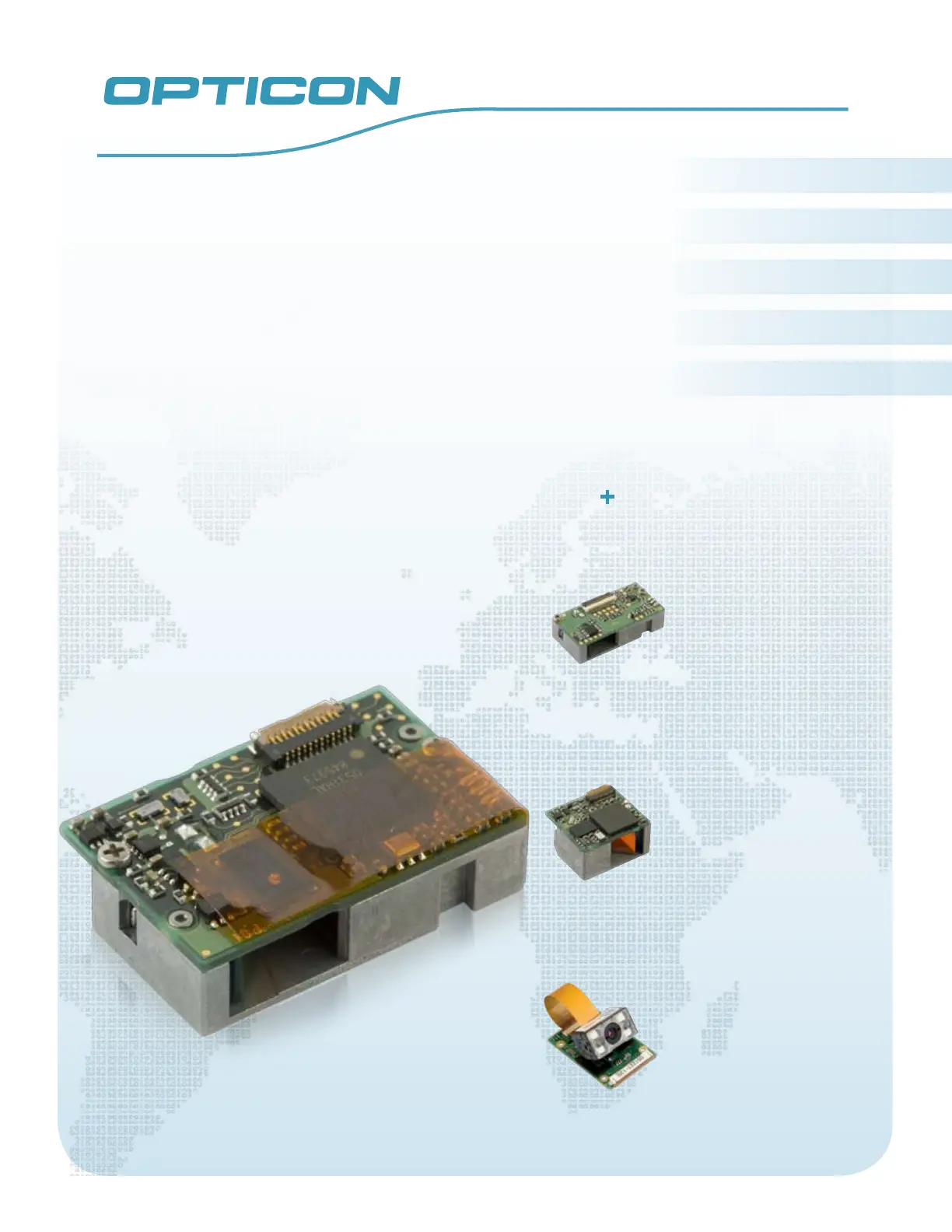

Related products

MDL1000

MSL1000

OEM•

Undecoded device•

Barcode laser scanner•

28 x 7.8 x 14 mm (w x h x d) •

MDL2001

OEM•

Decoded device•

Barcode laser scanner•

20.4 x 11.2 x 18 mm (w x h x d)•

MDI1000

OEM•

Camera + decoderboard•

2D CMOS imager•

MDL1000_001A

Basic Product Speciﬁcations

Communication

Serial CMOS: 12 pin FFC connector•

Power

Voltage requirement: 3.3V • ± 10%

Current consumption: Max. 125mA•

Barcode scanner Optics

Light source: 650 nm visible laser diode•

Scan method: Bi-directional scanning•

Scan rate: 100 scans/sec•

Reading pitch angle: -35 to 0°, 0 to +35°•

Reading skew angle: -50 to -8°, +8 to +50°•

Reading tilt angle: -20 to 0°, 0 to +20°•

Curvature: R>15 mm (EAN8), R>20 mm (EAN13)•

Min. resolution at PCS 0.9: 0.127 mm / 5 mil•

Min. PCS value: 0.45•

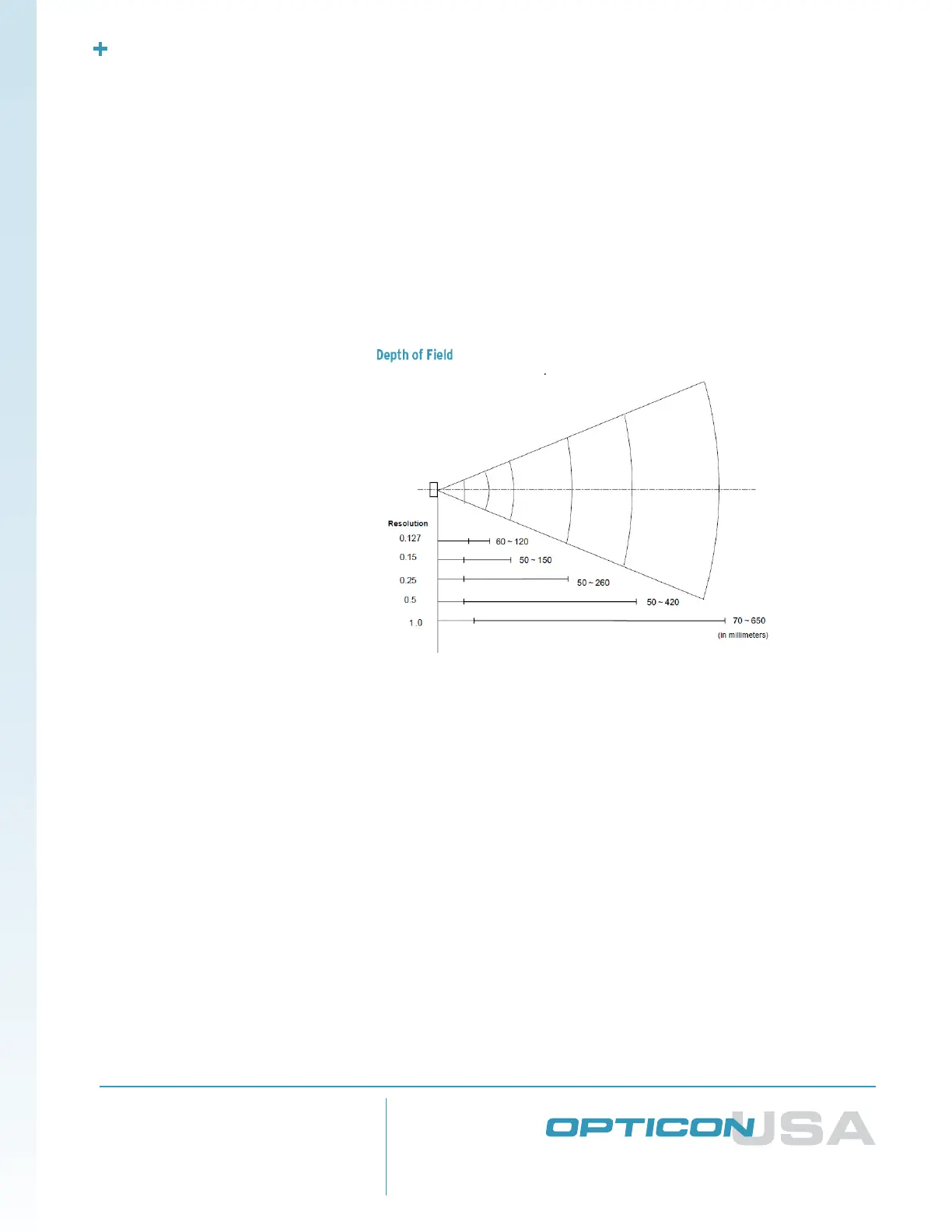

Depth of ﬁeld: At PCS 0.9 Code 39•

70 - 650 mm / 2.76 - 25.59 in (1.0 mm / 39 mil),

50 - 420 mm / 1.97 - 16.54 in (0.5 mm / 20 mil),

50 - 260 mm / 1.97 - 10.24 in (0.25 mm / 10 mil),

50 - 150 mm / 1.97 - 5.91 in (0.15 mm / 6 mil),

60- 120 mm / 2.36 - 4.72 in (0.127 mm / 5 mil)

Supported Symbologies

Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/•

NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128

(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5,

Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/

Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

Postal code: Chinese Post, Korean Postal Authority •

code

2D code: Composite codes, MicroPDF417, PDF417•

Durability

Temperature in operation: -20 to 65 ºC / -4 to 149 ºF•

Temperature in storage: -30 to 70 ºC / -22 to 158 ºF•

Humidity in operation: 5 - 90% (non-condensing)•

Humidity in storage: 5 - 90% (non-condensing•

Ambient light immunity: Fluorescent 4,000 lx max, •

Direct sun 80,000 lx max, Incandescent 4,000 lx

max

Drop test: packed in dummy case 1.8 m / 6 ft drop •

onto concrete surface

MBTF: 30,000 hours except laser diode (10.000 •

hours) and except mirror scan unit (10,000 hours)

Physical

Dimensions (w x h x d):•

28 x 7.8 x 18 mm / 1.10 x 0.31 x 0.71 in

Weight body: Ca. 10 g / 0.35 oz•

Regulatory & Safety

Product compliance: CE, FCC, RoHS, IEC 60825-1 •

Class 2, FDA CDRH Class II

Sold separately

MEK1000 SDK (Development board, Getting started •

disc, RS232 cable)

Connection cable•

Power supply 100-240V/0.5A, 50/60 Hz, 5V/2A•

WWW . O P T I C ONU S A . C O M

- Taiwan: Taipei

- P.R.China: Shanghai

- Australia: Kariong

- Brazil: São Paulo

Opticon, Inc.

2220 Lind Avenue SW

Suite 100

Renton, WA 98057

Toll Free: (800) 636-0090

Local: (425) 651-2120

Fax: (425) 454-0865

Email: sales@opticonusa.com

- The Netherlands: Hoofddorp

- France: Issy Les Moulineaux

- Germany: Dietzenbach

- Italy: Castel Maggiore (BO)

- Spain: Valencia

- Sweden: Järfälla

- United Kingdom: Luton, Bedfordshire

- U.S.A.: Renton, WA

- Japan: Warabi City
