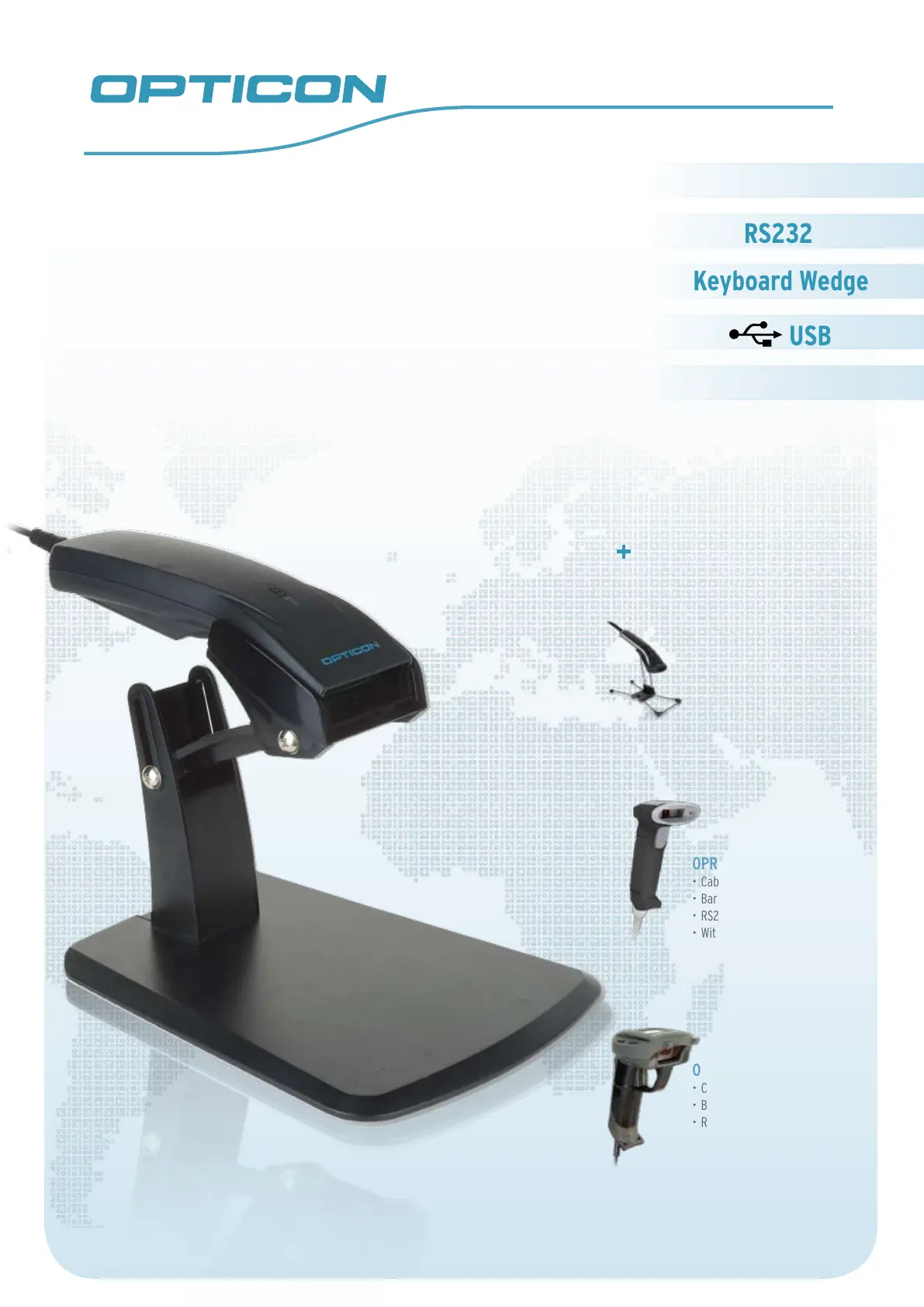

Cabled scanners
Barcode laser scanner
Related products
OPR2001
Cabled device•
Barcode laser scanner•
RS232, Keyboard Wedge, USB•
With auto-trigger stand•
OPR3201
Cabled device•
Barcode laser scanner•
RS232, Keyboard Wedge, USB•
With auto-trigger stand•
OPR3001
Cabled device•
Barcode laser scanner•
RS232, Keyboard Wedge, USB•
OPL6845R
OPL6845R_002
Basic Product Specifications
Operating indicators
Visual: 1 LED (red/green/orange)•
Non-visual: Buzzer•
Operating keys
Entry options:•
1 scan key
Communication
RS232: DB9 PTF connector with external power •
supply
Keyboard Wedge: MiniDIN6 F/M connector•
USB: Ver. 1.1, HID/VCP, USB-A connector•
Power
Voltage requirement: 5V • ± 10% (Keyboard Wedge
and USB), 6V (min. 4.5, max. 6.5V) (RS232)
Current consumption: Max. 250 mA•
Barcode scanner Optics
Light source: 650 nm visible laser diode•
Scan method: Bi-directional scanning•
Scan rate: 100 scans/sec•
Trigger mode: Manual, auto-trigger, stand detection•
Reading pitch angle: -35 to 0°, 0 to +35°•
Reading skew angle: -50 to -8°, +8 to +50°•
Reading tilt angle: -20 to 0°, 0 to +20°•
Curvature: R>15 mm (EAN8), R>20 mm (EAN13)•
Min. resolution at PCS 0.9: 0.127 mm / 5 mil•
Min. PCS value: 0.45•
Depth of field: At PCS 0.9, Code 39•
40 - 500 mm / 1.57 - 19.69 in (1.0 mm / 39 mil),
20 - 350 mm / 0.79 - 13.78 in (0.5 mm / 20 mil),
20 - 200 mm / 0.79 - 7.87 in (0.25 mm / 10 mil),
20 - 100 mm / 0.79 - 3.94 in (0.15 mm / 6 mil),
30 - 70 mm / 1.18 - 2.76 in (0.127 mm / 5 mil)
Supported Symbologies
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/•
NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128
(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5,
Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/
Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code: Chinese Post, Korean Postal Authority •
code
2D code: Composite codes, MicroPDF417, PDF417•
Durability
Temperature in operation: -5 to 50 °C / -23 to 122 °F•
Temperature in storage: -20 to 60 °C / -4 to 140 °F•
Humidity in operation: 5 - 95% (non-condensing)•
Humidity in storage: 5 - 95% (non-condensing)•
Ambient light immunity: Fluorescent 3,000 lx max, •
Direct sun 50,000 lx max, Incandescent 3,000 lx
max
Drop test: 1.5 m / 5 ft drop onto concrete surface•
Vibration test: 10 - 100 Hz with 2G for 1 hour•
Protection rate: IP 42•
Physical
Dimensions (w x h x d):•
57 x 159 x 32 mm / 2.24 x 6.26 x 1.26 in
Dimensions stand (w x h x d): •
160 x 190 x 245 mm / 6.29 x 7.48 x 9.64 in
(excl. scanner)
Weight body: Ca. 90 g / 3.2 oz (excl. cable)•
Weight stand: Ca. 290 g / 10.2 oz•
Case: ABS, Black or White•
Regulatory & Safety
Product compliance: CE, FCC, VCCI, RoHS, •
JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH
Class II
Enclosed items
Power supply 100-240V/0.5A, 50/60 Hz, 6V/2A (for •
RS232)
Stand (optionally sold separately)•
Models
Interface versions: RS232, Keyboard Wedge, USB•
Color versions: Black, White•
Package versions: Stand included, Scanner only•
