Patio Speaker Manual

AP SERIES

Thank you for giving OSD AUDIO the chance to earn your business! We are condent you will nd that OSD oers an outstanding combination of performance

and value in everything we make. To ensure you get the most out of your new patio speakers, please take a moment to read this manual before you get started.

Installing Speakers

These weather resistant patio speakers are manufactured to resist a variety of weather condition. The most ideal place to install these speakers is the undersides

of most eaves and overhangs as they provide the best protection. Like all speakers, they sound the best when placed no more than seven feet apart from each

other, and slightly higher than ear level. If the speakers are more than seven feet apart, toe them in toward the center of the listening area.

These speakers are not waterproof and cannot be submerged under water.

Placing Speakers

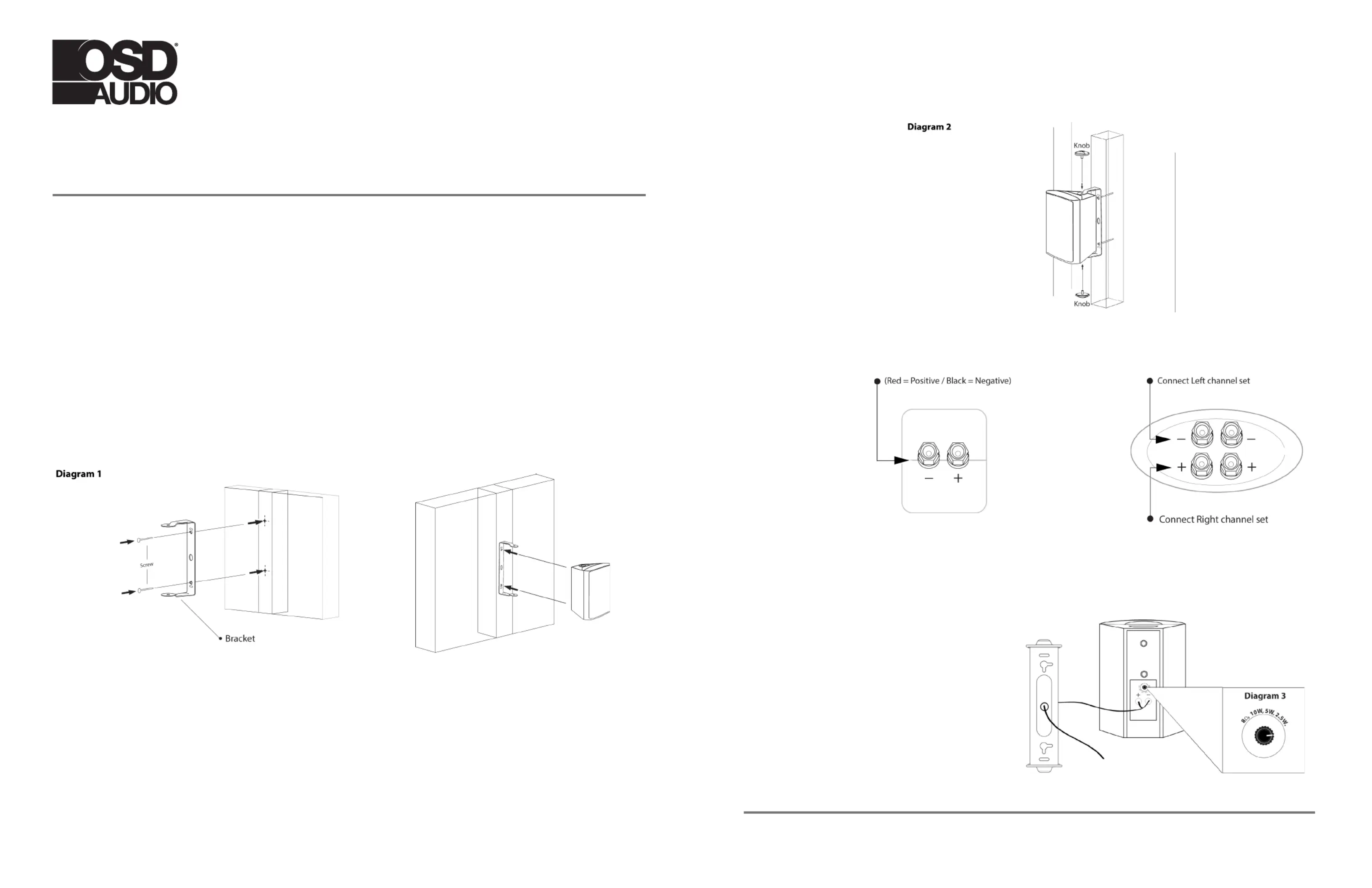

If your application requires the speaker to be mounted, please follow these directions. Using the hardware supplied, mount the bracket rst. Attach the

speakers to the brackets using the large plastic knobs supplied.

Never mount a speaker on a wall made of unreinforced drywall or plasterboard.

If you are unsure,consult a professional contractor. (See Diagram 1)

Painting the grilles

The metal grilles may also be painted. Use very thin paint (5:1). It will be easier to paint the grilles while it is o the speaker. Avoid plugging up the holes with

excess paint. First remove the grille fom the speaker using spray paint lightly go over the front of the grille and then go over the back of the grille. Two coats

may be nessesary for desired look. The binding post speaker terminals on the speakers will accommodate up to 12-guage wire. When using 70V amplier

output, please select a power setting through the knob switch. When connecting the speakers, it is very important to observe the correct polarity. This means

that the wire attached to the (+), red, or positive terminals on one component must be attached to the (+), red, or positive terminal on the corresponding

component speaker output terminals. Similarly, the (-), Black, Negative or ground terminals must connect to the respective (-), Black, Negative, or ground

terminals. This is easy to do by locating the color stripes that appears on most wire.

Mounting

To install the bracket on the speaker. Screw the bracket knobs into the cabinet. Point the speaker toward the listening area. Once the direction of the

speaker has been determined tighten the bracket knobs securely. (See Diagram 2)

WIRING

Connect the speaker cable to the speaker cable terminals, matching the proper polarity with your amplier, + to + (red) and - to - (black). Make sure to

connect the right channel to the right speaker and the left channel to the left speaker . Either channel may be attached to either terminals set, however, be

sure that polarity ( + and - ) is correct on each channel or the performance of the speaker will be seriously aected as one channel will cancel out the other.

L/R Pair Speaker

70 Volts consideration

(Applicable to only 70V tap speakers)

The 70V transformer oers you the ability to

daisy chain multiple number of speakers in

series. In doing so, you would simply connect 1

pair of outputs to each speaker and daisy chain

to subsequential speaker/s. If you don’t intend

to daisy chain the speakers, set the default

setting to 8 ohms. (See Diagram 3)

Single - Stereo

AP850 / AP840 / AP670 / AP650 /

AP650T ( 70 ) /AP650TT /

AP640 / AP640T ( 70V )

AP525 / AP520T ( 70V )

AP490 / AP450

AP650TT

AP525

Warranty & Repair

All OSD AUDIO speaker products have (1) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany all claims.

During the warranty period OSD AUDIO will replace any defective part and correct any defect in workmanship without charge for either parts or labor.

OSD AUDIO may replace returned speakers with a product of equal value and performance. In such case, some modications to the mounting

may be necessary and are not OSD AUDIO’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD AUDIO.

The unit must be returned to OSD AUDIO at the owner’s expense and with prior written permission. Accidental damage and shipping damage

are not considered defects, noris damaged resulting from abuse or from servicing performed by an agency or person not specically

authorized in writing by OSD AUDIO.

OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service.

Any OSD AUDIO product purchased from an unauthorized dealer or other source, including retailers, mail over dealers and online sellers will not be

honored or serviced under existing OSDAUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by

OSD AUDIO shall void the warranty on the applicable product.

Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be made on the

basis of the retail value of the parts and labor. To return for repairs, you must email customer service at RMA@OSDAUDIO.com for a Returned Merchandise

Authorization (RMA) number # then the unit must be shipped to OSD AUDIO at the owner’s expense, along with a note explaining the nature of service

required. Be sure to pack the speaker(s) in a corrugated container with at least 3 inches of resilient material to protect the unit from damage in transit.

This Warranty Does Not Cover:

Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) • Any products that have been altered or modied • Any product

whose identifying number of decal, serial #, etc. has been altered, defaced or removed • Normal wear and maintenance.

Specications

Patio Speakers

AP850 AP650AP670

AP520T (70V)

AP840

AP640 AP640T (70V)

AP450

AP490

AP650TT

AP525

Speaker Type:

Tweeter:

Woofer:

Impedance:

Sensitivity:

70V Tap: (optional)

Bass port:

Frequency Response:

Power Handing:

Dimensions: (H x W x D)

Unit of Measure:

Speaker Type:

Tweeter:

Woofer:

Impedance:

Sensitivity:

70V Tap: (optional)

Frequency Response:

Power Handing:

Dimensions: (H x W x D)

Unit of Measure:

Speaker Type:

Tweeter:

Woofer:

Impedance:

Sensitivity:

70V Tap: (optional)

Frequency Response:

Power Handing:

Dimensions: (H x W x D)

Unit of Measure:

8” Ultra Patio Speaker

2” Silk Dome

8” Polypropylene

8 

90dB

40W,30W,25W,20W

Yes

37Hz-22kHz

200 Watts

15” ⁄ x 11” x 10”

Pair

6 ⁄” Ultra Patio Speaker

1” Silk Dome

6 ⁄” Polypropylene

8 

90dB

N/A

Yes

37Hz-22kHz

150 Watts

11 ⁄ ” x 8 ⁄” x 7 ⁄”

Pair

6 ⁄” Ultra Patio Speaker

1” Silk Dome

6 ⁄” Waterproof Paper Cone

8 

90dB

N/A

Yes

44Hz-22kHz

120 Watts

14 ⁄ ” x 8 ⁄” x 7 ⁄”

Pair

5 ⁄” High Performance

Ultra Patio Speaker

¾” Silk Dome

5 ⁄” Polypropylene

8 

88dB

4W, 8W, 16W, 30W

50Hz-22kHz

120 Watts

9” ⁄ x 11⁄” x 6 ⁄”

Pair

8” High Performance

1” Silk Dome

8” Polypropylene

8 

90dB

N/A

Yes

30Hz-22kHz

200 Watts

14 ¾” x 11” x 9 ⁄”

Pair

6 ⁄ High Performance”

Patio Speaker

1” Silk Dome

6 ⁄”Polypropylene

8 

89dB

4W, 8W, 16W, 30W

38Hz-20kHz

150 Watts

11 ” ⁄ x 8 ⁄” x 7 ⁄”

Pair

6 ⁄ High Performance”

Patio Speaker

1” Silk Dome

6 ⁄”Polypropylene

8 

89dB

4W, 8W, 16W, 30W

38Hz-20kHz

150 Watts

11 ” ⁄ x 8 ⁄” x 7 ⁄”

Pair

4” Ultra Patio Speaker

⁄” Mylar Dome

4” Polypropylene

8 

90dB

N/A

58Hz-22kHz

100 Watts

7 ¾” x 5 ⁄” x 4 ⁄”

Pair

4” Ultra Patio Speaker

1” Silk Dome

4” Polypropylene

8 

88dB

N/A

60Hz-22kHz

100 Watts

9 ⁄ ” x 5 ⁄” x 5 ⁄”

Pair

6 ⁄” Single Stero Patio

Speaker

1” Silk Dome × 2

6 ⁄” Waterproof Paper Cone

8  x 2 (stereo) 16  (mono)

90dB

N/A

44Hz-22kHz

120 Watts

14 ” x 8” x 8”

Each

5 ⁄” High Performance

Patio Speaker

1” Silk Dome

5 ⁄” Polypropylene

8  x 2 (stereo) 16  (mono)

90dB

2.5W,5W,10W,15W, 20W

45Hz-22kHz

120 Watts

9 ⁄ ” x 7 ⁄” x 6 ⁄”

Pair

AP650T (70V)

6 ⁄” Ultra Patio Speaker

1” Silk Dome

6 ⁄” Polypropylene

8 

89dB

2.5W,5W,10W,15W

Yes

37Hz-22kHz

175 Watts

11 ⁄ ” x 8 ⁄” x 7 ⁄”

Pair

OSD AUDIO • 775 Columbia St • Brea • CA • 92821 • www.osdaudio.com • Tel (562) 697-2600
