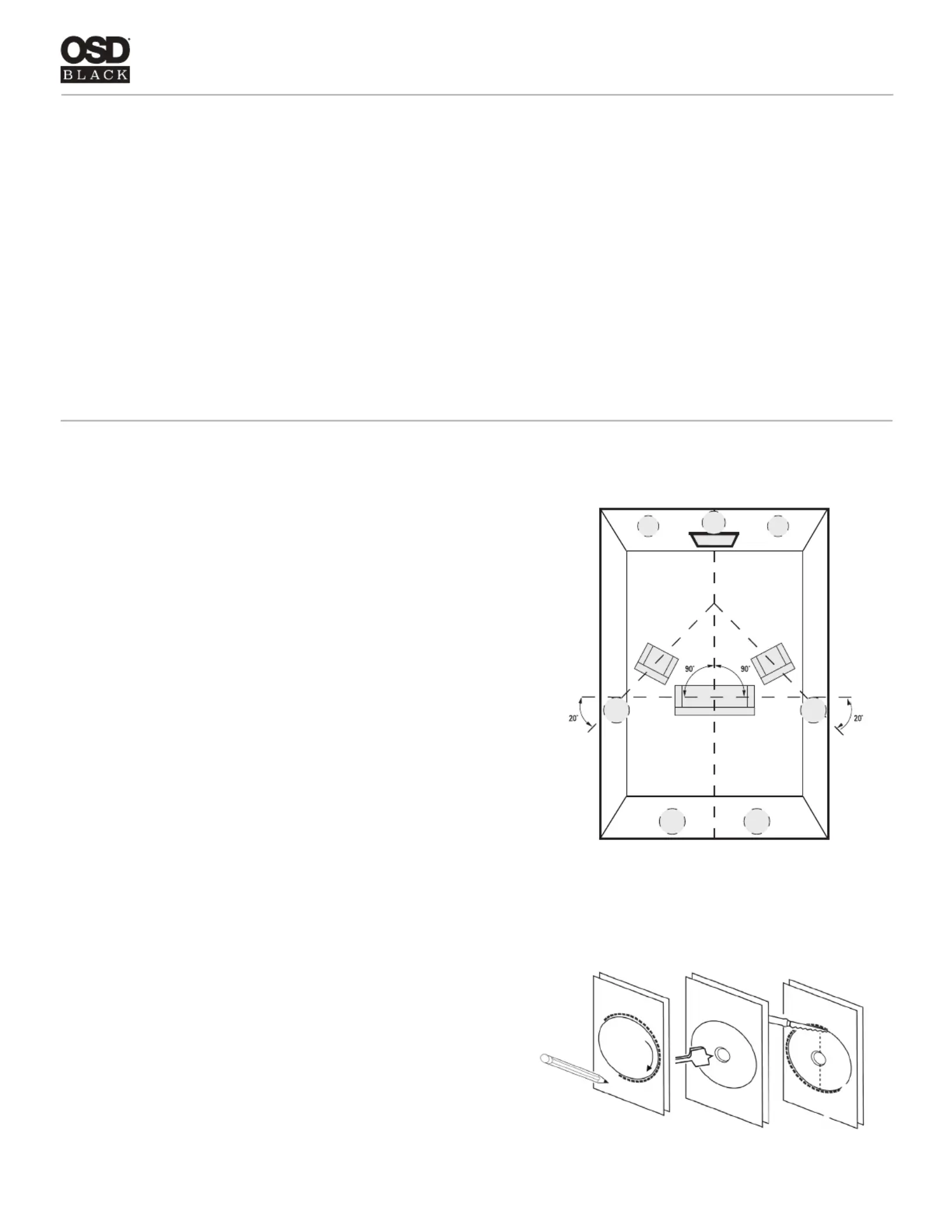

BLACK SERIES INSTALL GUIDE

Preparation:

Installation:

Tools For Installation Speaker Wire Guide

Considerations

Cut Out

Placement

- Pencil

- Drill

- Tape Measure

- Wire Cutter

- Phillips Screwdriver

- Utility Knife

- Safety Eye Wear

- Gloves

- Sandpaper

- Where is the best place to install the speakers?

- Where do the speakers sound the best?

- Separate the speakers 6 - 10 feet apart.

- (For Ceiling LCR models only) Place speakers with the 15°

angled woofer pointed towards the main listening area.

- If you intend to paint the grilles, do so before installation.

NOTE: This is the most important part of the entire installation.

If you are not certain whether any obstructions exist behind the

desired mounting area, you should start by cutting a small hole in

the center of your penciled mounting hole with a drywall saw.

Trace along the included template. Cut along the traced line using a

drywall saw or rotary drill. Use a piece of sandpaper to sand down the

cut out edge for a smoother contour. (See Diagram 2.)

There are many options for proper speaker placement depending

XSRQVSHDNHUW\SHDQGDSSOLFDWLRQ,W·VLPSRUWDQWWRFDUHIXOO\SODQWKH

placement of your speakers, as installation requires that you cut a

hole in your wall or ceiling.

(See Diagram 1.) Typical speaker placement for a 5.1 and 7.1

speaker system.

18AWG minimum - for distances up to …………………. 10 ft

16AWG - from …………………………………..…... 10 to 50 ft

14AWG - from …………………………………...… 50 to 100 ft

Diagram 2

Diagram 1

BLACK SERIES INSTALL GUIDE

Mounting

Connection

Adjustment

Pivoting Tweeter

Tighten the mounting brackets by simply turning the screws on

WKHIURQWRIWKHVSHDNHUEDIÁHVORZO\FORFNZLVH7KHTXLFNWXUQ

mounting system and frame will “sandwich” or clamp around the

dry-wall to hold the speaker securely in place once fully tightened

to the locked position.

(See Diagram 3.)

:KHQFRQQHFWLQJDQ\VSHDNHUVWRWKHDPSOLÀHURUUHFHLYHUDOZD\V

make sure the power is off. Locate the connection terminals on the

EDFNRI\RXUUHFHLYHURUDPSOLÀHU$OZD\VPDNHVXUHWRFRQQHFWDX-

GLRRXWIURPWKHEDFNRI\RXUUHFHLYHURUDPSOLÀHUWRWKHVSHDNHUV

(See Diagram 4.)

NOTE:1RWDOO$PSOLÀHU5HFHLYHUVFDQVDIHO\SOD\PRUHWKDQRQH

SDLURIVSHDNHUVDWRQFH3OHDVHUHIHUWR\RXURZQHU·VPDQXDOIRU

impedance and wattage compatibility.

On select models ( *Performance, Reference ) of OSD Black

Series, a front mounted 3 position ±3dB treble contour switch can

be used to tailor high frequencies according to speaker placement

or the listeners preference.

(See Diagram 5.)

* Excludes Shallow Mount Series

Your Black series speaker comes from the factory with the

tweeter centered in the neutral position. This will provide the

smoothest response. However, select models come with a

pivoting tweeter so you can focus the sound directly towards the

listening area if needed. In order to do this, carefully press on the

HGJHRIWKHWZHHWHUEDIÁHLQWKHGLUHFWLRQ\RXZLVKWRIRFXVWKH

sound. (See Diagram 6.)

CAUTION: When adjusting the pivoting tweeter be sure not to

touch the dome as you may cause damage to the speaker.

Left Out

Left Speaker

5HF$PS

Right Out

Right Speaker

- -

+ +

Press Here to

Pivot Tweeter

Open PositionLocked Position

Diagram 3

Diagram 4

Diagram 5

Diagram 6
